PEBA Ratchet Crimping Tool Kit with Dupont & JST-XH Connectors | AWG 32-20, 2.54mm & 2.5mm

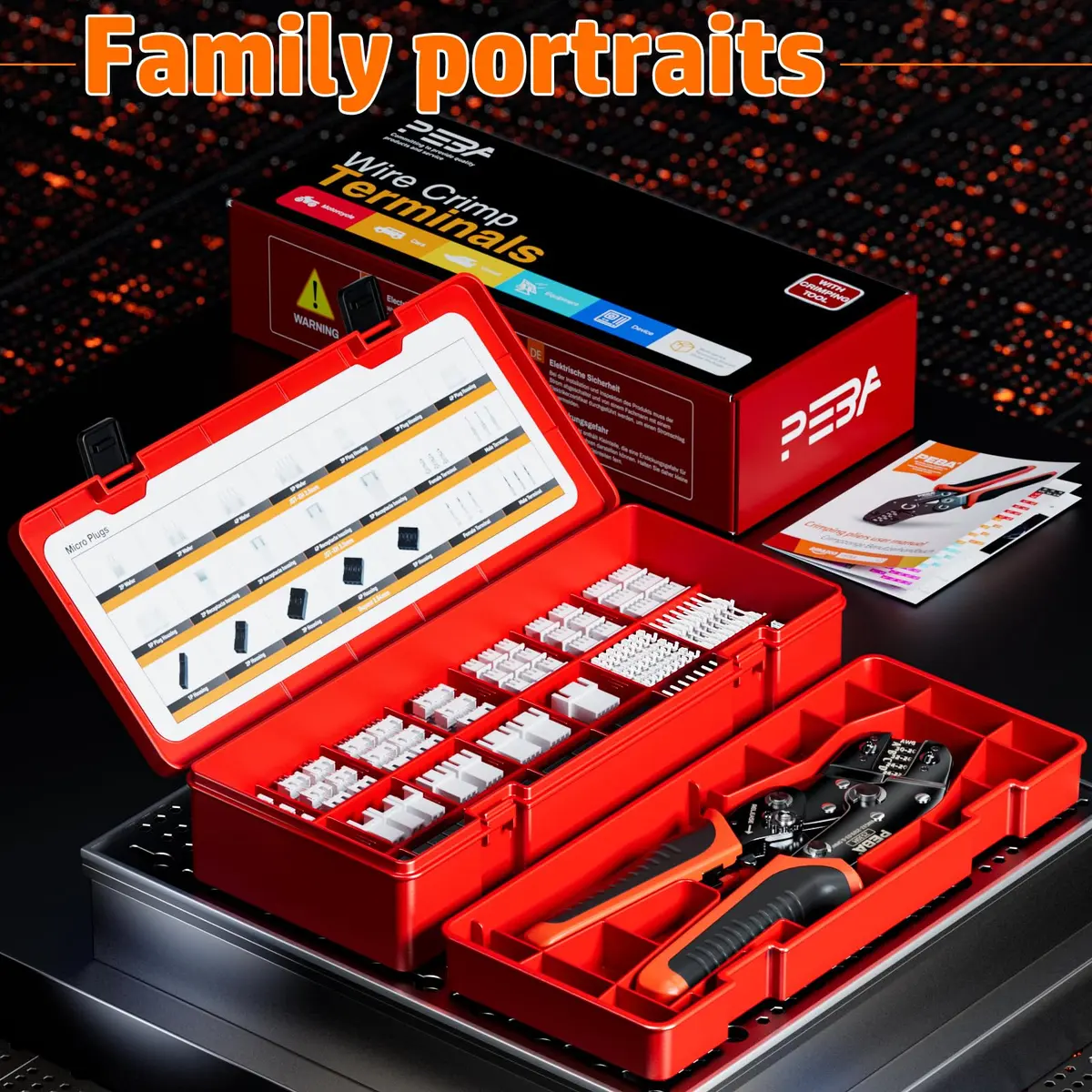

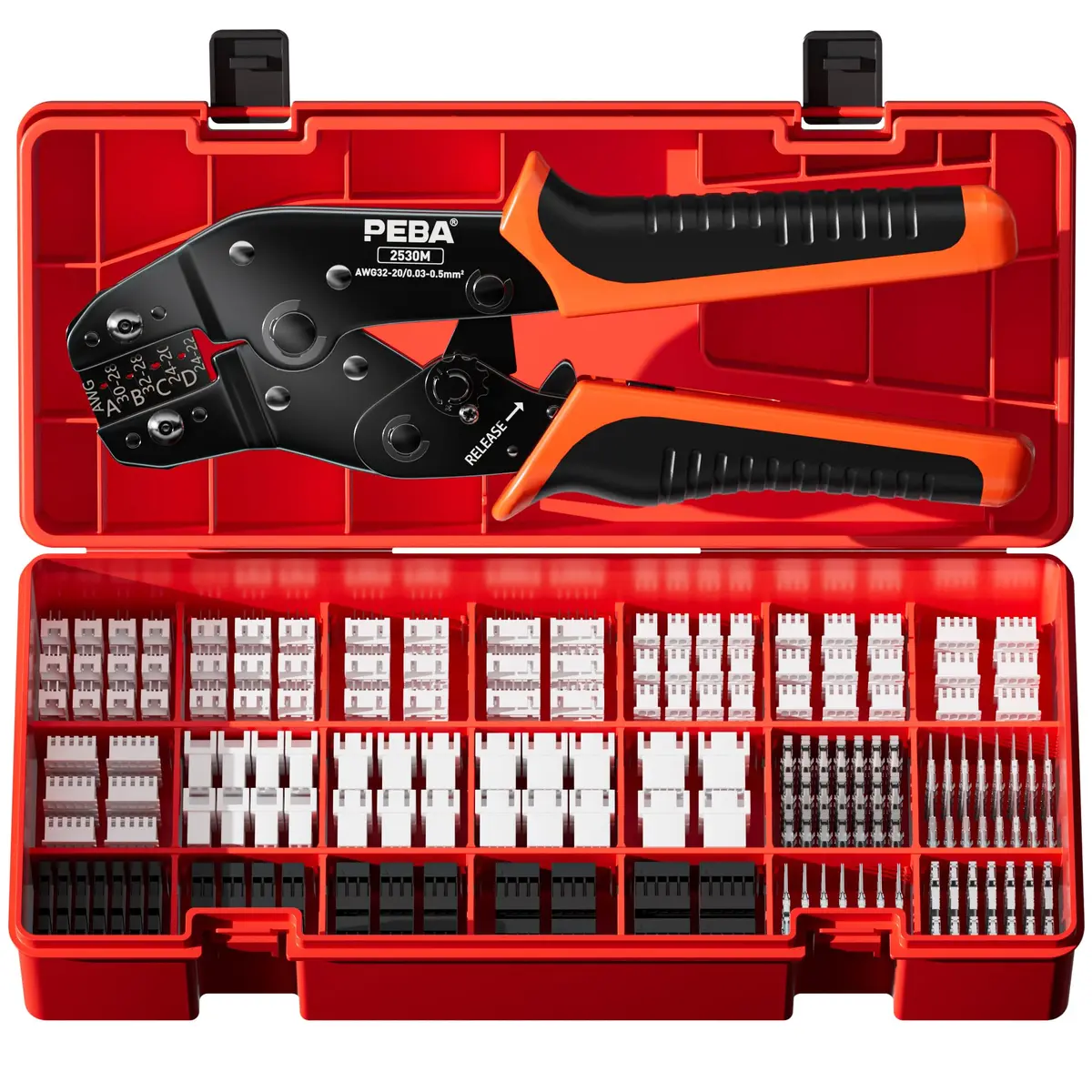

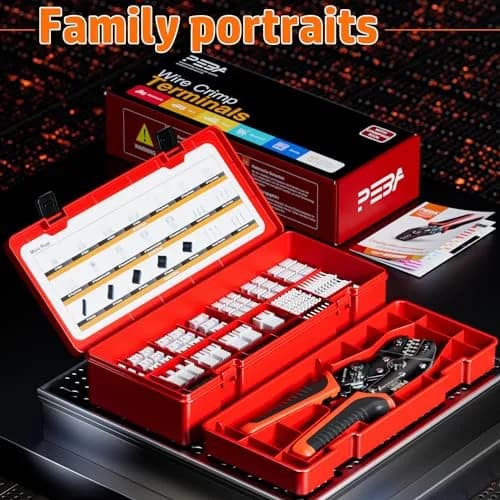

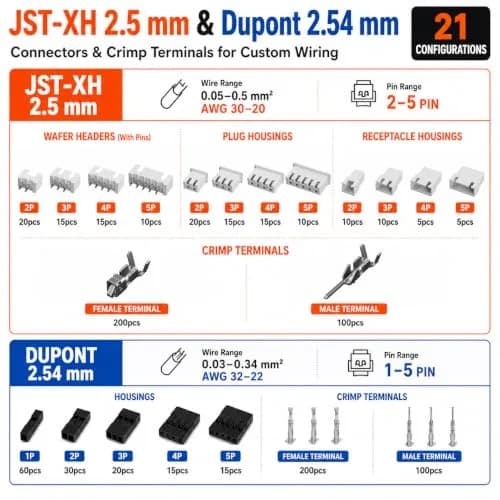

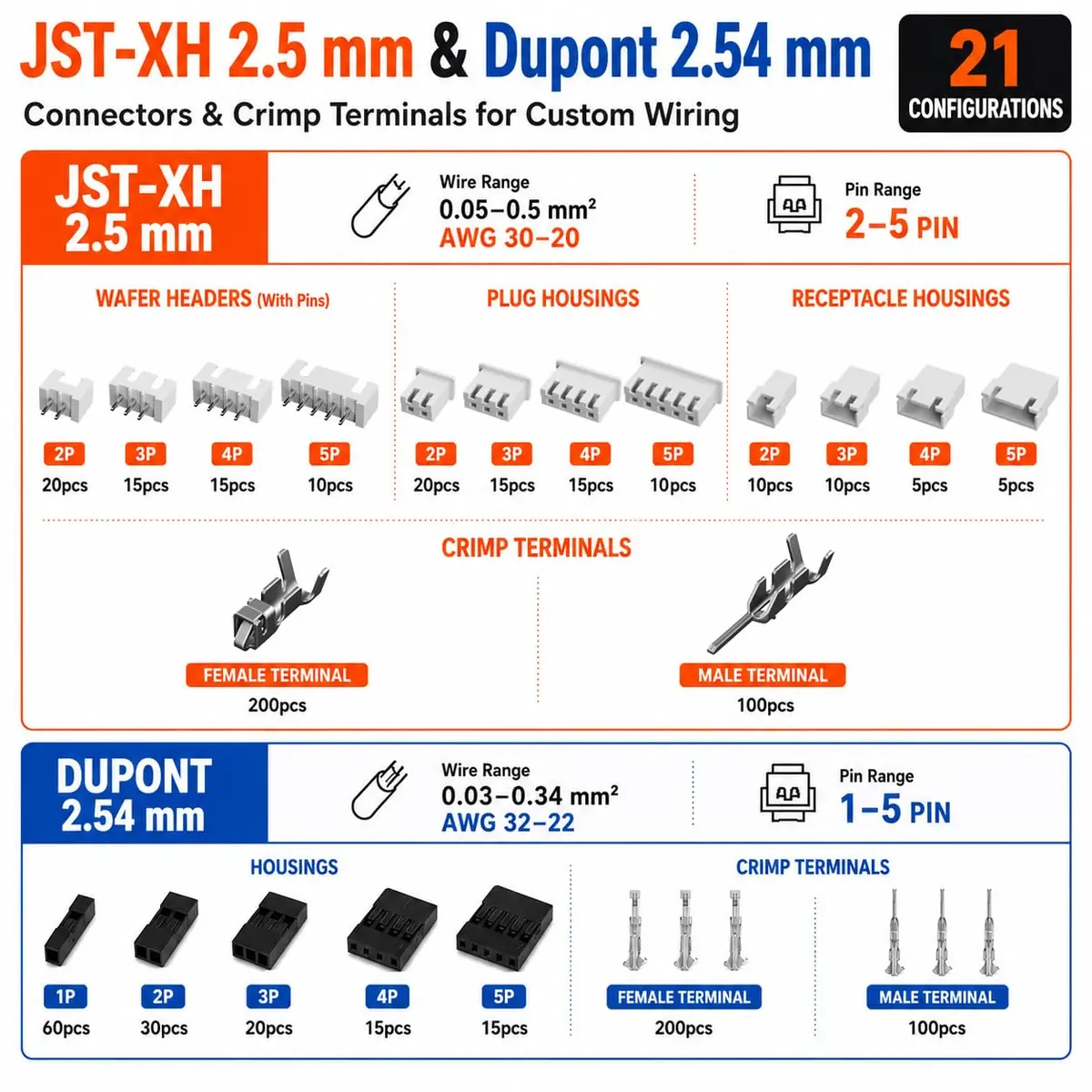

• JST-XH & Dupont Connector Kit for Electronics: Includes a PEBA 2530M ratchet crimper, JST-XH 2.5mm 2–5 pin wafer headers, plug housings and receptacle housings, plus Dupont 2.54mm 1–5 pin housings, with corresponding male and female crimp terminals. Ideal for making custom cables and connections for 3D printers, Arduino, Raspberry Pi, PCB projects and DIY electronics.
• Precision Crimping for Small-Gauge Wires: Features an adjustable ratchet mechanism and EDM-cut precision jaws for stable, consistent crimps. The tool covers a practical AWG 32–20 crimping range, while the included connectors are designed for JST-XH 2.5mm wires from 0.05–0.5 mm² (AWG 30–20) and Dupont 2.54mm wires from 0.03–0.34 mm² (AWG 32–22).

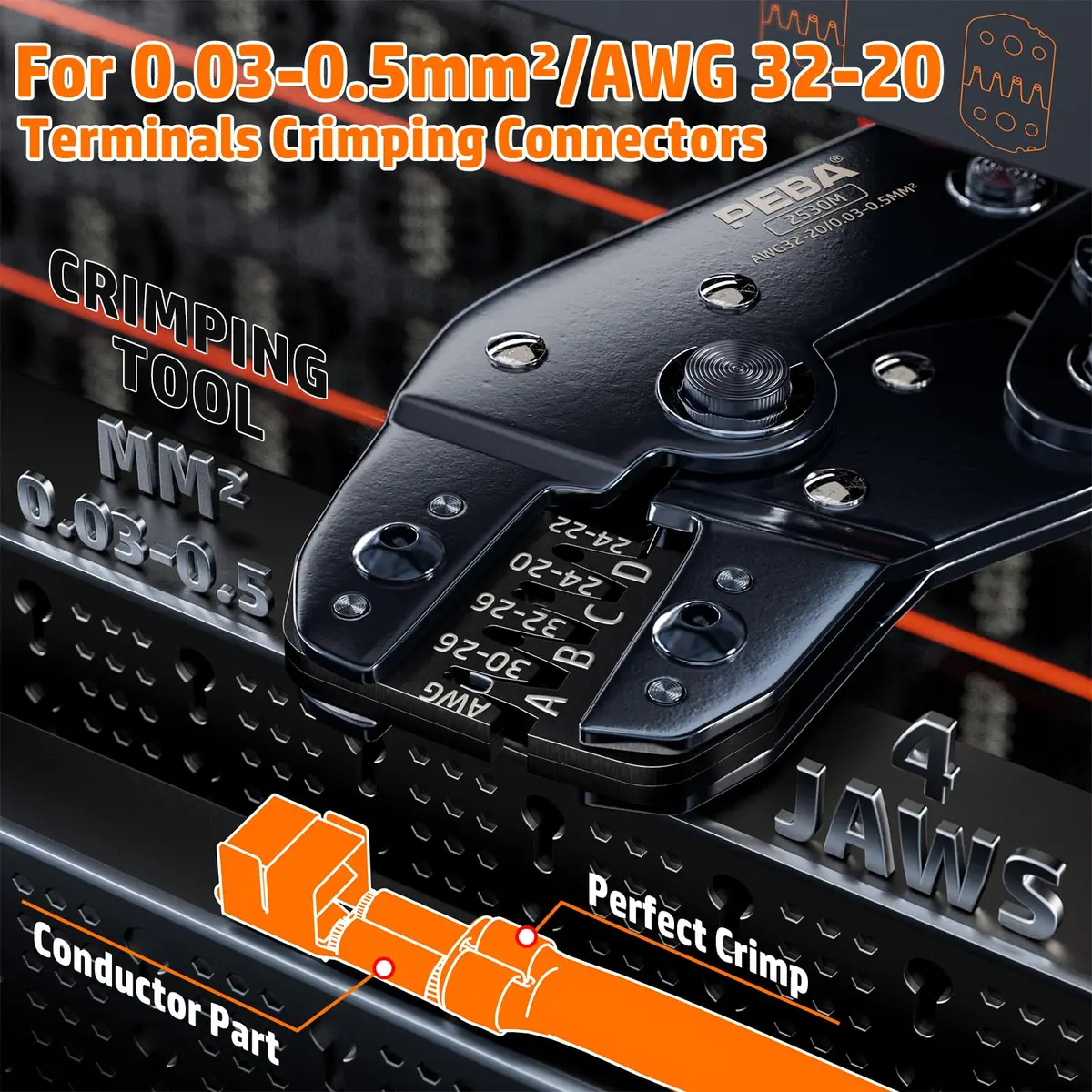

• 4 Dual-Slot Crimping Stations: Equipped with four precision crimping stations (A, B, C and D) for different terminal sizes and conductor requirements. The multi-position design handles a range of JST-XH and Dupont crimp terminals with one tool, simplifying custom cable assembly and repeated wiring tasks.
• Made for 3D Printers, Arduino & PCB Wiring: Ideal for creating and repairing wiring for 3D printers, Arduino boards, Raspberry Pi modules, sensors, fans, control boards and PCB assemblies. Use JST-XH connectors for component and module wiring or Dupont connectors for jumper wires, headers and prototyping connections.

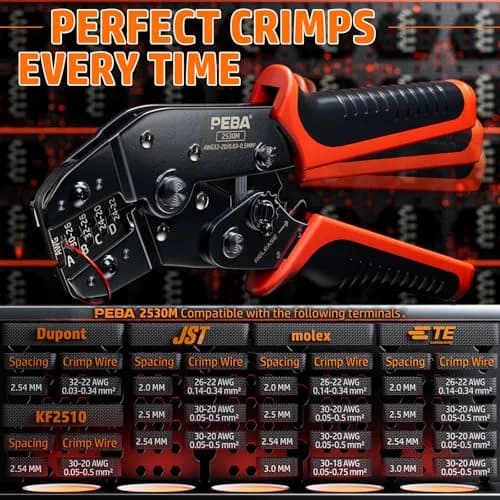

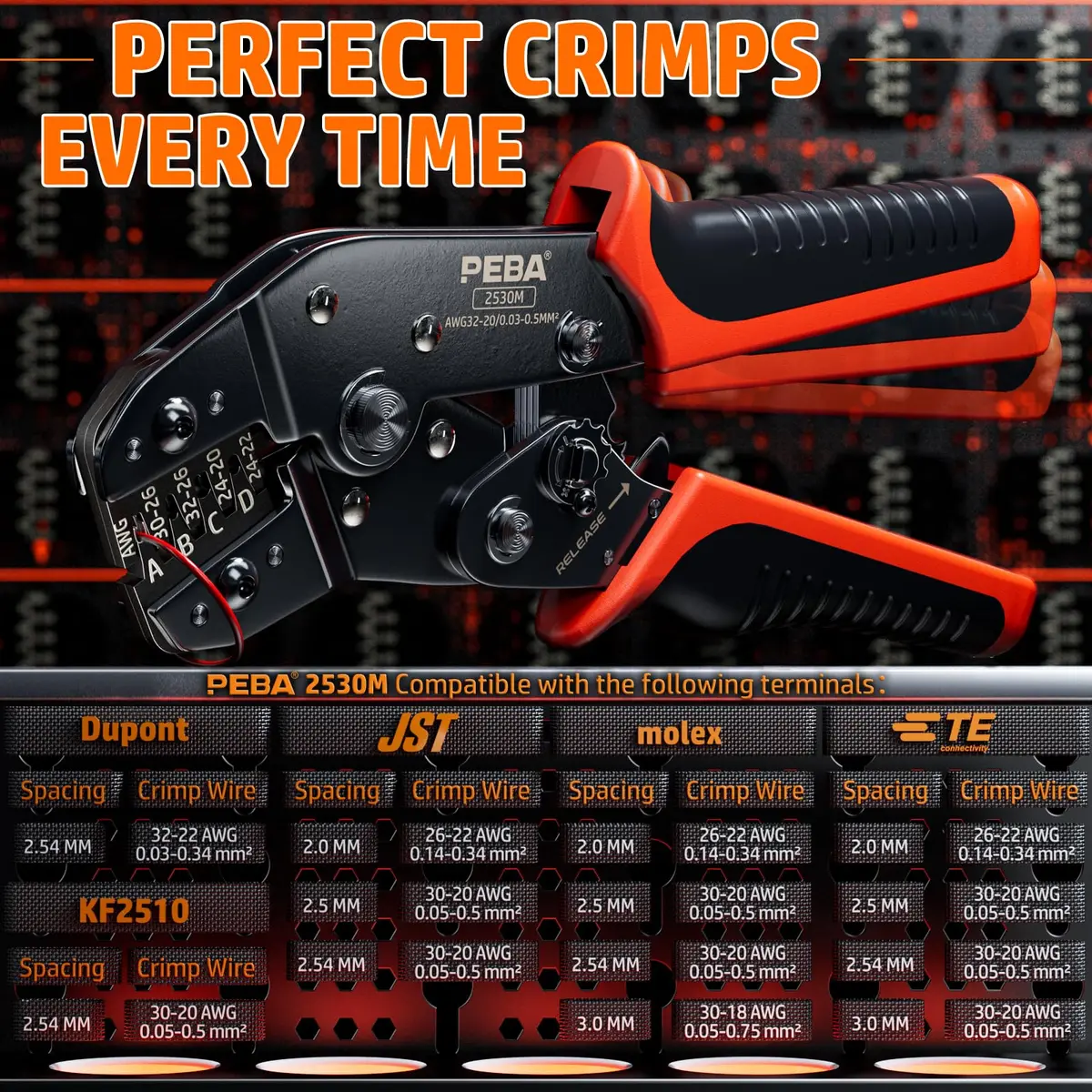

• Wide Application & Practical Crimping Range: The 2530M crimper provides a practical crimping range for many 2.0–3.0 mm pitch connector terminals, including selected JST PH, XH, SYP, SM, Dupont/KF2510 2.54 mm, Molex KK254 & Micro-Fit 3.0, TE/AMP EI, D-SUB and other compatible terminals. A versatile choice for 3D printers, Arduino, Raspberry Pi, RC electronics, sensor modules and DIY PCB wiring. Includes a 1-year warranty for defect-free replacement.

• Select Connector and Wire — Choose the appropriate Dupont 2.54mm or JST-XH 2.5mm connector housing and terminal. Select a wire within the tool's AWG 32-20 range and the connector's specified capacity (e.g., AWG 30-20 for JST-XH).
• Prepare Wire and Terminal — Strip about 2-3mm of insulation from the wire end. Insert the stripped wire into the terminal, ensuring it aligns correctly with the terminal's internal barrel for a secure connection.
• Position and Crimp — Insert the terminal with the wire into the correct slot (A, B, C, or D) on the PEBA crimping tool. Squeeze the ergonomic handles firmly until the ratchet mechanism completes the cycle and releases automatically.
• Inspect and Insert — Gently tug the wire to confirm a secure crimp. Inspect the terminal for proper insulation and conductor grip. Then, insert the crimped terminal into the corresponding connector housing.
