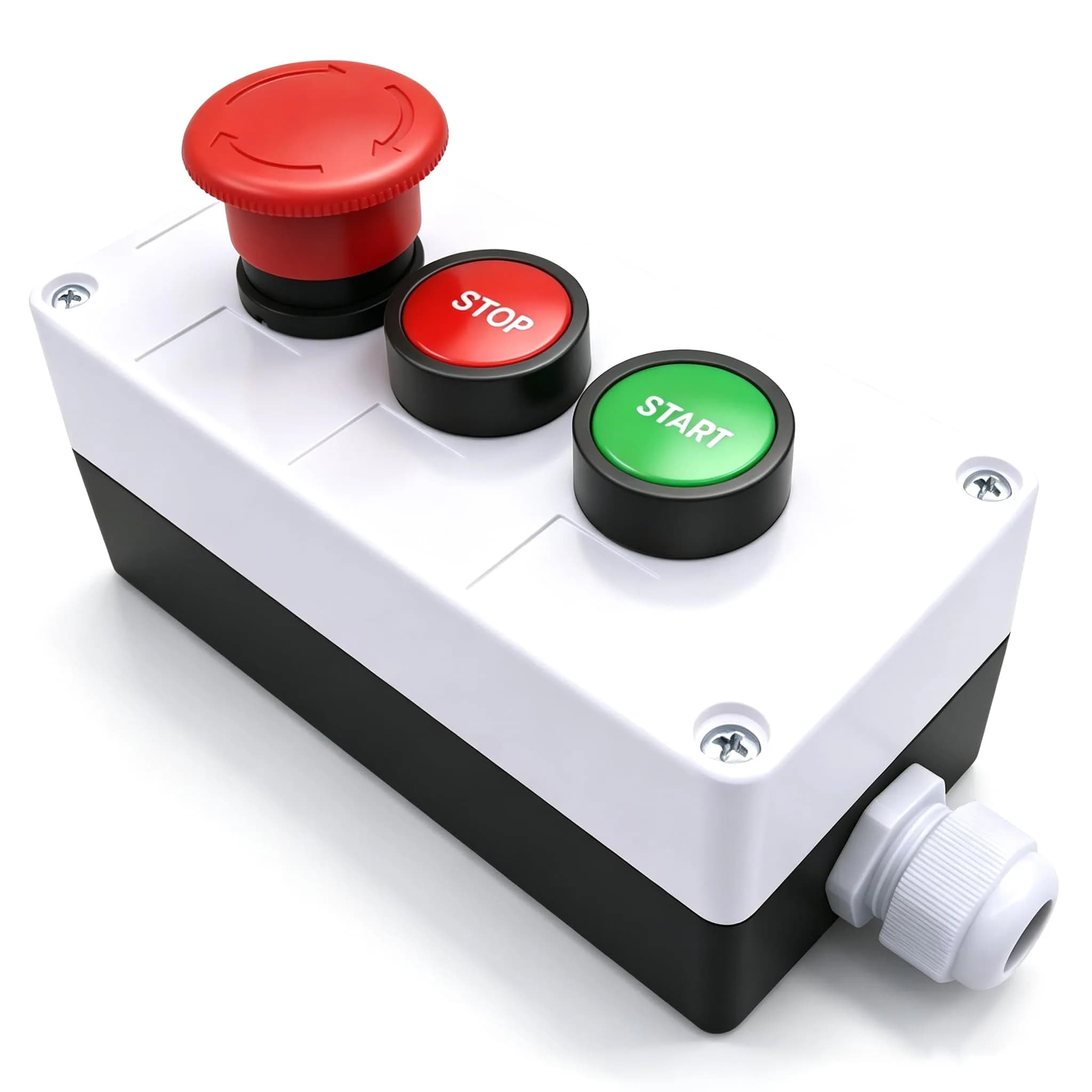

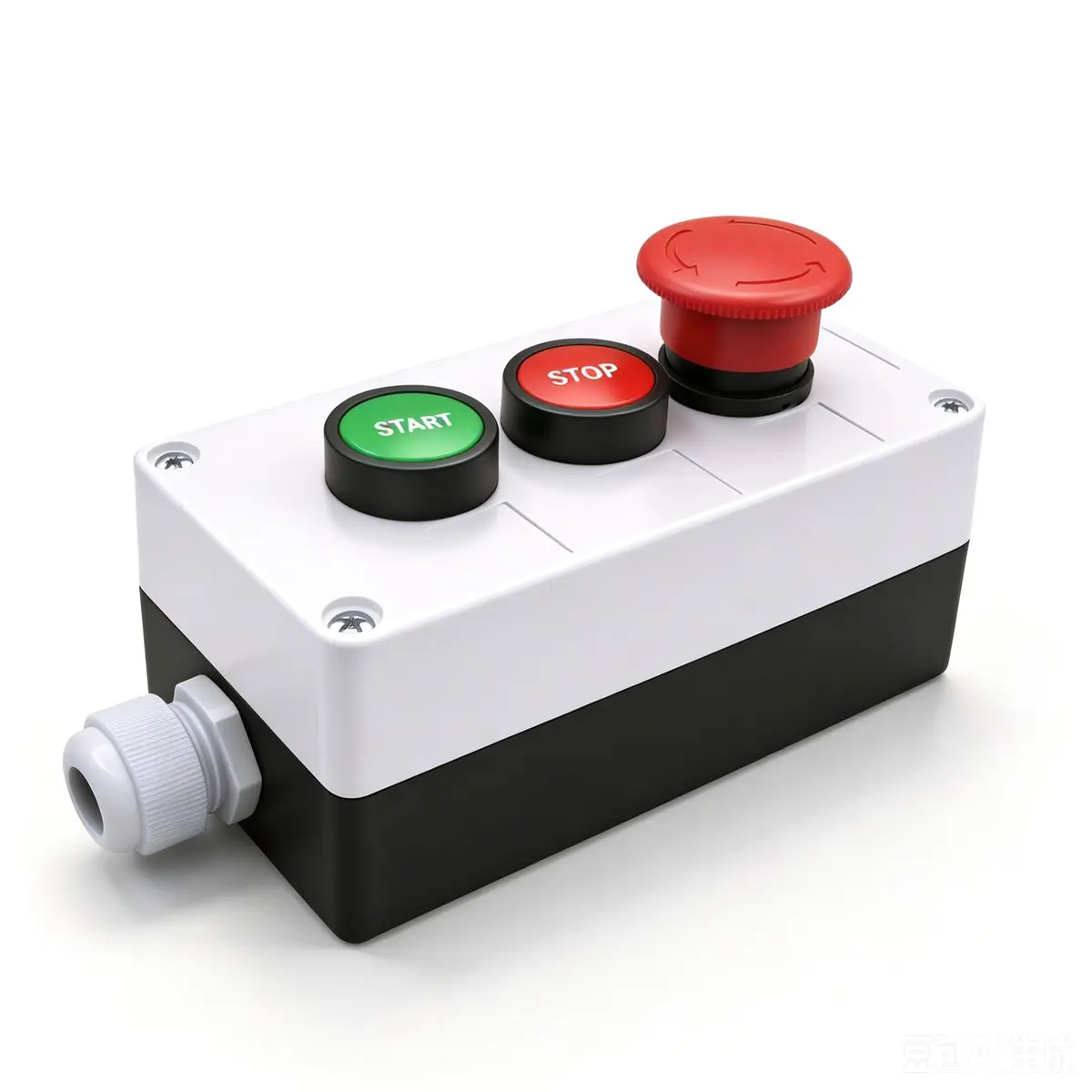

mxuteuk Red Electronic Switch with Emergency Stop & Momentary Start/Stop Buttons | 1NC 1NO Panel Mount

• Product Name: Start Stop Push Button Station; Ith : 10A;Ui : 600V;Uimp : 6KV; Action Type : Red Emergency Stop + Momentary Red Green Flat Button;

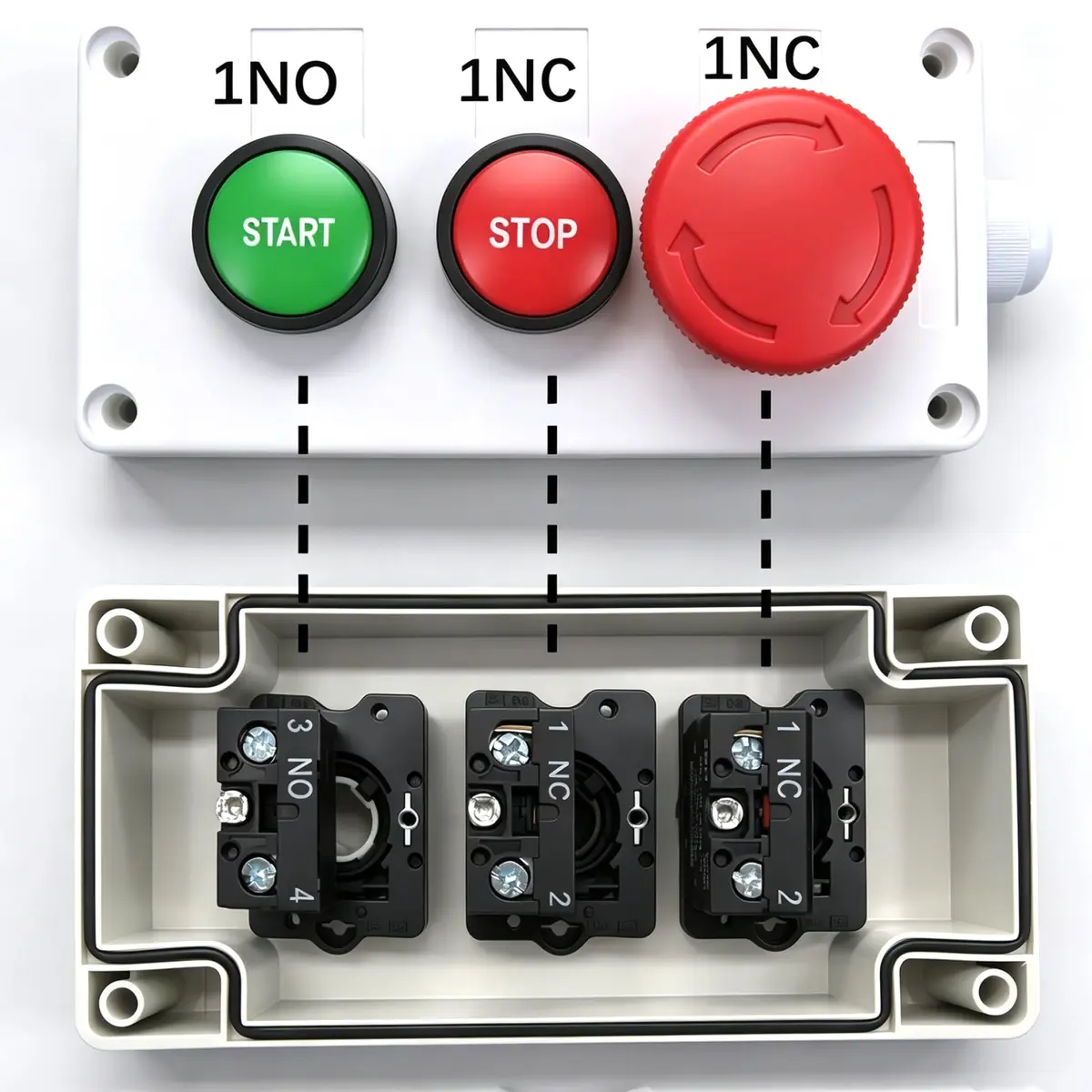

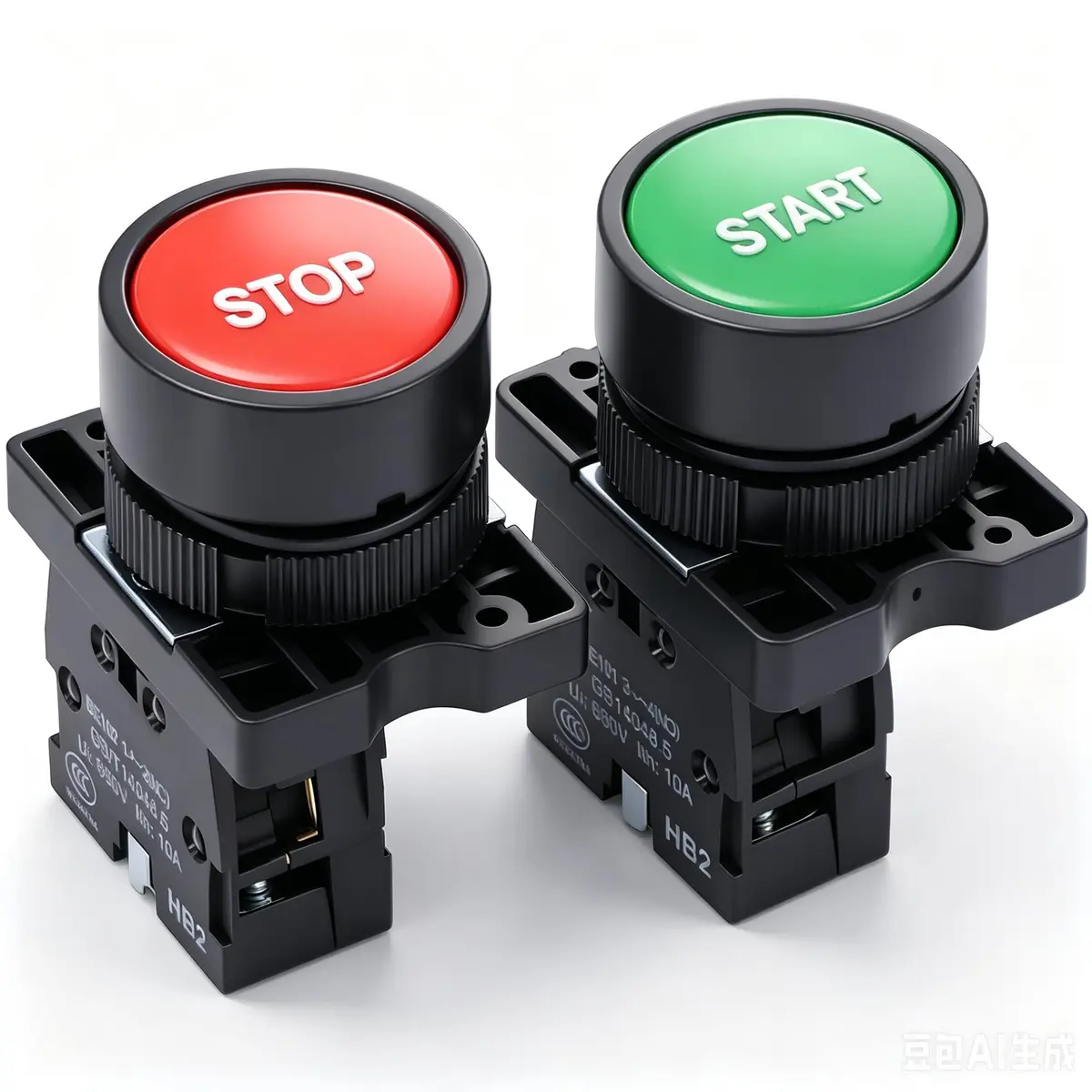

• Red Mushroom:Control Emergency Stop; Red STOP:1NC--Momentary Stop; Green START:1NO--Momentary Start;
• Rated Voltage Current : 240V 3A; Overall Size(Exclude Mushroom Head) : 150 x 68 x 64mm/5.9" x 2.7" x 2.5"(L*W*H);
• Shell Material : Plastic; Color : Black, White, Red ,Green；Net Weight : 268g;
• Package Content : 1pcs x Push Button Station

• Mount the Station — Select a suitable location on your control panel. Cut an appropriate hole and secure the push button station using its panel-mount design and provided screws. Ensure a snug fit to maintain the IP65 rating.
• Wire the Contacts — Connect your control circuit wires to the appropriate terminals for the emergency stop (1NC), momentary stop (1NC), and momentary start (1NO) buttons. Refer to wiring diagrams for your specific control system and ensure connections match the button functions.
• Test Functionality — Before energizing the main machinery, test each button function. Verify that pressing the red mushroom stops the circuit, the red momentary button stops, and the green momentary button starts the intended operation. Ensure all connections are secure.

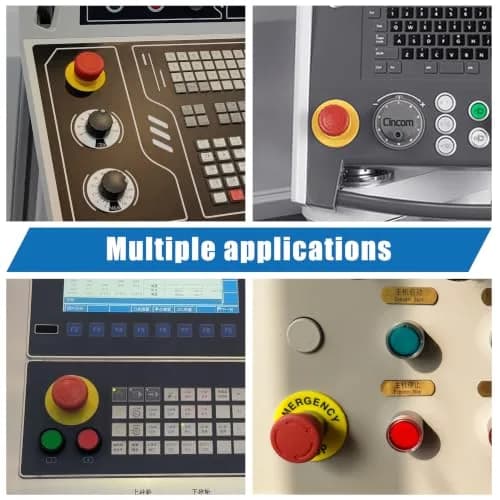

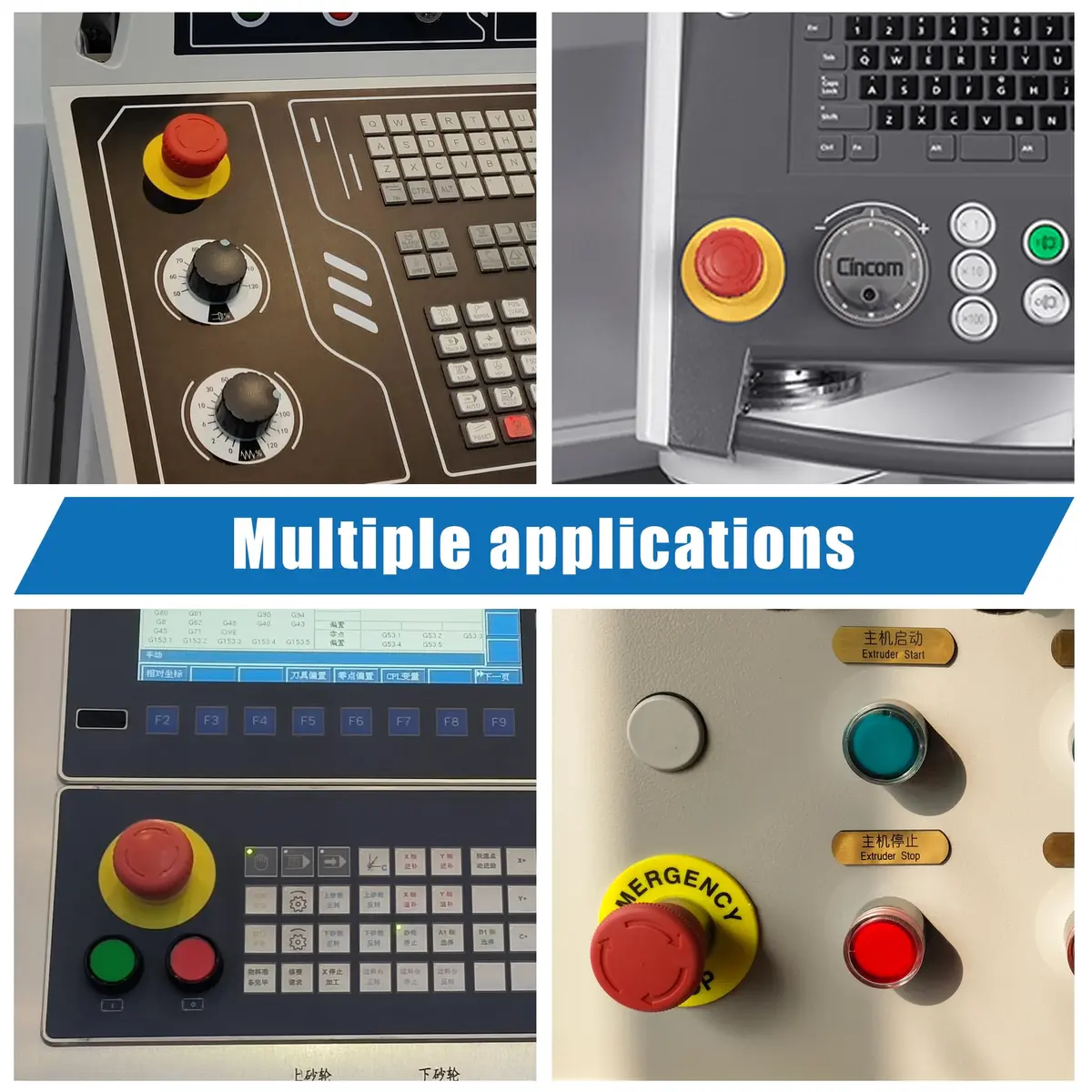

Typical situations where mxuteuk Red Electronic Switch with Emergency Stop & Momentary Start/Stop Buttons | 1NC 1NO Panel Mount helps — illustrative scenarios, not customer reviews.
