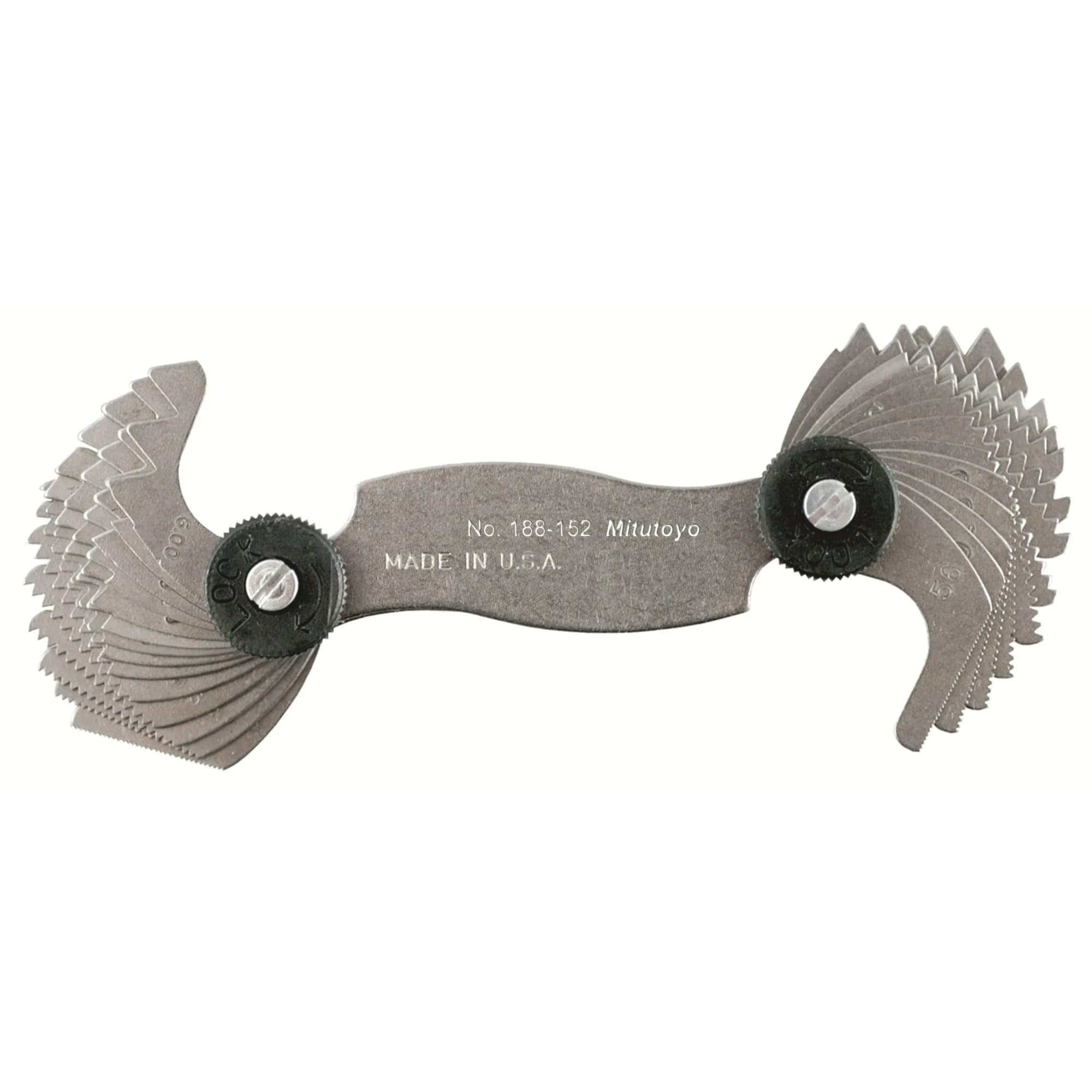

Mitutoyo 188-152 Metric and Unified Screw Pitch Gage Set with 28 Leaves | Precision Measuring Tool

• COMPREHENSIVE THREAD COVERAGE: This screw pitch gage includes a wide selection of inch and metric sizes, from fine to coarse threads, enabling professionals to quickly verify pitch dimensions across a variety of fasteners and threaded components.
• CLEARLY MARKED BLADES: Each blade is permanently stamped with its thread pitch size, eliminating guesswork and ensuring fast, reliable identification, making it easy for machinists and inspectors to select the correct blade for every job.
• VERSATILE APPLICATIONS: Ideal for use in automotive, machining, and industrial settings, this gage ensures compatibility with multiple thread standards, streamlining inspections while preventing costly rework or thread mismatch issues.
• BUILT TO LAST: Precision-engineered with hardened steel blades, the gage withstands repeated use in demanding environments, offering long-term durability and accuracy that supports consistent, high-quality measurement performance.

• Select the Correct Leaf — Identify the thread type (inch or metric) on the fastener. Choose a leaf from the Mitutoyo 188-152 set that appears to match the thread pitch. Each leaf is clearly stamped with its size.
• Align and Check — Insert the selected leaf into the threads of the fastener. If the leaf fits snugly and aligns perfectly with the thread grooves, it indicates the correct pitch. If it's too loose or too tight, try an adjacent size.
• Verify Measurement — Confirm the stamped size on the leaf matches the required specification. For inch threads, check TPI (Threads Per Inch); for metric, check the pitch in millimeters. This ensures the correct thread standard is being used.
