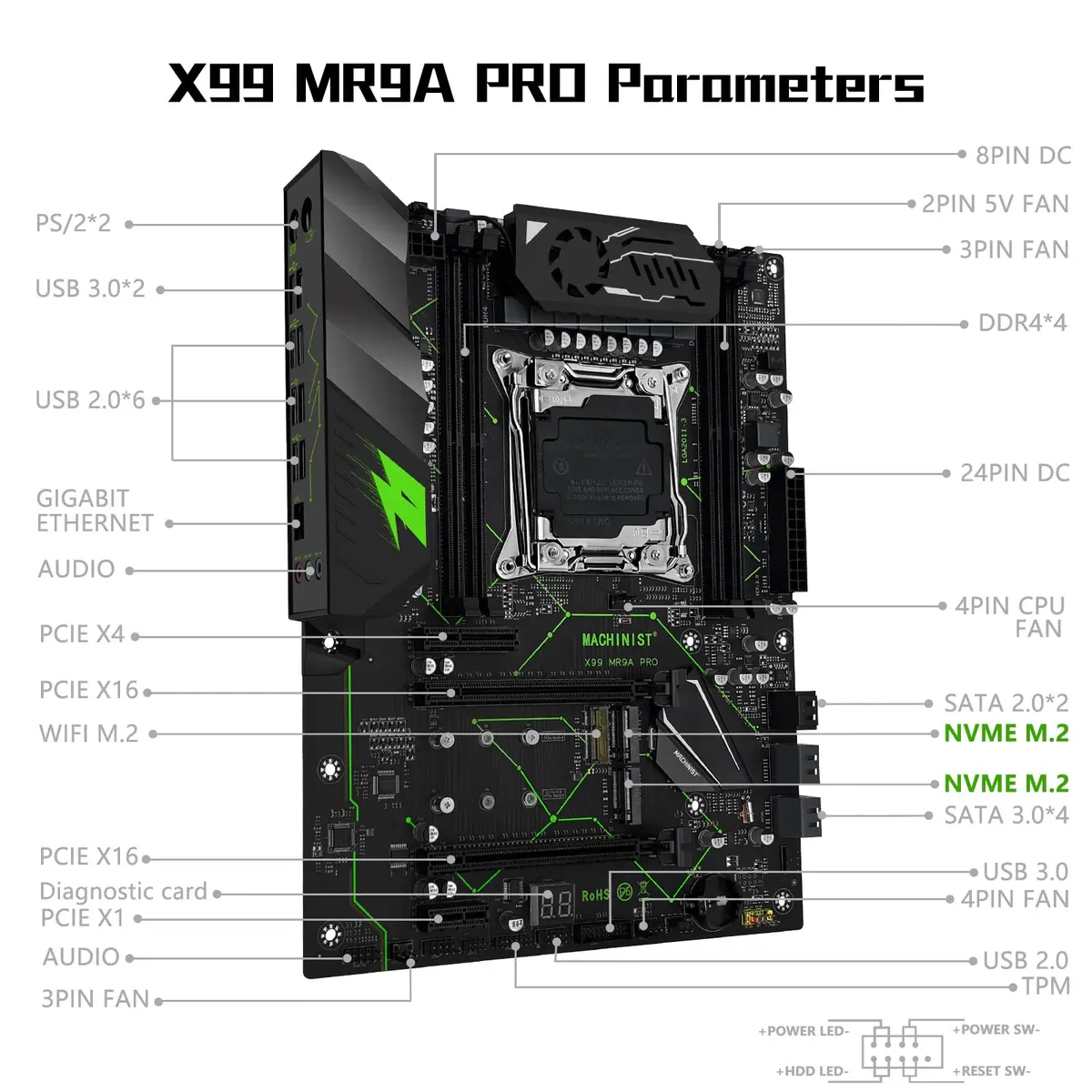

MACHINIST X99 MR9A PRO ATX Motherboard LGA 2011-3 DDR4 64GB Max 28.5cm x 22cm | Supports Intel Xeon E5 V3/V4 & Core i7 5th/6th Gen

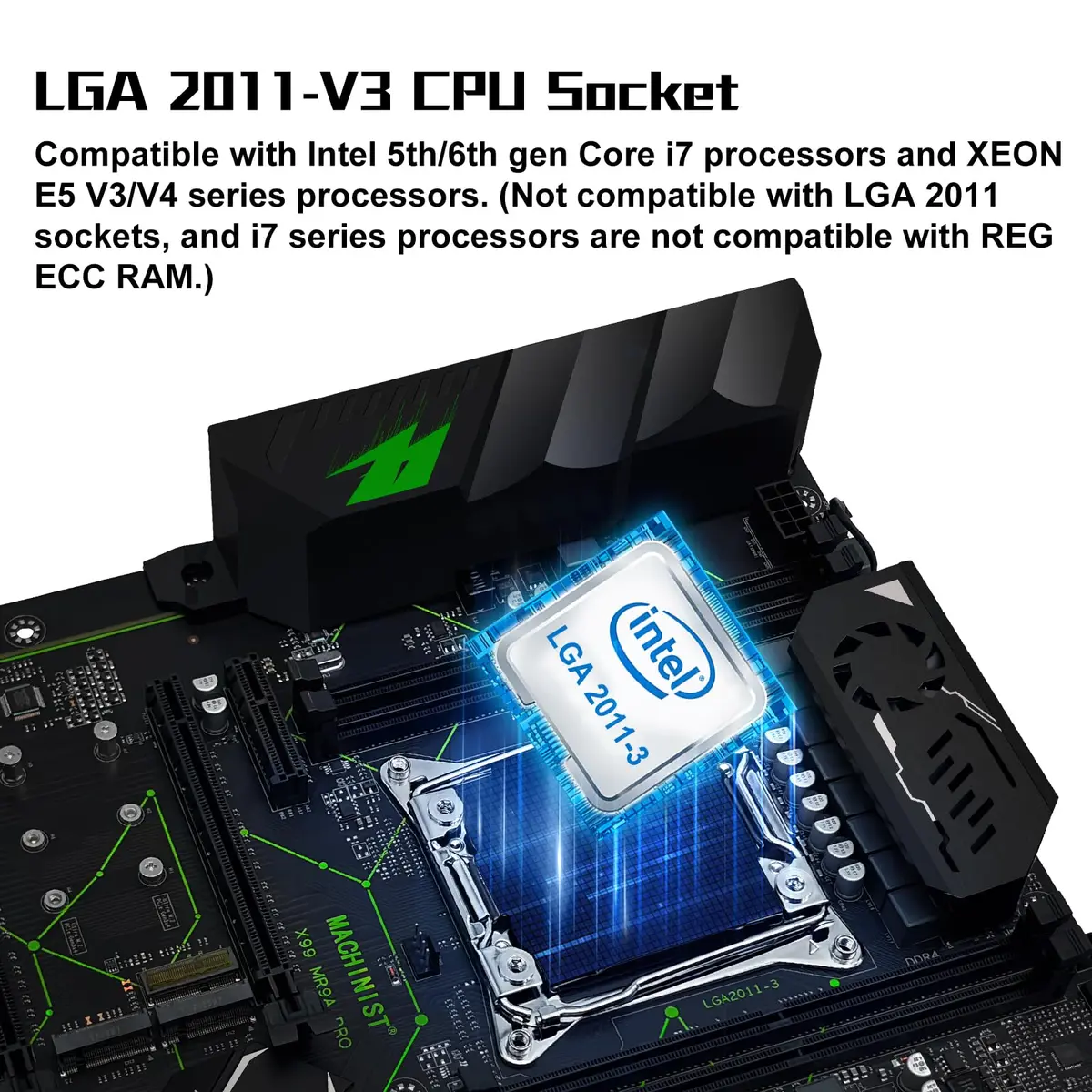

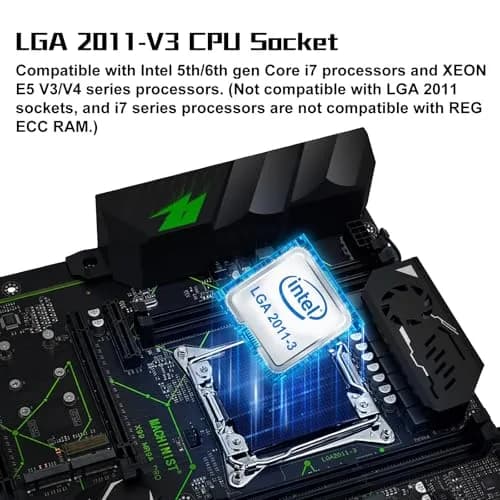

• LGA 2011-V3 server socket: Compatible with Intel 5th/6th generation Core i7 processors and XEON E5 V3/V4 series processors, not compatible with LGA 2011 CPUs. (eg Core i7-5820K, Core i7-6850K, Xeon E5-2609 V4, Xeon E5-2673 V3)
• DDR4 memory slot: This gaming motherboard is designed with a 4-channel DDR4 memory slot, which supports DDR4 memory with frequencies such as 2133/2400 MHz, supports overclocking, and has a maximum memory capacity of 64GB
• Dual M.2 high-speed slots: Including 1 NVME M.2 slot and 1 NGFF M.2 slot. The NGFF M.2 (SATA M.2) slot operates through a SATA channel with a maximum transfer speed of 6Gb/ s, while the NVME M.2 slot operates over a PEIe channel with a maximum transfer speed of 32Gb/s. (NGFF M.2 slot is not compatible with NVME M.2 hard drives, please note the distinction)

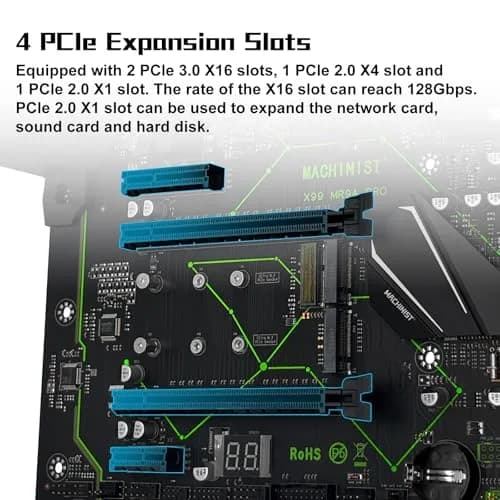

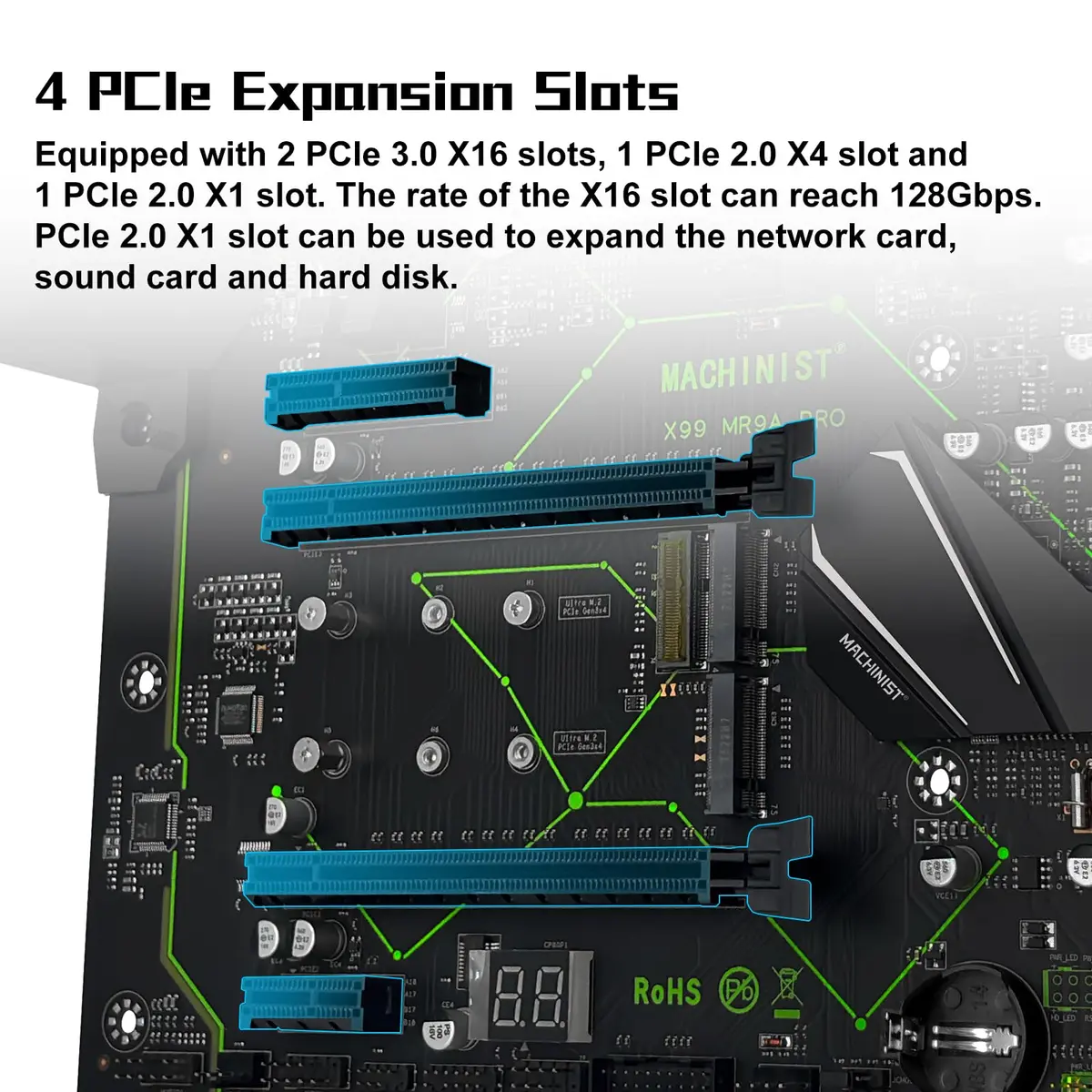

• PCIe 3.0 protocol standard: 4 PCIE slots include 2 PCIE X16 slots, 1 PCIE X4 slot and 1 PCIE X1 slot. The X99 motherboard supports the PCIe 3.0 protocol. Under this protocol, the transmission rate of the X16 can reach 15.754 GB/s, realizing the release of the performance of the motherboard
• Stable performance: X99 computer motherboard is made of 8-layer PCB material, ATX large board design, strong signal anti-interference ability, support sleep mode. And it is equipped with an aluminum alloy heat sink and a high-frequency silent fan to achieve rapid cooling. If the fan does not rotate or rotates slowly, you can use a toothpick or other small objects to move the fan blades and wait for a minute or two for the fan to run normally
• One-click "Power On" or "Restart": X99 motherboard is equipped with power-on and restart buttons, which can start the computer with one key without using the case and get rid of cumbersome wiring. It can be used for testing when replacing motherboard accessories and for use in game studios

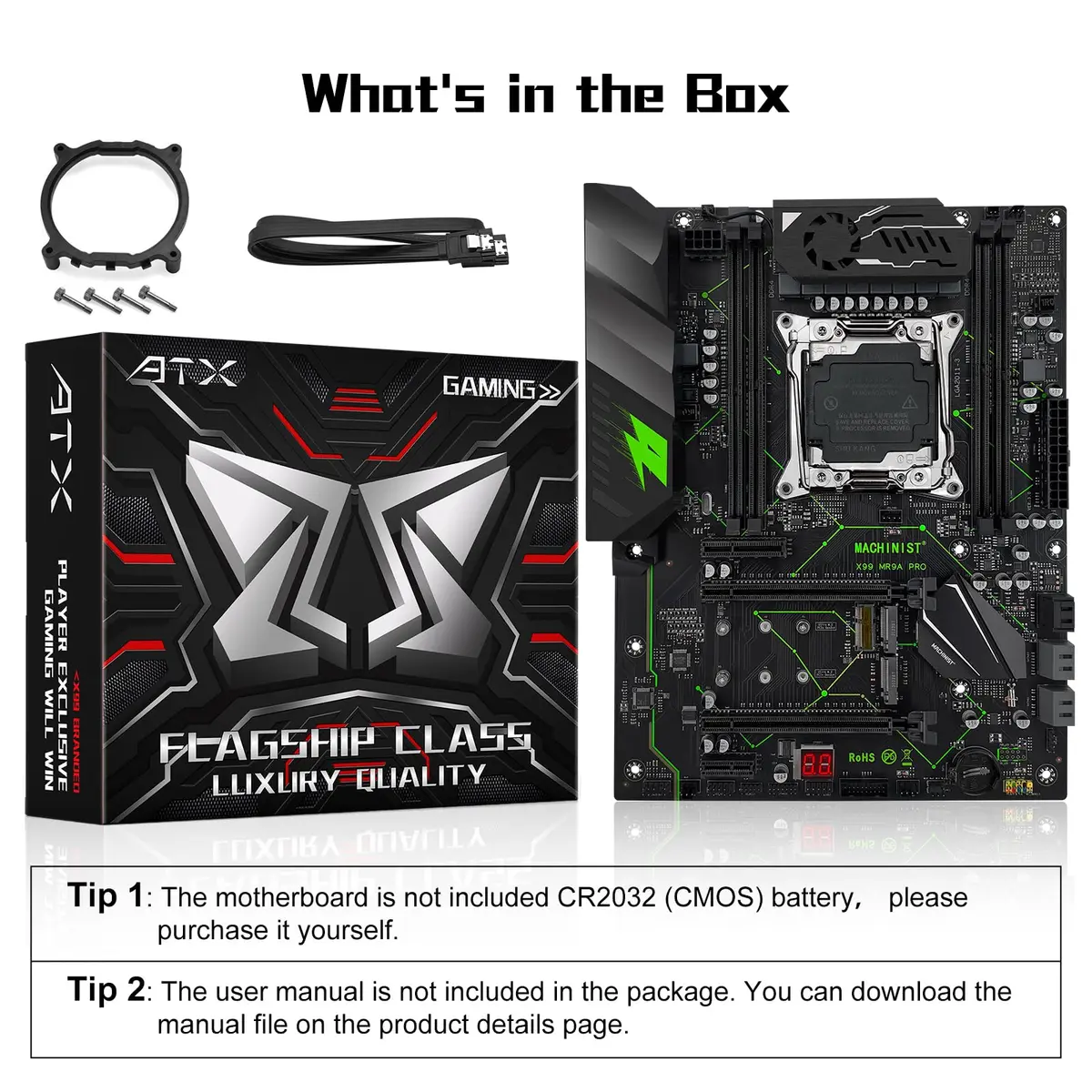

• The package includes: 1*CPU fan bracket, 1*SATA cable, 1*I/O baffle, 1*motherboard. Tip 1: The CR2032 battery on the motherboard has been removed. It is not included in the package. Please purchase it yourself. Tip 2: The user manual is not included in the package. You can download the manual file on the product details page

• Install Compatible CPU and RAM — Carefully install your Intel Xeon E5 V3/V4 or Core i7 5th/6th Gen CPU into the LGA 2011-3 socket, ensuring correct alignment. Then, insert DDR4 RAM modules into the four slots, supporting up to 64GB total, following the motherboard manual's guidance for dual-channel configuration.
• Connect Storage and Expansion Cards — Install NVME or NGFF M.2 SSDs into the respective slots for high-speed storage. Connect SATA drives to the SATA 2.0/3.0 ports. Install your graphics card into a PCIe x16 slot and any other expansion cards into the available PCIe slots.
• Connect Peripherals and Power — Connect your case's front panel connectors, USB devices, and power supply unit (24-pin ATX and 8-pin EPS connectors). Ensure all connections are secure before powering on the system. Use the onboard power and reset buttons for initial testing.
• Install Operating System and Drivers — Enter the BIOS by pressing 'Del' during startup to configure settings. Install Windows 10 or your preferred OS from a bootable USB drive. Download and install the latest drivers for chipset, LAN, and audio from the manufacturer's website or use Windows 10's automatic driver detection.
