Leviton Extreme 6+ QuickPort Connector, CAT 6, 150-Pack, 61110-JW6, White | Gas-Tight IDC Connectors Prevent Corrosion

• Patented Retention Force Technology protects tines from damage from 4- or 6-pin plugs

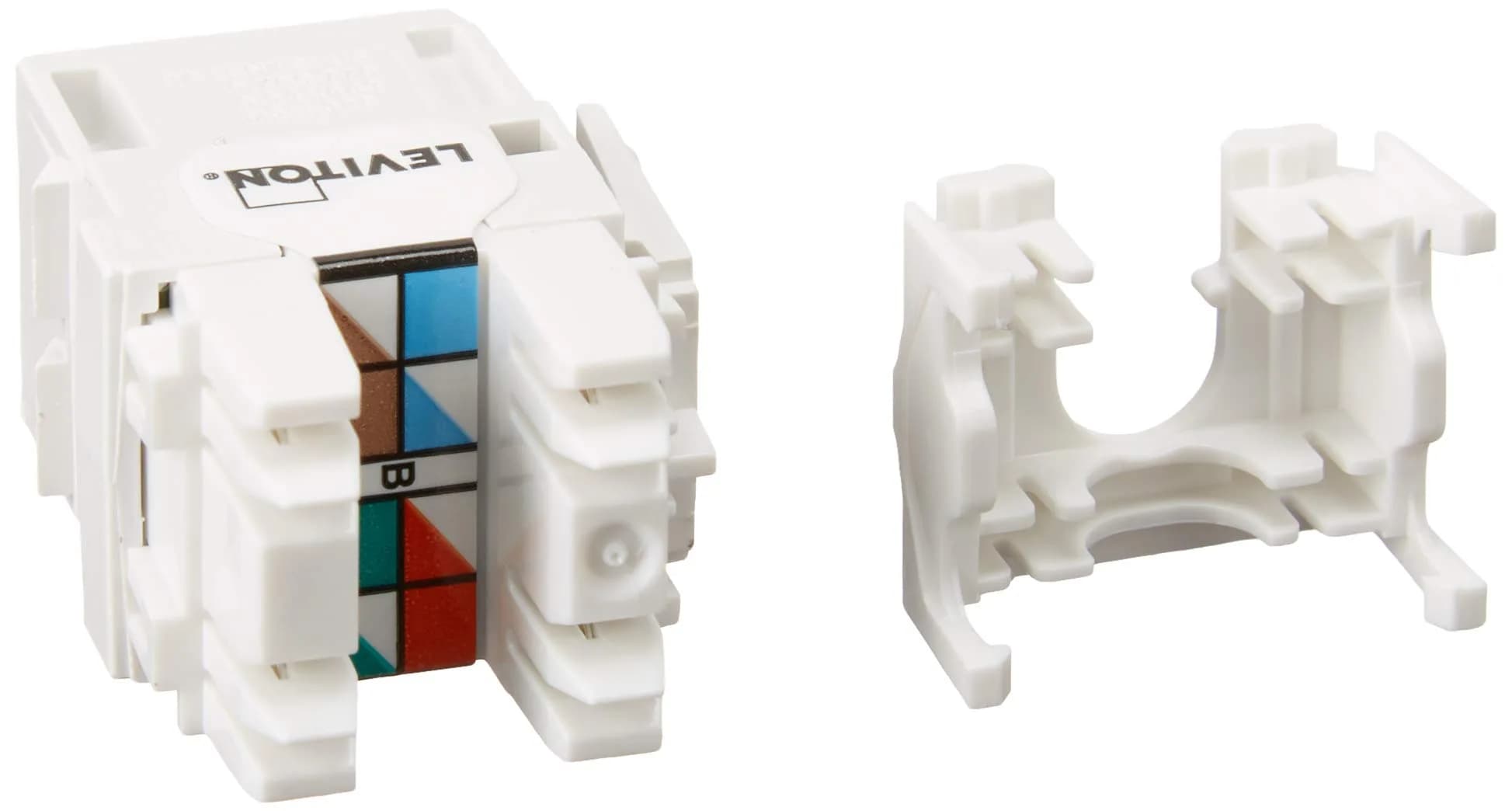

• Dual-layer T568B/T568A wiring label simplifies punchdown

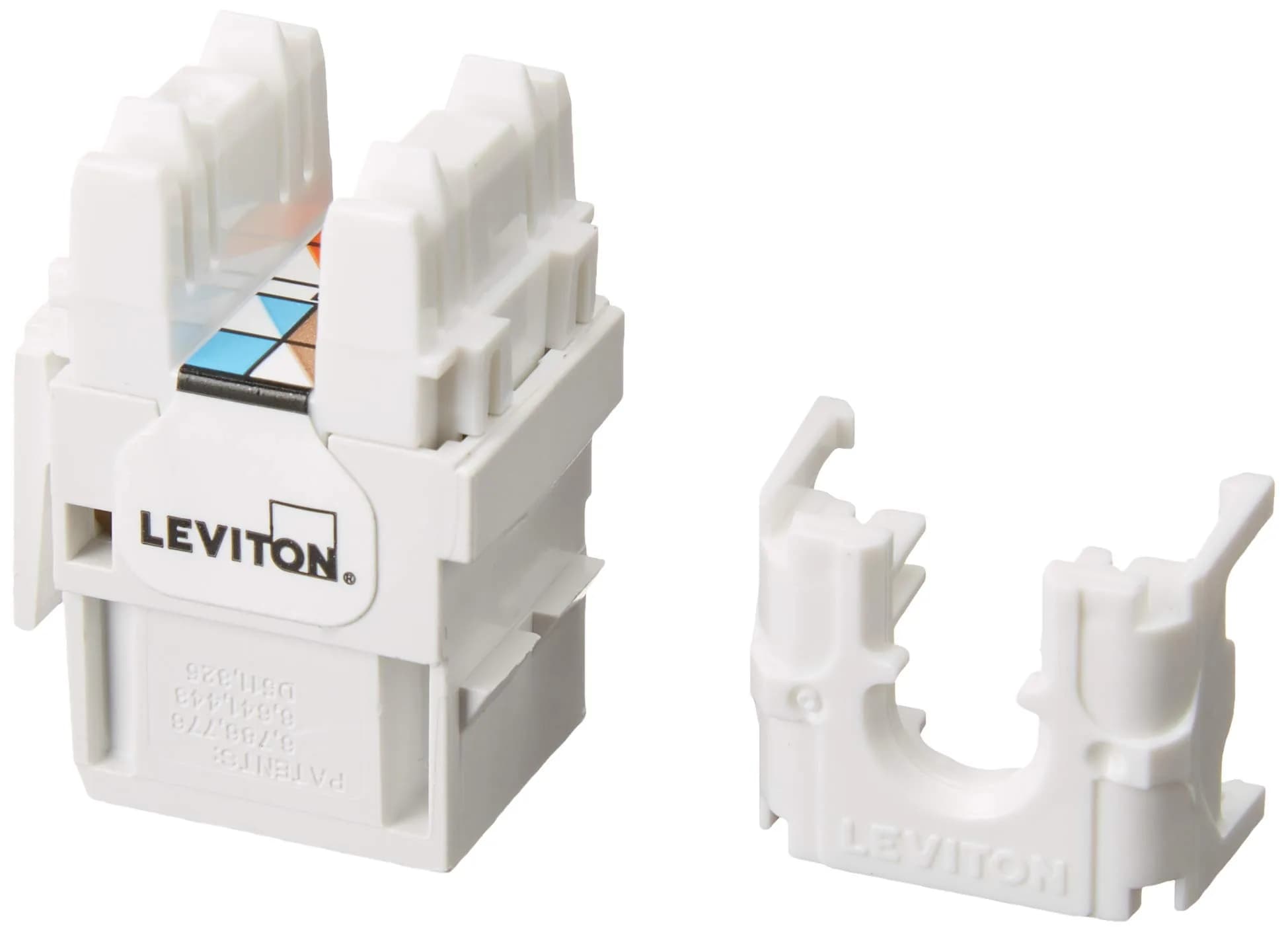

• Pair Separation Tower design facilitates separation of conductors and minimizes untwisting
• 180 Degree configuration allowing for rear termination
• Gas-tight IDC connectors prevent corrosion

• Strip approximately 1 inch of the outer jacket from the Cat 6 Ethernet cable using a cable stripper. Carefully untwist the pairs of wires to their ends, but avoid untwisting more than necessary to maintain signal integrity. — Prepare the Cable
• Refer to the T568A or T568B color code on the connector's dual-layer label. Arrange the individual wires according to the chosen standard and insert them into the corresponding slots on the connector, ensuring they are fully seated. — Arrange and Seat Wires

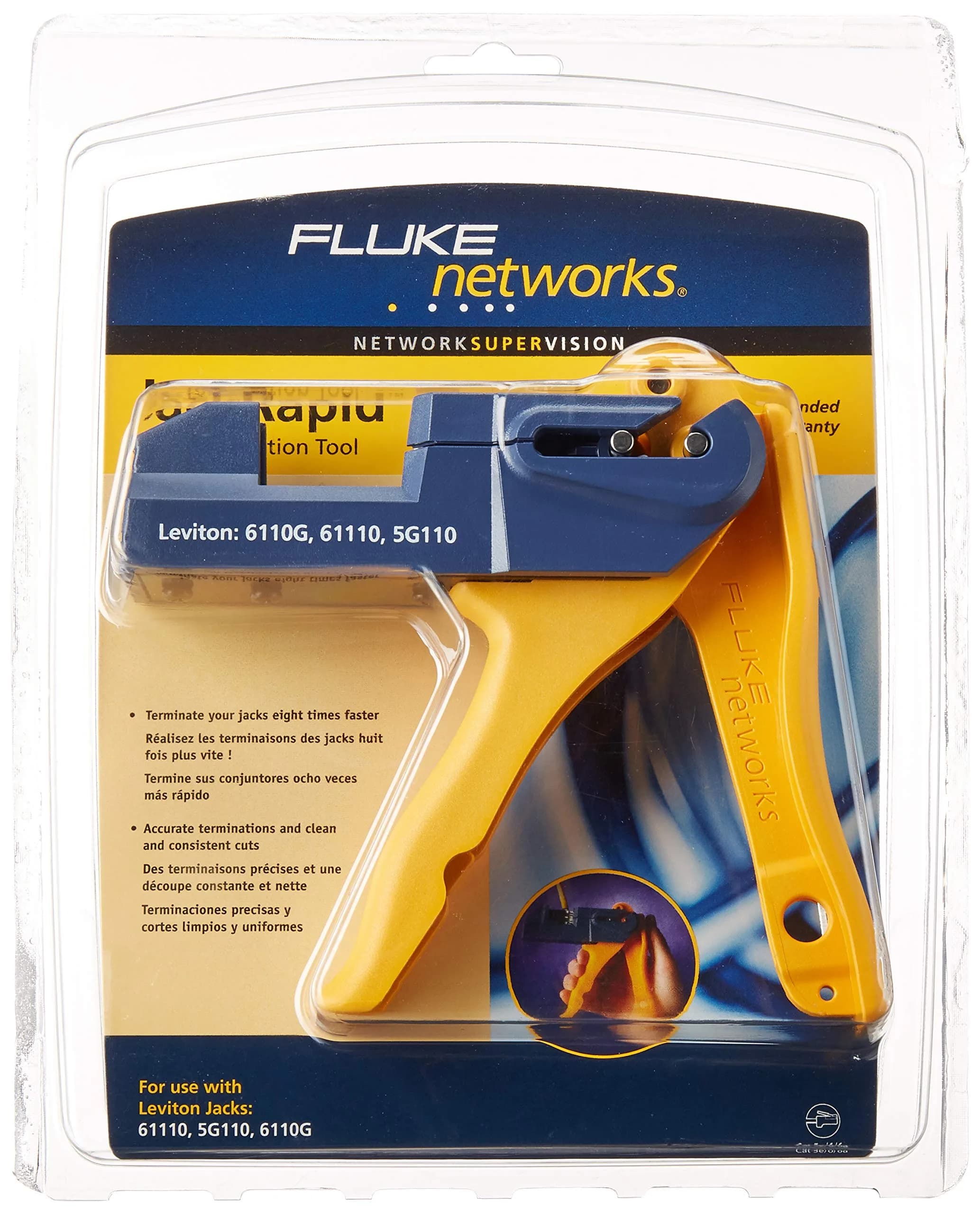

• Using a compatible punchdown tool (e.g., 110 type), firmly punch down each wire into the IDC connector. The tool will seat the wire and cut off any excess. Ensure each wire is securely terminated and the connector housing is properly closed. — Punch Down the Connection
• Visually inspect each termination for proper seating and wire alignment. Use a network cable tester to verify the continuity and correct wiring of the connection before integrating it into your network system. — Verify and Test
