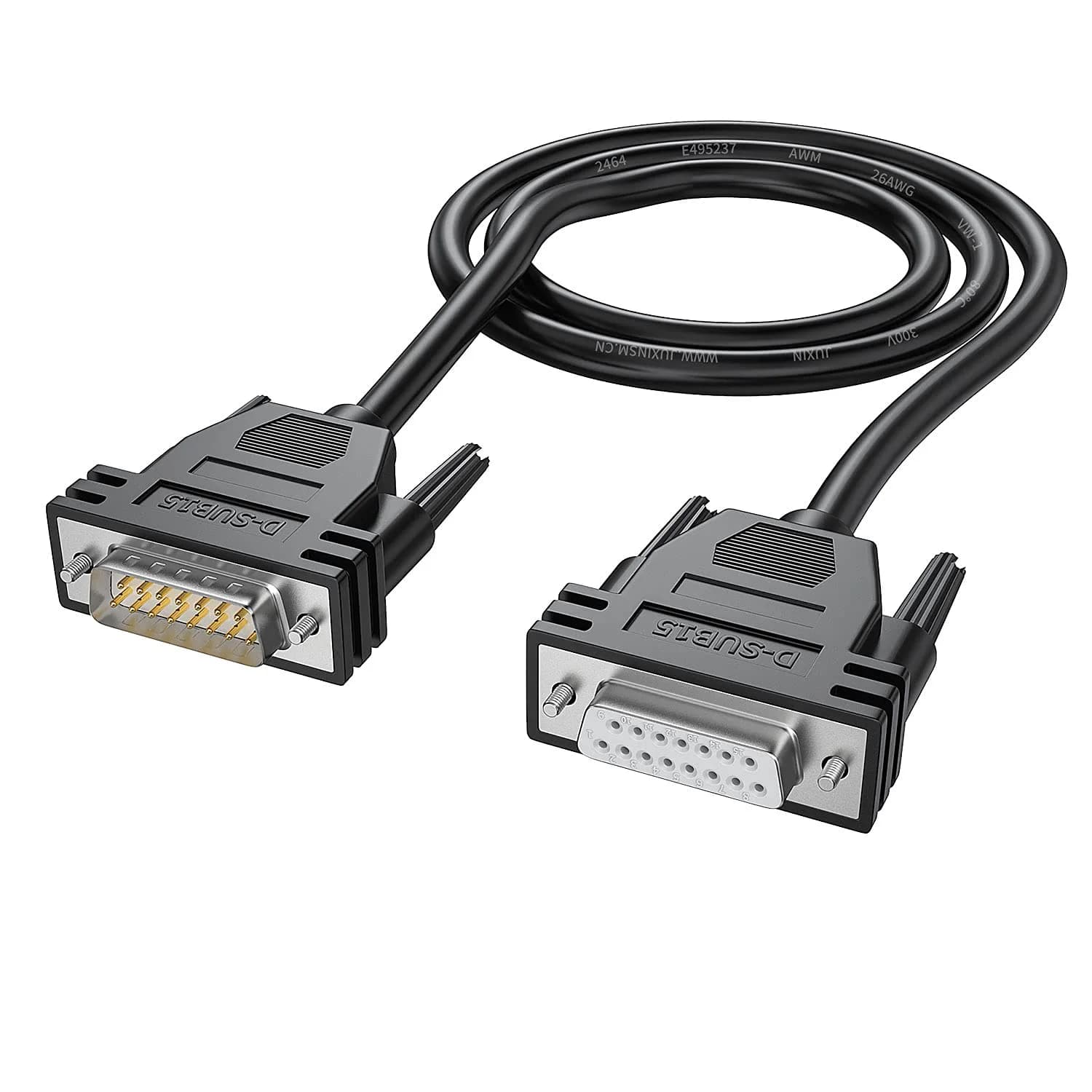

JUXINICE DB15 Male to Female Serial Cable 1.52 m (5 ft) | Double Shielded Extension Cord

• DB15 cable adopts 26AWG double-layer shielded cable, which has stable signal transmission and good shielding effect

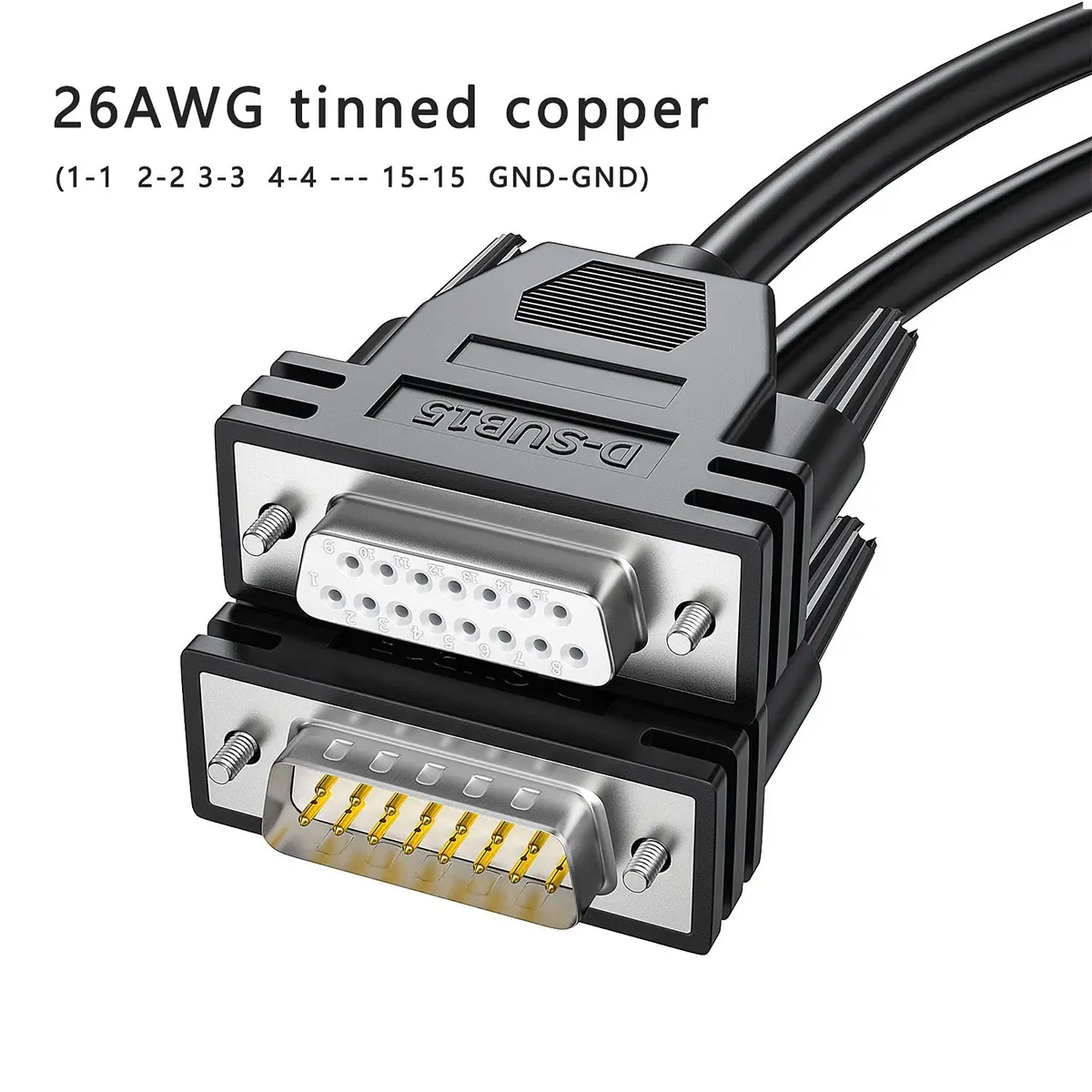

• DB15 pin cable Straight-through wiring (i.e. pin 1 to pin 1) design per industry standards: 1-black, 2-brown, 3-red, 4-orange, 5-yellow, 6-green, 7-blue, 8-purple, 9-gray 10 white, 11 black and white, 12 brown white, 13 pink, 14 light green, 15 light blue

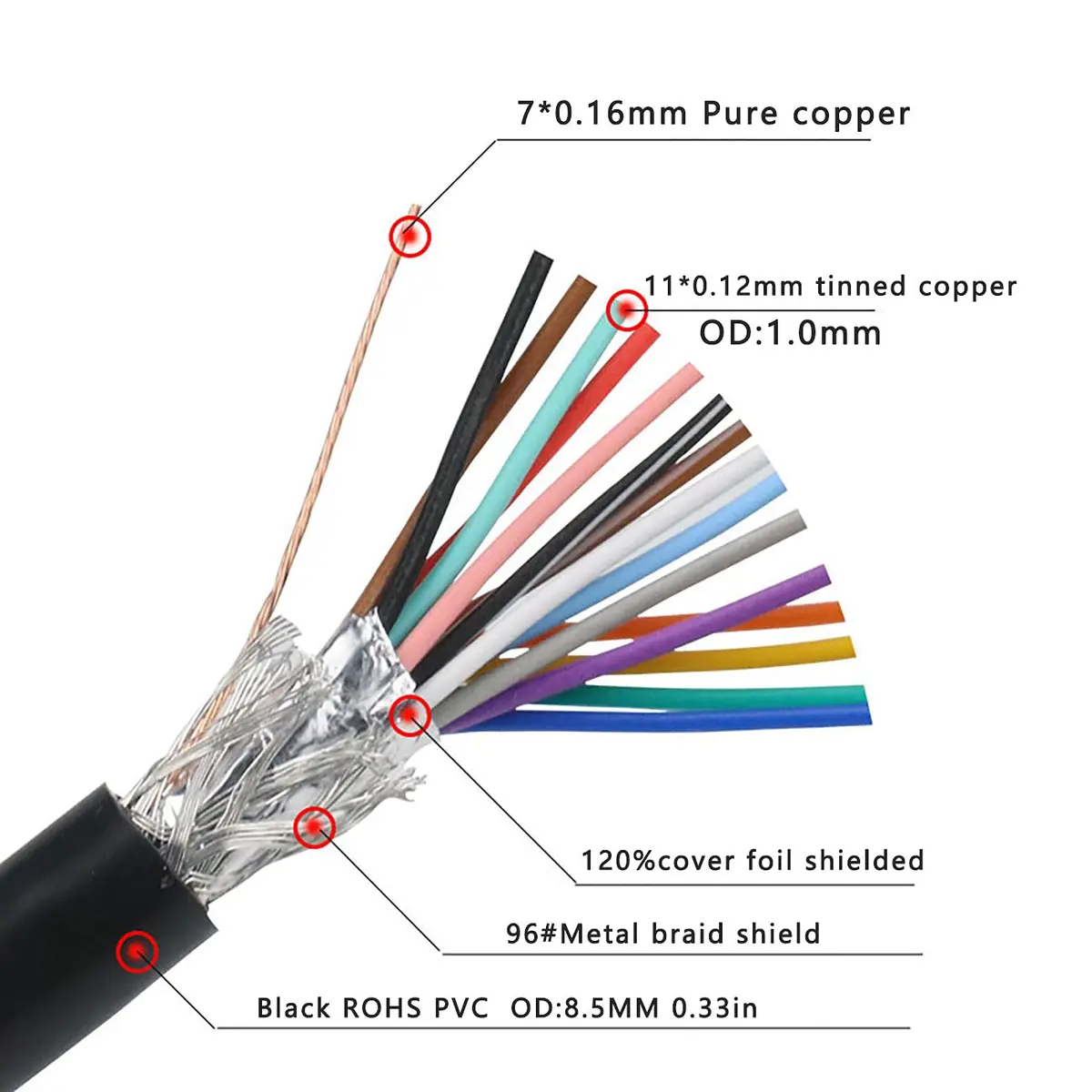

• D-SUB 15 Cable Wrapped aluminum foil + high-density braided mesh forms a double-layer shield with strong anti-interference ability.
• DB15 extension cable Using PVC material for integrated injection molding DB15 adapter, sturdy and durable

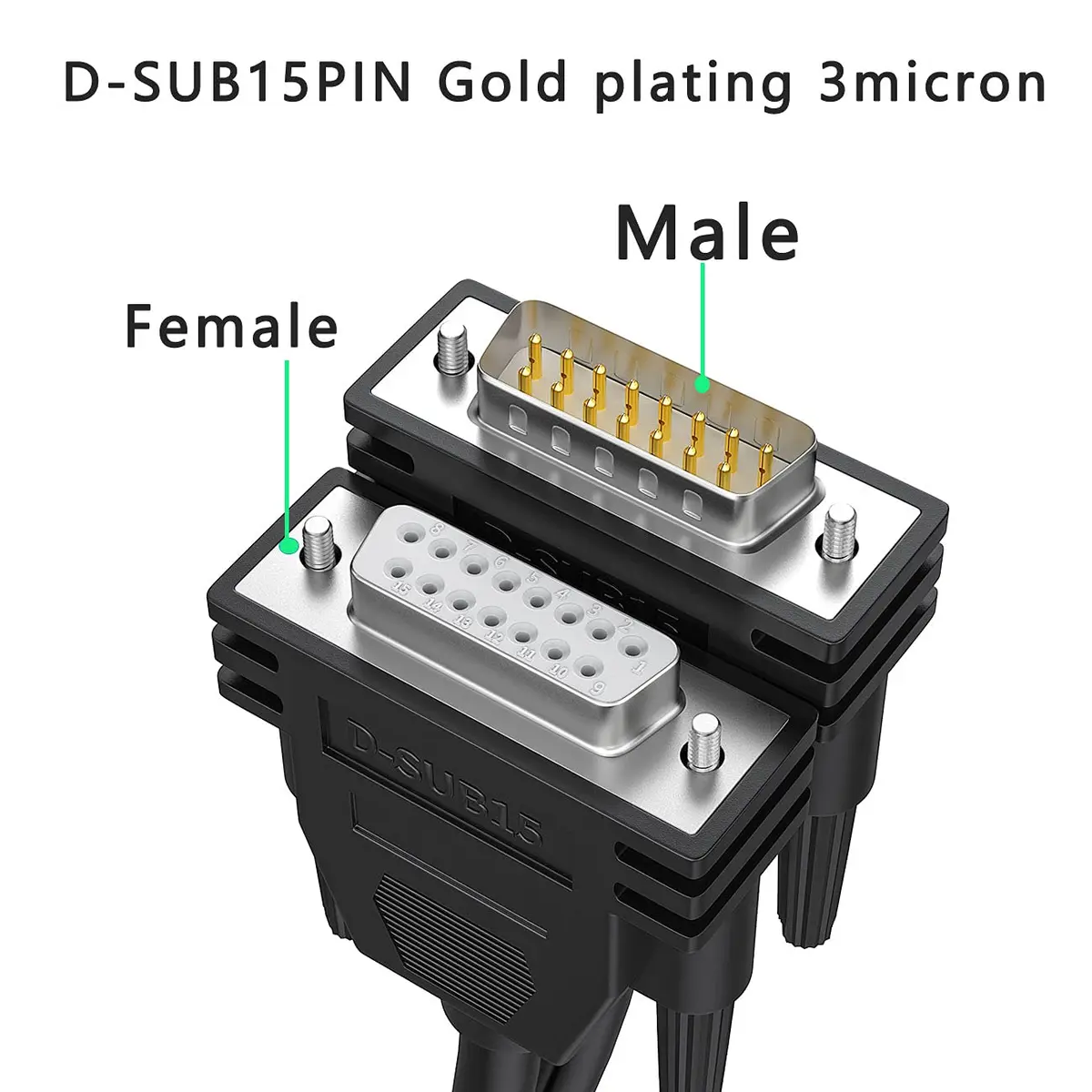

• Note: This cable connector is 2 rows of 15 pin, Not Not VGA cable (3 rows of 15 pin),VGA video cannot be transferred

• Identify Ports — Locate the DB15 male port on your host device (e.g., server, PLC) and the DB15 female port on your peripheral device (e.g., CNC controller, UPS).

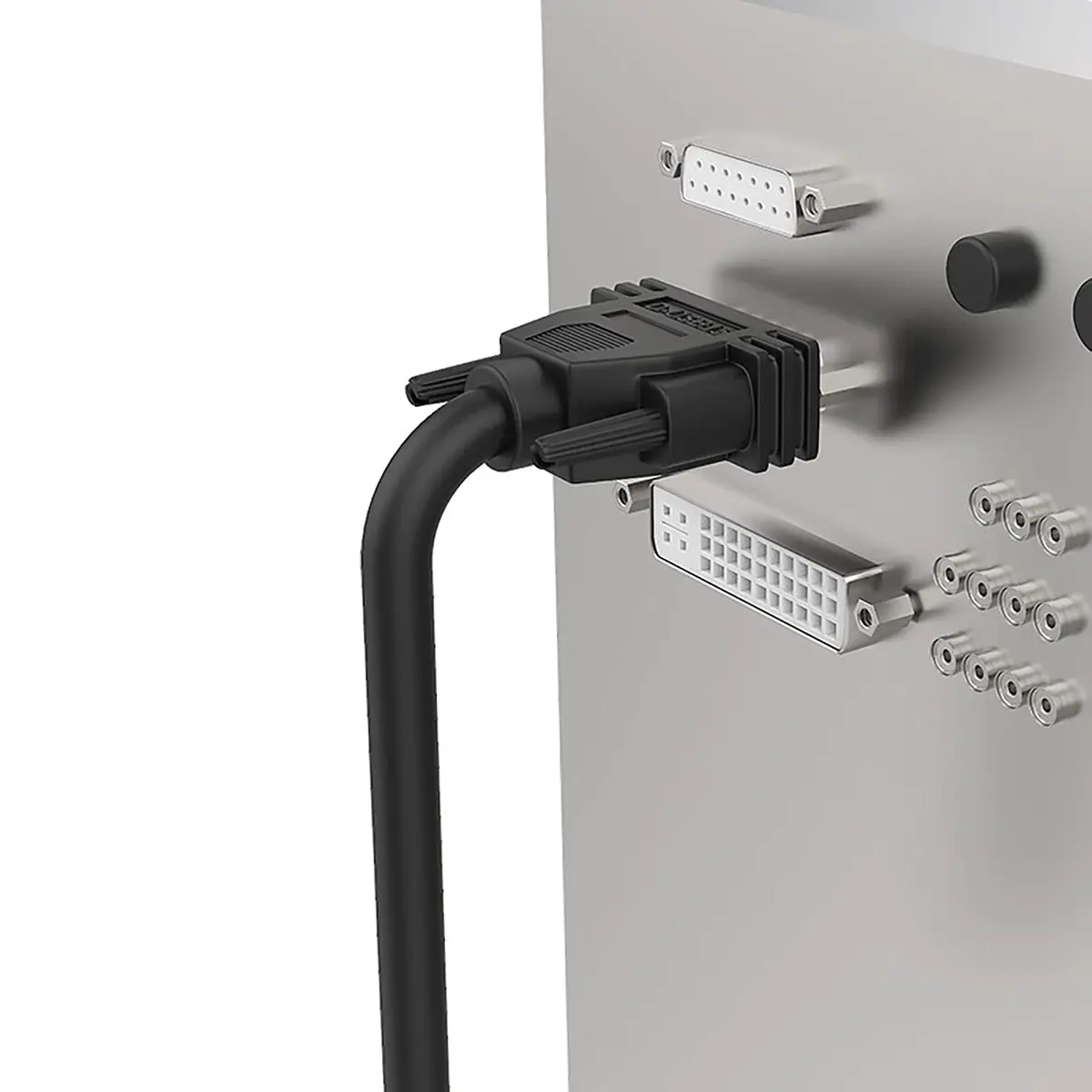

• Connect Cable — Align the connectors and firmly insert the male end of the JUXINICE cable into the host device's port and the female end into the peripheral device's port. Ensure a secure fit.
• Secure Connections — If your ports have thumbscrews, gently tighten them to secure the cable connection and prevent accidental disconnection, especially in environments with vibration.
• Verify Functionality — Power on your devices and check system settings or device manager to confirm the serial connection is recognized and functioning correctly for data communication.
