Is this Jiayouy 4 Band EQ-7545R pickup safe for my acoustic guitar?

Yes, the Jiayouy 4 Band EQ-7545R pickup is designed for safe installation on standard acoustic and cigar box guitars. It uses a piezoelectric under-saddle transducer and a pre-wired system that requires minimal modification, typically involving an end pin jack. Ensure proper installation to avoid any damage to your instrument.

How do I choose the right guitar pickup for my acoustic guitar?

Consider the pickup type (piezo, microphone, magnetic) and EQ features. For acoustic guitars, piezo pickups like the Jiayouy EQ-7545R are common for amplifying natural string sound. Match the EQ bands to your needs for tone control. Ensure the system fits your guitar's body and has the correct output jack size.

How to use the Jiayouy 4 Band EQ-7545R pickup?

Install the under-saddle pickup and end pin jack according to instructions. Connect a 9V battery (not included) and plug your guitar into an amplifier using a 2.5mm cable. Use the volume and EQ controls (Bass, Middle, Treble, Presence) to adjust your sound. The LED indicates battery status.

What are the benefits of the Jiayouy 4 Band EQ-7545R pickup?

The main benefits are enhanced amplified sound control with 4-band EQ, easy pre-wired installation, and a built-in volume knob. It helps modify and perfect your guitar's tone for live performance or recording, with an LED for battery monitoring.

Can I use the Jiayouy 4 Band EQ-7545R pickup daily?

Yes, the Jiayouy 4 Band EQ-7545R pickup is designed for regular use. Ensure a 9V battery is installed and functioning, as indicated by the LED. Consistent use will not harm your guitar, but remember to disconnect your amplifier when not in use to conserve battery life.

What is the best Jiayouy 4 Band EQ-7545R pickup for Indian buyers?

The Jiayouy 4 Band EQ-7545R is a suitable option for Indian buyers seeking an affordable and functional pickup. It offers essential EQ and volume control for acoustic guitars. All customs duties and GST are included, with delivery via ExpressBox tracked shipping, ensuring a transparent purchase process.

Are there Jiayouy 4 Band EQ-7545R pickup side effects?

There are no direct side effects from using the Jiayouy 4 Band EQ-7545R pickup on your guitar. However, improper installation could potentially damage the instrument. Ensure you follow the pre-wired instructions carefully. The system requires a 9V battery, which is not included.

What are the Jiayouy 4 Band EQ-7545R pickup benefits?

This pickup offers significant benefits by allowing detailed tone shaping with its 4-band EQ and volume control. It provides easy installation for acoustic guitars and includes a battery check LED. It helps modify and perfect your guitar's amplified sound for various playing situations.

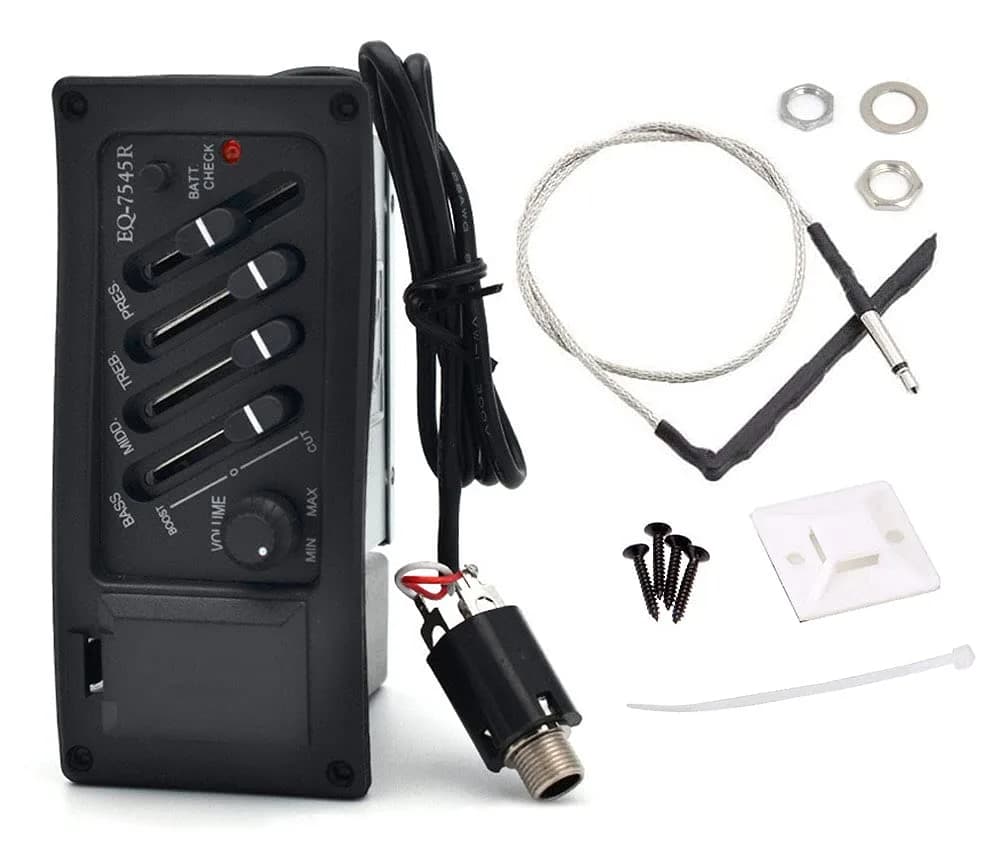

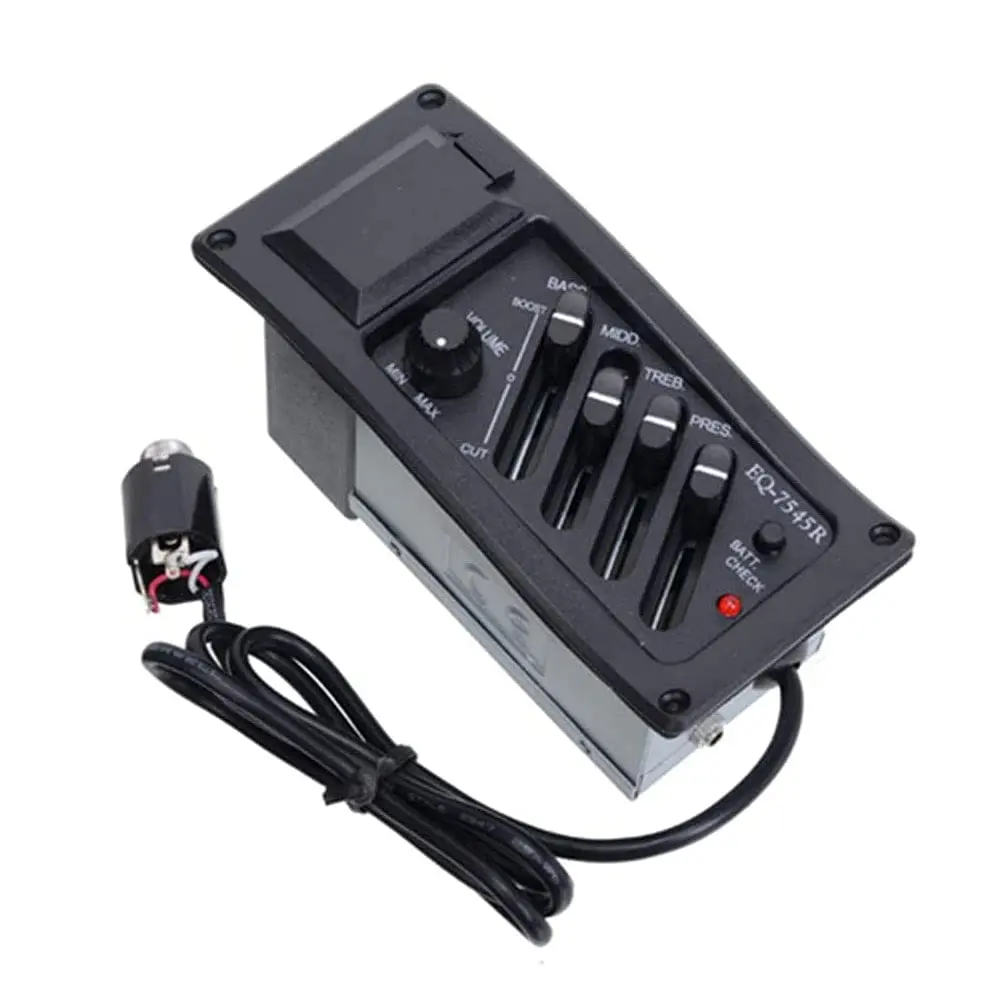

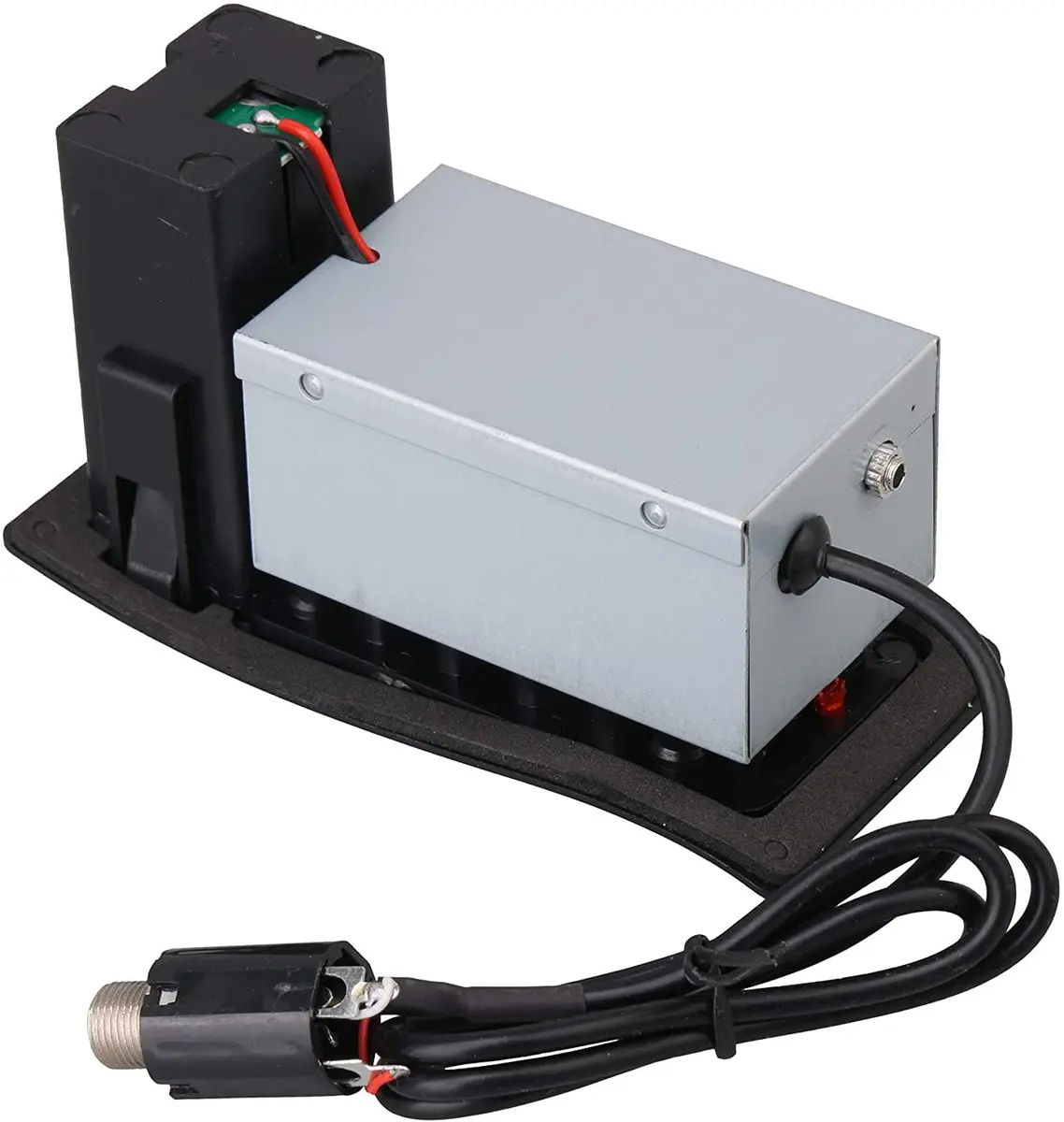

Jiayouy 4 Band EQ-7545R Acoustic Guitar Pickup Preamp | Black

Name: Jiayouy 4 Band EQ-7545R Guitar Pickup Preamp Amplifier with Tuner 10.5cm (4.1in) | For Acoustic Guitars
Brand: Jiayouy
SKU: mey6204
Price: 1936.00 INR
Availability: InStock

About this item

The Jiayouy 4 Band EQ-7545R is a piezo pickup system designed for acoustic guitars, offering essential sound control. It features a 4-band equalizer (Bass, Middle, Treble, Presence) plus a volume control, allowing musicians to fine-tune their tone. The system is pre-wired for straightforward installation, including a connecting wire with a 2.5mm plug and an end pin jack, making it suitable for standard acoustic and cigar box guitars.

This pickup system helps modify and perfect the sound of your acoustic guitar. It includes an LED for battery check, indicating when the 9V battery (not included) needs replacement. The frequency response ranges from 20Hz to 20KHz with an input impedance of 10MOhm, providing a clear and responsive audio output for live performances or recording.

Imported for Indian musicians, this Jiayouy EQ system offers a cost-effective way to enhance your acoustic guitar's amplified sound. All customs duties and GST are included in the price, with delivery via ExpressBox tracked shipping. Enhance your guitar's sonic capabilities with this reliable and easy-to-install pickup.

Key Features

4-Band Equalizer, push bass/middle/treble to adjust frequency.
Designed for acoustic guitar, it helps to modify and perfect sound.
Pre-wired for easy assembly, includes connecting wire with 2.5mm Plug.
Built-in battery holder for 9-volt battery (not included).
Great for standard acoustic and cigar box guitars.

Why choose this product

Enhance Your Acoustic Guitar's Sound

The Jiayouy 4 Band EQ-7545R pickup system provides essential tone-shaping tools for acoustic guitarists. Its 4-band EQ and volume control allow for detailed sound modification, helping you achieve a richer, more defined amplified tone. This system is pre-wired for easy installation, making it accessible even for those new to guitar electronics. The included end pin jack and connecting wire simplify the setup process, ensuring you can quickly integrate it into your instrument. With a frequency response of 20Hz-20KHz and an impedance of 10MOhm, it captures your guitar's natural sound effectively.

Who It's For vs. Who Should Skip It

This pickup is ideal for acoustic guitarists seeking an affordable and functional way to amplify their instrument and control their tone. It's perfect for gigging musicians, home recording enthusiasts, or anyone wanting to add a pickup to a standard acoustic or cigar box guitar. Skip this if you require advanced features like built-in tuners, multiple pickup types (e.g., microphone blend), or extensive EQ options beyond the 4 bands. For professional studio recording or complex live setups, consider higher-end systems with more sophisticated preamplification and sonic control.

How to use

Install the Pickup and End Pin Jack — Carefully fit the piezoelectric pickup under your acoustic guitar's saddle. Drill a hole for the end pin jack at the guitar's base and secure it. Connect the pickup wire to the jack as per the diagram.
Connect the Battery and Wire — Insert a 9V battery (not included) into the battery box. Connect the preamp's wire to the battery box. Ensure all connections are secure and the LED indicator is visible.

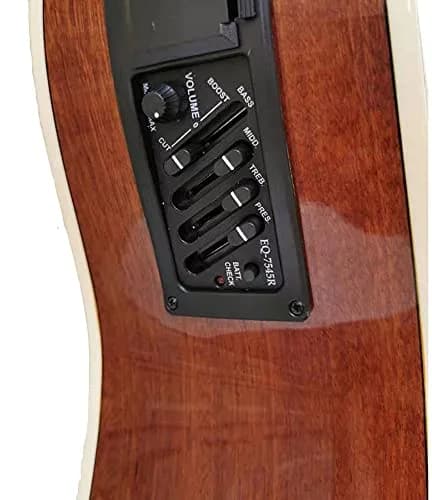

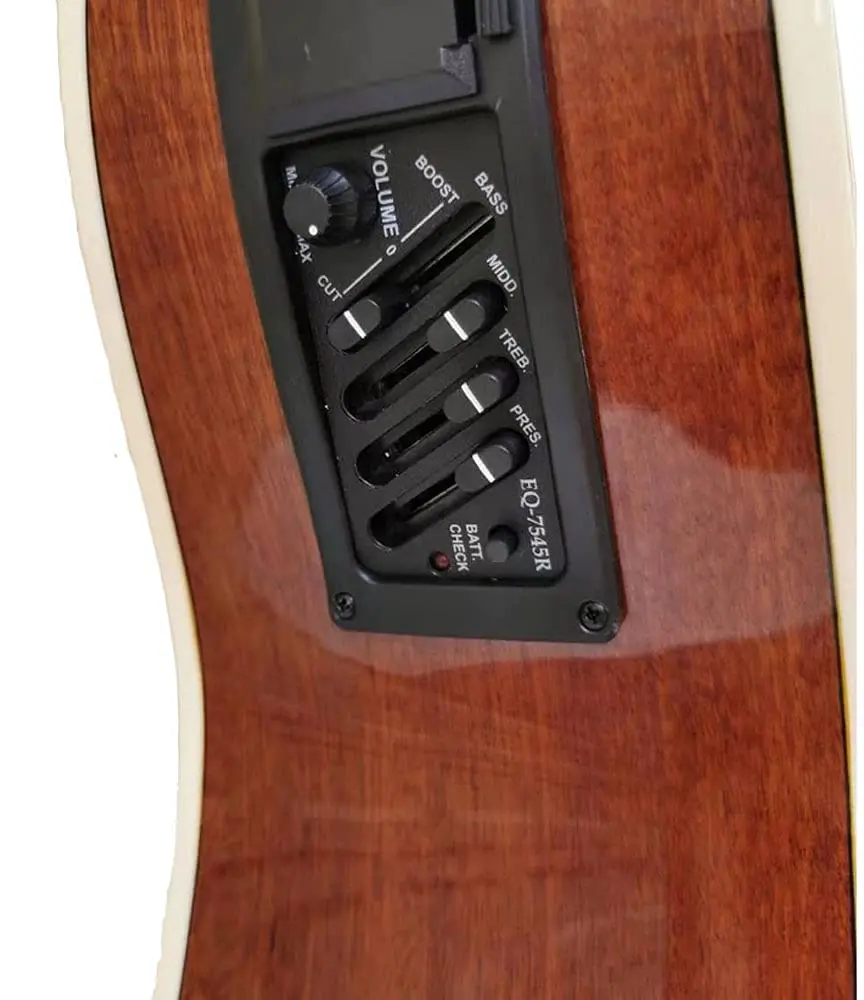

Mount the Preamp and Test — Mount the EQ preamp unit inside the guitar body using the provided sticky plate or screws. Plug a 2.5mm cable from the end pin jack to your amplifier. Turn on your amp and test the volume and EQ controls.

Example scenarios

Typical situations where Jiayouy 4 Band EQ-7545R Guitar Pickup Preamp Amplifier with Tuner 10.5cm (4.1in) | For Acoustic Guitars helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

A musician in Delhi needs to amplify their acoustic guitar for small gigs at cafes.

How this product helps

The Jiayouy 4 Band EQ-7545R allows tone adjustment for different room acoustics. Its pre-wired setup is quick to install, and the LED battery indicator prevents mid-performance issues. This system provides essential EQ control for clear amplified sound.

Scenario 2

Illustrative example

Where it helps

A hobbyist in Kolkata wants to add a pickup to a cigar box guitar for home recording.

How this product helps

This pickup's simple installation and 4-band EQ are perfect for enhancing the amplified tone of a cigar box guitar. The 2.5mm output connects easily to audio interfaces or small amps, offering a cost-effective way to experiment with amplified sounds.

Specifications

Composition

Pickup Type	Piezoelectric Under-saddle Transducer
Preamp Type	4-Band EQ with Volume Control
Frequency Response	20Hz - 20KHz
Input Impedance	10 MOhm
Controls	Volume, Bass (±12dB at 600Hz), Middle (±12dB at 600Hz), Treble (±12dB at 2.2KHz), Presence (±12dB at 8KHz)
Output Connector	2.5mm Plug
Battery Type	9V (not included)
Battery Indicator	LED

Usage

Compatible Instruments	Acoustic Guitars, Cigar Box Guitars
Installation	Pre-wired, under-saddle pickup, requires end pin jack installation
Power Source	9V Battery Powered
Cost per use	N/A (Durables)
Shelf life after opening	N/A (Durables)

How we compare

Feature	Jiayouy 4 Band	Others
Pickup Type	Piezoelectric under-saddle transducer	Piezoelectric, microphone, or magnetic pickups; varies by brand
Equalizer Bands	4-Band (Bass, Middle, Treble, Presence) + Volume	Typically 2-band or 3-band EQ; some offer 4-band at higher prices
Installation	Pre-wired, requires end pin jack	Varies; some are pre-wired, others require more complex setup
Battery Indicator	LED for battery check	Often absent on lower-cost local models
Price Range (Estimated)	₹1,936 (duties included)	₹500 - ₹2500 for comparable 4-band EQ systems

SKU	mey6204
GTIN	0761368787575
Brand	Jiayouy
Model	EQ-7545R
Color	Black
Material	ABS
Pickup Dimensions	10.5cm x 4.7cm x 6cm (4.1in x 1.85in x 2.36in)
Item Weight	118g (0.26 lb)
Package Weight	118g (0.26 lb)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
