Accurate AC Current Monitoring for Indian Industries

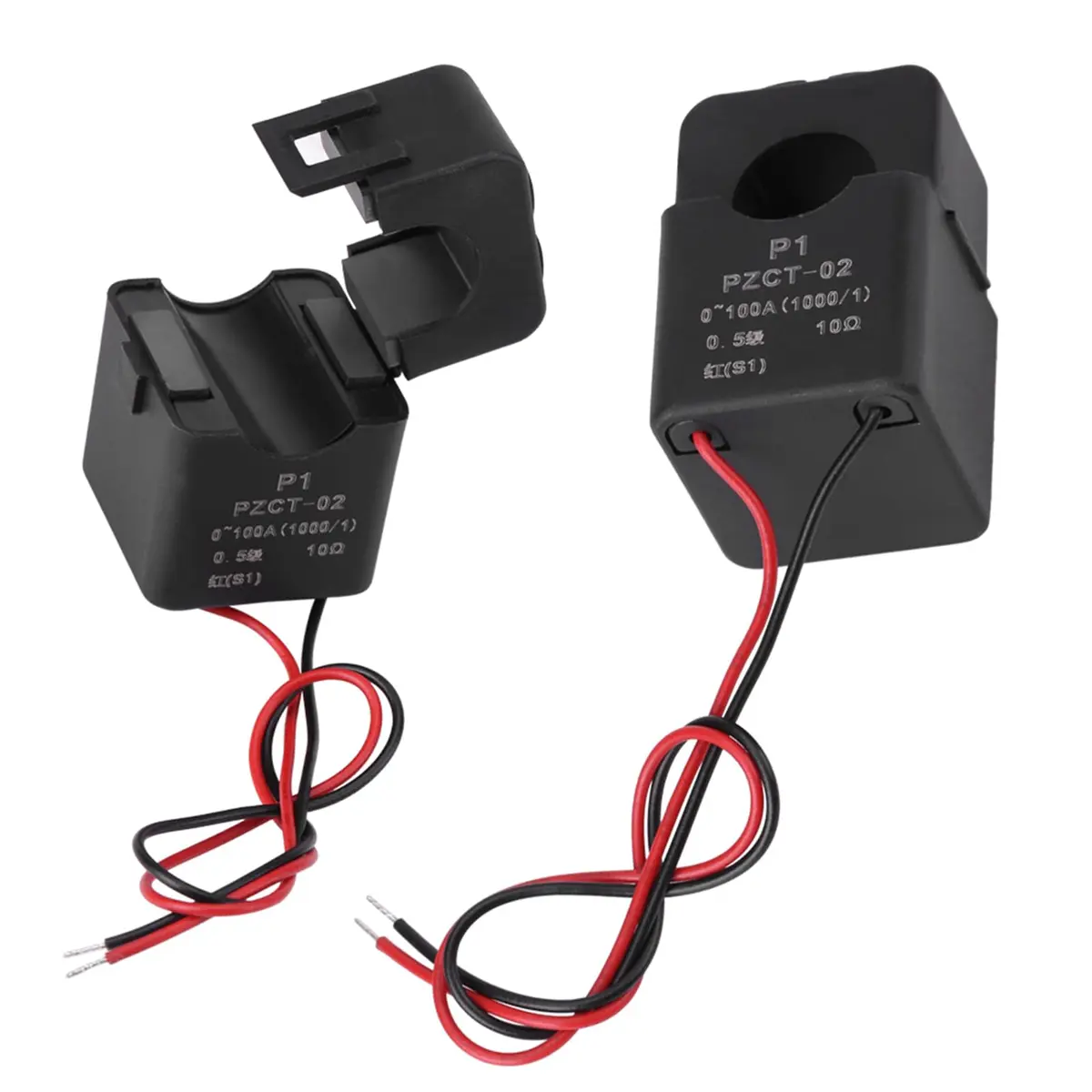

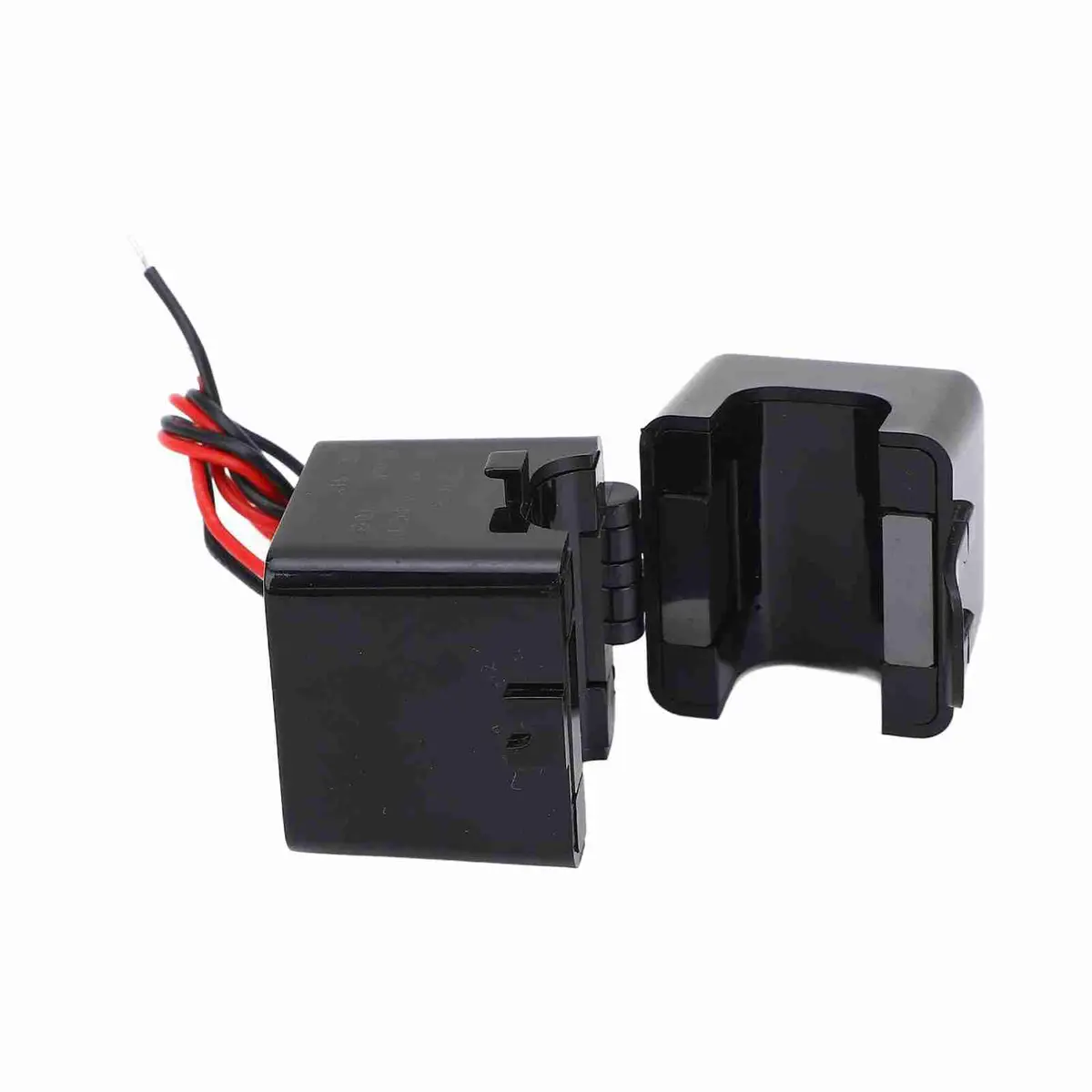

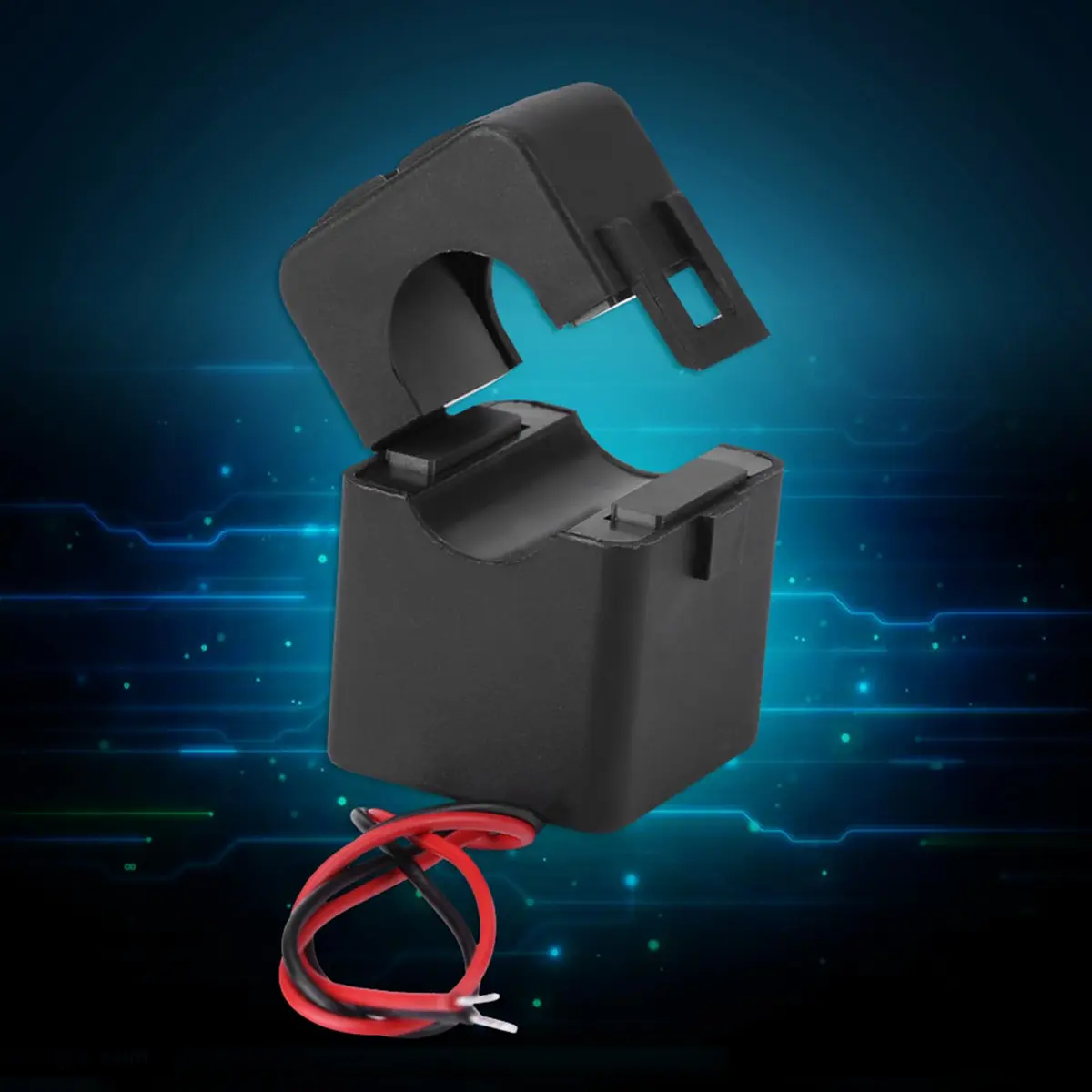

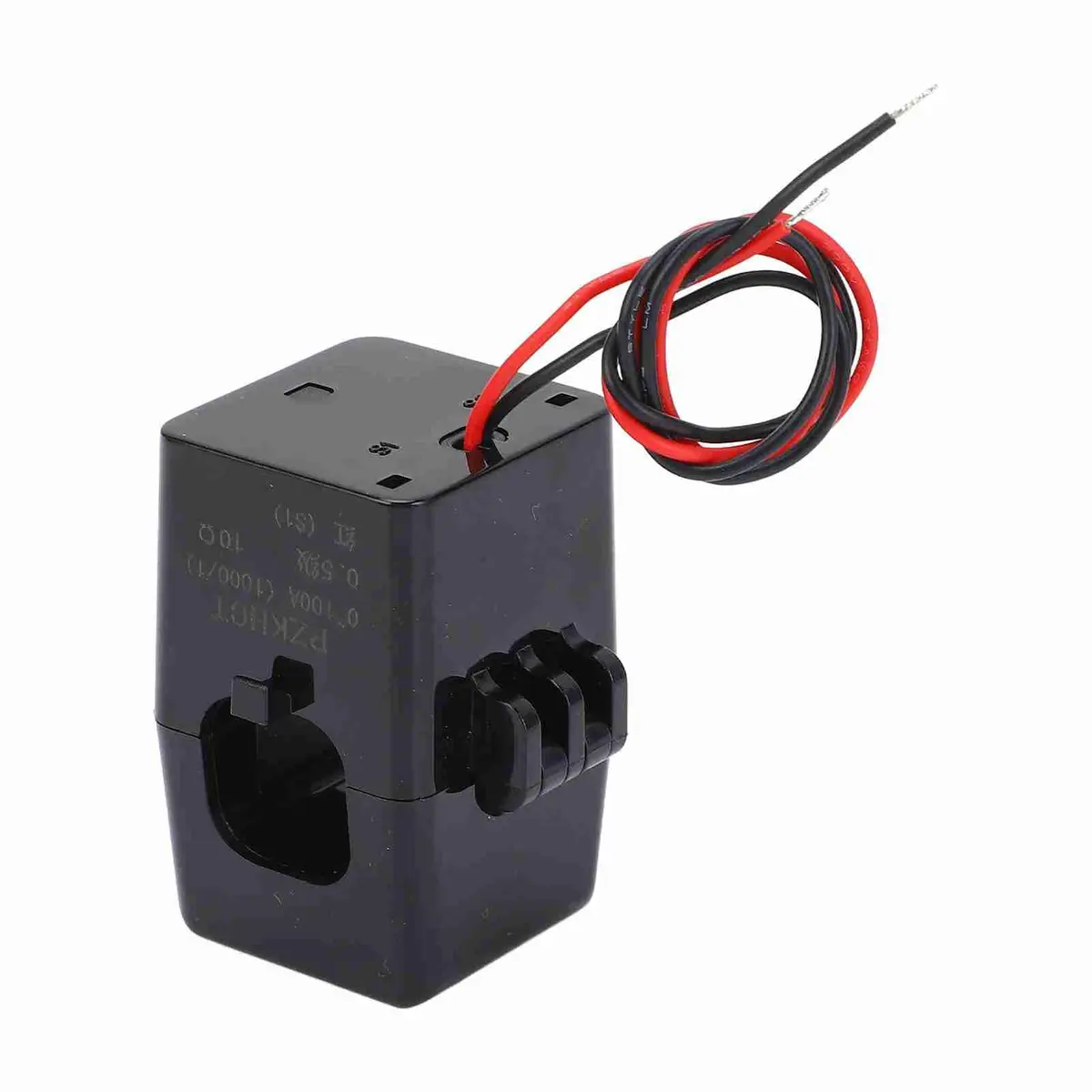

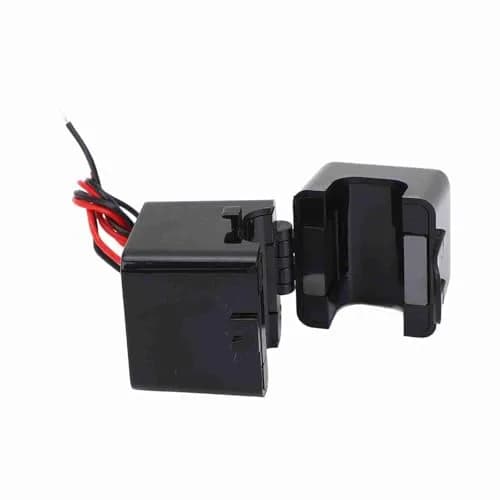

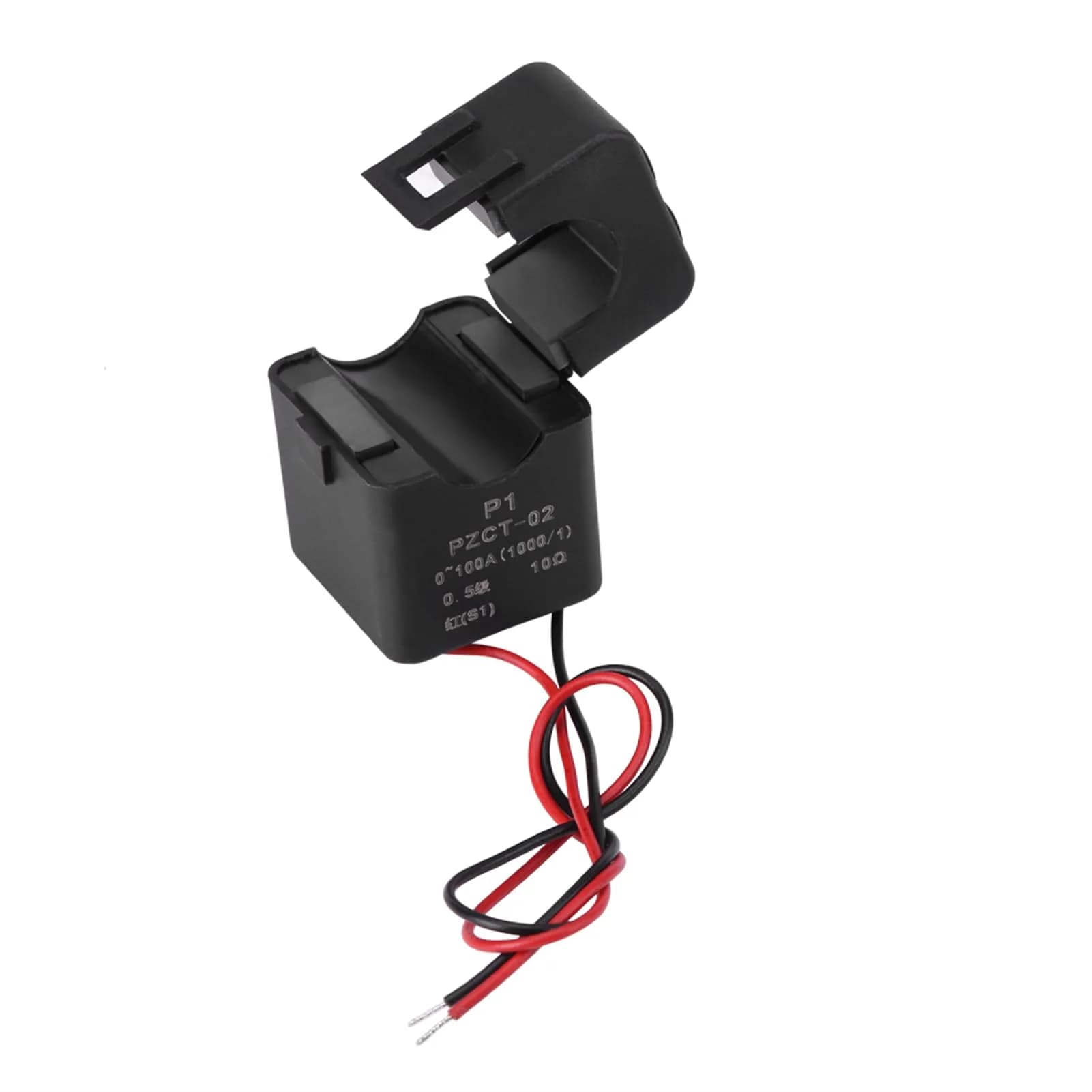

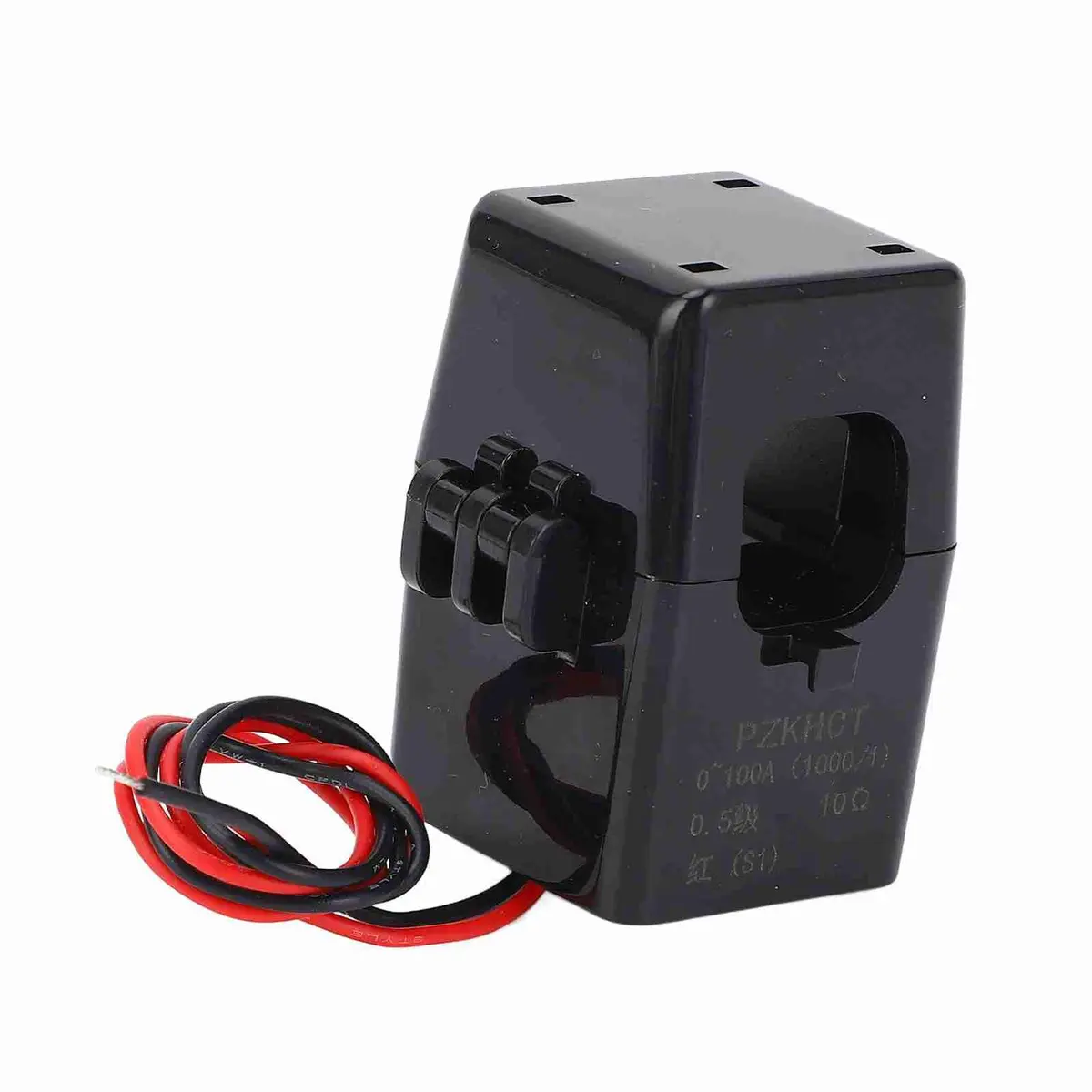

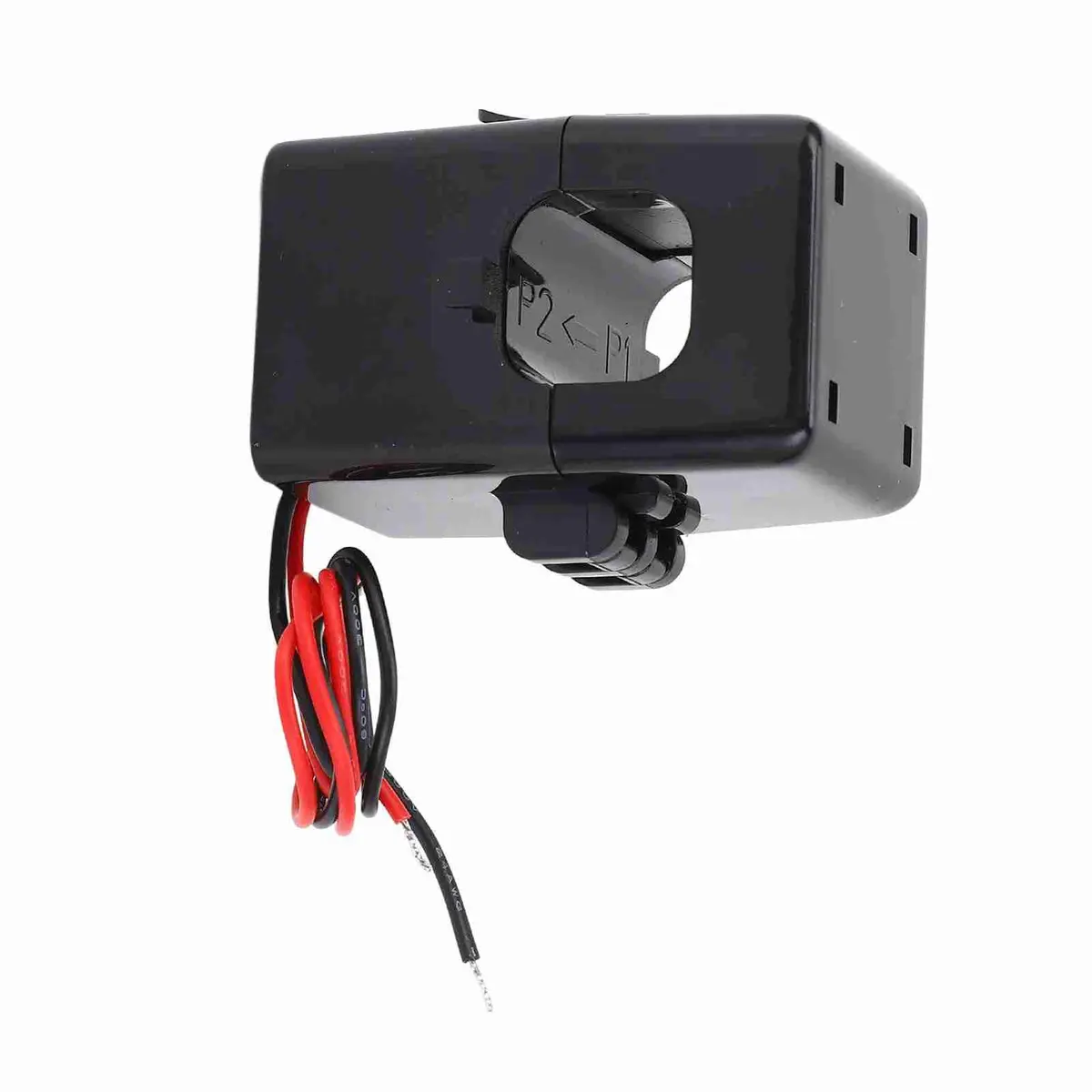

The Jeanoko PZCT-02 split-core current transformer is engineered for accurate AC current monitoring up to 100A, making it ideal for energy meters and industrial power systems operating at 220V or 380V. Its compact, mini design and split-core structure allow for easy installation around existing conductors without disconnecting power, a significant advantage over solid-core alternatives. This transformer is fully enclosed, providing robust mechanical properties, environmental resistance, and strong voltage isolation for enhanced safety and reliability, meeting UL94-Vo flame retardant standards.

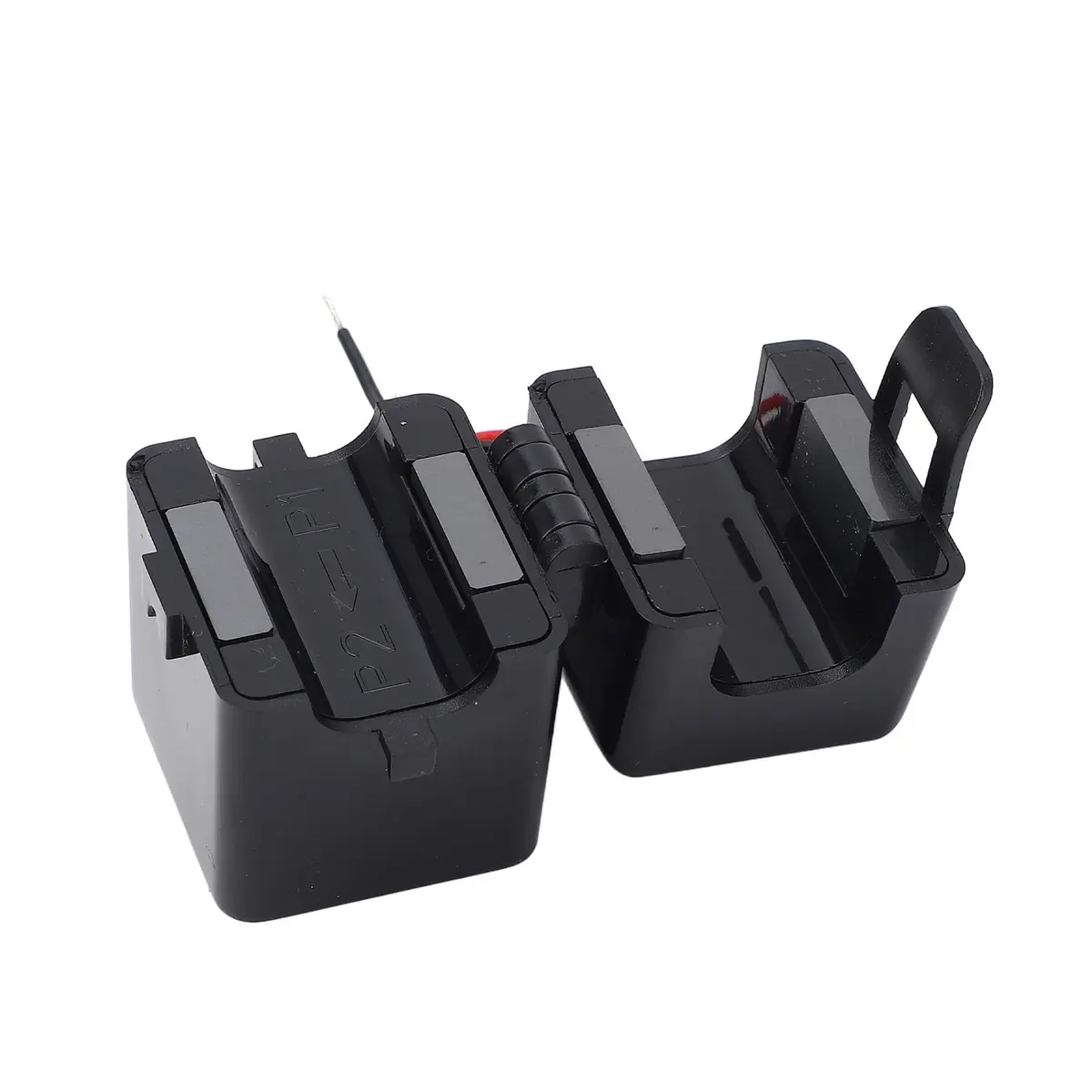

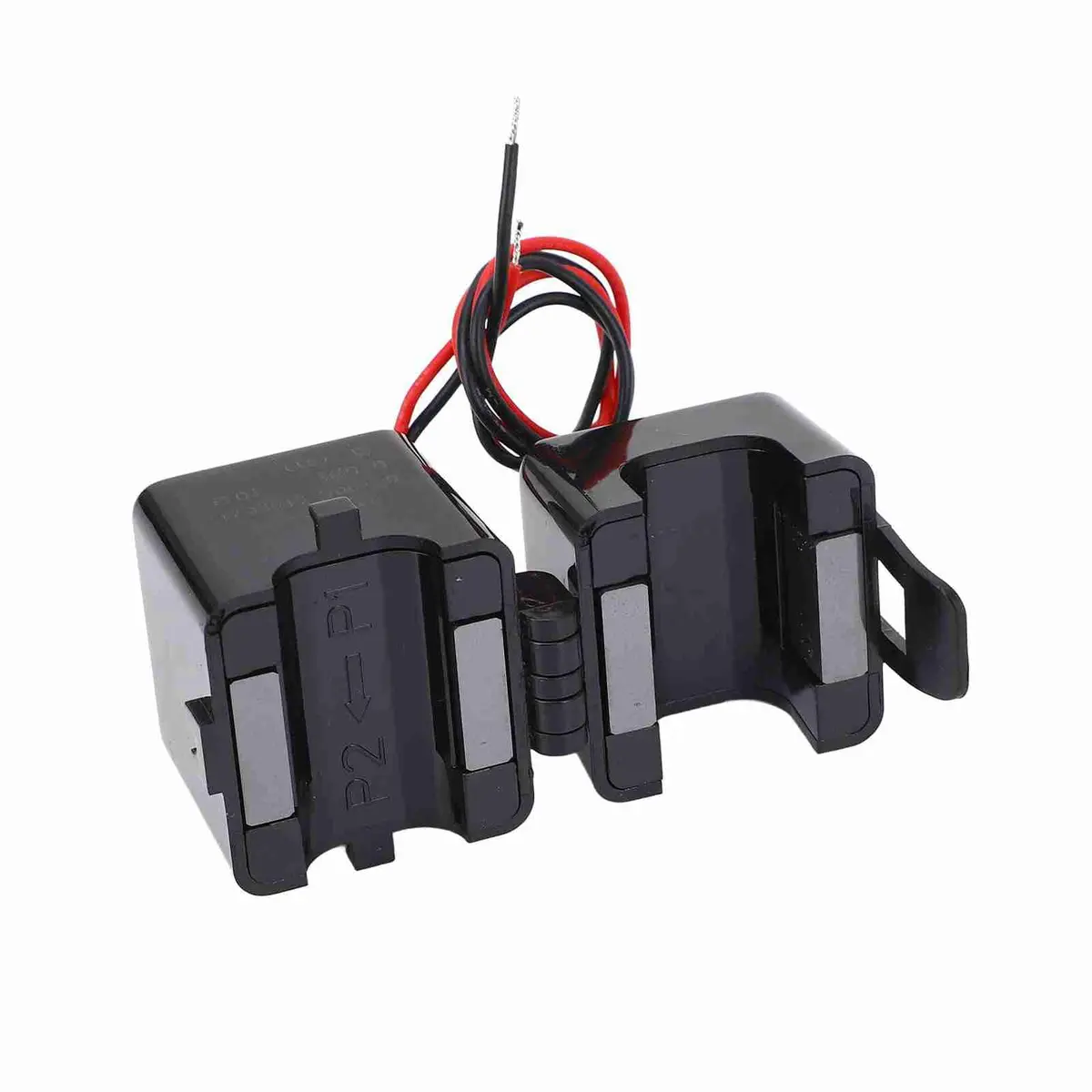

With a precision grade of ≤0.5 and a 16mm inner hole diameter, the PZCT-02 ensures reliable data for your electrical current monitoring needs. The snap joint structure simplifies installation using nylon ties, and its small, lightweight design with a built-in input coil contributes to its overall compactness and ease of use. It operates efficiently within a working frequency of 50Hz-60Hz and an ambient temperature range of -40°C to +85°C, with insulation resistance greater than 1000MΩ and dielectric strength capable of withstanding power frequency 1000V for one minute.
For Indian industrial applications, the Jeanoko PZCT-02 provides a cost-effective and reliable solution for monitoring power consumption and ensuring system efficiency. All customs duties and GST are included in the listed price, with delivery via ExpressBox tracked shipping. The secondary circuit must always be kept in a short-circuit state during operation; never install with the secondary circuit open.
Reliable AC Current Monitoring for Indian Industries
The Jeanoko PZCT-02 split-core current transformer is specifically designed for accurate and safe AC current measurement up to 100A. Its compact size and split-core design simplify installation on existing power lines without requiring system downtime, a crucial factor for continuous industrial operations in India. With a precision grade of ≤0.5 and UL94-Vo flame retardant certification, it offers enhanced safety and reliability, operating effectively in ambient temperatures from -40°C to +85°C. This transformer is an excellent choice for energy metering and power monitoring applications, ensuring you get precise data for efficient power management.
Who It's For vs. Who Should Consider Alternatives
This transformer is ideal for electricians, maintenance technicians, and engineers in India needing to monitor AC current in energy meters, industrial control panels, or power distribution systems up to 100A. It's perfect for retrofitting existing setups due to its split-core design. Consider alternatives if you require DC current measurement or need a higher current rating beyond 100A. For applications requiring very high precision or specific communication protocols like Modbus, a more advanced transducer might be necessary.
Typical situations where Jeanoko PZCT-02 Split Core Current Transformer 100A | UL Certified helps — illustrative scenarios, not customer reviews.
An Indian factory needs to monitor the AC current of a specific machine without shutting down production.
The Jeanoko PZCT-02's split-core design allows it to be clamped around the machine's power cable without interrupting operation. Its 100A rating and ≤0.5 precision grade provide accurate readings for energy metering, ensuring efficient power management and cost savings.
An Indian electrical contractor is retrofitting an older building's energy meter with a new monitoring system.
The PZCT-02's compact size and easy snap-on installation simplify the retrofit process. Its UL certification and robust construction ensure safety and reliability in diverse Indian ambient conditions, providing accurate AC current data for the new system.
| Primary Sensing Technology | Inductive Transformer |
| Output Signal | 100mA (nominal, for 100A primary) |
| Application | Energy meter, AC power monitoring, industrial control panels |
| Power Supply Compatibility | AC 220V, 380V |
| Installation Note | Connect primary in series with test current loop. Secondary MUST be kept in short-circuit state. DO NOT install with secondary circuit open. |
| Shelf life after opening | 12 months (typical for electronic components) |
| Contraindications | Not for DC current measurement. Secondary circuit must not be left open. |
| Allergens / common irritants | None listed |
| Feature | Jeanoko PZCT-02 Split | Others |
|---|---|---|
| Sensing Technology | Inductive Transformer (AC only) | Varies; may include inductive transformer (AC) or Hall Effect (AC/DC) |
| Max Current Rating | 100A AC | Varies by model; common local options range from 50A to 200A AC |
| Precision Grade | ≤0.5 | Typically 0.5% or 1.0% for standard models |
| Certifications | UL94-Vo Flame Retardant | May include BIS or other local certifications; UL is less common |
| Installation | Split-core, snap-on, no power disconnection needed | Can be split-core or solid-core; solid-core requires power disconnection |
| SKU | zdh1473 |
| GTIN | 9588081750805 |
| Brand | Jeanoko (PEACEFAIR) |
| Model | PZCT-02 |
| Type | Split Core Current Transformer |
| Max Current Rating | 100A AC |
| Inner Hole Diameter | 16 mm (0.63 inches) |
| Precision Grade | ≤0.5 |
| Working Frequency | 50Hz - 60Hz |
| Insulation Endurance Grade | B grade (130°C) |
| Insulation Resistance | >1000 MΩ |
| Dielectric Strength | 1000V AC for 1 minute |
| Flame Retardant | UL94-Vo grade |
| Ambient Temperature | -40°C to +85°C (-40°F to 185°F) |
| Relative Humidity | ≤90% (at 40°C) |
| Mounting Type | Surface Mount / Snap Joint |
| Dimensions (L x W x H) | 8 cm x 6 cm x 2 cm (3.15 x 2.36 x 0.79 inches) |
| Weight | 59g (0.13 lbs) |
| Country of Origin | Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners |
