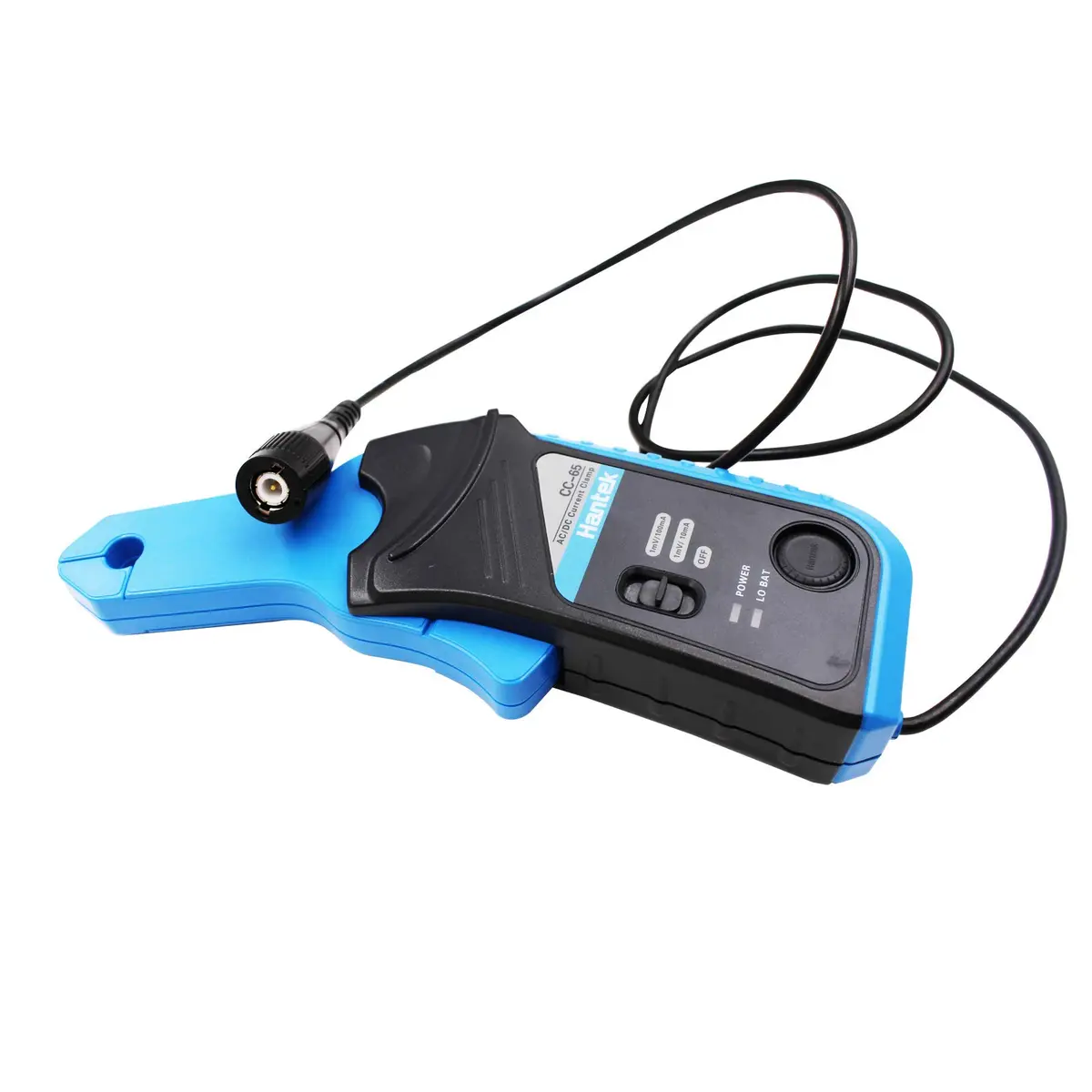

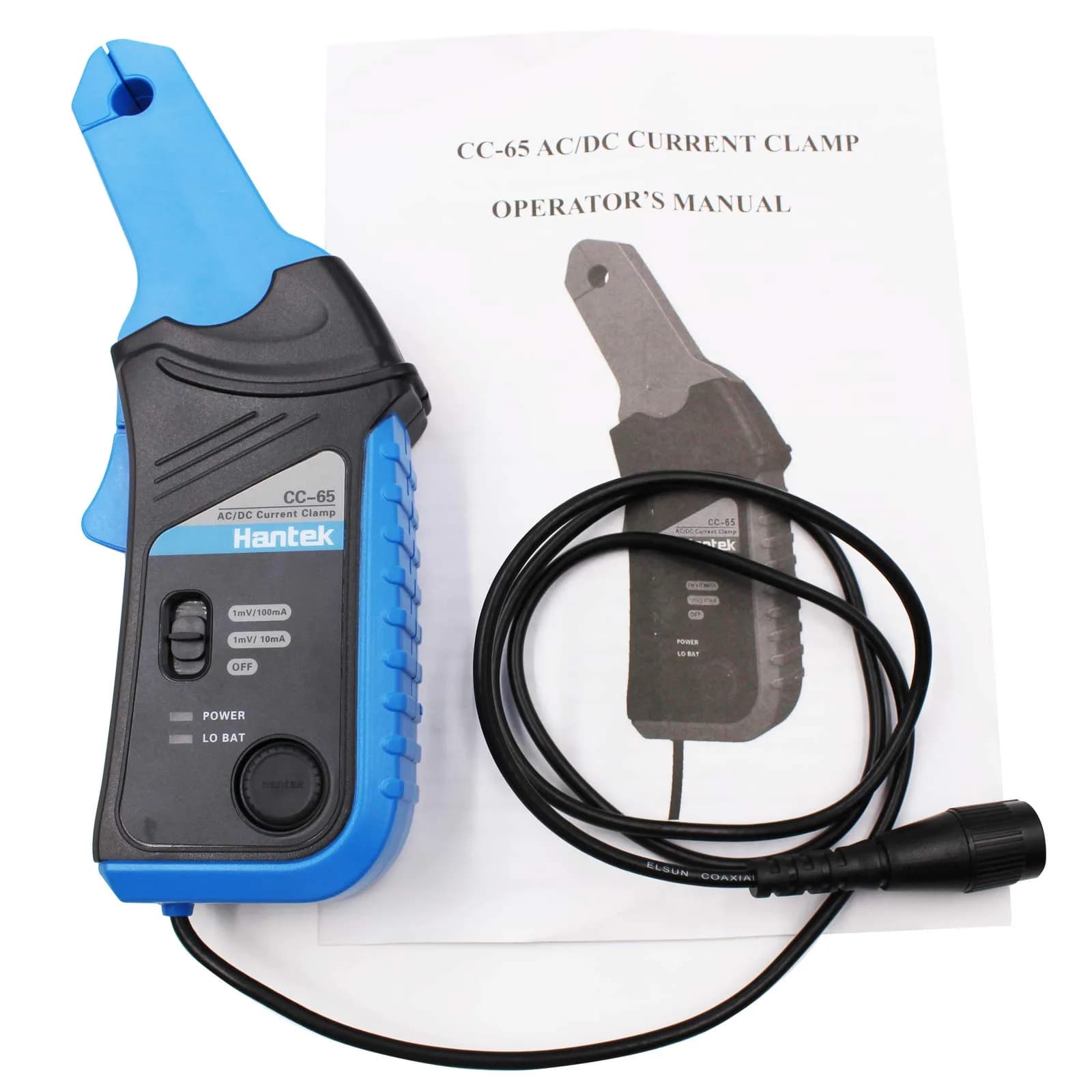

Hantek CC-65 AC/DC Current Clamp Meter 65A | Measures AC/DC Current Up to 20kHz

• Hantek amp clamp AC/DC frequency range: Up to 20 kHz;
• hantek cc65 Effective Measurement Range: 20mA to 65A DC;
• The oscilloscope current probe is with Accurate circuit measurement and suitable for DSO;
• Hantek CC-65 amp clamp is Friendly in use: turn on, clamp it over a conductor, and get a reading;

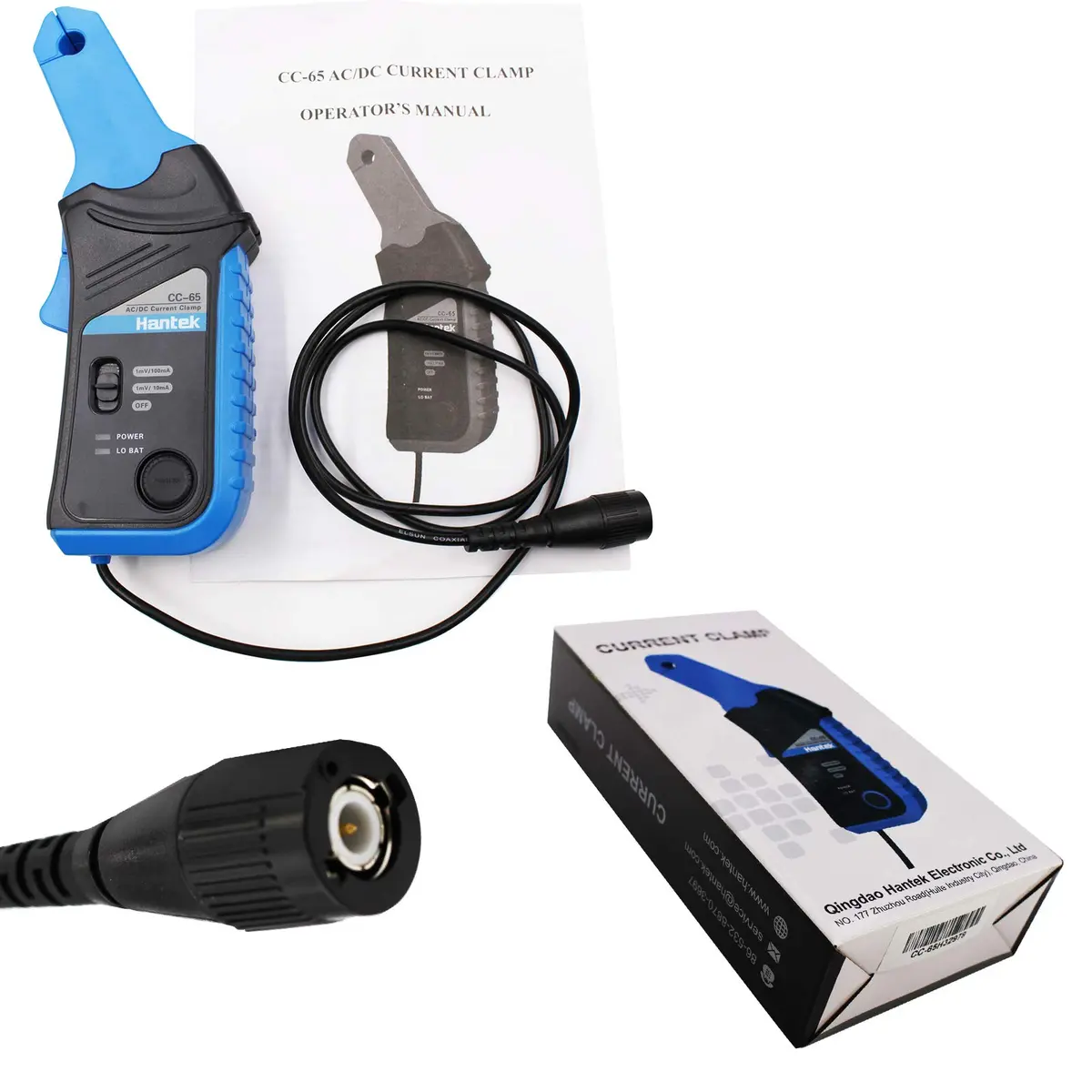

• The current probe is with Output: BNC connector;

• Connect to Your Device — For multimeters, insert the black banana plug into the COM jack and the red banana plug into the V-Ω jack. For oscilloscopes, connect the BNC connector of the clamp to the scope's BNC input.

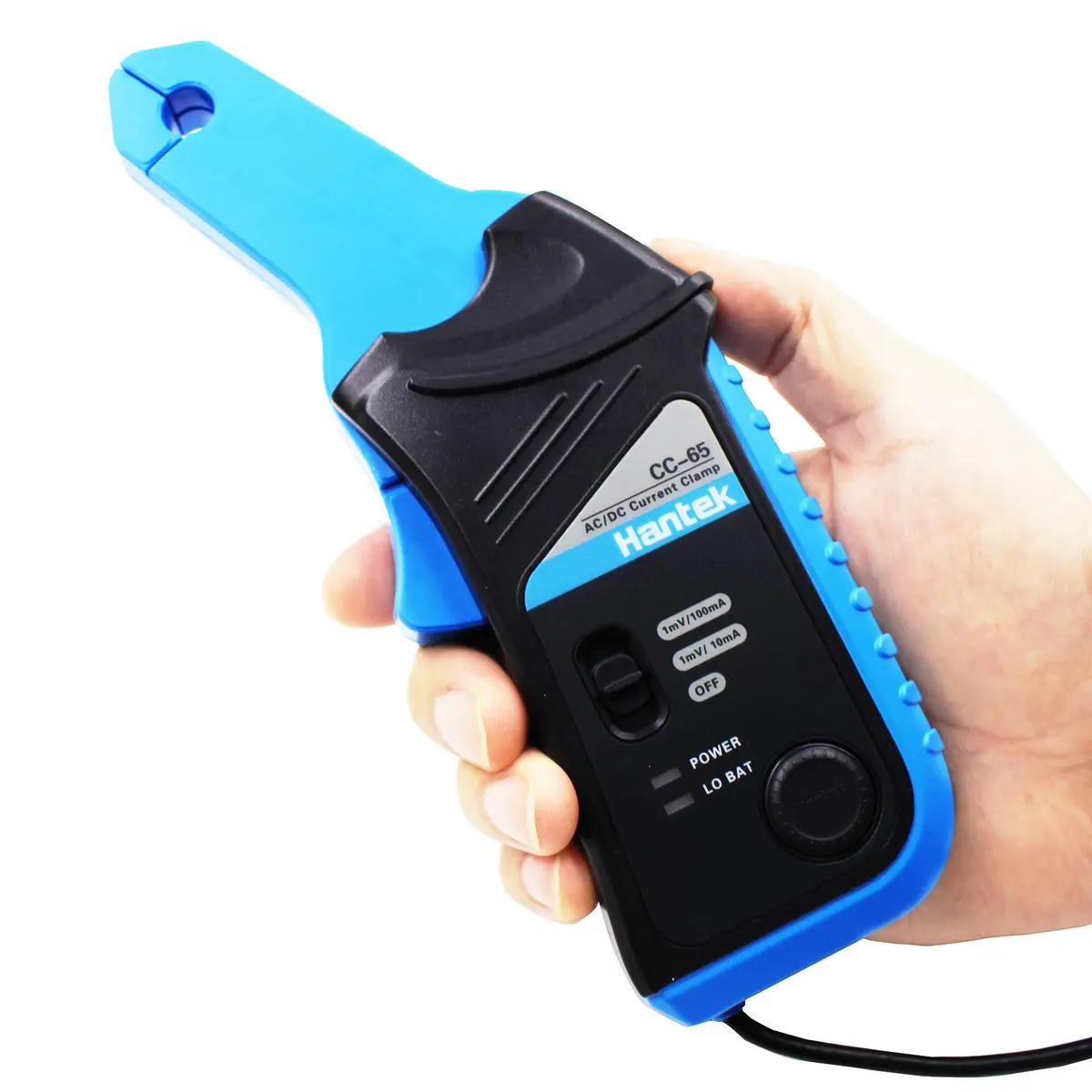

• Power On and Set Range — Switch the power from 'Off' to 'ON'. The green LED will light up. Set your multimeter range to 1mV/10mA or 1mV/100mA, or the appropriate setting for your oscilloscope.
• Zero Adjustment for DC — Before measuring DC current, press and hold the zero adjustment knob until the multimeter reads zero. Release the knob once zeroed. For AC current, this step is not required.
• Perform Measurement — Clamp the jaw around a single conductor to measure current. For currents under 2 amperes, set the clamp range to 1mV/10mA and the multimeter range to 200mV AC or DC as appropriate.
