What gauge does this wire correspond to in Indian sq-mm sizing?

This Haerkn wire is rated 22 AWG (0.3mm²) as printed on the jacket. Common equivalents for Indian wiring are 14 AWG ≈ 2.5 mm², 12 AWG ≈ 4 mm², and 10 AWG ≈ 6 mm². Match the AWG figure to the square-mm size your circuit and breaker require before installing.

Is this wire suitable for 230V Indian household wiring?

Yes, the Haerkn 22 AWG wire carries a 600V rating, which comfortably covers 230V single-phase household use in India. Confirm the silicone insulation type suits your conduit or in-wall application and always follow local wiring practice. Installation should be done by a qualified electrician.

How to buy an original Haerkn 22 AWG silicone wire in India?

Purchase original Haerkn wire sourced from authorized US retailers and brand partners, factory-sealed and imported per-order. All customs duties and GST are included in the listed price. Delivery is via ExpressBox tracked service, ensuring authenticity and clear pricing.

What are the benefits of silicone wire over PVC wire?

Silicone wire, like this Haerkn 22 AWG model, offers superior flexibility and a much wider temperature range (-60°C to 200°C) compared to PVC. It resists cracking and brittleness in extreme cold and maintains integrity near heat sources, making it ideal for demanding electronic applications.

Can I use this wire for high-current applications?

This Haerkn 22 AWG wire is rated to bear a current of 3.0A. For higher current applications, you will need to select a thicker gauge wire (lower AWG number) that is rated appropriately for the amperage required by your circuit.

What is the difference between stranded and solid copper wire?

This Haerkn wire uses stranded tinned copper, meaning it's made of many thin strands. This makes it much more flexible and resistant to breaking from vibration or repeated bending compared to solid copper wire, which is stiffer and better suited for fixed installations.

What does 22 AWG mean for wire thickness?

22 AWG (American Wire Gauge) is a standard for wire thickness. A lower AWG number indicates a thicker wire with higher current-carrying capacity. 22 AWG is suitable for lower-power electronics and signal applications, with an approximate diameter of 0.78mm for the conductor.

Haerkn 22 AWG Silicone Wire 200ft | Tinned Copper, 600V, -60°C to 200°C

Name: Haerkn 22 AWG Silicone Wire 200ft (60.96m) | 600V Rated, Ultra-Flexible, Tinned Copper
Brand: Haerkn
SKU: djh2230
Price: 2793.00 INR
Availability: InStock

About this item

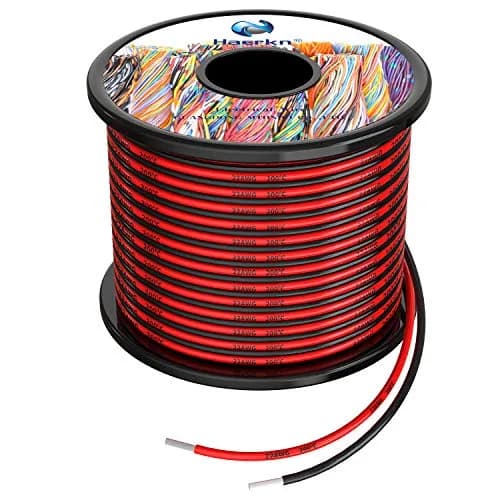

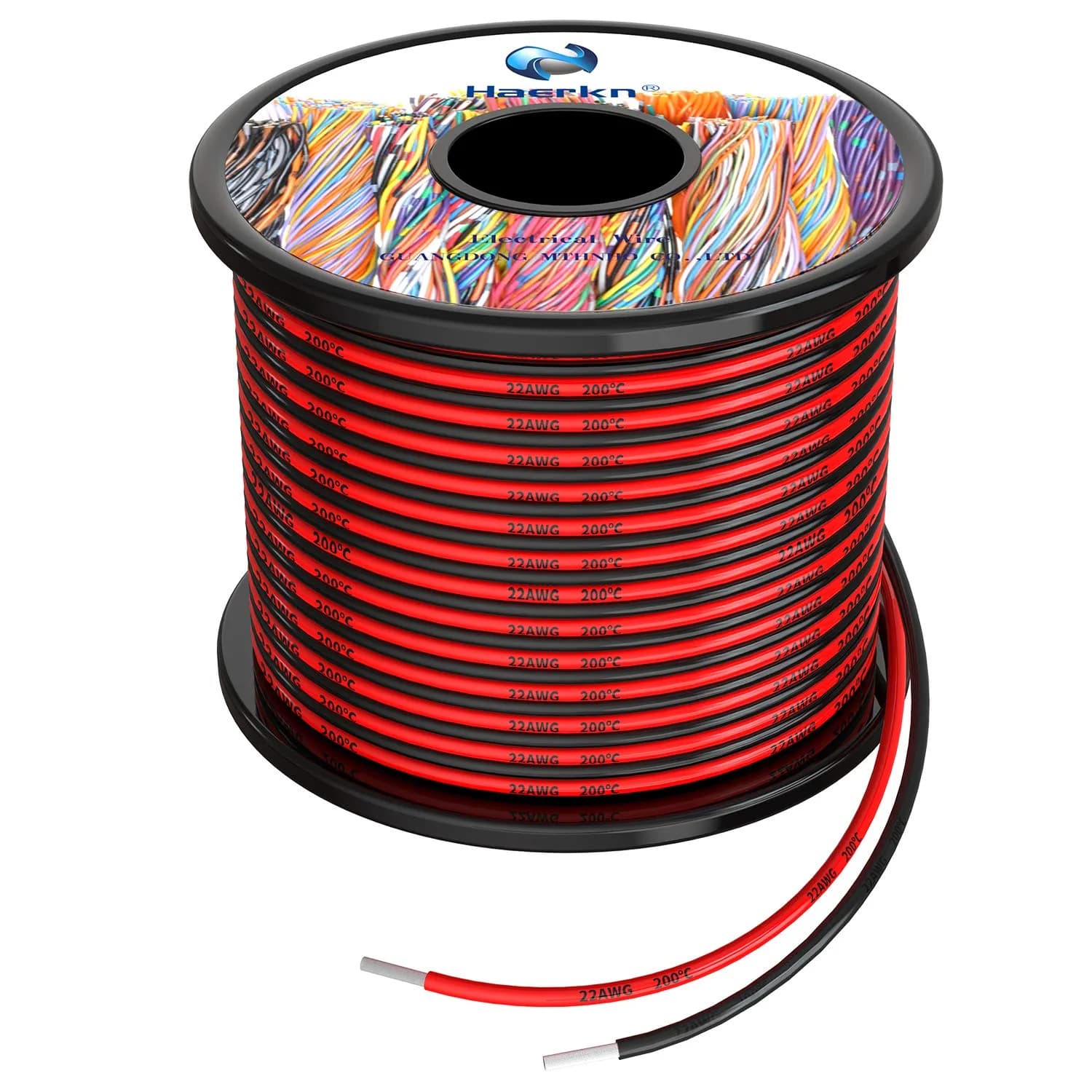

Haerkn 22 AWG silicone wire provides 200 feet (60.96 meters) of highly efficient, ultra-flexible wiring in red and black. This wire is constructed with a high strand count of 60 strands of 0.08mm tinned copper, offering low impedance and excellent conductivity. The premium silicone rubber insulation ensures high temperature resistance up to 200°C and low temperature resistance down to -60°C, making it suitable for demanding applications. Rated for 600 volts, it's perfect for model planes, cars, ships, batteries, and various electronic devices.

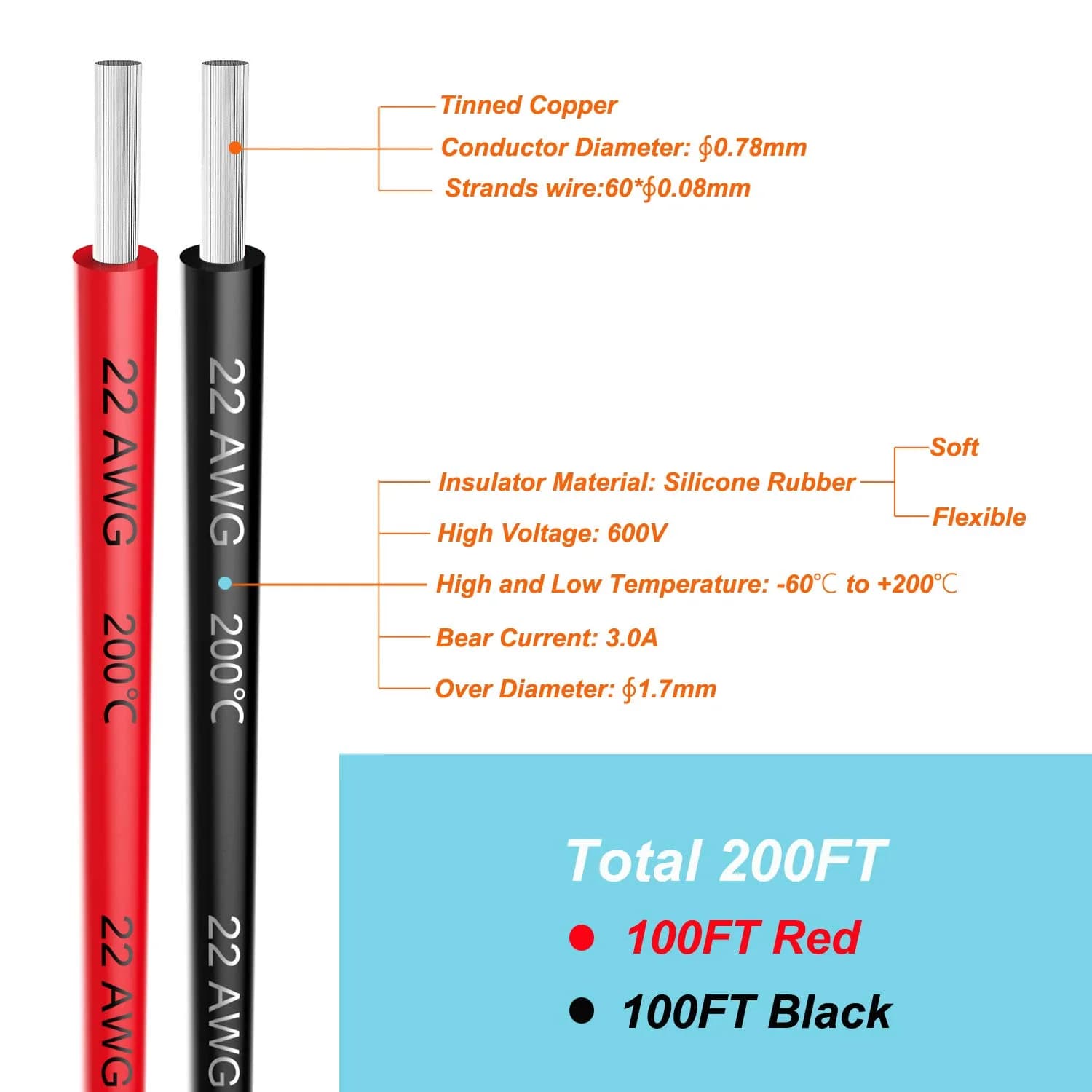

The wire features a conductor gauge of 22 AWG (0.3mm²) with a tinned copper core that resists corrosion and is easy to solder. The outer jacket has a thickness of 0.55mm, resulting in an overall diameter of 1.7mm (±0.1mm). This high-purity, stranded, oxygen-free copper conductor has high conductivity and low resistance, allowing it to be bent arbitrarily for easy connection and cutting. It can bear a current of 3.0A.

For Indian users, this imported Haerkn wire offers a reliable solution for electronics projects where flexibility and temperature tolerance are key. While US-spec wiring differs from Indian standards, the 600V rating is suitable for 230V systems. Ensure compatibility with local wiring practices. All customs duties and GST are included in the price, with delivery via 12-14 days.

Key Features

Total 200 feet:100FT Black and 100FT Red NOTE:The red and black wires are separate wires,wound around the same spool.
22 gauge(0.3mm²) silicone wire - super flexible 60 strands of 0.08mm Tinned copper wire - Highly efficient - Super low impedance for a highly efficient connection
High Temperature Resistant Silicone Wire.Temp: -60 degree celsius +200 degree celsius
Nominal Voltage 600V；Bear Current 3.0A；Conductor: High purity Stranded oxygen-free copper with tin-plated, specification features high conductivity, low resistance and soft, can be bent arbitrarily, easy to welding, connect,cut.
Widely used for Car,batteries,lamps,household appliances,electric heating appliances,model planes,model cars,model ships,meters,instruments,motor lead wire and digital fields

Why choose this product

Superior Performance for Demanding Projects

Haerkn silicone wire is engineered for exceptional performance where standard wires fail. Its ultra-flexible, tinned copper core and robust silicone insulation withstand extreme temperatures (-60°C to 200°C) and voltage up to 600V. This means reliable connections for your models, appliances, and electronic projects, even in challenging Indian conditions. Unlike basic PVC wires, silicone offers superior heat resistance and flexibility, preventing brittleness and breakage over time. Imported directly, it bypasses grey-market uncertainties.

Ideal for Hobbyists & DIYers, Consider Local Standards

This wire is perfect for hobbyists, DIY electronics enthusiasts, and anyone needing flexible, high-temperature rated wiring for projects like RC cars, drones, or custom appliance wiring. It's particularly useful for applications requiring frequent bending or exposure to heat. However, Indian electrical standards use sq-mm sizing and different color codes than US AWG. While the 600V rating is safe for 230V, ensure you match the AWG to the required sq-mm gauge and note the color differences (US: Black/Red for hot, Green for ground; India: Red/Yellow/Blue for phases, Black for neutral, Green for earth) before installation. Consult a qualified electrician for complex installations.

How to use

Determine the required length for your connection. Use wire cutters to cleanly cut the 22 AWG silicone wire to the desired length from the red or black spool. — Measure and Cut Wire
Carefully strip approximately 5-7mm of the silicone insulation from the end of the wire using a wire stripper suitable for fine gauge wires. The tinned copper conductor is now exposed and ready for connection. — Prepare Wire Ends
Solder the tinned copper end to your component's terminal or connector. Alternatively, use appropriate crimp connectors designed for 22 AWG wire. Ensure a secure and conductive connection. — Make Connection
If necessary, use heat shrink tubing over the connection for added insulation and strain relief. Ensure all connections are properly insulated and protected according to your project's requirements. — Secure and Insulate

Example scenarios

Typical situations where Haerkn 22 AWG Silicone Wire 200ft (60.96m) | 600V Rated helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

Building custom LED lighting for a car interior or model train layout.

How this product helps

This Haerkn 22 AWG silicone wire's flexibility and 200ft length allow for intricate routing around tight spaces and components. The 600V rating and wide temperature range ensure safe, reliable connections even near heat-generating LEDs or in varying ambient temperatures.

Scenario 2

Illustrative example

Where it helps

Connecting battery packs for RC vehicles or portable electronics in humid Indian weather.

How this product helps

The tinned copper conductor resists corrosion from humidity, while the silicone insulation provides excellent protection. The 22 AWG gauge is suitable for moderate current draws, ensuring efficient power transfer for your devices without compromising durability.

Specifications & installation

Installation & usage

Application	Model planes, cars, ships, batteries, lamps, household appliances, electric heating appliances, meters, instruments, motor lead wire, digital fields.
Cost per use	200 ft total length — ₹13.97 per foot
Shelf life after opening	12 months (category default for wire/cable)
Reapplication math	N/A (Durable product)
Contraindications	Not suitable for mains power distribution without professional installation and compliance checks with Indian electrical codes.
Allergens / common irritants	N/A

How we compare

Feature	Haerkn 22 AWG	Others
Conductor Material	Tinned Copper (60 strands of 0.08mm)	Varies by brand; often plain copper or copper-clad aluminum, solid or stranded.
Insulation Type	Silicone Rubber	Typically PVC; less flexible and lower temperature resistance.
Temperature Rating	-60°C to 200°C	Typically -20°C to 80°C for PVC insulation.
Voltage Rating	600V	Often 300V or 450V for general-purpose PVC wire; higher ratings available but less common in hobbyist gauges.
Cost per foot	200 ft spool — ₹13.97 per foot	Local 22 AWG PVC wire can range from ₹15-30 per meter (approx. ₹4.5-9 per foot), depending on brand and quality.

SKU	djh2230
GTIN	0704755648974
Brand	Haerkn
Wire Gauge	22 AWG (0.3mm²)
Total Length	200 ft (60.96 m)
Colors	100 ft Black, 100 ft Red
Conductor Material	Tinned Copper (60 strands of 0.08mm)
Insulation Material	Silicone Rubber
Rated Voltage	600V
Temperature Range	-60°C to 200°C
Outer Diameter	1.7 mm (±0.1 mm)
Current Rating	3.0A
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
