Electronics-Salon Raspberry Relay Module | 2 DPDT Signal Relay Board DC 24V

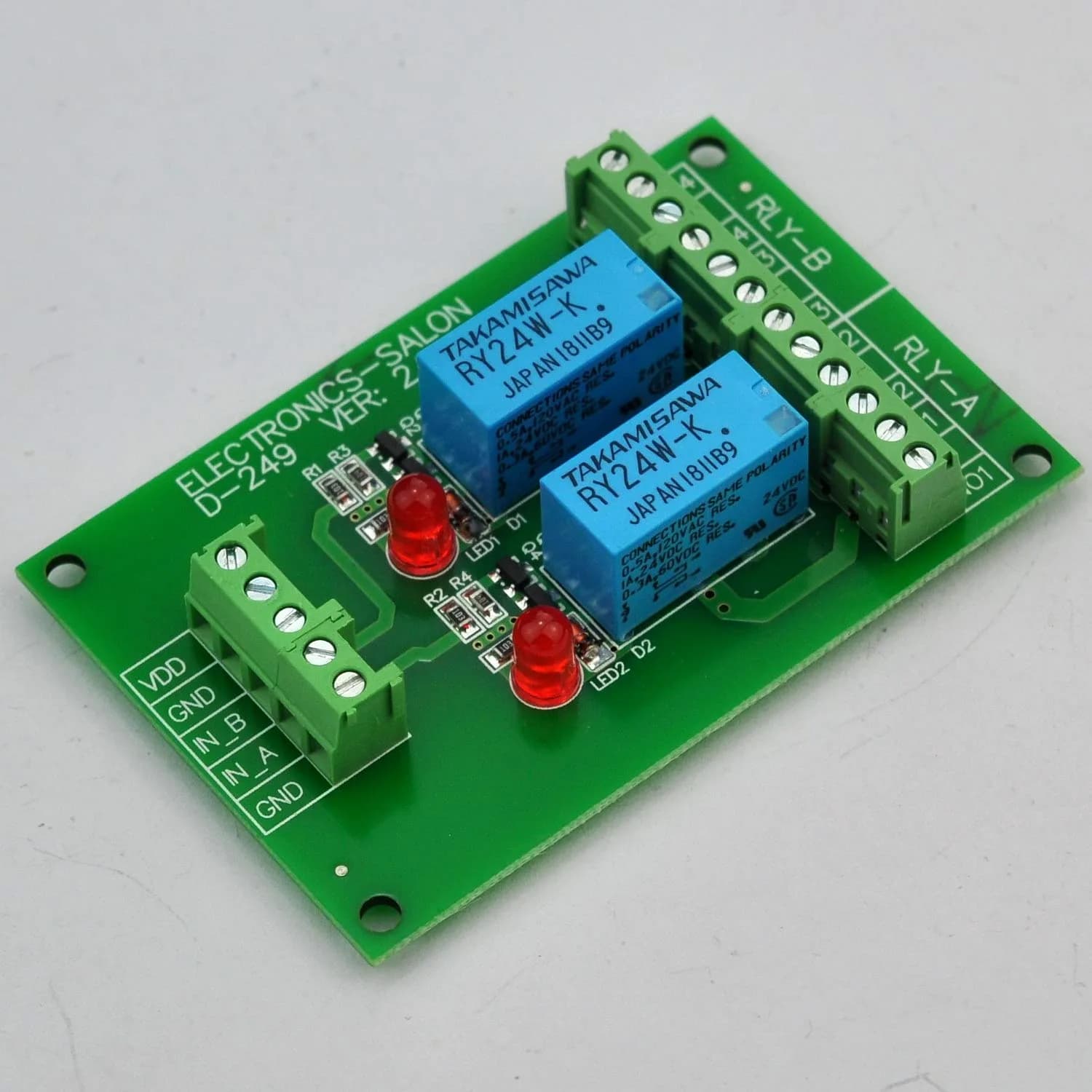

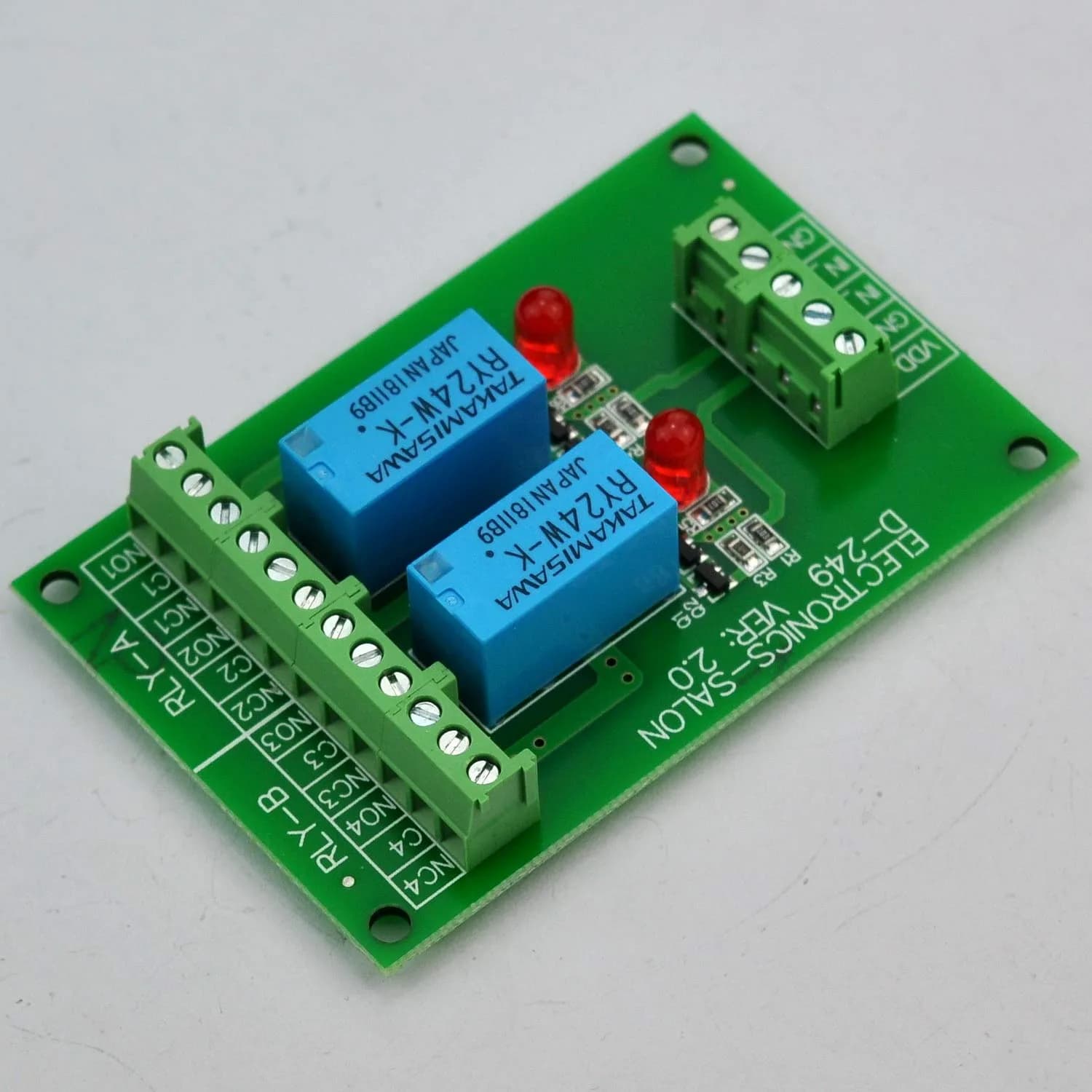

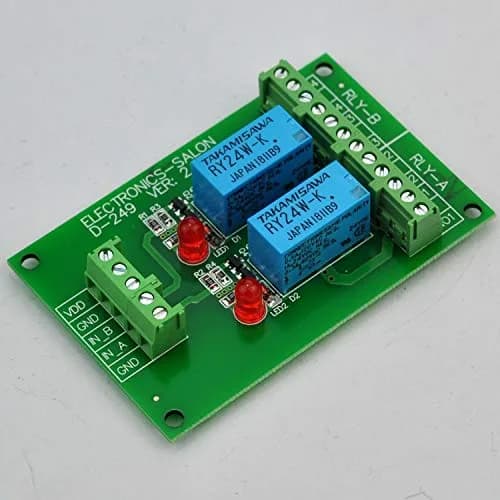

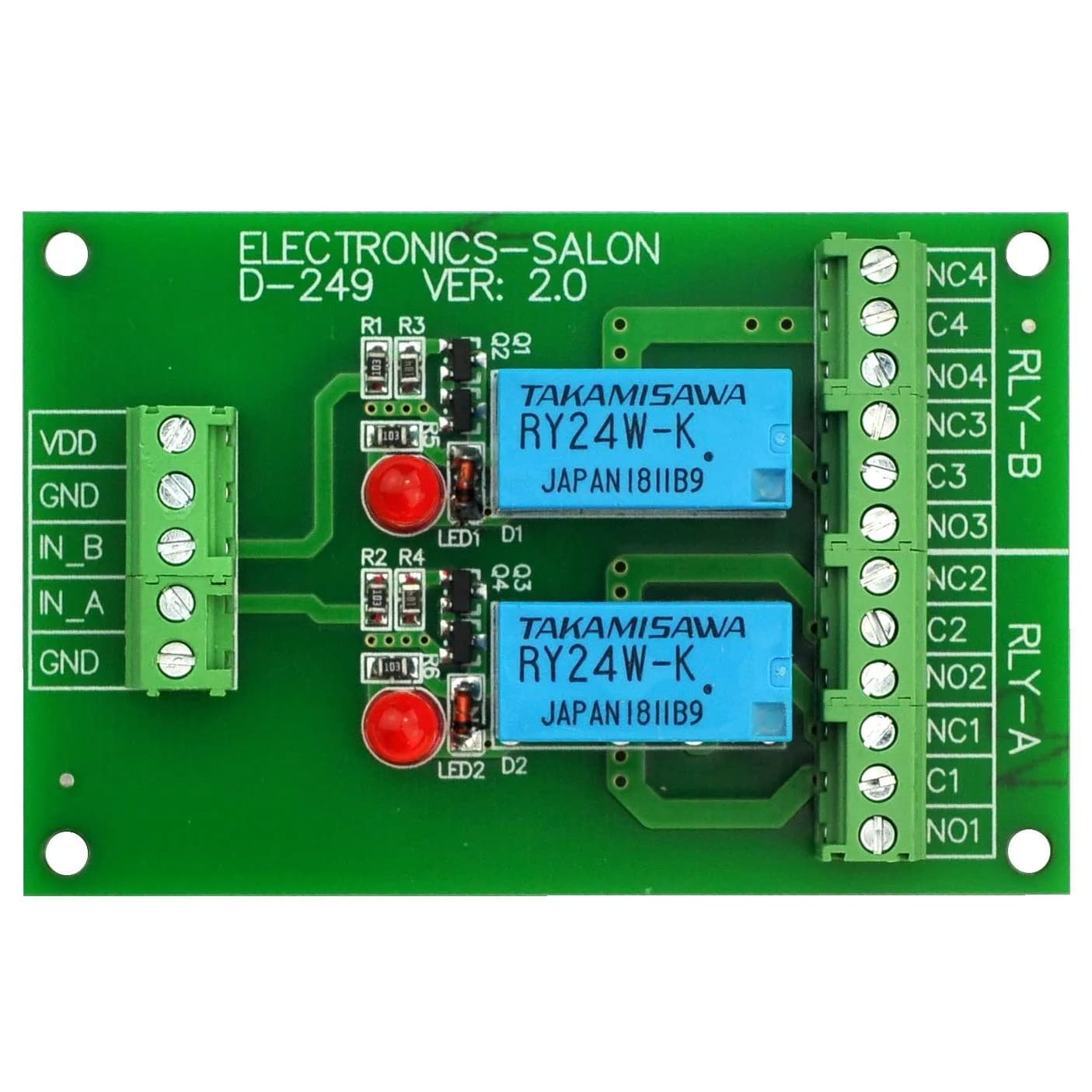

Name: Electronics-Salon 2 DPDT Signal Relay Module Board DC 24V | for Arduino Raspberry-Pi
Brand: Electronics-Salon
SKU: mrv5665
Price: 2324.00 INR
Availability: InStock

About this item

The Electronics-Salon 2 DPDT Signal Relay Module (DC 24V) offers reliable signal switching for your Arduino and Raspberry-Pi projects. It utilizes high-quality TAKAMISAWA RY24W-K relays with gold overlay silver-palladium contact material, ensuring durability and performance. The module is driven by Darlington transistor circuits, includes LED indicators for each relay channel, and features a high-quality screw terminal block for easy connections. Its FR-4 fiber glass PCB with dual copper layers provides a robust foundation.

This module operates on a VCC of 16.8 to 31.2VDC, drawing approximately 40mA at 24VDC. The control signal voltage (IN-X) requires a high level of 2.5V to 24Vdc for relay activation, while a low level of 0V to 0.5Vdc keeps the relay inactive. Each switch offers a contact rating of 120VAC at 0.5 Amp or 24VDC at 1.0 Amp, suitable for various signal control applications.

While this module is designed for precise signal control, local alternatives may offer different contact materials or voltage handling. This imported unit ensures authentic performance for your critical circuits. All customs duties and GST are included in your price, with delivery via ExpressBox tracked shipping.

Key Features

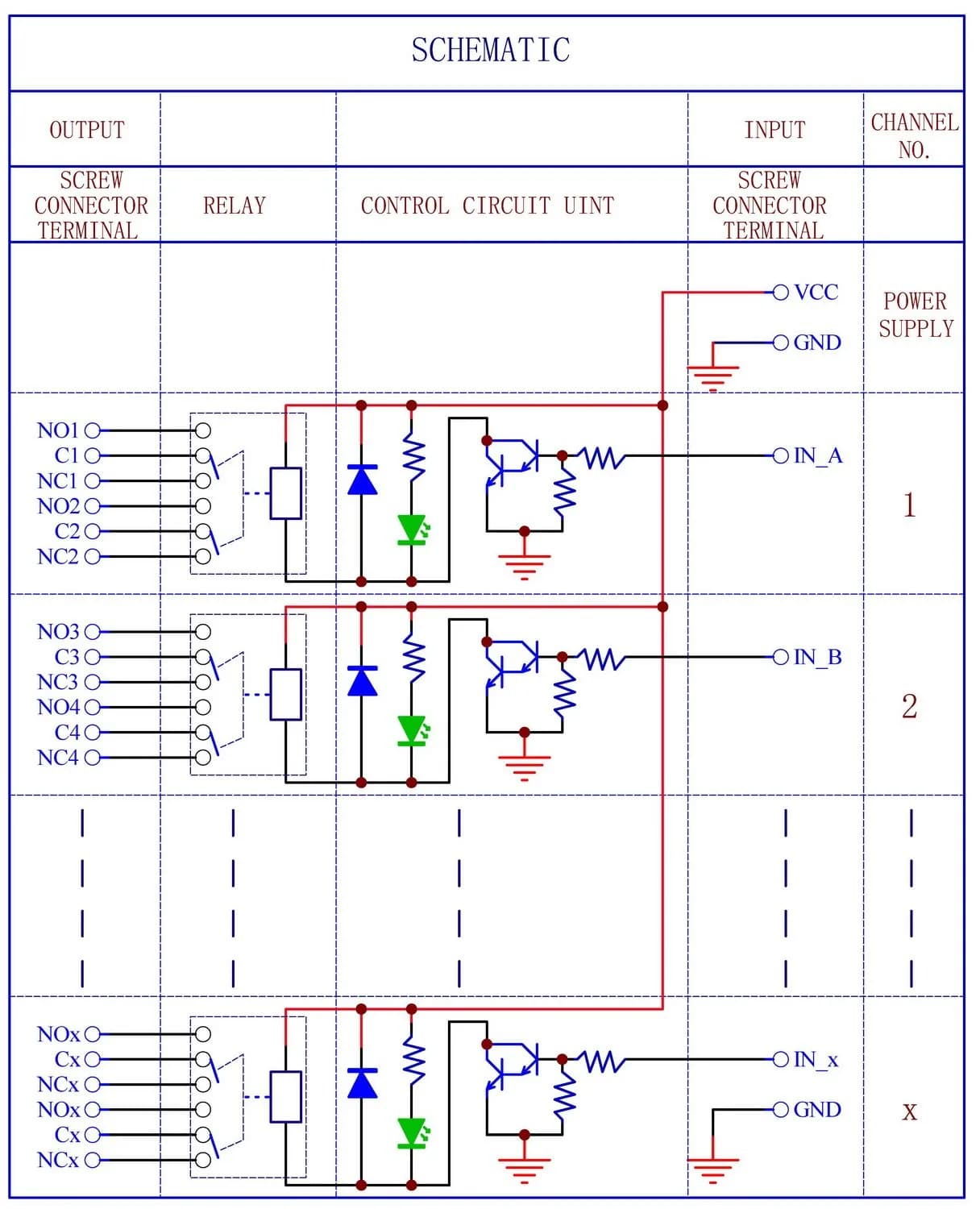

2 DPDT signal relay module. TAKAMISAWA RY24W-K high quality relays, switch contact material - gold overlay silver-palladium.
Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
High quality screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

Why choose this product

Precision Signal Control for Projects

This module offers precise control for your Arduino, Raspberry-Pi, or other microcontroller projects. The gold overlay silver-palladium contacts ensure clean signal transmission, minimizing signal loss or degradation. Unlike basic relays, its DPDT configuration allows for more intricate circuit management. It's designed for applications where reliable switching of low-voltage signals is paramount, ensuring your automation or control systems function as intended without interference.

Ideal for 24V DC Control Systems

This relay is specifically designed for 24V DC control circuits, common in industrial automation and hobbyist projects using microcontrollers. It's best suited for users who need to switch signals up to 120VAC/0.5A or 24VDC/1.0A. Those requiring higher current handling or AC coil operation should look for different models. If your project involves sensitive signal routing or requires precise switching in a 24V DC environment, this module is a strong choice.

How to use

Connect a stable 24V DC power supply to the VCC and GND terminals of the module. Ensure the supply can provide at least 40mA to handle both relays activating simultaneously. — Connect Power Supply
Connect your microcontroller's digital output pins (e.g., from Arduino or Raspberry Pi) to the IN-1 and IN-2 terminals for each relay. Ensure the output voltage is within the 2.5V-24V DC range for activation. — Connect Control Signals
Connect your load (e.g., pump, LED, motor) to the relay's output terminals (Common, NO, NC). For a 24V DC load, use the 24VDC/1.0A rating. For AC loads, use the 120VAC/0.5A rating. — Wire Load Circuits
Apply power to the module and send high-level control signals from your microcontroller. Observe the LED indicators and verify that the connected loads are switching correctly according to your circuit design. — Test Operation

Example scenarios

Typical situations where Electronics-Salon 2 DPDT Signal Relay Module Board DC 24V | for Arduino Raspberry-Pi helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

An electronics hobbyist in Bangalore needs to control a 24V DC pump for an automated watering system using a Raspberry Pi.

How this product helps

This Electronics-Salon 2 DPDT relay module can be triggered by the Raspberry Pi's GPIO pins (with appropriate signal level conversion if needed) to switch the 24V DC pump. The DPDT configuration allows for flexible wiring, and the 1.0A DC contact rating is sufficient for many small pumps. Imported from USA, duties included.

Specifications

Usage

Application	Signal switching for Arduino, Raspberry-Pi, 8051, PIC, and other microcontrollers
Control Input	Low Level: 0V - 0.5Vdc (Relay OFF); High Level: 2.5V - 24Vdc (Relay ON)
Power Consumption	40mA at 24VDC
Cost per use	This is a durable electronic component, not a consumable. Cost per use is not applicable.
Shelf life after opening	This is a durable electronic component, not a consumable. Shelf life after opening is not applicable.
Reapplication math	This is a durable electronic component, not a consumable. Reapplication math is not applicable.
Contraindications	Not suitable for direct connection to Indian mains voltage (230V AC) for coil activation. Requires a 24V DC power supply or appropriate transformer.
Allergens / common irritants	N/A

How we compare

Feature	Electronics-Salon 2 DPDT	Others
Relay Type	2 DPDT Signal Relay Module	Typically SPDT or DPDT general-purpose relays
Contact Material	Gold Overlay Silver-Palladium	Often Silver Cadmium Oxide or Tin-based alloys
Coil Voltage	24V DC	Commonly 5V, 12V, 24V DC or 230V AC
Control Signal	2.5V - 24V DC (High Level)	Varies; some require specific logic levels
Contact Rating	120VAC/0.5A or 24VDC/1.0A	Often higher current ratings (e.g., 5A-10A) for general-purpose relays

SKU	mrv5665
GTIN	6921407334779
Brand	Electronics-Salon
Model Number	MD-D249/24V-1
Relay Type	2 DPDT Signal Relay Module
Coil Voltage	24V DC (16.8-31.2VDC operating range)
Control Signal Voltage	2.5V - 24V DC (High Level)
Contact Material	Gold Overlay Silver-Palladium
Contact Rating	120VAC/0.5A or 24VDC/1.0A per switch
PCB Type	FR-4 Fiber Glass, Dual Copper Layers
Mounting Type	Screw Mount

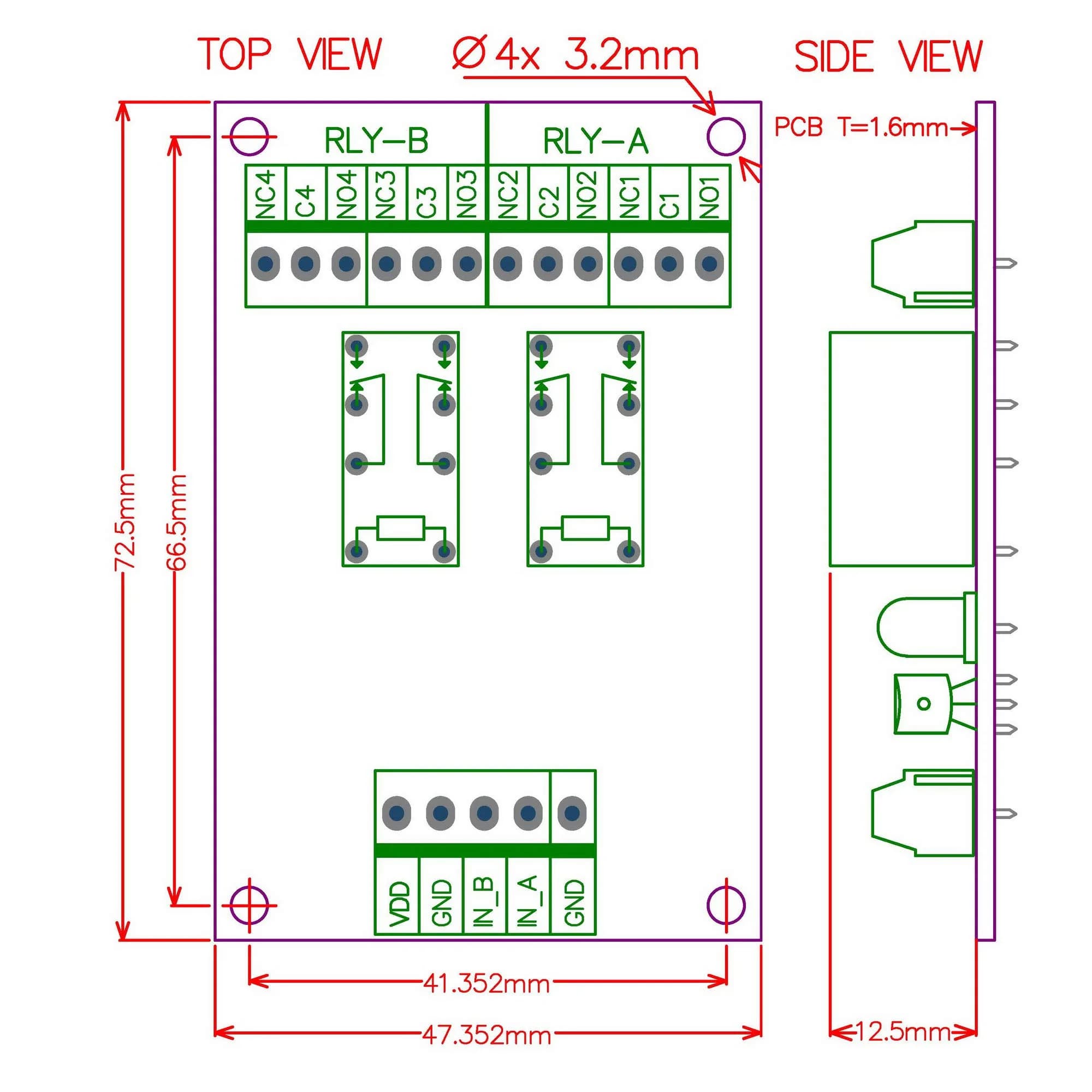

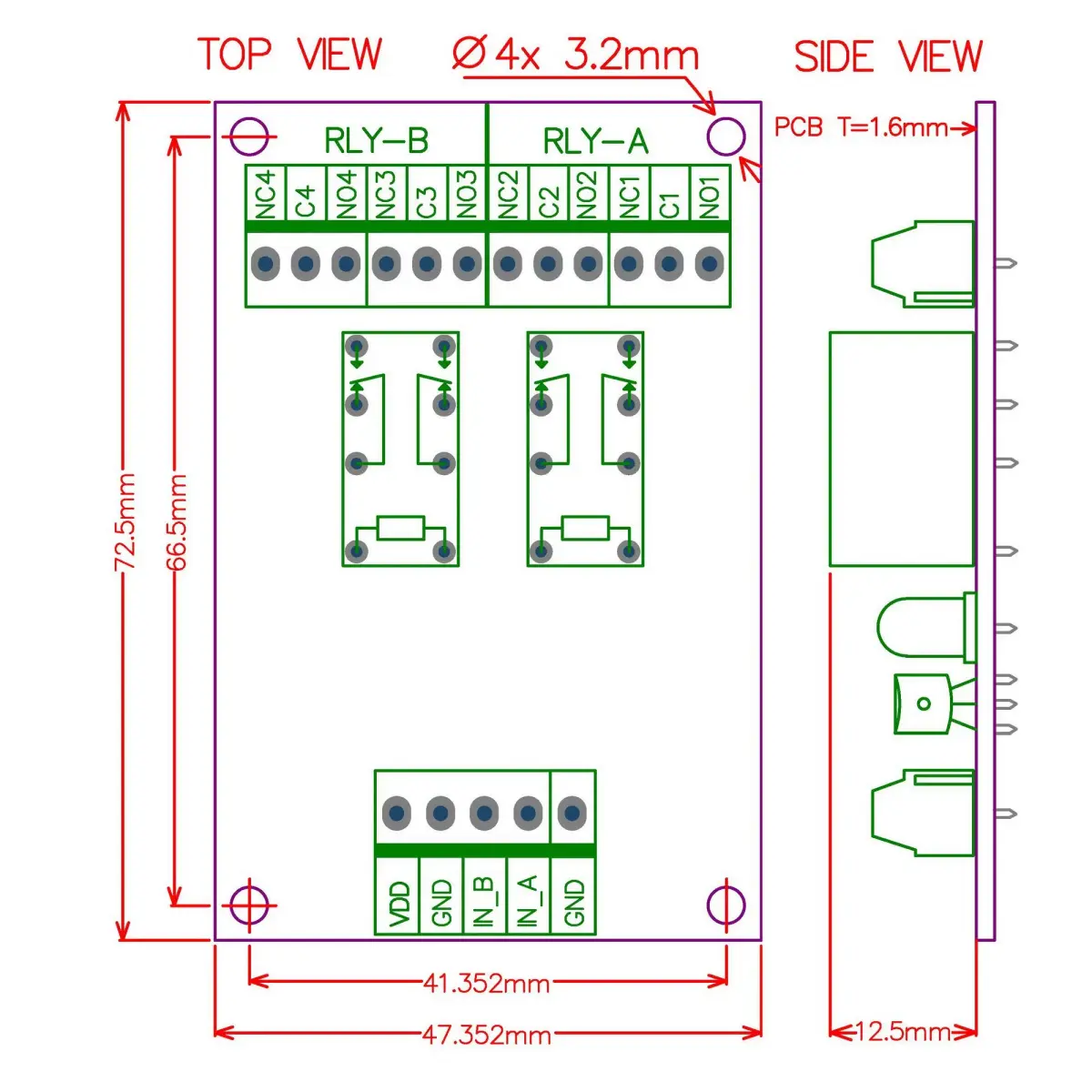

Dimensions	72.5mm x 47.35mm x 14.1mm
Package Weight	0.08 kg
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
