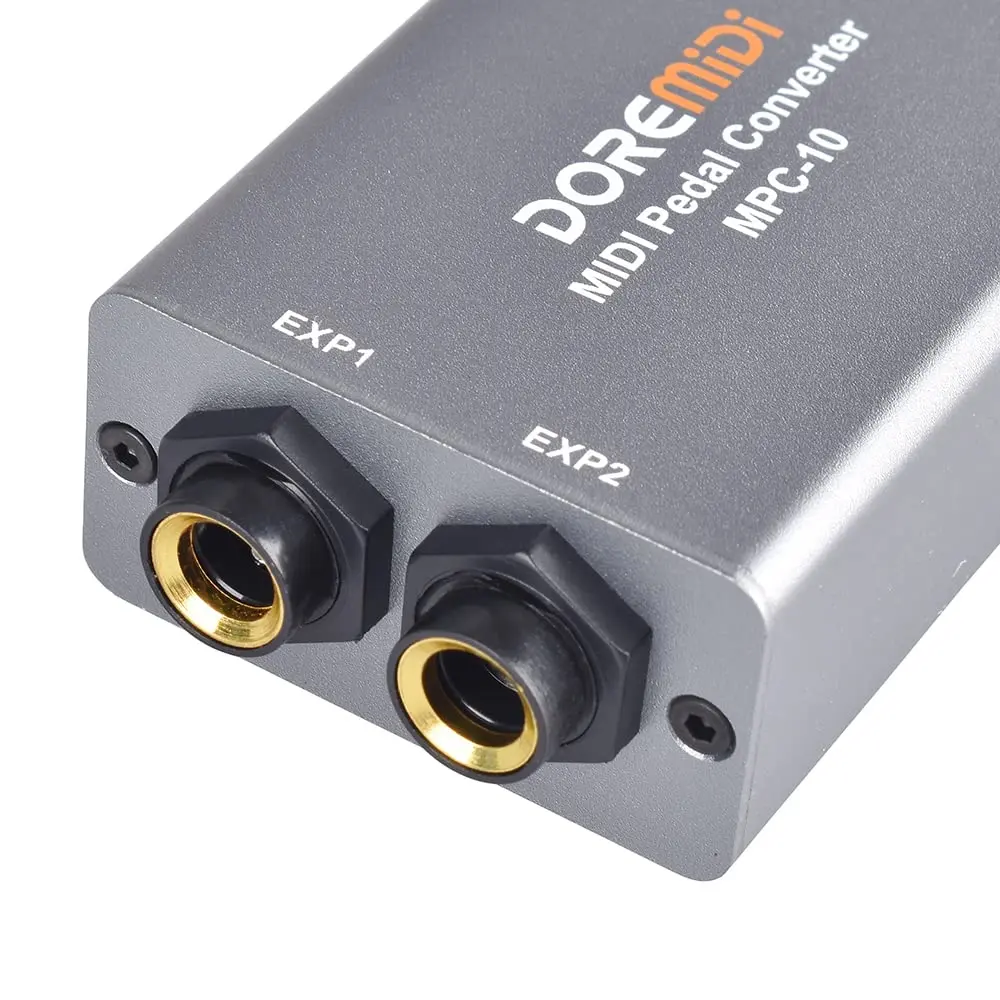

• MPC-10 has 2 pedal connection interfaces, which can connect 2 different types of pedals. And the design of automatic pedal detection is adopted inside, which can automatically detect different types of pedals. MPC-10 is currently compatible with positive polarity expression pedals, reverse polarity expression pedals, sustain pedals, dual switch type pedals, FSR electronic Hi-hat

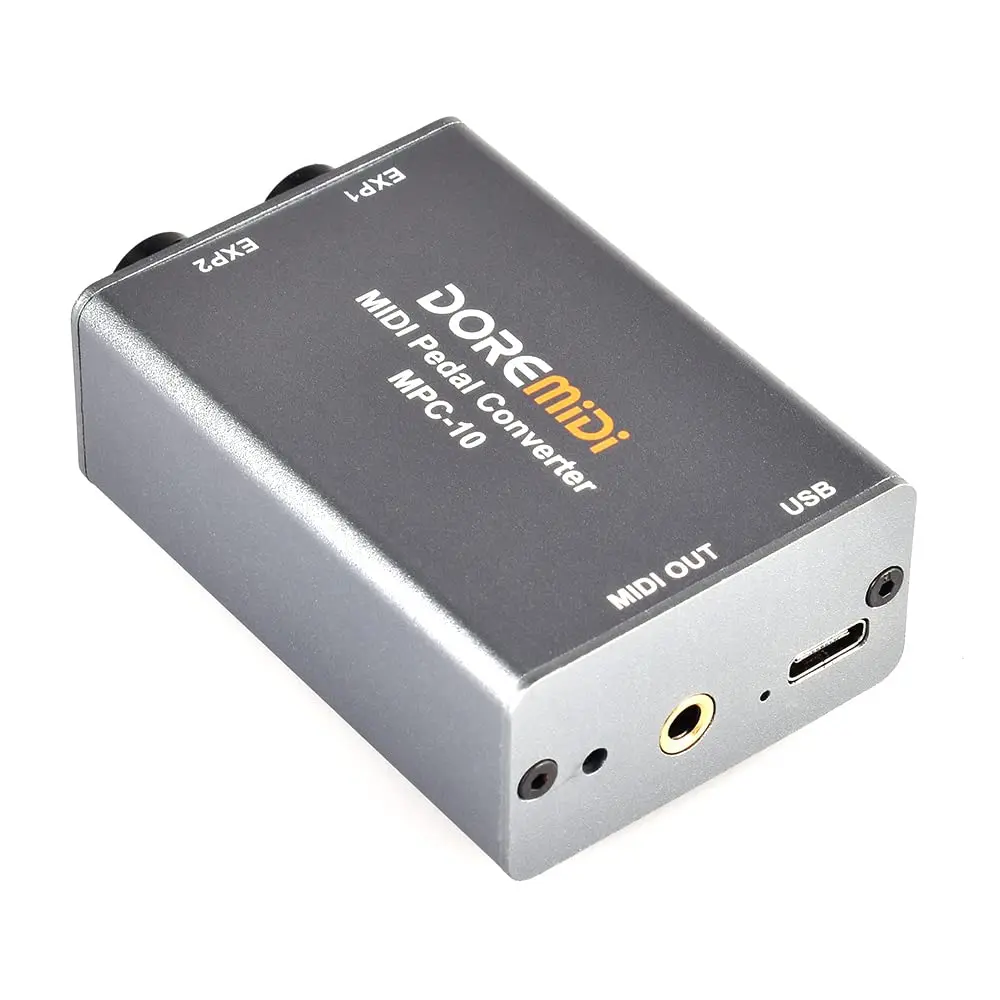

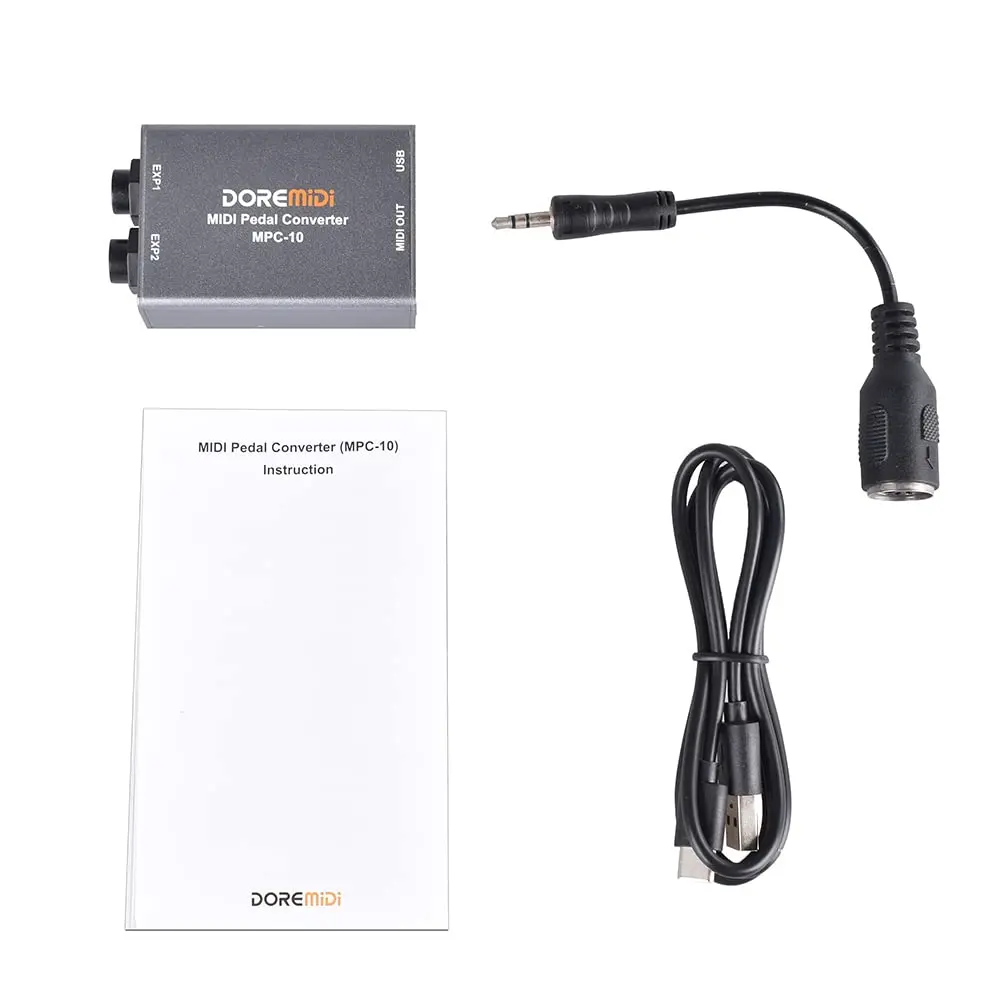

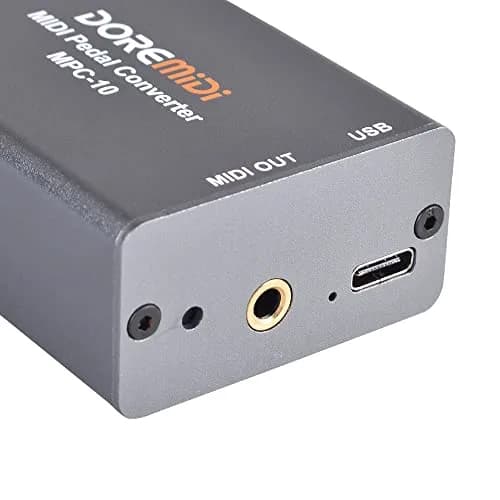

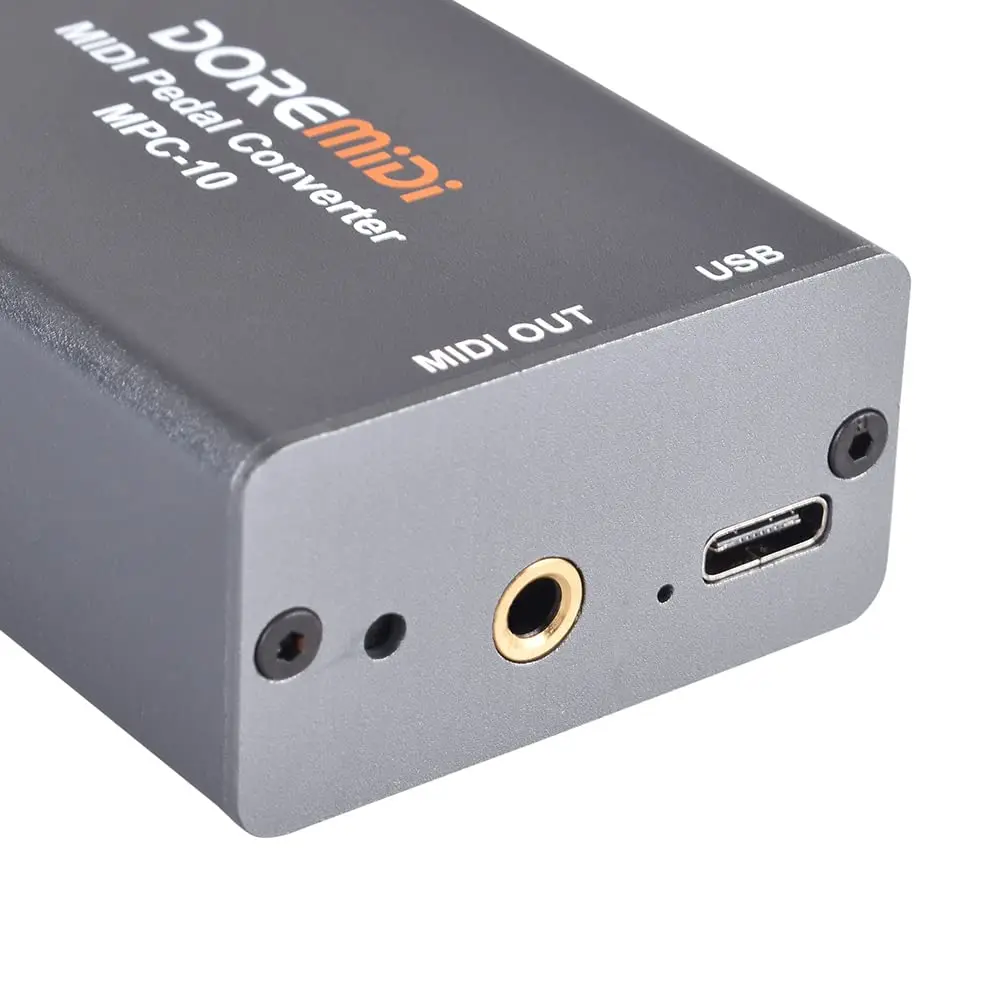

• MPC-10 has a MIDI output interface, which can be directly connected to musical instruments with a MIDI input interface. In order to maintain a portable design, MPC-10 uses a 3.5 audio port as MIDI output, which can be converted to a standard MIDI DIN interface using a 3.5-to-MIDI five-pin cable
• Connect to the Computer MPC-10 is equipped with USB MIDI function, which can be directly connected to computer, mobile phone and other terminal devices to realize MIDI control. Compatible with Windows, Mac, iOS, Android and other systems, no need to install drivers, plug and play
• MPC-10 can flexibly configure MIDI messages for each pedal through DOREMiDi's pedal setting software. According to performance requirements, users can configure different MIDI messages after pedaling, including MIDI channel, CC controller, PC controller, Note, and flipping effects when pedaling
• Taking into account the subsequent optimization issues, MPC-10 also designed a firmware upgrade function, which can provide personalized customization for different users

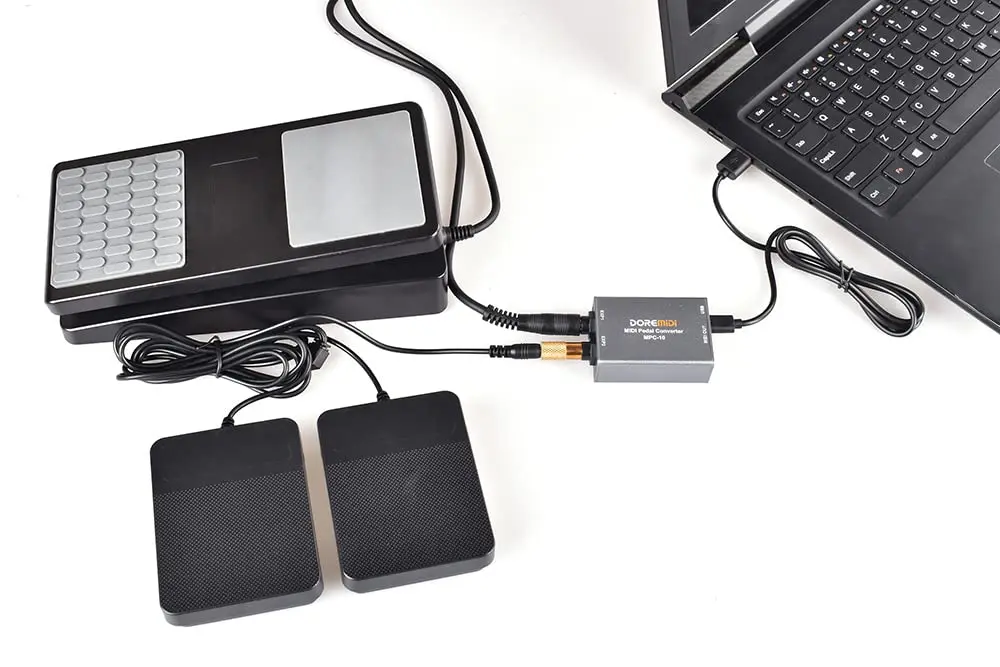

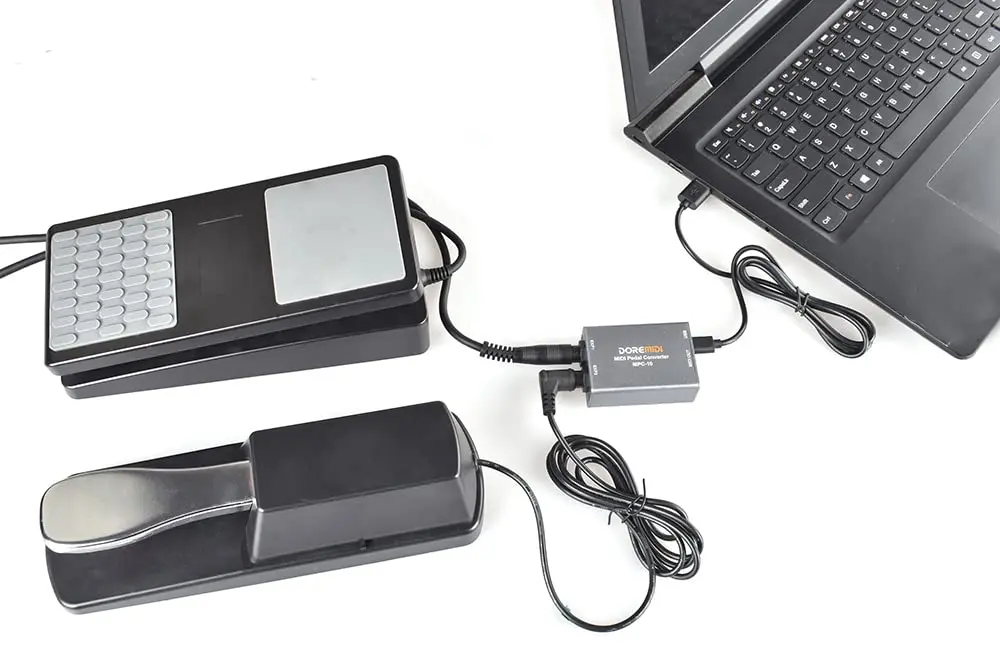

• Connect Pedals — Plug your expression, sustain, or hi-hat pedals into the MPC-10's two pedal interfaces. The device will automatically detect pedal types.
• Configure MIDI Settings — Use DOREMiDi software on your computer or mobile device to customize MIDI messages, channels, and effects as per your performance needs.
• Connect to Instruments — Link the MPC-10 to your instrument via MIDI DIN or USB MIDI. For portable use, connect to your computer or mobile device directly.
• Firmware Upgrade & Use — Update firmware if needed for new features. Use pedals during live or studio sessions, with reliable connectivity and configuration.
