| SKU | veh0924 |
| Brand | Nutbro |
| Model | DL-L |
| Color | White |
| Material | Copper |
| Mounting Type | Wall Mount |
| Terminal Type | Screw |
| Connector Type | Clamp |
| Control Method | Push Button |
| Operation Mode | Standalone, DMX |
| Number of Items | 1 |
| Number of Packs | 1 |
| Item Type Keyword | plug-in-dimmer-switches |
| Circuit Type | Parallel |
| Control Type | Dimming |
| Connectivity Protocol | DMX512 |
| Number of Positions | 4 |
| Input Voltage | 12-24V DC or 100-240V AC |
| Output Signal | 0/1-10V Analog |
| Output Current | 4CH, 20mA/CH |
| Max Wire Length | 30 meters |
| Max LED Drivers per Channel | 20 |
This item:

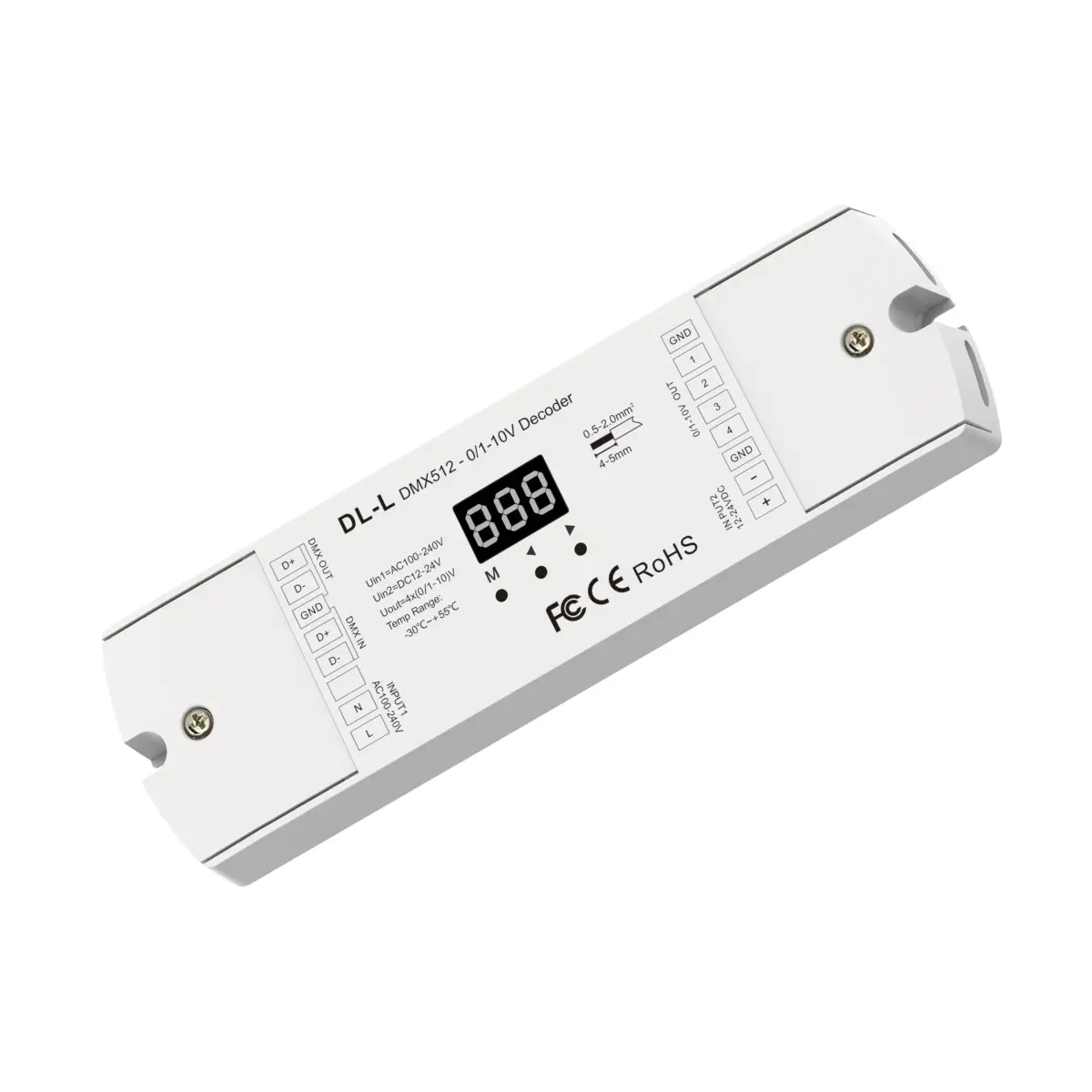

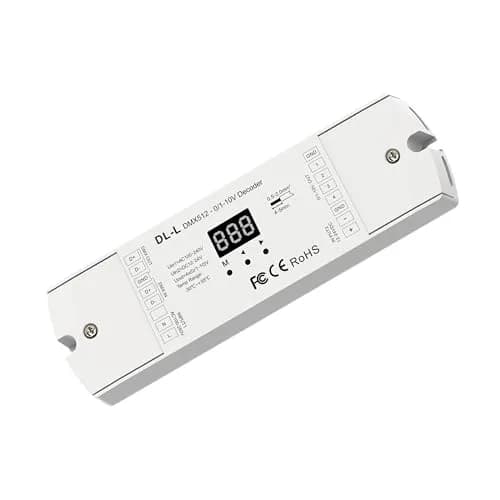

Nutbro DMX512 to 4CH 0-10V Analog Signal LED Dimmer RGB/RGBW Controller 4-Channel Dimmer
4,509
This item
Nutbro DMX512 to 4CH 0-10V Analog Signal LED Dimmer RGB/RGBW Controller 4-Channel Dimmer
4,509
Total price:
14,527
You save 5,437 (27%) Extra3 items selected
3 items
14,527You save 5,437 (27%) Extra
Why shop with us
One price. One payment. No surprises.
High risk
Buying Direct
Crowcrowcrow
Safe Lane
Unlock Professional Lighting Control
The Nutbro DMX512 to 4CH 0-10V Analog Signal LED Dimmer is engineered for sophisticated lighting control. It seamlessly integrates with DMX512 standard protocols, featuring a digital numeric screen for easy DMX decode address setting. The RDM function enables intercommunication between DMX masters and decoders, allowing for address configuration directly from the console. This dimmer is ideal for professional installations in India seeking precise lighting adjustments.
This versatile controller offers selectable 1/2/4 DMX channel output and a choice between 0-10V or 1-10V analog output. Users can select logarithmic or linear dimming curves to suit their specific needs. Additionally, it supports standalone RGB/RGBW modes and 4-channel dimmer modes, controllable via built-in programs using buttons, eliminating the need for a DMX signal in certain applications.
Technical specifications include a wide input voltage range of 12-24V DC or 100-240V AC, ensuring compatibility with various power sources. The output signal is 0/1-10V analog with a current of 4CH at 20mA/CH. For optimal performance, it is recommended not to exceed 20 LED drivers per channel and to keep the wire length from the dimmer to the LED driver within 30 meters. All customs duties and GST are included in the price, with express tracked delivery available.
Professional Grade Lighting Control
This Nutbro dimmer brings professional-grade DMX512 and 0-10V analog control to your lighting projects. Its robust feature set, including RDM communication and selectable dimming curves, ensures precise and adaptable lighting management. Designed for reliability, it offers a stable input voltage range of 100-240V AC, making it suitable for diverse power environments. Imported from authorized US retailers and authorized brand partners, it guarantees authentic performance for your creative lighting designs.
Ideal for Custom Lighting Setups
This dimmer is perfect for users who need granular control over LED lighting, such as in stage productions, architectural lighting, or custom home ambiance. It's particularly suited for those integrating DMX-controlled fixtures or requiring 0-10V analog interfaces. Those needing simple on/off switches or basic dimming for non-addressable lights might find its advanced features excessive. For standard Indian home lighting, simpler plug-in dimmers may suffice.
Typical situations where Nutbro DMX512 to 4CH 0-10V Analog Signal LED Dimmer RGB/RGBW Controller 4-Channel Dimmer helps — illustrative scenarios, not customer reviews.
A stage production company in Delhi needs precise, addressable lighting control for a new play.
This Nutbro DMX dimmer allows individual control of RGBW stage lights via DMX512. The RDM function simplifies setup by enabling address configuration directly from the console, ensuring each fixture responds correctly for dynamic scene changes.
A homeowner in Mumbai wants to create custom ambient lighting for their home theater using dimmable LED strips.
The dimmer's selectable 0-10V or 1-10V analog output and choice of dimming curves provide smooth, flicker-free control over LED strips. Its universal 100-240V AC input ensures compatibility with Indian power outlets, and the standalone RGB mode offers easy operation.
| DMX Channels | Selectable 1/2/4 |
| Analog Output | Selectable 0-10V or 1-10V |
| Dimming Curve | Logarithmic or Linear |
| Standalone Modes | RGB/RGBW, 4-Channel Dimmer |
| Power Input | AC 100-240V or DC 12-24V |
| Recommended Use | Professional lighting installations, stage, architectural, custom home ambiance. |
| Shelf life after opening | 12 months (category default for electronics) |
| Contraindications | Do not exceed maximum rated wattage or wire length limits. Not for use with non-dimmable bulbs. |
| Allergens / common irritants | None specified |
| Feature | Nutbro DMX512 to | Others |
|---|---|---|
| Control Protocol | DMX512, RDM, 0-10V/1-10V Analog | Basic ON/OFF, simple rotary dimmers, or basic DMX controllers (varies by brand) |
| Addressability | Digital numeric display, button control, RDM function | Manual setting, no RDM, or fixed addresses (varies by brand) |
| Dimming Curve Options | Logarithmic or Linear selectable | Typically linear only, or fixed steps (varies by brand) |
| Input Voltage | 12-24V DC or 100-240V AC (Universal) | Often 230V AC specific, or 12-24V DC (varies by brand) |
| Cost per Channel Control | 4 Channels at ₹4,509 — ₹1,127 per channel | Professional DMX controllers can range from ₹5,000-₹20,000+ for similar channel counts and features. |
