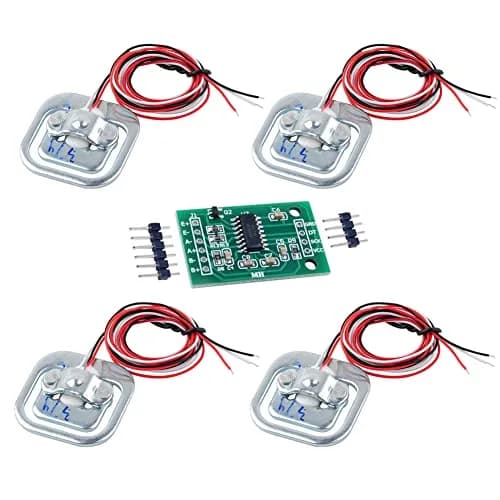

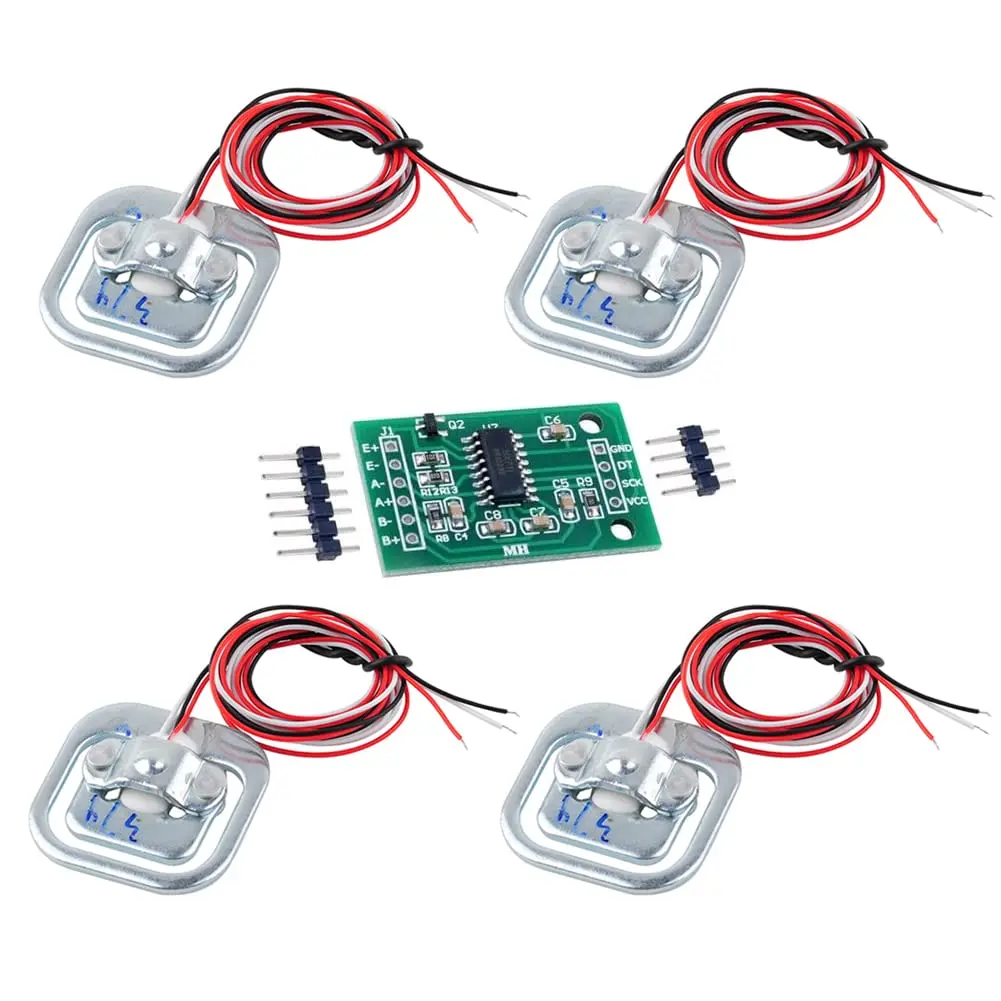

DIYmalls Load Cell 50kg Half Bridge Strain Gauge Weight Sensor HX711 Module | 4pcs Load Cell 50kg + 1pcs HX711 Module

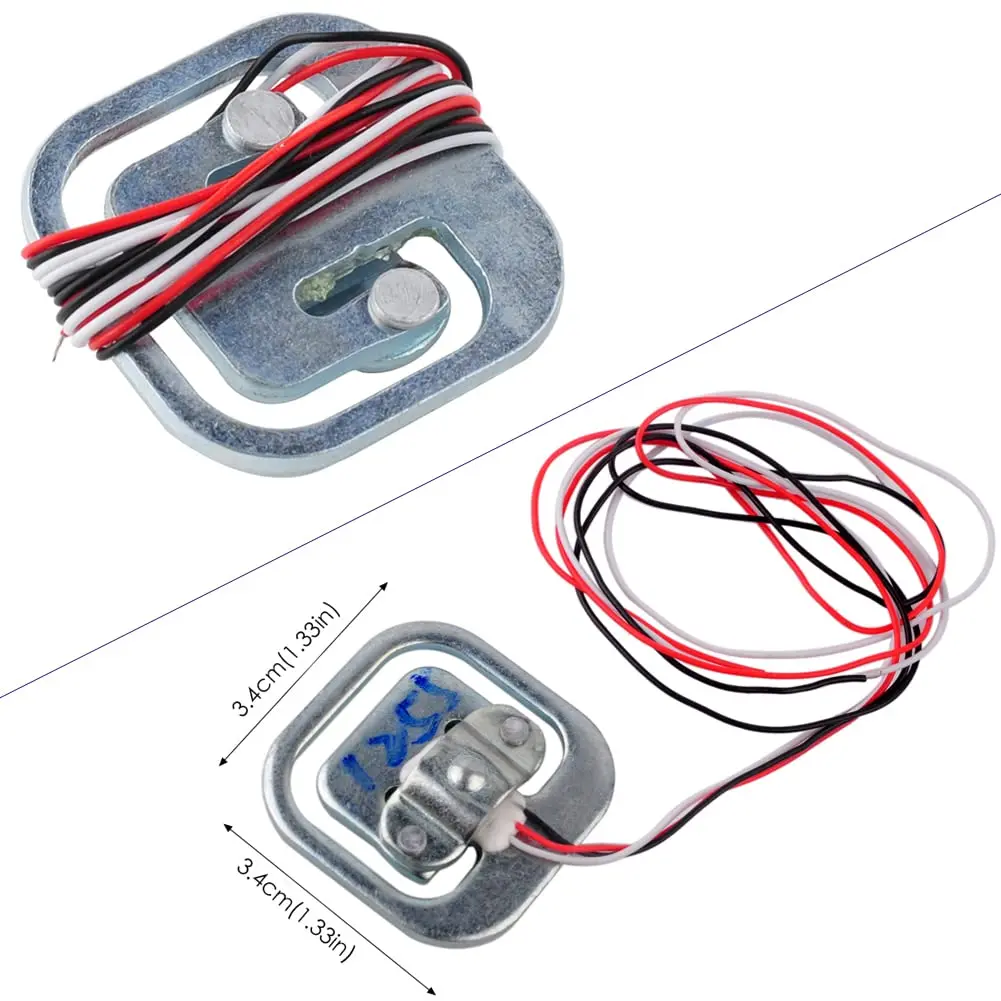

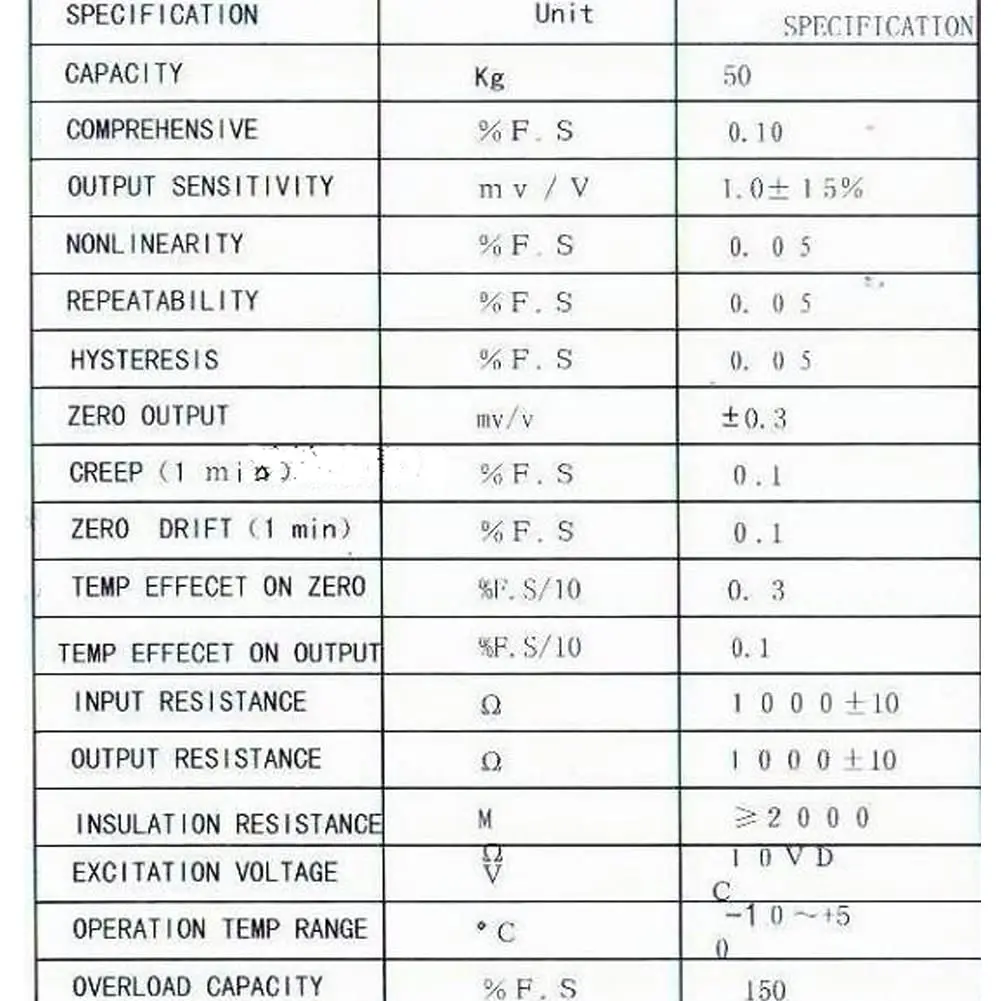

• The 50kg load cell is a group of half-bridge strain gauge, there are 3 ways to use it. 2.Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg
• Use one load sensor 50kg with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements.
• Use two weight sensor 50kg to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg

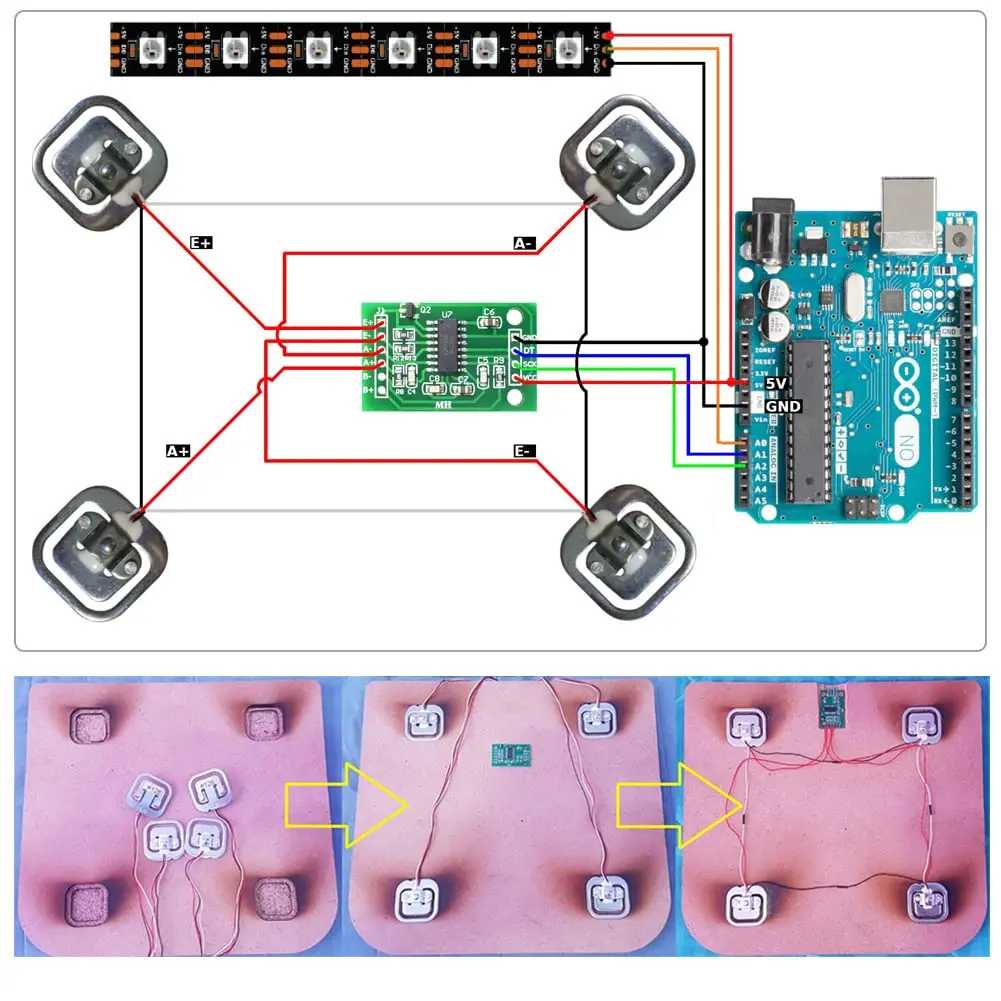

• Use four weight scale 50kg to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg
• If you have any problem, please do as follow: click "DIYmalls"(you can find "Sold by DIYmalls" under Buy Now button), in the new page, click "Ask a question".

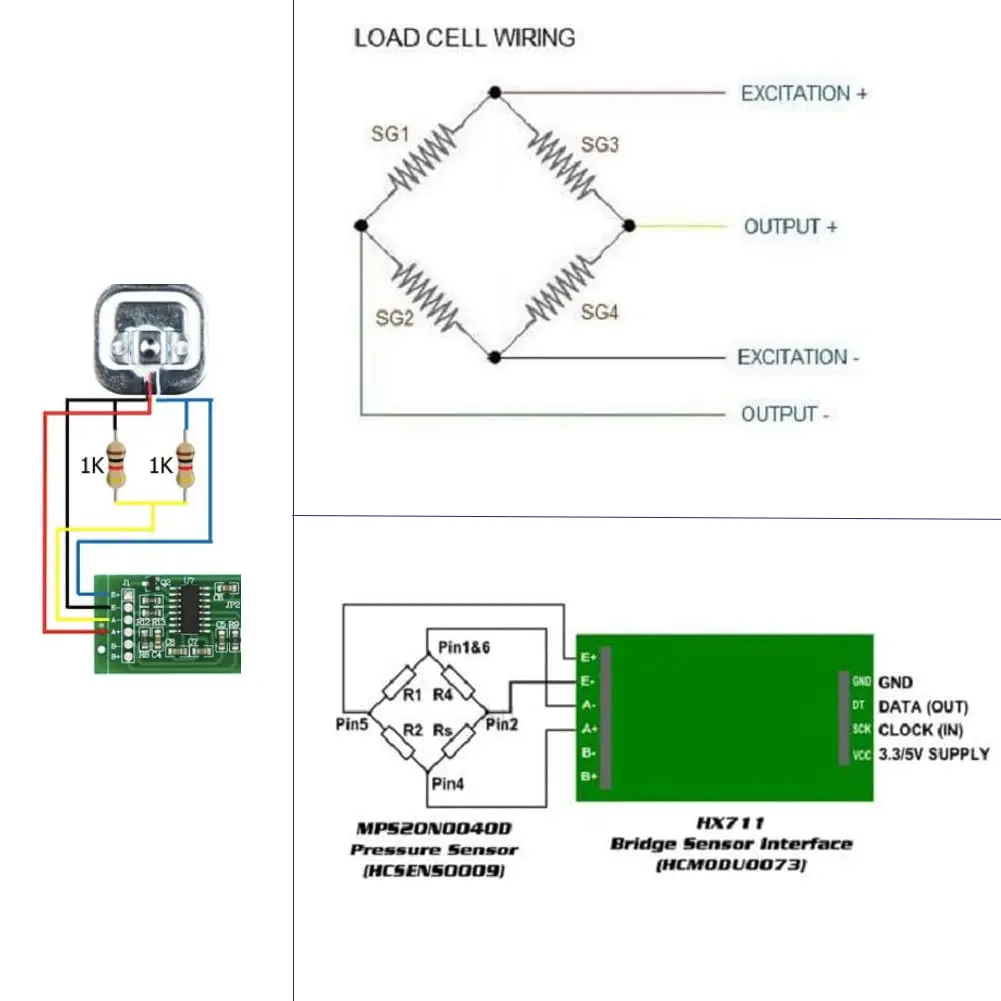

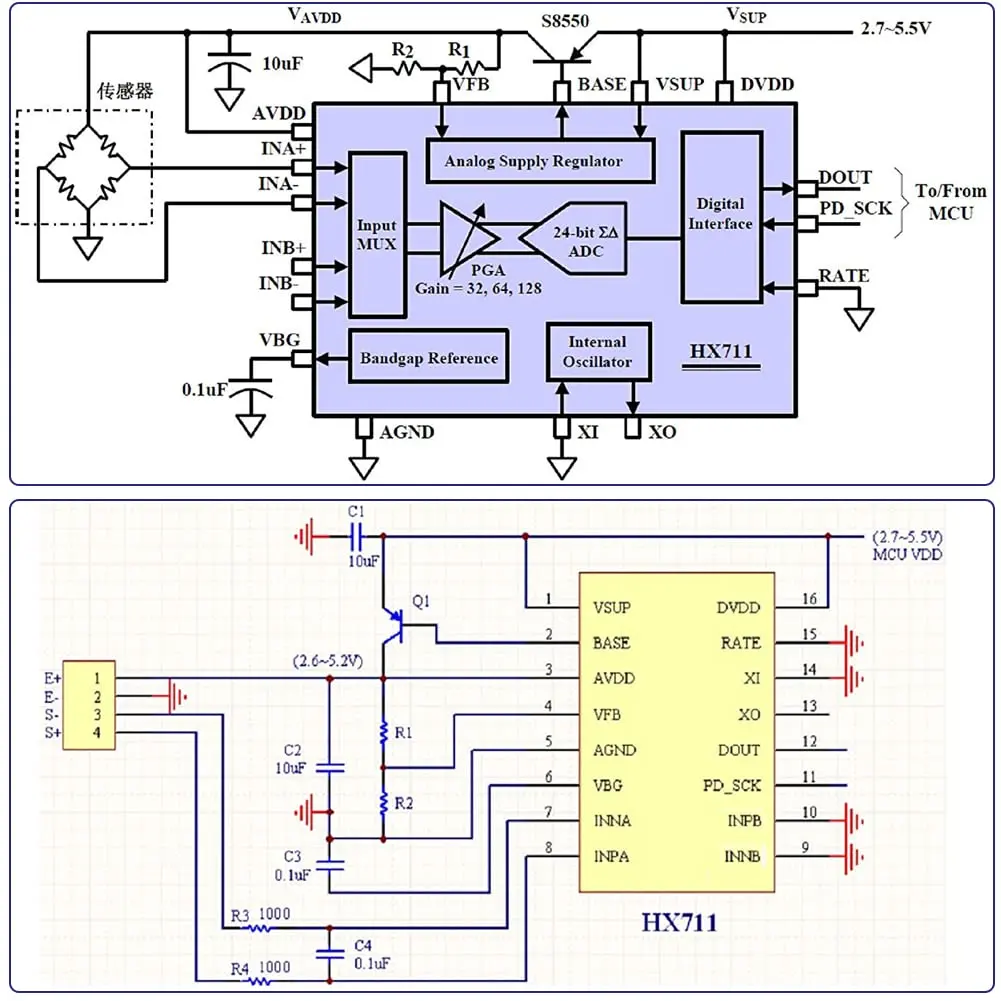

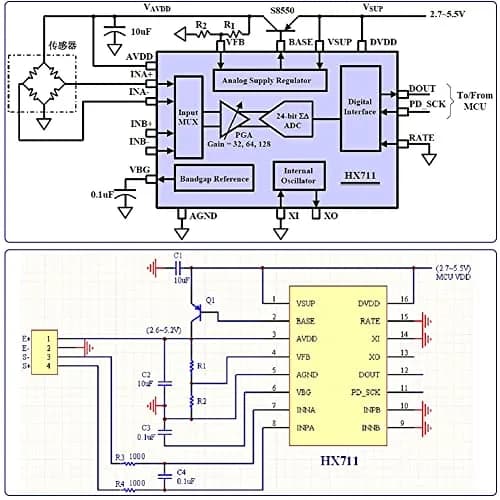

• Connect Load Cells to HX711 Module — Wire the three leads (Excitation+, Excitation-, Signal) from each 50kg half-bridge load cell to the corresponding terminals on the HX711 module. For a full-bridge configuration, ensure external resistors are correctly connected to complete the Wheatstone bridge circuit for each sensor.
• Connect HX711 Module to Microcontroller — Connect the HX711 module's digital pins (VCC, GND, DT, SCK) to your microcontroller, such as an Arduino. Ensure the VCC is within the 2.6V-5.5V operating range. Use a library or simple code to read the digital output from the module.
• Calibrate the System — Apply known weights to the configured load cell setup and record the readings from the HX711 module. Use these data points to create a calibration curve or equation in your microcontroller's software to convert raw sensor readings into accurate weight measurements.
