How do I know if a US-listed ball valve fits my Indian pipework?

Check the thread standard and nominal size in the specifications. This valve uses a 3" Tri Clamp connection, common in sanitary systems. If your line uses BSP/BSPT, match the size in inches and use a thread adapter where needed; the valve body material and pressure rating work identically once the connection is matched.

What is the difference between a full-port and a standard-port ball valve?

A full-port ball valve has a bore matching the pipe's inner diameter, allowing minimal restriction and pressure drop for unrestricted flow. A standard-port valve has a slightly smaller bore. This DERNORD valve is designed for sanitary applications and ensures one-way flow, not typically categorized by port type in the same way as general industrial ball valves.

Is this DERNORD sanitary check valve suitable for potable water lines in India?

Yes, this valve is constructed from 304 stainless steel and is designed for food, beverage, and pharmaceutical industries, indicating suitability for potable water. However, always confirm specific certifications like NSF if required for your local regulations, as this listing does not explicitly state potable water certification.

Can I buy replacement gaskets for the DERNORD sanitary check valve?

Replacement gaskets for DERNORD valves are typically available through authorized distributors or directly from DERNORD. It is recommended to contact DERNORD customer support or check their official website for specific part numbers and availability for your FKM gasket.

How to choose a valve for industrial applications in India?

When choosing an industrial valve for India, consider the material (304/316 SS for corrosion resistance), connection type (Tri Clamp, NPT, BSP), pressure and temperature ratings, and the specific application (e.g., food-grade, chemical). Ensure the valve prevents backflow if needed, like this DERNORD sanitary check valve, and verify compliance with local industry standards.

What is the best valve for preventing reverse flow?

A check valve, like this DERNORD sanitary check valve, is specifically designed to prevent reverse flow. It automatically closes when the flow stops, ensuring fluid moves in only one direction. This is crucial for protecting equipment and maintaining process integrity in various industrial applications.

How to use a DERNORD sanitary check valve?

Install the DERNORD sanitary check valve in your Tri Clamp fitted pipe system, ensuring the flow direction arrow on the valve body points in the direction of desired flow. The valve opens automatically when sufficient forward pressure is applied and closes when flow stops or reverses, preventing backflow without manual intervention.

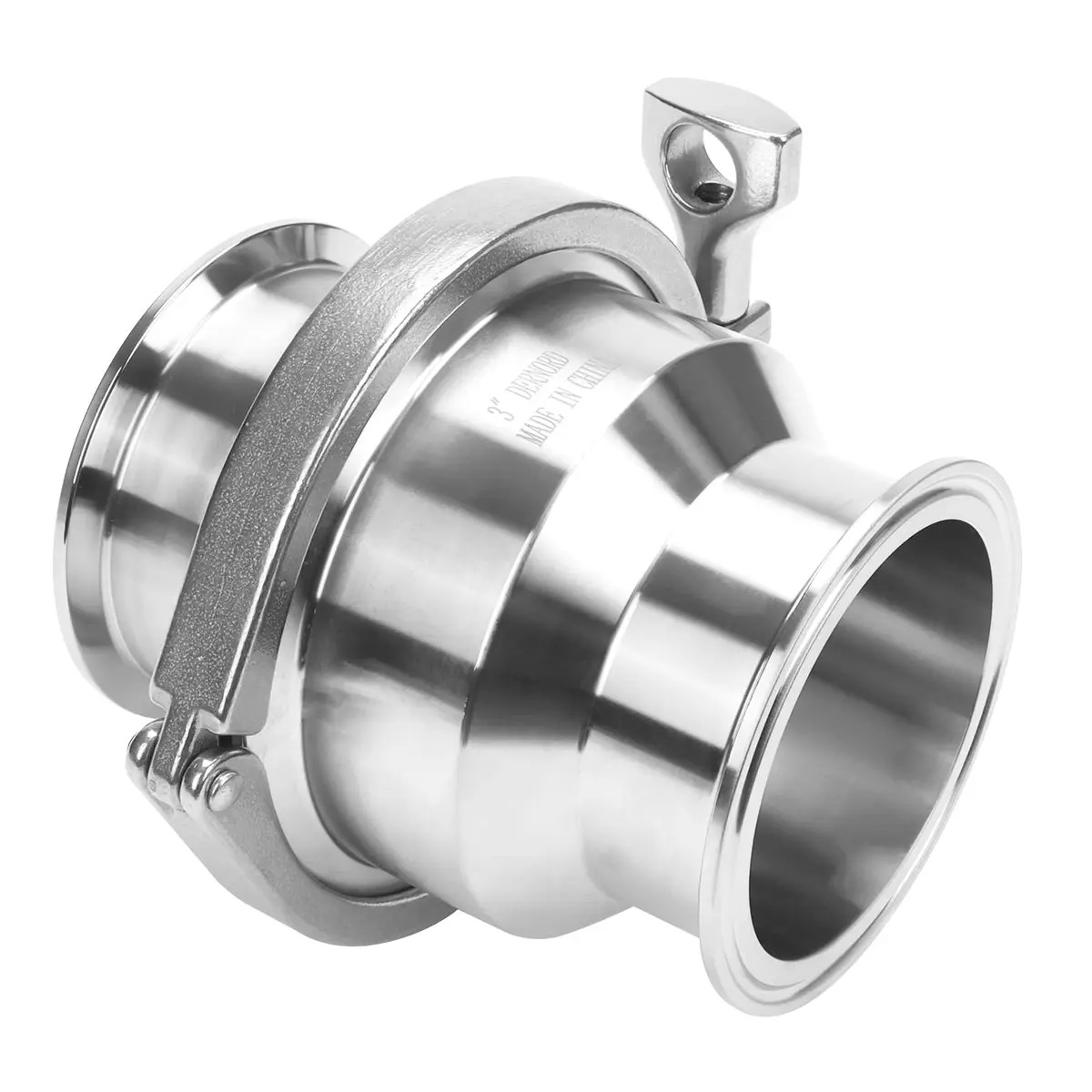

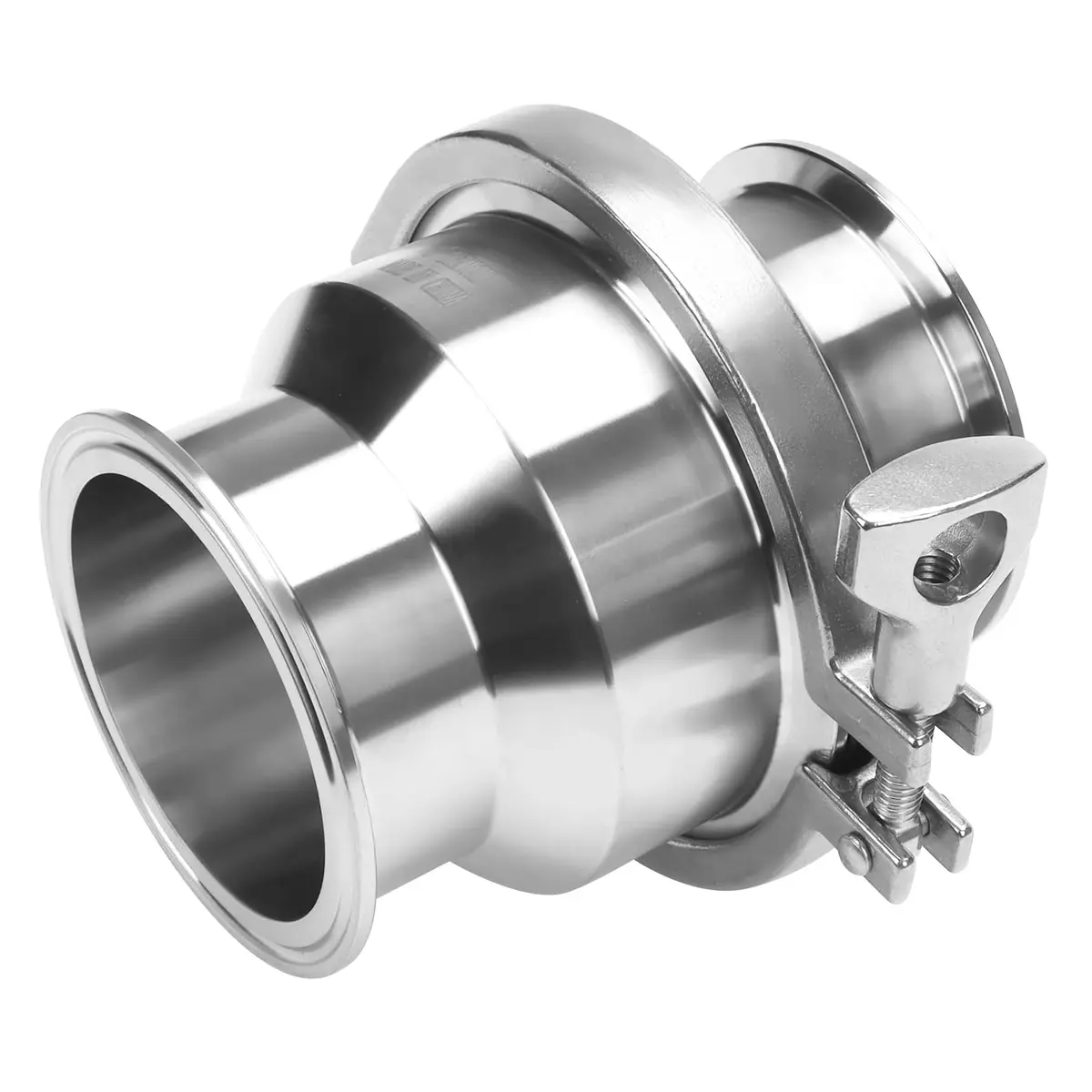

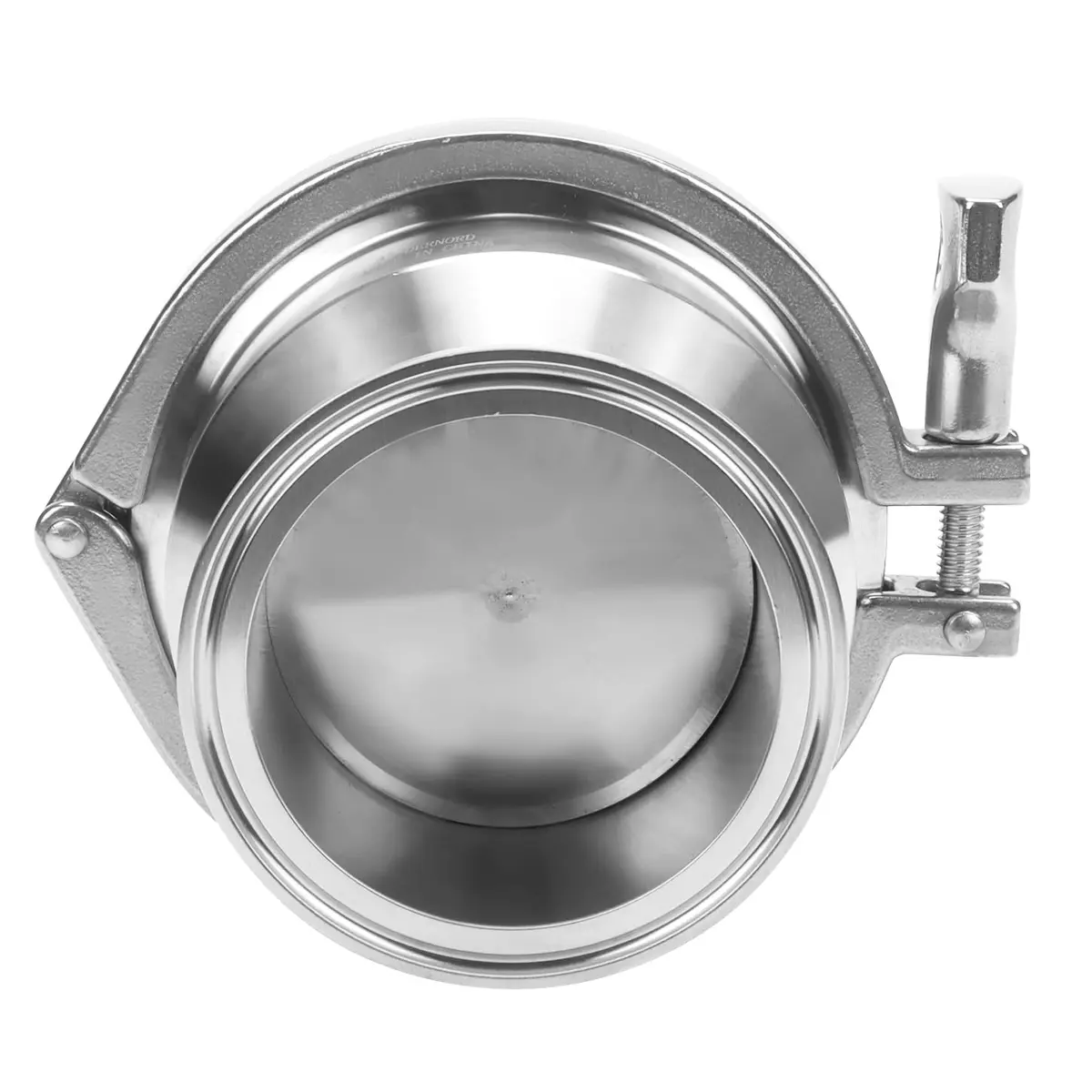

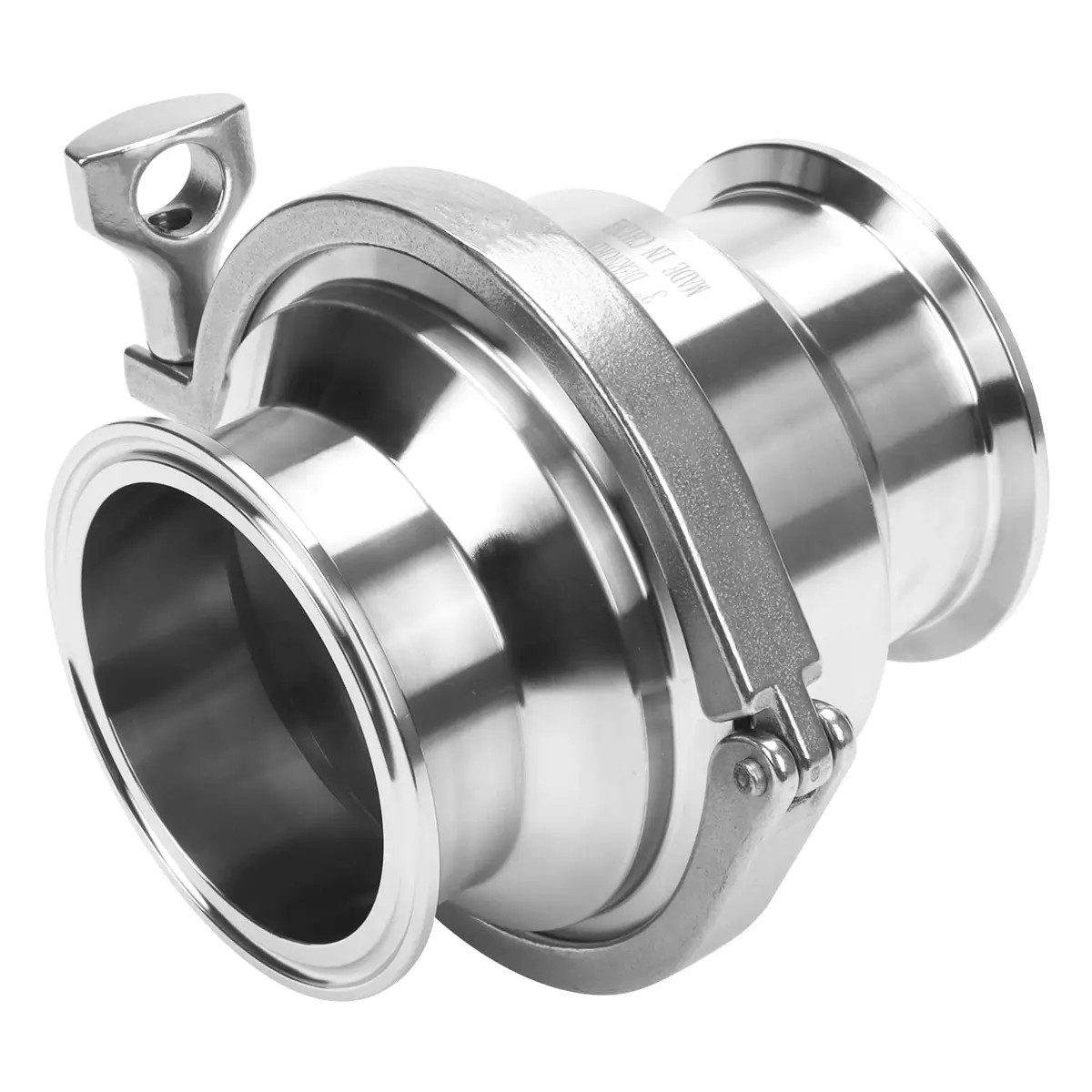

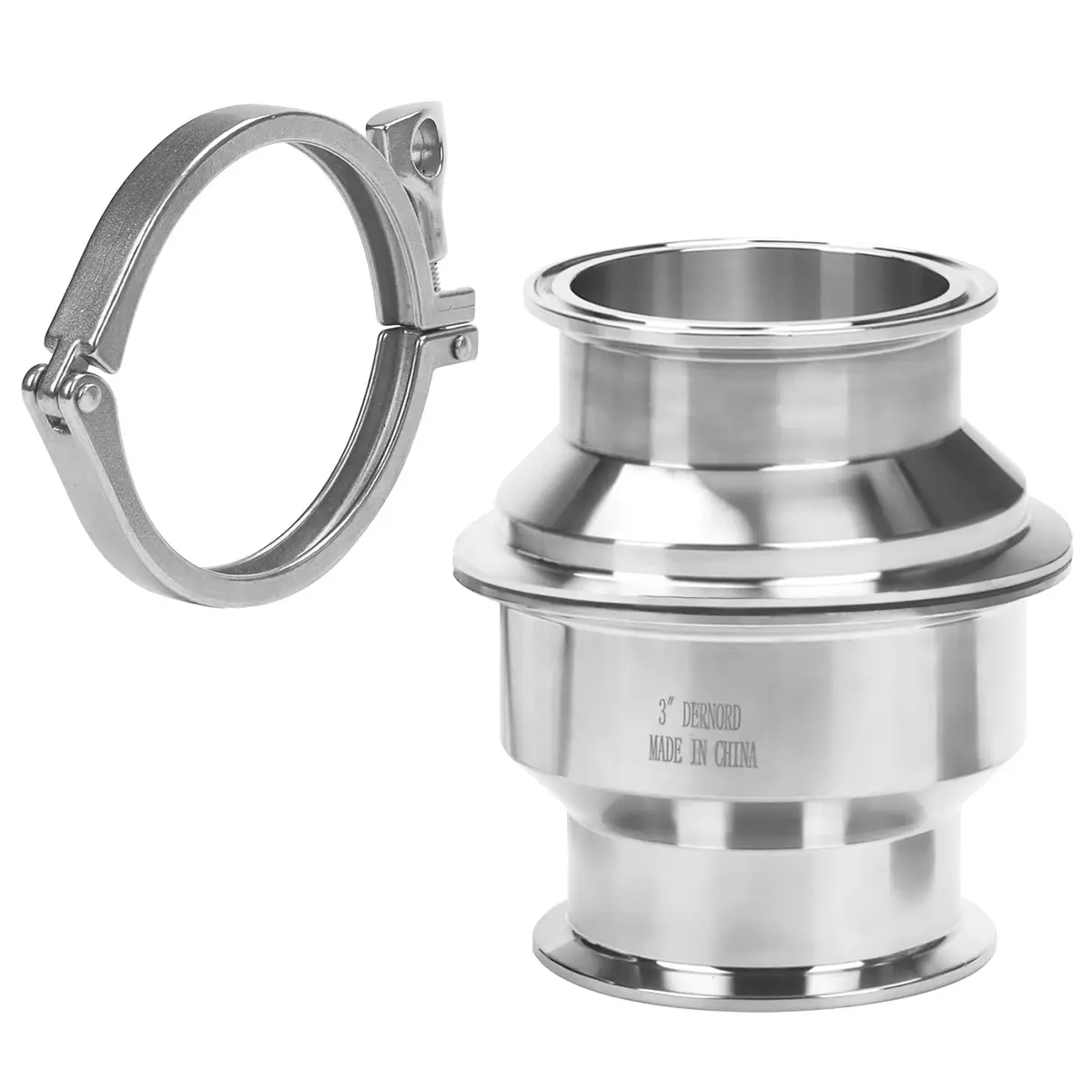

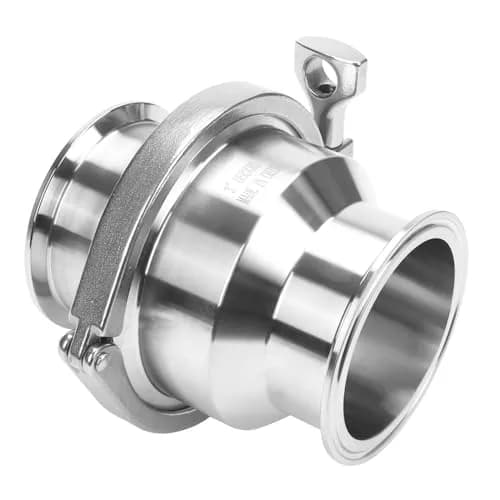

DERNORD 3" Sanitary Check Valve | Stainless Steel 304, FKM Gasket, One-Way Flow

Name: DERNORD 3" Tri Clamp Sanitary Check Valve | Stainless Steel 304, FKM Gasket, One-Way Flow
Brand: DERNORD
SKU: qtw0379
Price: 19080.00 INR
Availability: InStock

About this item

The DERNORD 3" Tri Clamp Sanitary Check Valve is engineered for reliable one-way flow in critical process piping. Constructed from durable 304 stainless steel with an FKM gasket, this valve prevents reverse flow, ensuring system integrity. It is 100% tested for hydraulic pressure and features wetted surfaces polished for hygiene. The adjustable spring mechanism allows customization of opening pressure, and the valve disassembles easily for thorough cleaning, making it suitable for demanding applications.

This check valve operates by using the medium's flow to open or close. When the pressure below the valve plug exceeds the pressure above and the spring force, it opens. It automatically closes when pressure equalizes, preventing backflow. This function is crucial for maintaining unidirectional fluid movement in stainless steel pipe systems used across food and beverage, dairy, brewing, pharmaceutical, bio-pharmaceutical, and chemical industries. It's an ideal solution for any Tri Clamp fitted system requiring mitigation of backflow.

While local alternatives may offer basic shut-off, the DERNORD valve's precise construction, material grade (304 SS), and FKM gasket ensure superior performance and longevity in demanding industrial environments. All customs duties and GST are included in the price, with delivery via ExpressBox tracked shipping within 14-16 days.

Key Features

Tube OD: 3 Inch, Ferrule Size: 91MM, Fits 3 Inch Tri-clamp
Material: 304 Stainless Steel，Max Temperature：130°C，Max Pressure: 10 Bar (145 PSI)

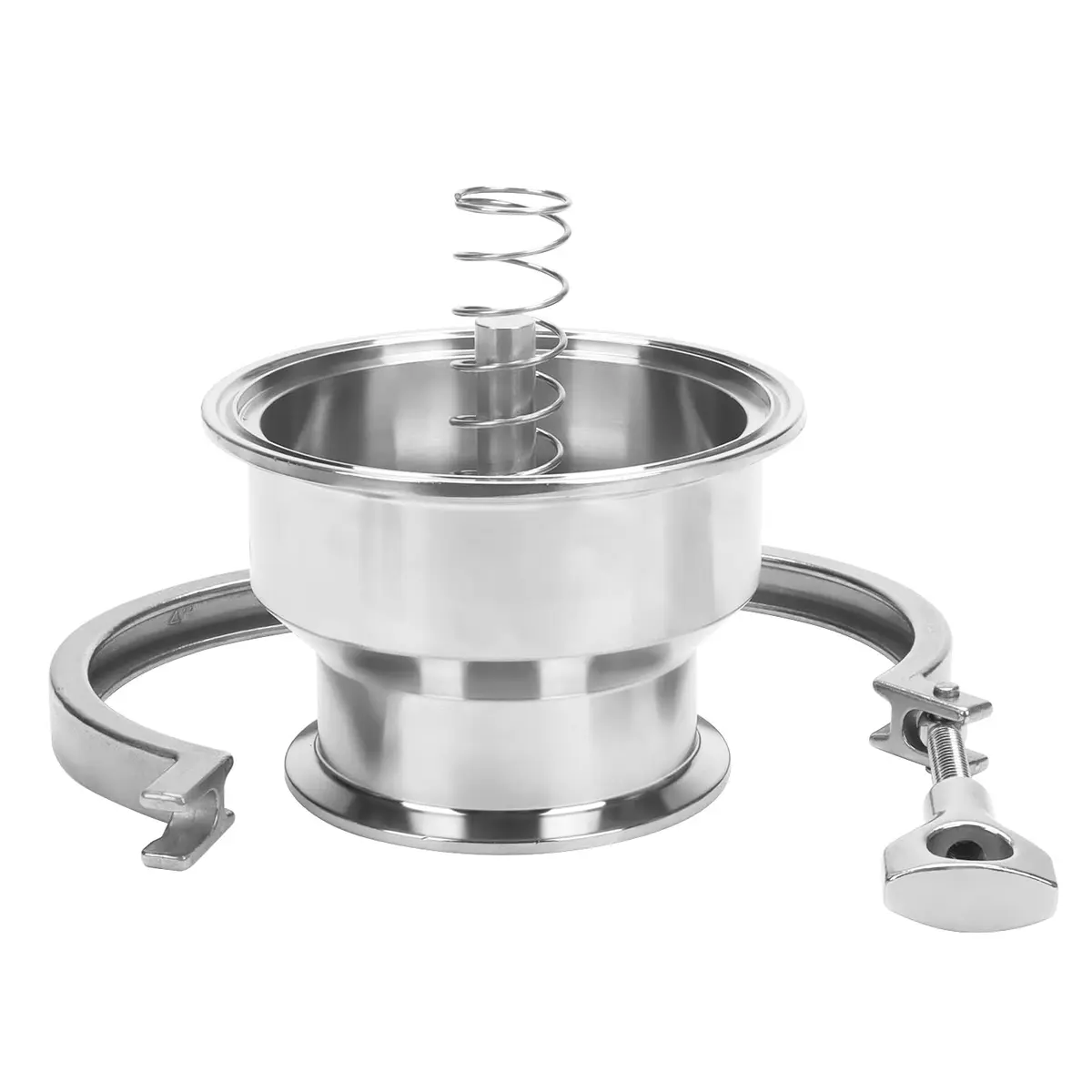

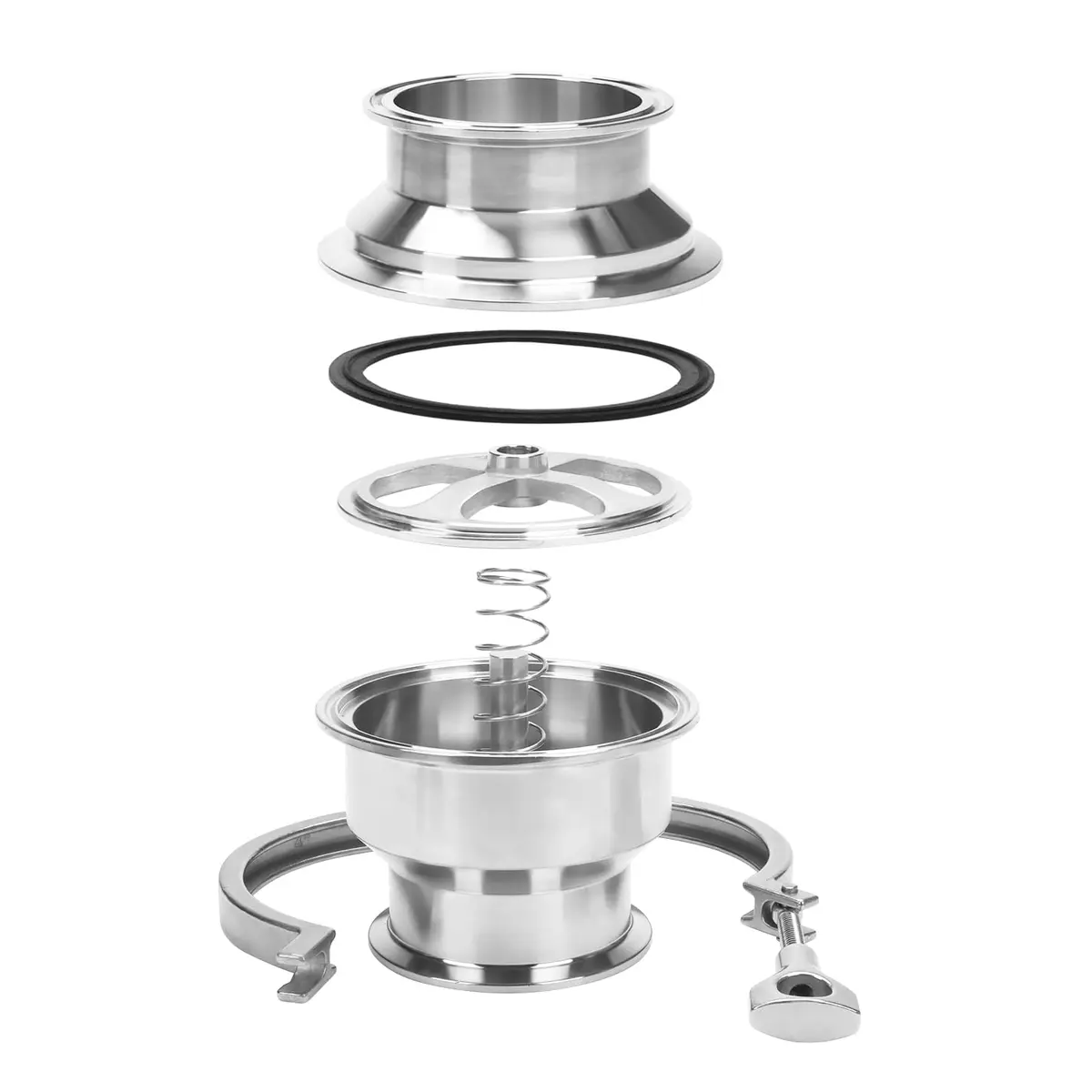

Adjustable pressure via spring replacement (1 spring included)- Quickly comes apart for easy cleaning
This one-way check valve allows flow in only one direction. When flow stops the valve automatically closes to stop materials from back-flowing
The pressure required to open the valve and be adjust by swapping out the inner spring (only one spring included) or rotating the spring plate

Why choose this product

Engineered for Precision Flow Control

This DERNORD sanitary check valve is built for critical process control. Its 304 stainless steel construction and FKM gasket offer superior corrosion resistance and a reliable seal. The spring-loaded mechanism ensures precise one-way flow, preventing backflow and protecting your system. It's 100% pressure tested for guaranteed performance, making it a trusted choice for food, beverage, pharmaceutical, and chemical applications where purity and flow integrity are paramount. All customs duties and GST are pre-paid, ensuring a transparent landed cost.

Ideal for Industrial Processes, Consider Alternatives for Basic Plumbing

This valve is engineered for demanding industrial environments like food processing, brewing, and chemical handling, where precise flow control and sanitary standards are essential. If you require a simple on/off valve for low-pressure, non-critical domestic water lines or basic air applications without strict sanitary needs, simpler, lower-cost brass or PVC valves might suffice. However, for applications demanding purity, corrosion resistance, and reliable backflow prevention, this stainless steel check valve is the superior choice.

How to use

Install Valve — Position the DERNORD sanitary check valve in your Tri Clamp fitted piping system. Ensure the flow direction arrow on the valve body aligns with the intended direction of fluid movement.
Connect Tri Clamp — Securely attach the 3" Tri Clamp ends of the valve to your existing sanitary piping using appropriate clamps and gaskets, ensuring a tight, leak-proof seal.
Test Operation — Introduce fluid into the system. The valve will automatically open when forward pressure exceeds the spring force and close when flow stops or reverses, preventing backflow without manual intervention.

Example scenarios

Typical situations where DERNORD 3" Tri Clamp Sanitary Check Valve | Stainless Steel 304 helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

A brewery in North India needs to prevent backflow in their wort transfer line to maintain sanitary conditions and prevent contamination.

How this product helps

The DERNORD 3" Tri Clamp Sanitary Check Valve ensures unidirectional flow, protecting the system from reverse contamination. Its 304 stainless steel construction and FKM gasket are ideal for food-grade applications, and the Tri Clamp fitting allows for easy cleaning and system integrity.

Scenario 2

Illustrative example

Where it helps

A pharmaceutical manufacturer in Mumbai requires a reliable check valve for a sensitive process line where precise flow control and material purity are critical.

How this product helps

This DERNORD valve's 100% tested hydraulic pressure rating, polished wetted surfaces, and 304 SS material provide the necessary reliability and hygiene. The adjustable spring pressure allows fine-tuning for optimal performance in their specific process, preventing any unwanted backflow.

Specifications & installation

Specifications

Wetted Surfaces	Polished
Actuation Available	Double-acting, air-to-spring, electric
Spring Included	1

Installation & usage

Application	Food, Beverage, Dairy, Brewing, Pharmaceutical, Bio-pharmaceutical, Chemical Industries, Tri Clamp Systems
Function	Prevents reverse flow, ensures flow in one direction
Opening Pressure Adjustment	Via spring replacement or rotation
Cleaning	Quickly comes apart for easy cleaning
Cost per use	N/A (Durable component)
Shelf life after opening	N/A (Durable component)
Reapplication math	N/A (Durable component)
Contraindications	Not suitable for basic domestic plumbing or non-sanitary air lines
Allergens / common irritants	None specified

How we compare

Feature	DERNORD 3" Tri	Others
Material	304 Stainless Steel with FKM Gasket	Often Brass or lower-grade SS; FKM gasket less common
Connection Type	3" Tri Clamp (Sanitary)	Typically threaded (NPT/BSP) or flanged; Tri Clamp less common in basic industrial valves
Pressure Rating	10 Bar (145 PSI)	Varies widely; basic valves may be lower
Temperature Rating	130°C (266°F)	Often lower, especially for brass valves
Application Suitability	Food, Beverage, Pharma, Chemical, Sanitary Processes	General industrial, water, air lines; less suited for strict sanitary needs

SKU	qtw0379
Brand	DERNORD
Part Number	DERNORD-1664
Model Number	DERNORD-1664
Valve Type	Check Valve
Connection Type	Tri-Clamp
Inlet Size	3 Inch
Ferrule Size	91 MM
Number of Ports	2
Material	304 Stainless Steel
Gasket Material	FKM
Exterior Finish	Stainless Steel
Maximum Operating Pressure	10 Bar (145 PSI)
Maximum Operating Temperature	130°C (266°F)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
