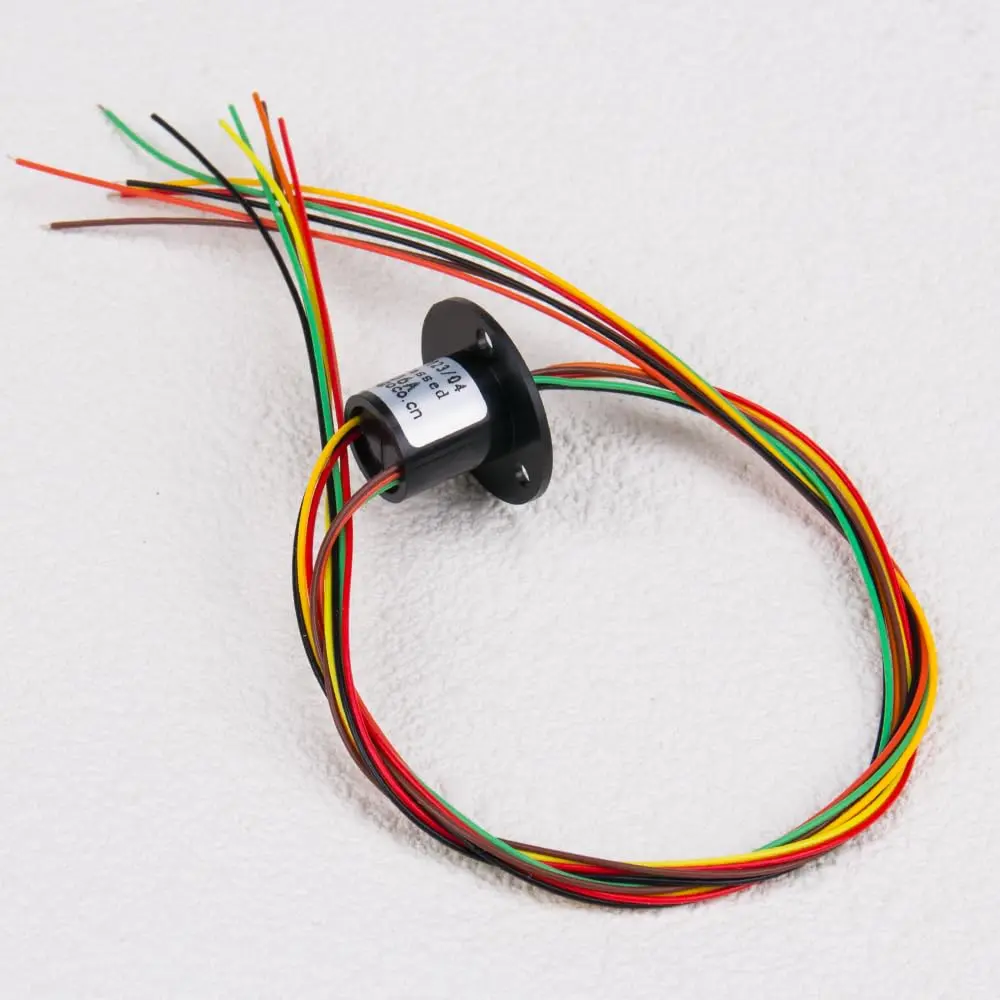

Comidox 6-Circuit 2A Slip Ring 12.5mm OD x 15mm Length | 300 RPM Rotary Electrical Connector for CCTV, Robotics, and Test Equipment

• The Capsule slip ring is a standard, off-the-shelf series product, that uses gold contacts at the rotary interface to ensure stability and service life, mainly used in civil and commercial fields.
• The stator wire and the rotor wire use colored wires to simplify the circuit connection.
• Conductive ring adopts 90 degree angle V line groove design, with smooth rotation, low torque and low electrical noise.
• Adopting domestic leading military-grade high-standard surface treatment technology, the internal structure is more precise and compact.
• Can combine signal and power in same slip ring,completely satisfy 360 degrees of rotation.

• Identify Circuit Connections — Refer to the colored wires on both the stator and rotor ends. Match the corresponding colored wires for each of the 6 circuits and the power input/output as per your system's schematic.

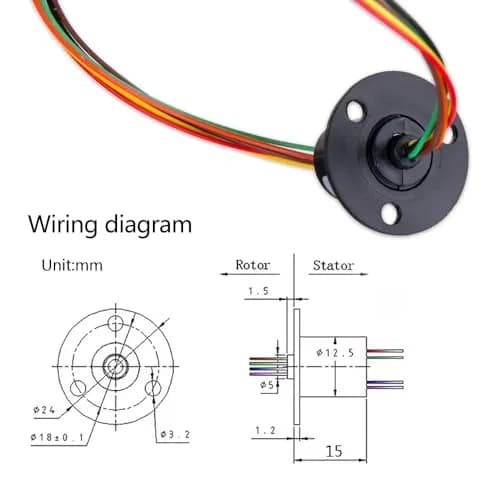

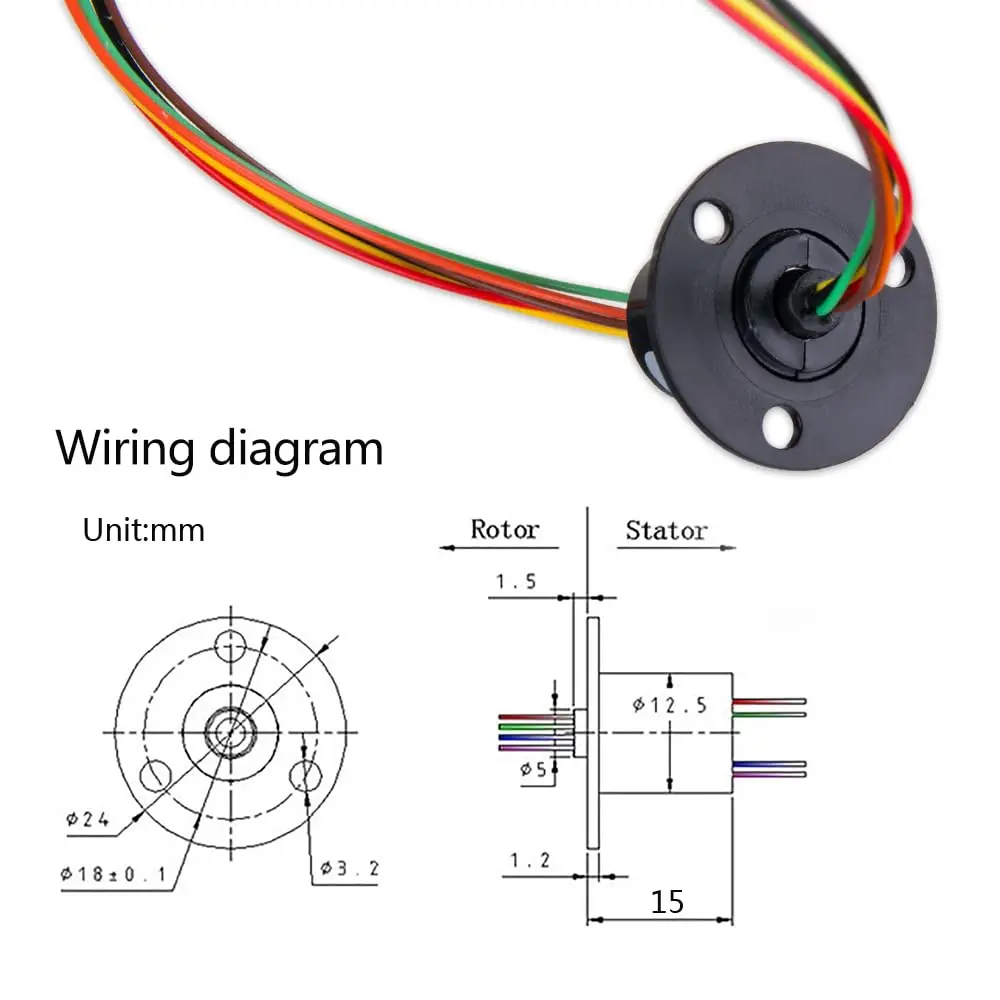

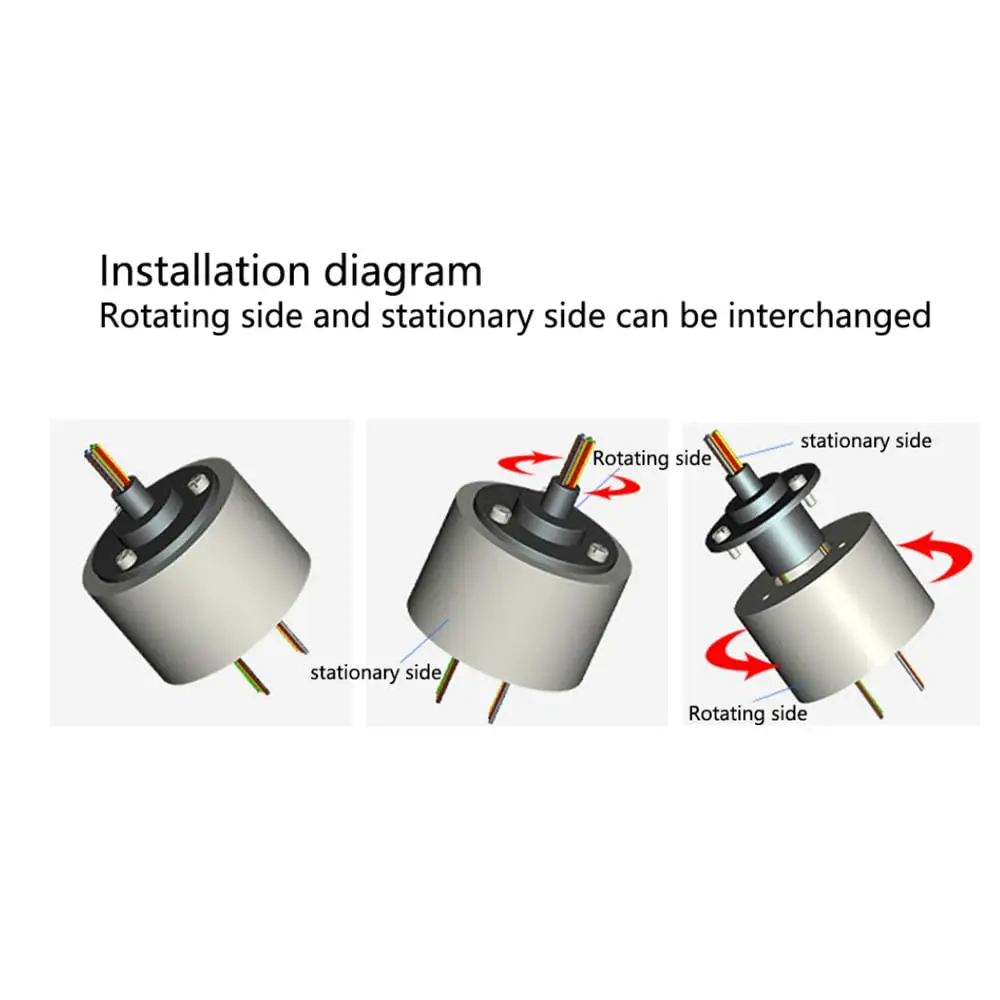

• Mount the Slip Ring — Securely mount the slip ring using its flange (24mm diameter) to your rotating platform or device. Ensure it is firmly attached and aligned to prevent vibration during operation.
• Wire the Circuits — Connect the identified stator wires to your stationary control or power source and the rotor wires to the rotating component. Ensure all connections are secure and insulated, preferably by a qualified technician.
• Test Rotation and Signals — Slowly rotate the connected assembly to verify smooth movement and check signal integrity or power transmission across all 6 circuits at the intended speed (up to 300 RPM).
