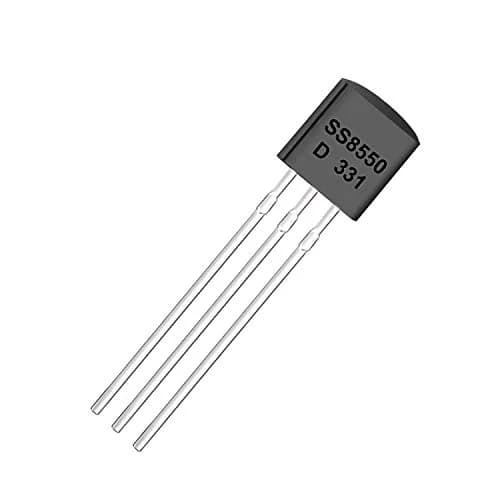

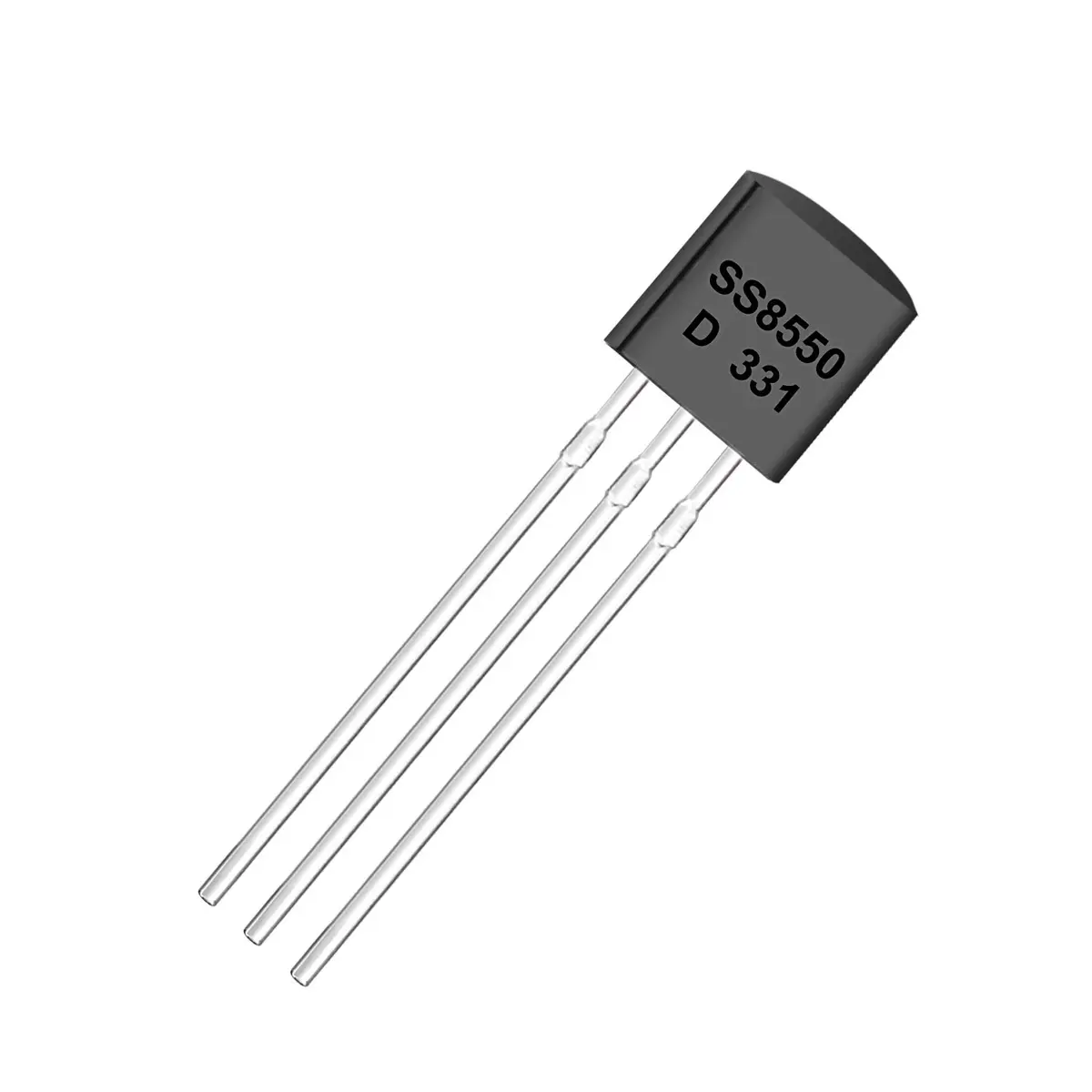

CHANZON SS8550 PNP Power BJT Transistor TO-92 | Medium Power Switching & Amplification

• Transistor Type: High power PNP silicon Bipolar Junction Transistor.
• Transistor Polarity: PNP Bipolar Junction Transistor.

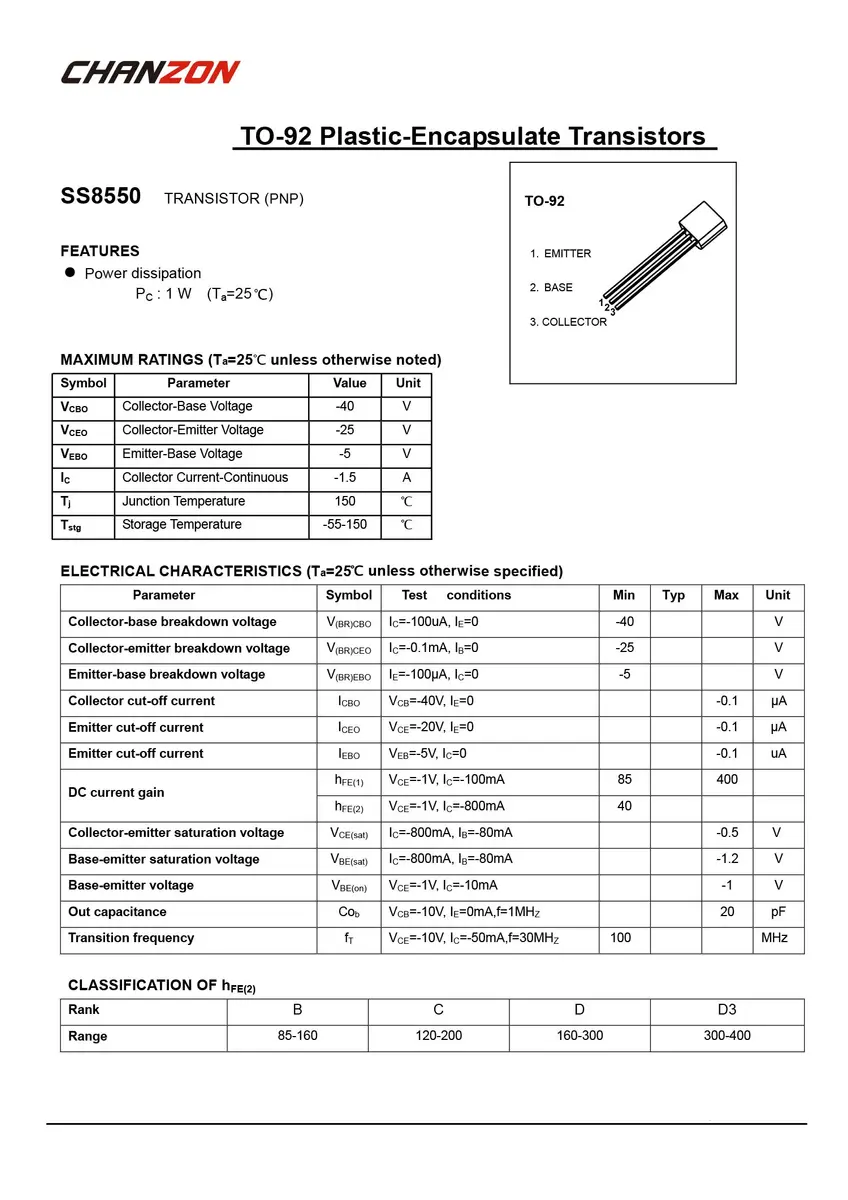

• Specification: Manage VCBO up to 40V, VCEO up to 25V, VEBO up to 6V, IC up to 1.5A, and total dissipation power (Ptot) at 25°C environment temperature up to 1W.
• Application: Widely used in applications demanding high amplification and low saturation voltage including power supplies and motor controls.

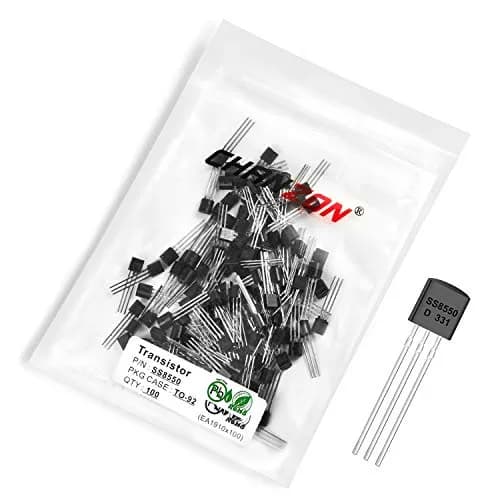

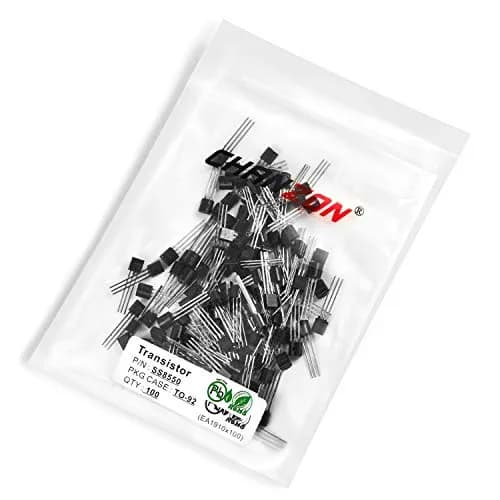

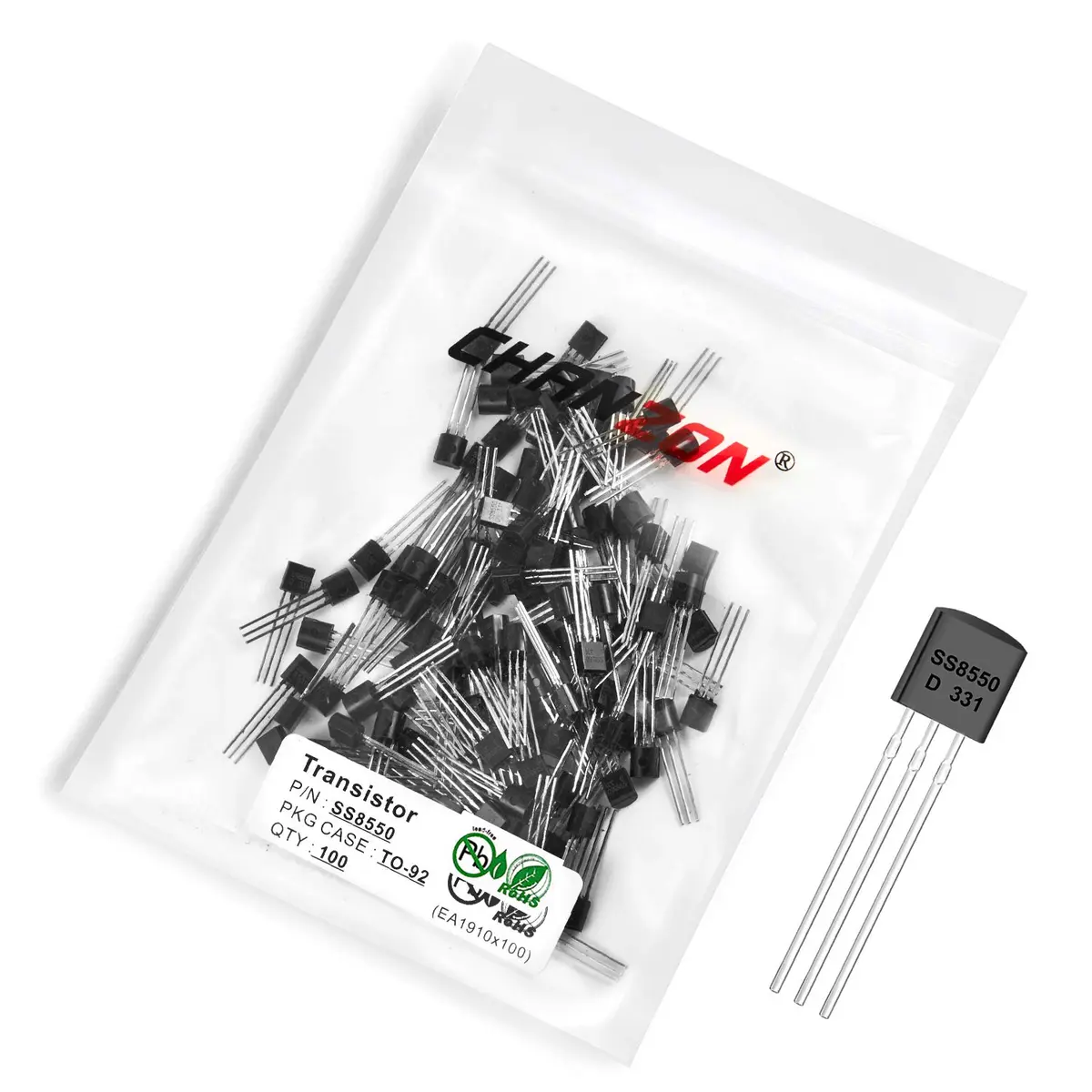

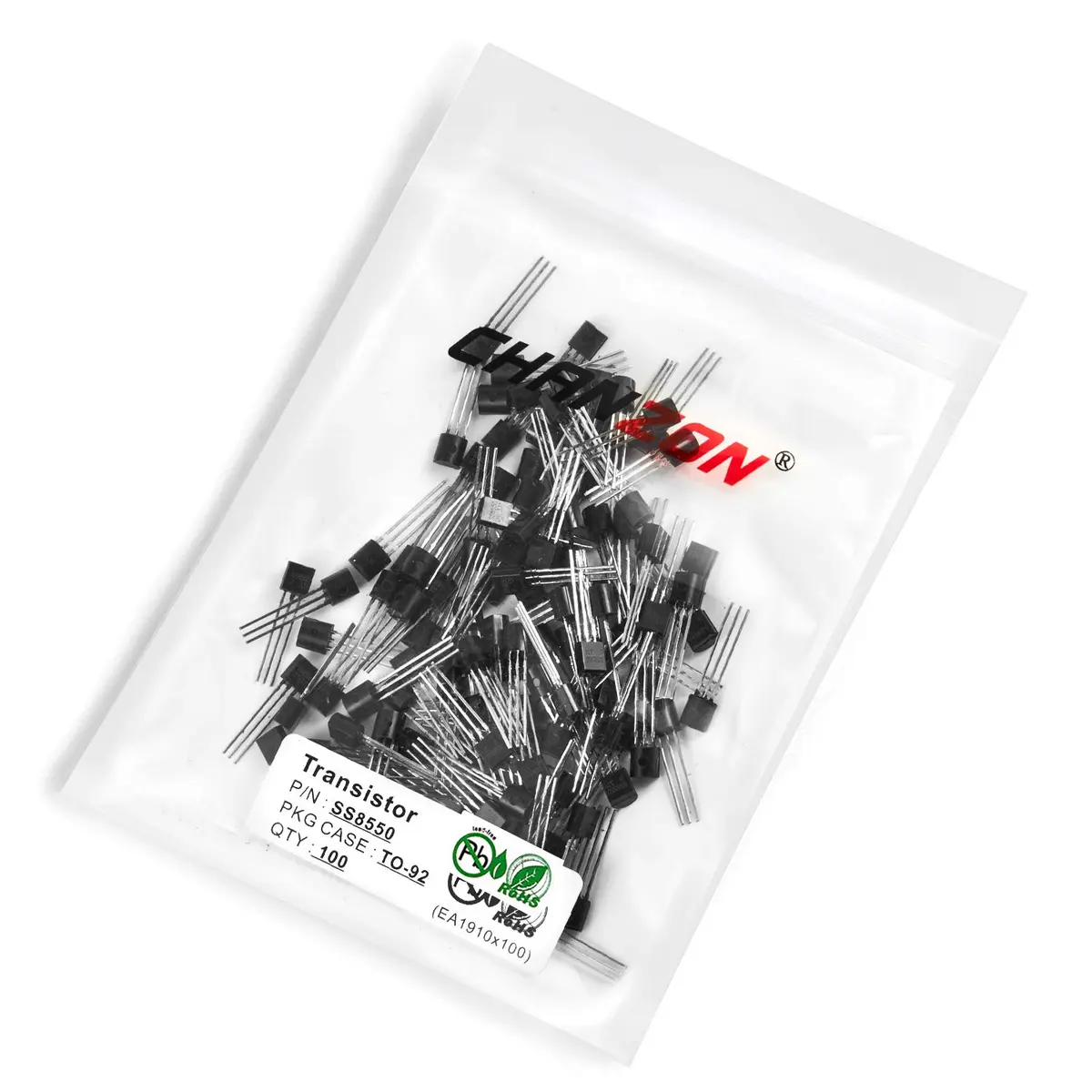

• Package: Each unit is individually packaged in an Anti-Static bag for electrostatic protection, ESD safety, and extended shelf life.

• Identify circuit requirements — Ensure VCBO up to -40V and IC up to 1.5A match your application. Use datasheet for pinout and proper heatsinking.
• Install in circuit — Insert the TO-92 transistor into the PCB or breadboard, connect collector, base, emitter as per your schematic, and verify connections.
• Test and operate — Power the circuit, check for proper switching or amplification. Use a multimeter to verify voltage and current within specs.
