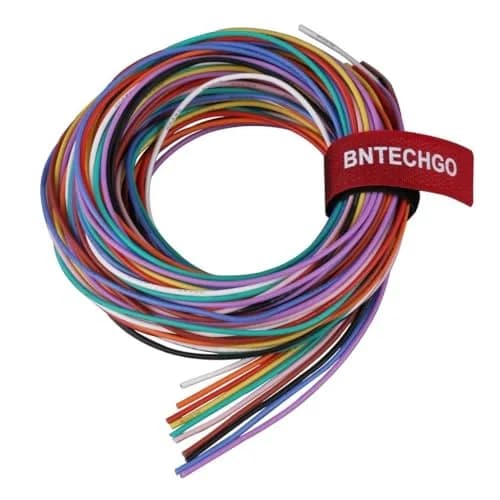

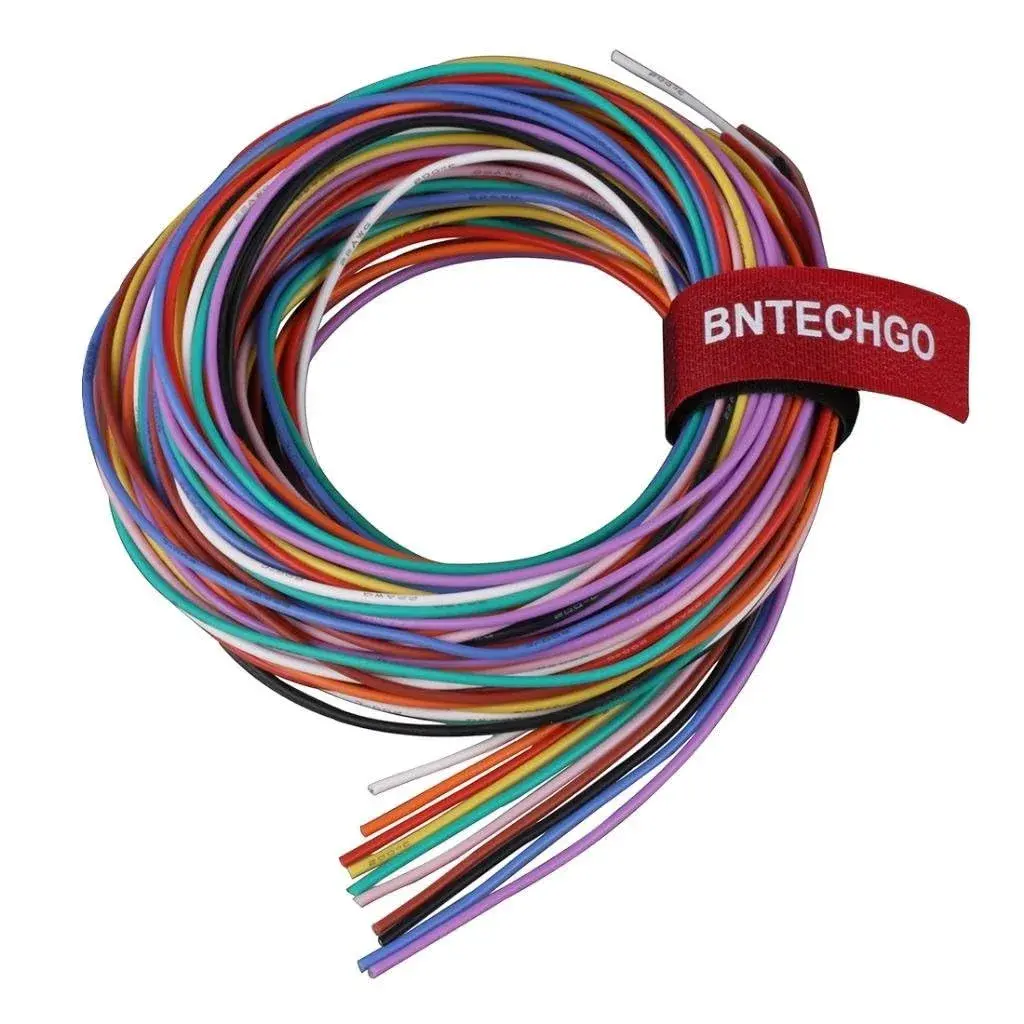

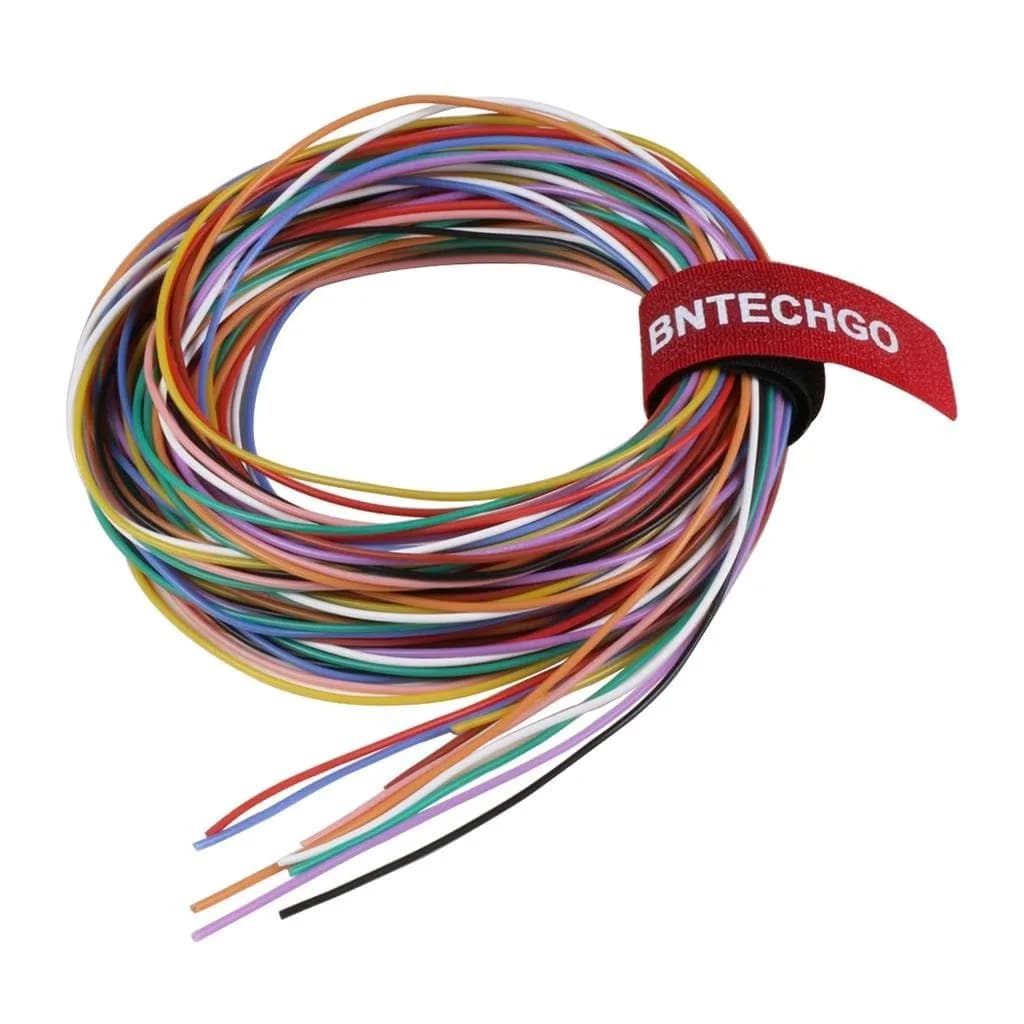

BNTECHGO 22 AWG Silicone Wire Kit 10 Colors Each 10ft Stranded Tinned Copper | 600V 200°C Flexible Wire for RC, DIY

• High Quality Ultra Flexible Soft Silicone Rubber Copper Wire!Super Low Impedance,Highly Efficient!
• High strand count copper core,22 AWG silicone stranded wire has 60 strands 0.08 mm tinned copper wire,the copper strands are tinned,protecting them from corrosion and making it easier to solder.

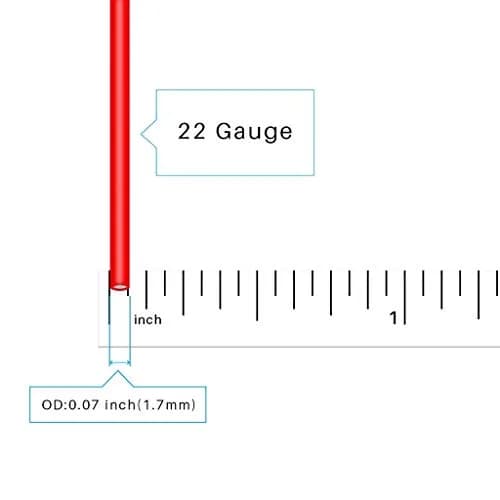

• They are constructed with premium silicone rubber insulation.High temperature resistance 200 degree C,Low temperature resistance,in extreme cold -60 degree C.Rated Voltage: 600 volts.Outside diameter 1.7 mm,tolerance +/- 0.1 mm.
• 22 gauge silicone wire kit: 10 colors,red black blue white yellow green orange pink purple and brown,each color 10 ft,total 100 feet.
• BNTECHGO silicone wire are widely used for model planes,model cars,model ships,lamps,household appliances,electric heating appliances,meters,instruments,motor and digital fields.

• Select Color and Cut to Length — Choose the appropriate color wire from the 10 available options for your specific connection (e.g., red for positive, black for negative). Cut the wire to the required length using wire cutters, ensuring a clean, straight end.
• Prepare Conductor for Connection — Gently strip about 5-7mm of the silicone insulation from the end of the wire using a wire stripper tool. The tinned copper strands are corrosion-resistant and easy to solder.
• Make Electrical Connection — Connect the exposed tinned copper strands to your electronic component, terminal block, or solder joint. Ensure a secure and insulated connection, using heat shrink tubing if necessary for added protection.
