BNTECHGO 12 AWG Silicone Wire Kit, 10 Colors, 50 ft Total | 600V Rated, 200°C Heat Resistant, 680 Strands Tinned Copper

• High Quality Ultra Flexible Soft Silicone Rubber Copper Wire!Super Low Impedance,Highly Efficient!

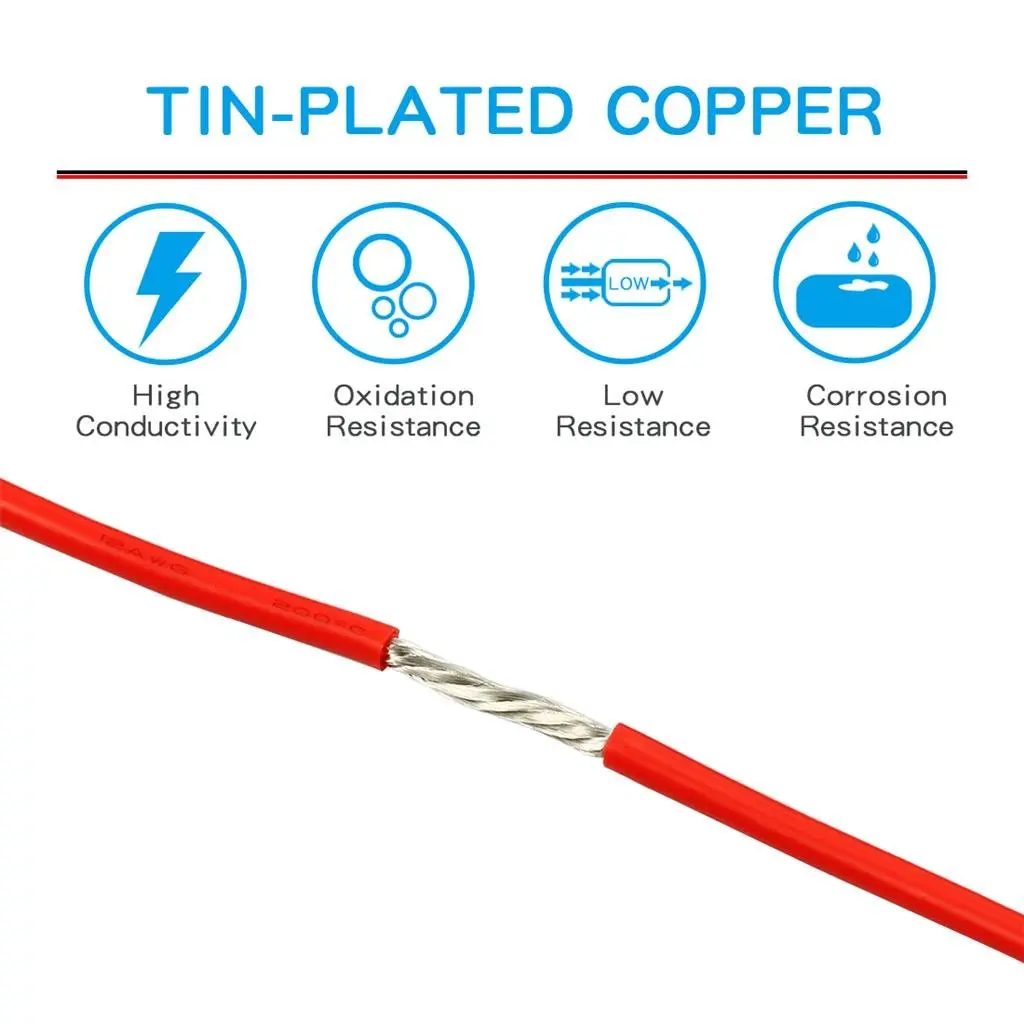

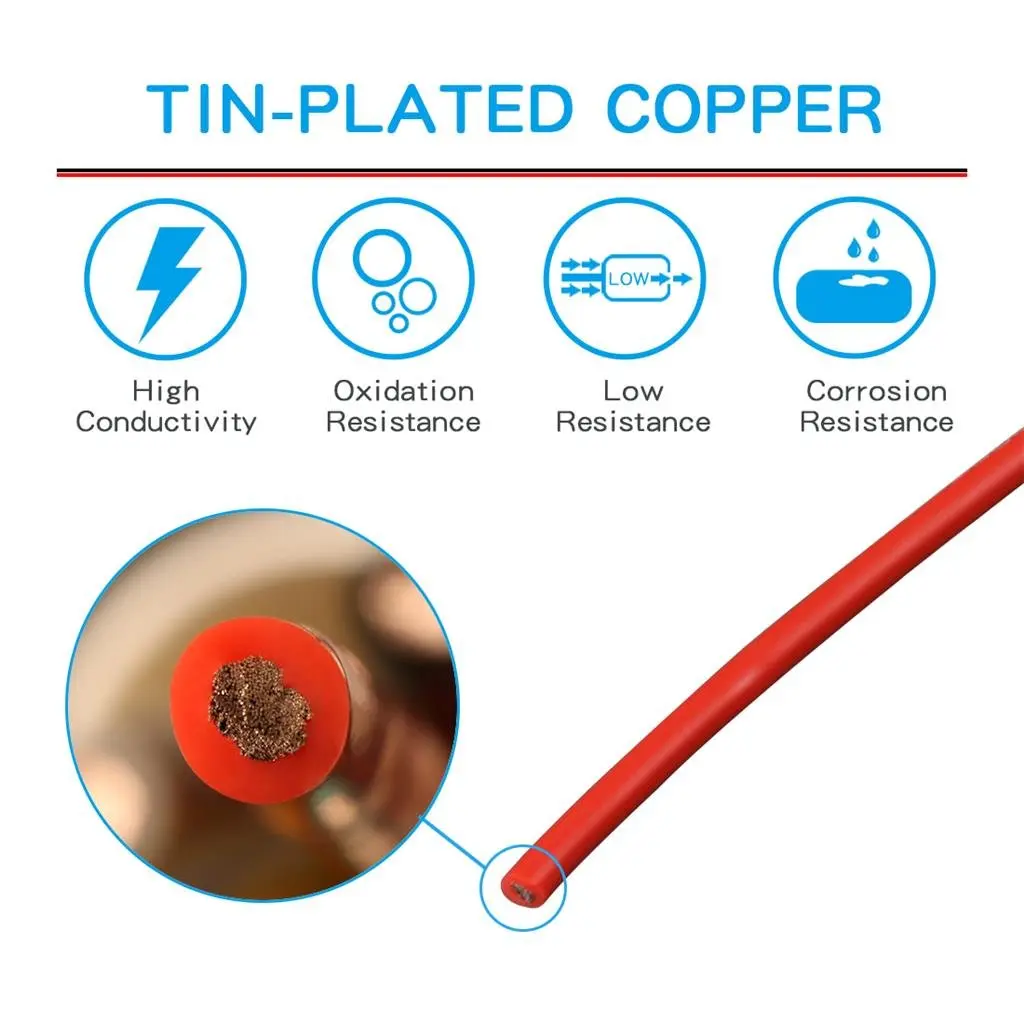

• High strand count copper core,12 AWG silicone stranded wire has 680 strands 0.08 mm tinned copper wire,the copper strands are tinned,protecting them from corrosion and making it easier to solder.

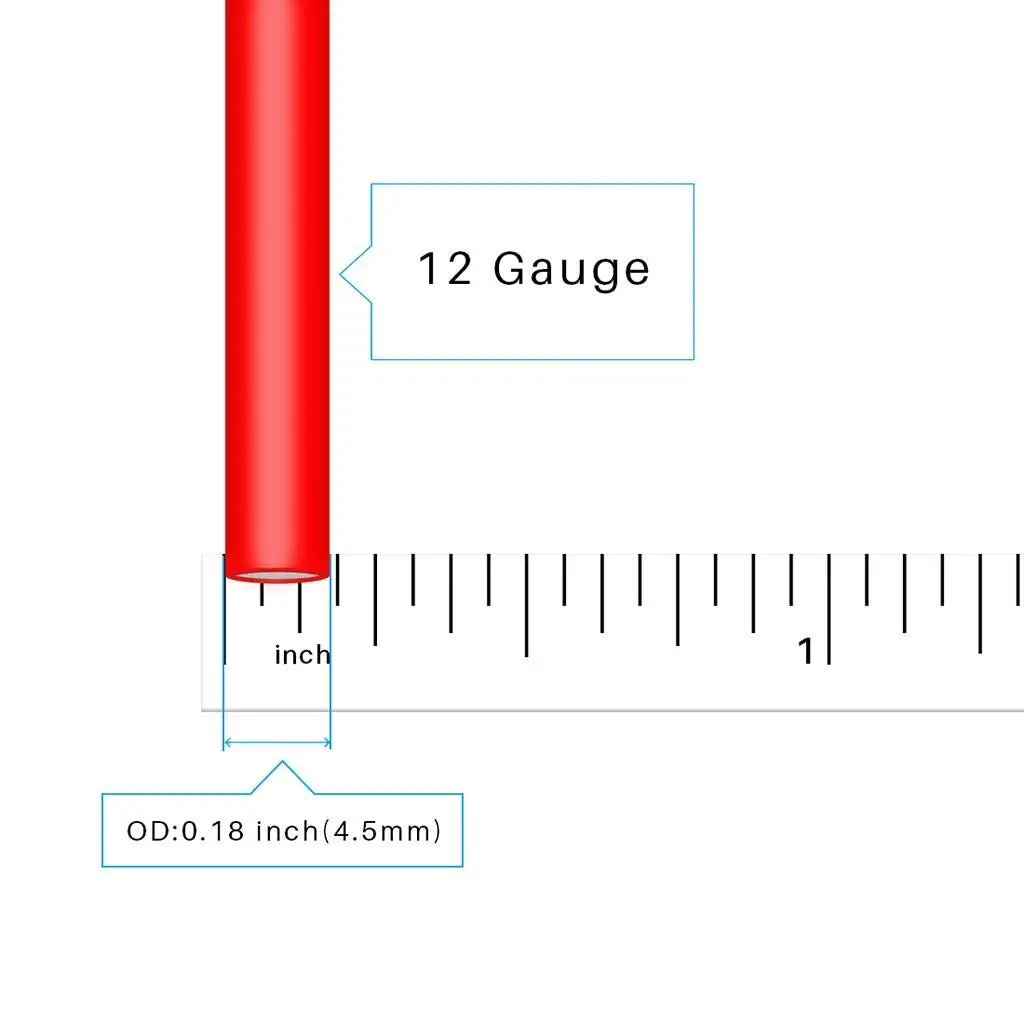

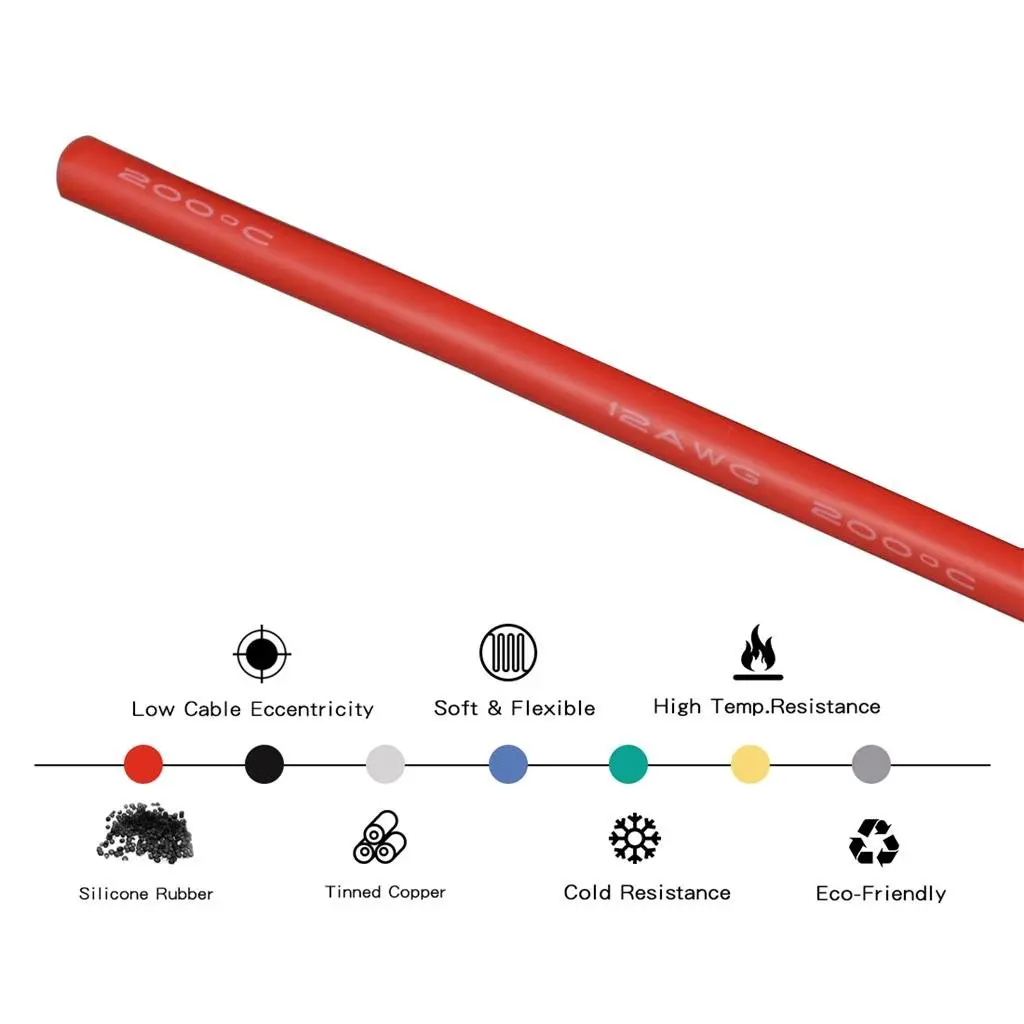

• They are constructed with premium silicone rubber insulation.High temperature resistance 200 degree C,Low temperature resistance,in extreme cold -60 degree C.Rated Voltage: 600 volts.Outside diameter 4.5mm,tolerance +/- 0.1 mm.

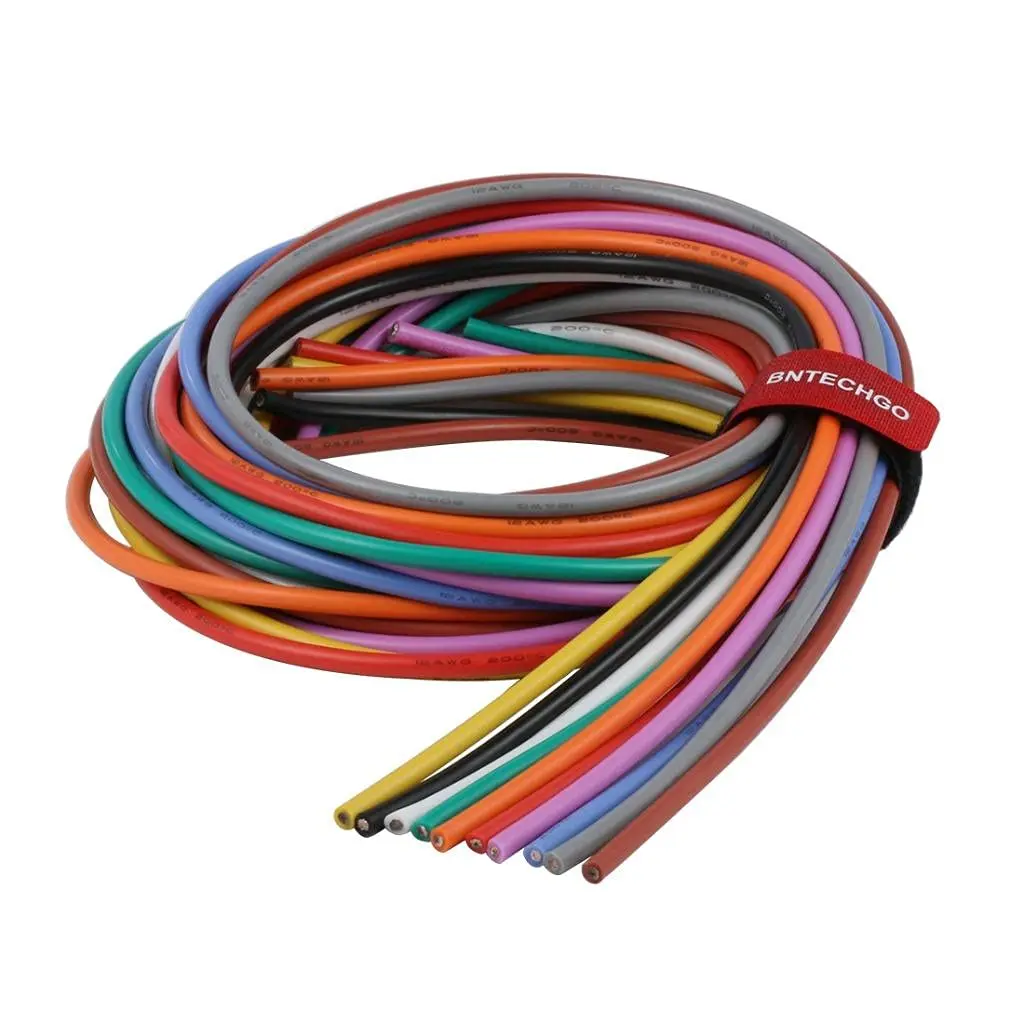

• 12 gauge silicone wire kit: 10 colors,red black blue white yellow green orange gray purple and brown,each color 5 ft,total 50 feet.
• BNTECHGO silicone wire are widely used for model planes,model cars,model ships,lamps,household appliances,electric heating appliances,meters,instruments,motor and digital fields.

• Select Wire Color — Choose a wire color from the 10 available options (red, black, blue, white, yellow, green, orange, gray, purple, brown) that best suits your circuit's function (e.g., red for positive, black for ground).
• Prepare Wire Ends — Carefully strip about 5-10 mm of the silicone insulation from the end of the wire using a wire stripper suitable for silicone. The tinned copper strands are corrosion-resistant and easy to work with.
• Make Connections — Twist the exposed copper strands together securely and solder them to your component's terminal, connector, or PCB pad. The high strand count ensures good solderability and a strong connection.
• Secure and Insulate — Ensure the connection is mechanically sound and electrically insulated. Use heat shrink tubing or electrical tape if necessary to protect the soldered joint and prevent short circuits.
