WITMOTION WT901BLECL 9-Axis IMU Sensor 51.5mm x 36.1mm x 15mm | Bluetooth 5.0 Accelerometer Inclinometer with Kalman Filter

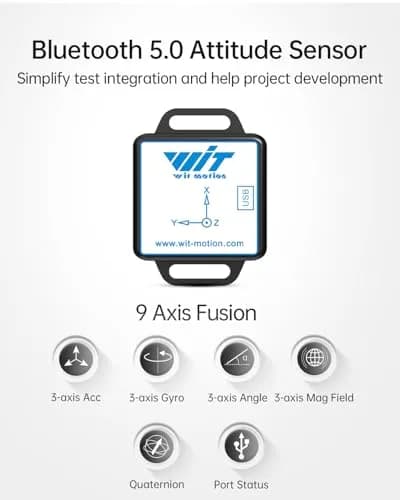

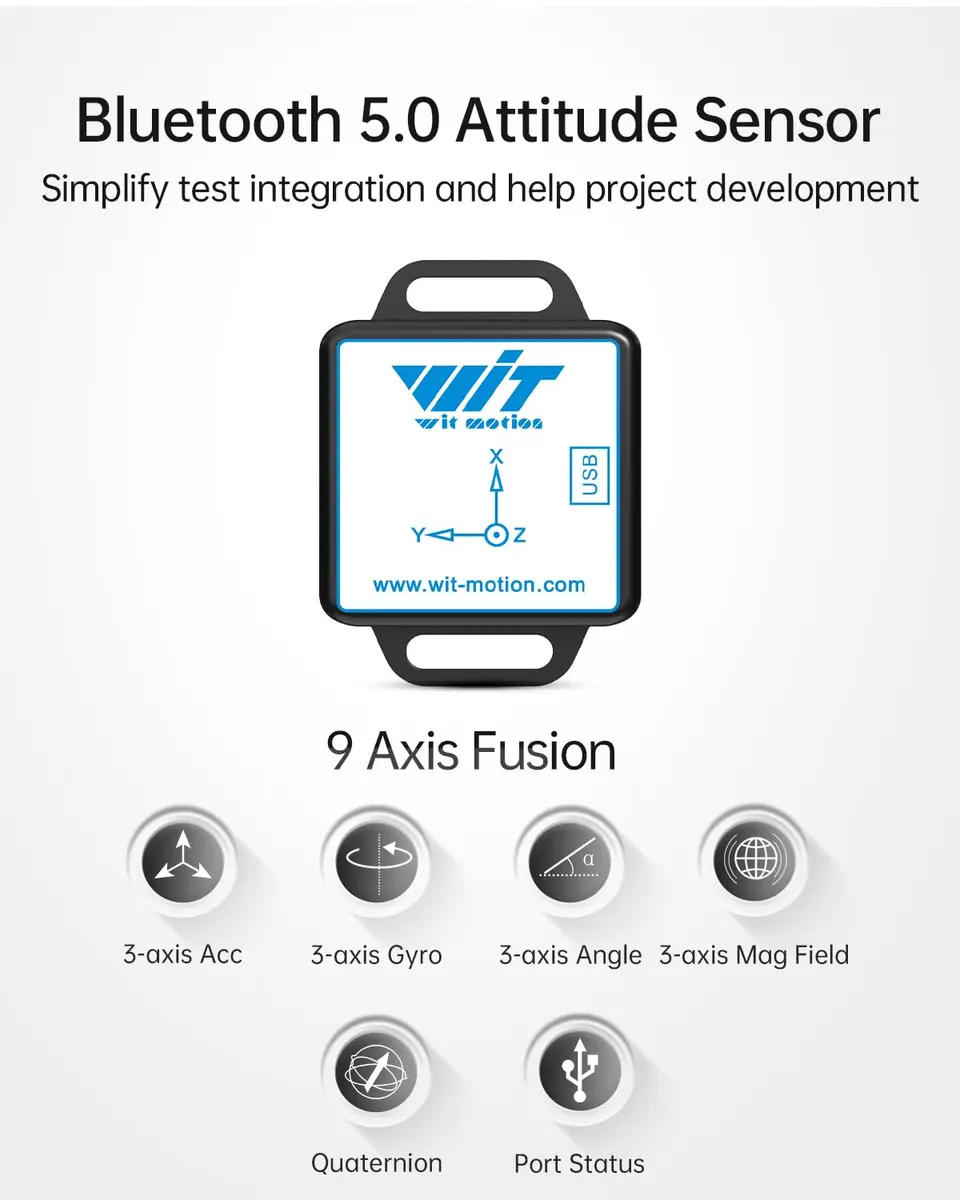

• Precision Sensor Suite — The sensor features a high-precision 3-axis XYZ(Pitch Roll Yaw) accelerometer, gyroscope, and magnetometer, providing a comprehensive and reliable solution for motion and orientation detection in robotics, gaming controllers, motion detection systems, VR, and etc.

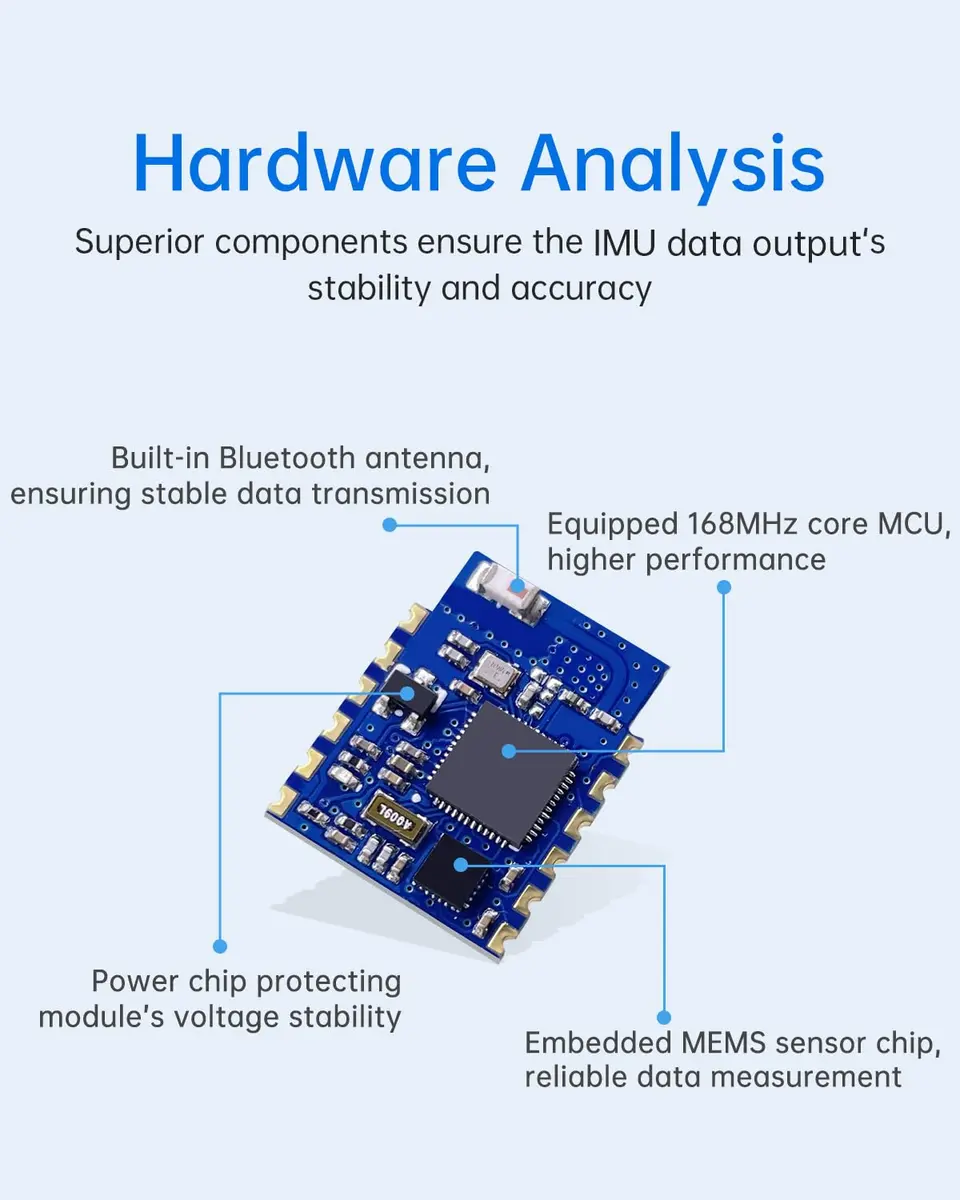

• Advanced Algorithm Filter — 10-year Professional Attitude Measuring Solution Provider, sensors integrated R&D dynamic fusion algorithm and Kalman Filtering ensuring stable data output and excellent bias stability, low noise level, increasing measurement accuracy. Featured a high-performance Cortex-M4 core processor operating at up to 168MHz, it balances power efficiency with performance.
• BLE Compatibility — Low consumption Bluetooth 5.0 (battery life about 10 hours), one-click connectivity to WitMotion App/PC for real-time monitoring, and sample codes for C++, Python, Unity, Android, and iOS to streamline development.

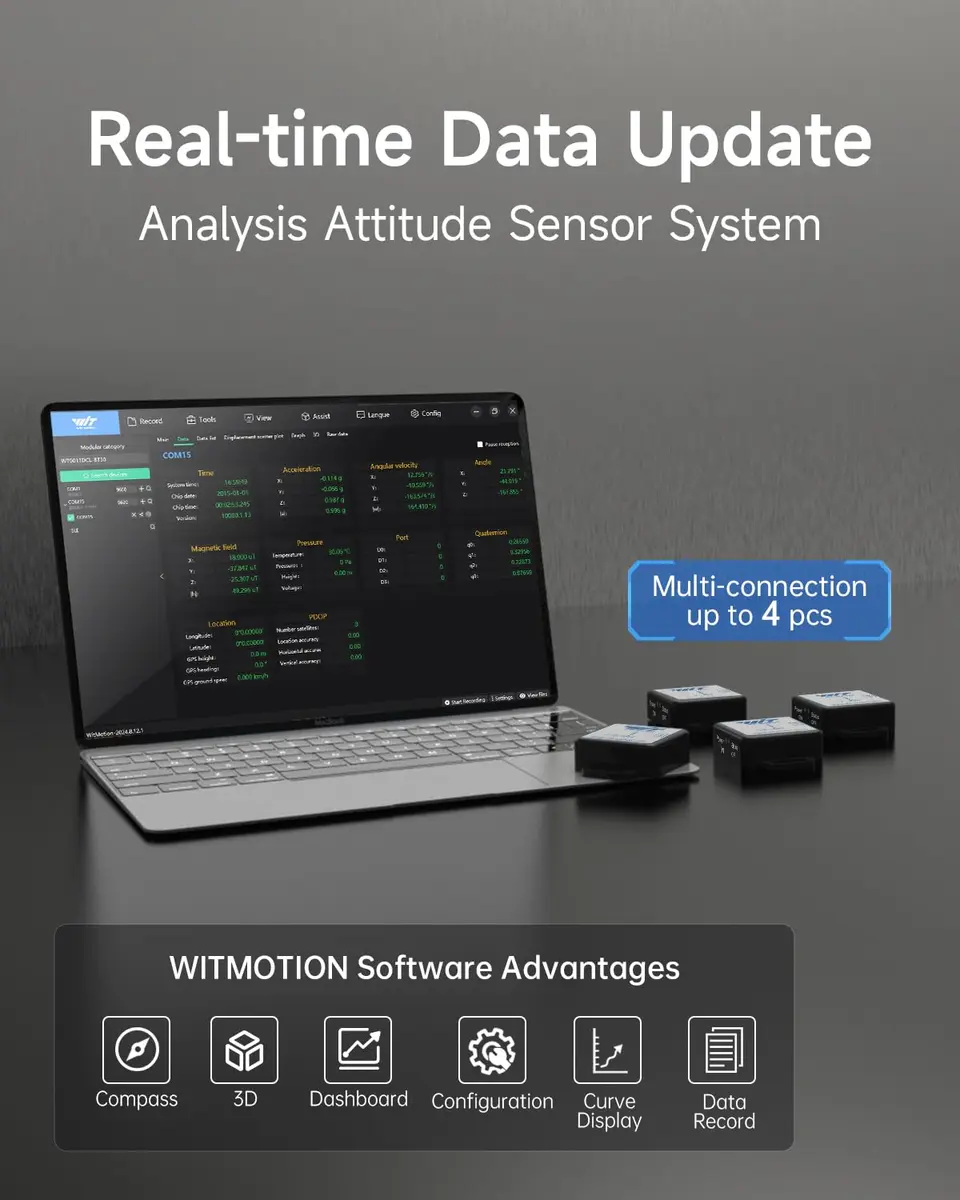

• Powerful PC software/App provides — Real-time data monitor(Dashboard/graph/raw data); Data Storage & Exporting(Excel/csv/txt); Multiple configuration(calibration, angle setting, return rate);
• What You Get — 1*WT901BLECL BLE 5.0 sensor Type-C interface, 1*Type-C Data & Charging Cable, 1 x Welcome Guide. (Adapter is not included. Required to purchase BLE adapter *B07ZGG9KY9 for computer connection.)

• Connect Power and Interface — Connect the WT901BLECL sensor to a 3.3V-5V power source via its Type-C port or reserved input pins. For serial communication, ensure the TTL level interface is correctly wired to your microcontroller or development board.

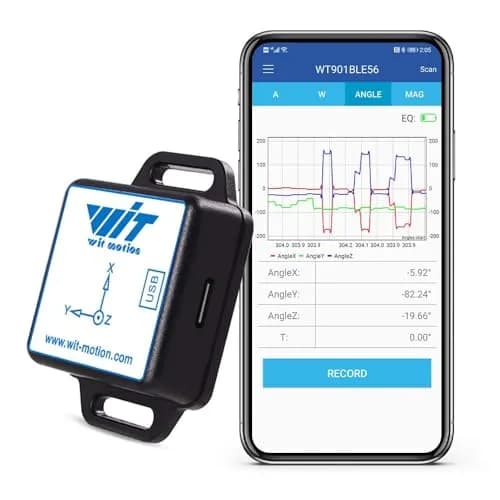

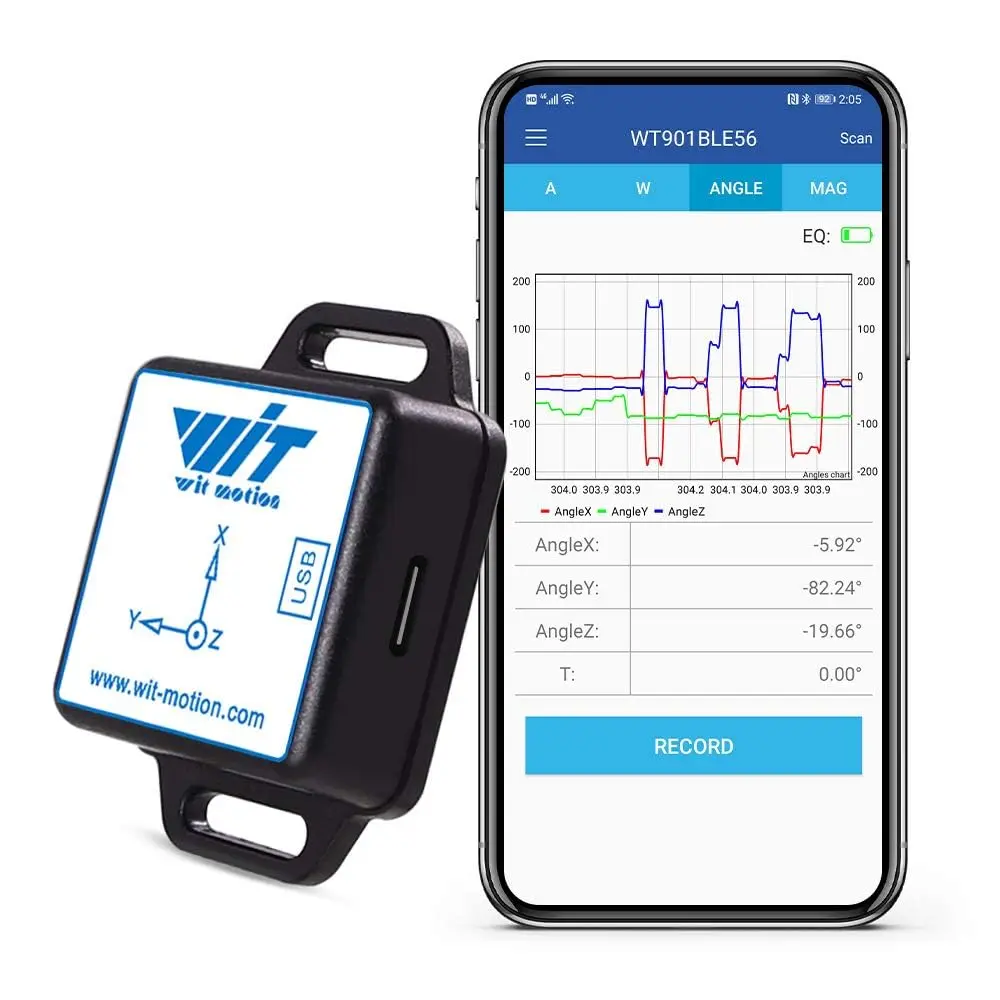

• Establish Bluetooth Connection — Power on the sensor and enable Bluetooth on your iOS or Android device. Open the WitMotion App and initiate a one-click connection to the WT901BLECL for real-time data monitoring and configuration.
• Configure and Calibrate — Use the WitMotion App or PC software to calibrate the sensor for your specific application. Adjust settings like angle calibration, return rate, and data output frequency (50Hz default) to optimize performance.
• Integrate Data into Your Project — Utilize the real-time data streams (raw data, dashboard, graphs) or export data (Excel, CSV, TXT) for analysis. Implement the provided sample codes for C++, Python, Unity, Android, or iOS to integrate sensor feedback into your robotics, VR, or automation project.
