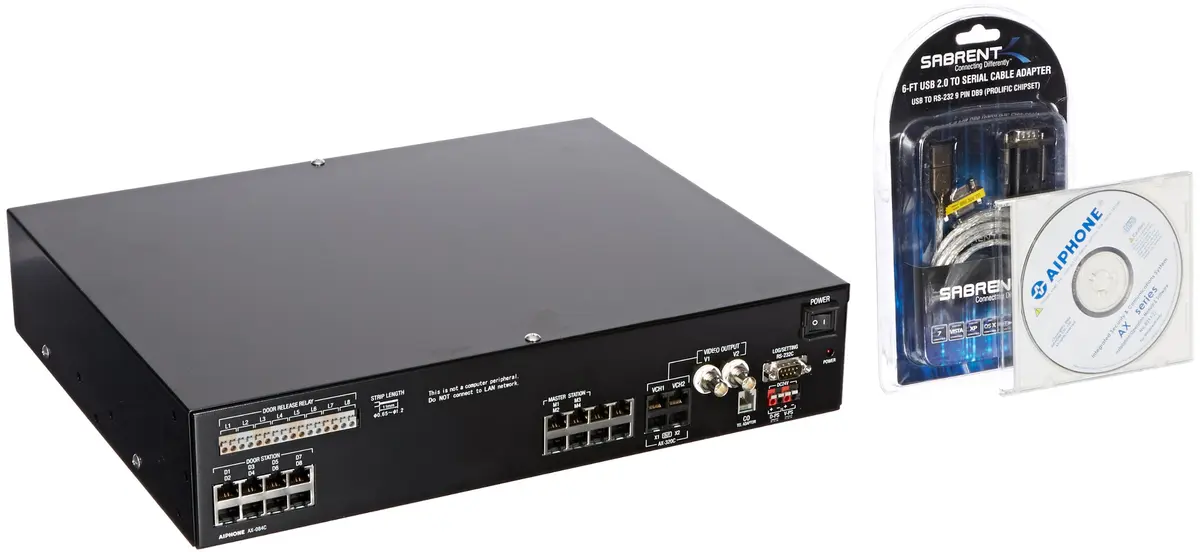

Aiphone AX-084C Central Exchange Unit for AX Series, 8 Doors, 4 Masters | Controls up to 8 doors & 4 masters

The Aiphone AX-084C is a central exchange unit designed for comprehensive security systems, supporting up to 8 door or sub stations and 4 master stations. It acts as the wiring hub using Cat-5e cables, with two BNC composite video outputs and video switching triggers, suitable for professional security installations in India. The unit mounts into a 19-inch EIA rack (2U) or on a wall, with programmable features via supplied software, and supports line transfer through RJ11 ports compatible with auto-dialers. Its power input supports 24V DC, with consumption up to 0.62A for video and 0.65A for audio, measuring approximately 6.1 inches high, 21.3 inches deep, and 18.2 inches wide. Factory-sealed, imported from authorized US retailers, with all duties included, it ensures reliable operation for large-scale security needs.

Stations can be placed up to 980 ft from the exchange unit on Cat-5e wiring, providing flexible installation options. The dry contact door release rated at 24V AC/DC 500mA (use EL-12S, RY-24L for larger contacts) offers secure access control. The unit's design supports expansion to 104 stations with add-on units like AX-320C, making it suitable for growing security systems in Indian commercial and residential properties. Its robust build and programmable features make it a trusted choice for professional security integrators.

Imported from USA, the AX-084C arrives factory-sealed, with all duties and GST included, ensuring authenticity and compliance. Delivery via ExpressBox tracking typically takes 11-13 days. Compatible with Indian security infrastructure, it offers a reliable, high-capacity control hub for large security setups, backed by CrowCrowCrow's promise of 100% original products and hassle-free support.
