What wire sizes do these 3M Scotchlok IDC connectors fit?

These 3M Scotchlok IDC 558 connectors are designed to accommodate wires ranging from 22 to 16 AWG, suitable for both solid and stranded conductors. Ensure your wire gauge falls within this range for a secure and reliable connection in your automotive, marine, or low-voltage electrical projects.

Are these 3M Scotchlok connectors suitable for high-voltage applications in India?

These connectors are rated for 600V for building wire and 1000V for signs and fixtures. While robust for low-voltage applications, they are not intended for high-voltage mains electrical work. Always consult a qualified Indian electrician for mains power installations and use components certified for Indian electrical standards.

How do I use these 3M Scotchlok IDC connectors?

These connectors feature self-stripping insulation. Insert the stripped ends of two wires (22-16 AWG) into the connector slots. Use a proper crimping tool to press down the brass IDC (Insulation Displacement Connector) tab, which pierces the wire insulation to create an electrical connection and secure the wires.

What is the shelf life of these 3M Scotchlok connectors?

When stored in their original factory-sealed packaging, these 3M Scotchlok connectors have a shelf life of 5 years from the date of manufacture. Ensure they remain dry and protected from extreme temperatures to maintain their integrity.

Are these 3M Scotchlok connectors RoHS compliant?

Yes, these 3M Scotchlok IDC 558 connectors are RoHS Compliant, meaning they adhere to restrictions on hazardous substances, ensuring a safer product for industrial and occupational use.

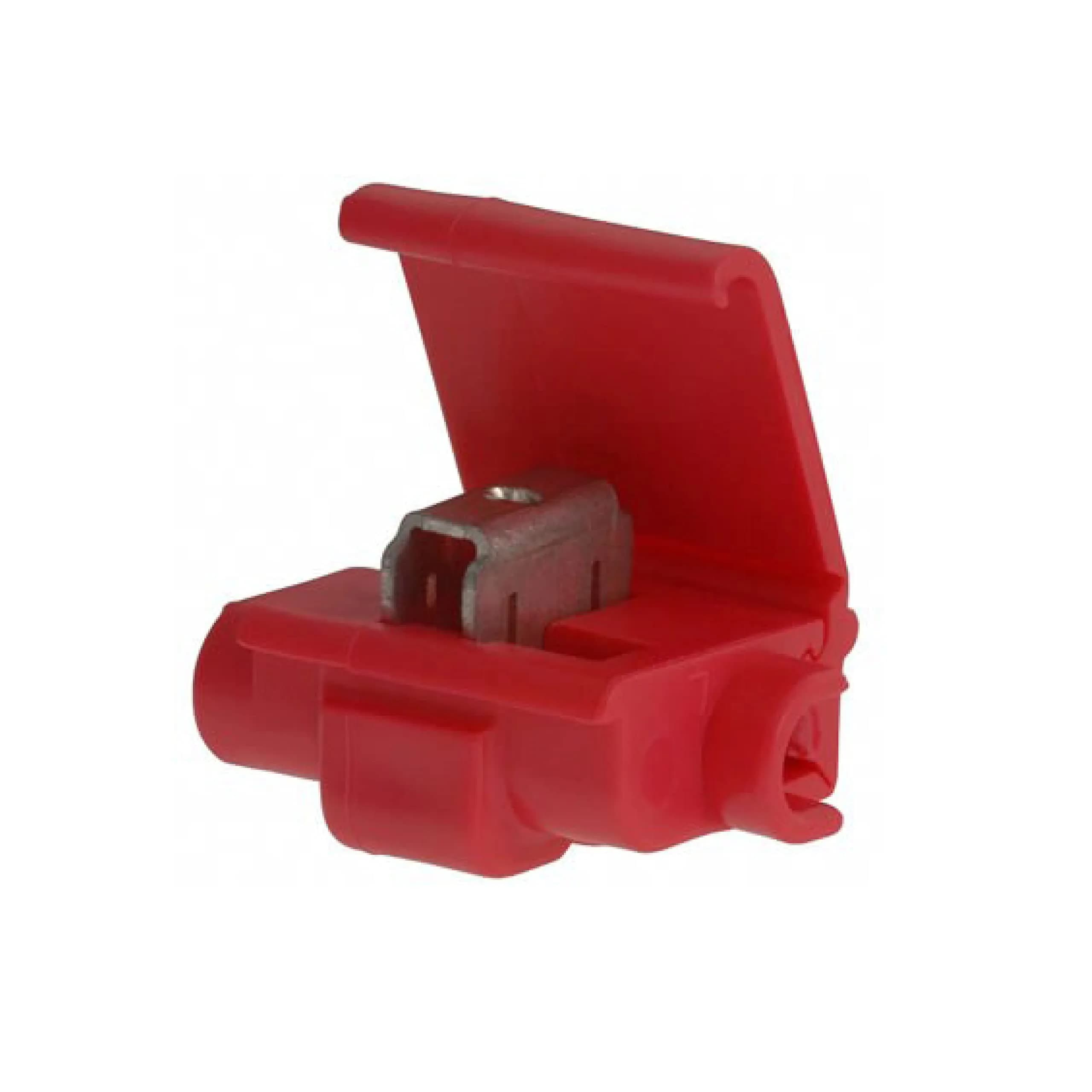

3M Red Scotchlok Electrical IDC Connector 22-16 AWG

About this item

3M Scotchlok IDC 558 connectors offer a reliable solution for electrical connections across various applications, including automotive, marine, and low-voltage building wiring. Imported from authorized US retailers, these connectors ensure authentic performance for your projects. They are designed for ease of use with self-stripping insulation, simplifying the wiring process.

These connectors are built to withstand demanding conditions, rated for 600V for building wire and 1000V for signs and fixtures, with a heat resistance of up to 105°C (221°F). The brass barrel ensures good conductivity, while the polypropylene insulation provides durability. They are UL Listed, CSA Certified, and RoHS Compliant, meeting high industry standards.

For Indian users, these connectors provide a robust alternative for automotive repairs, solar installations, or home electrical projects. All customs duties and GST are included in the price, with delivery via ExpressBox tracked shipping. Ensure secure, long-lasting connections with these genuine 3M Scotchlok connectors.

Key Features

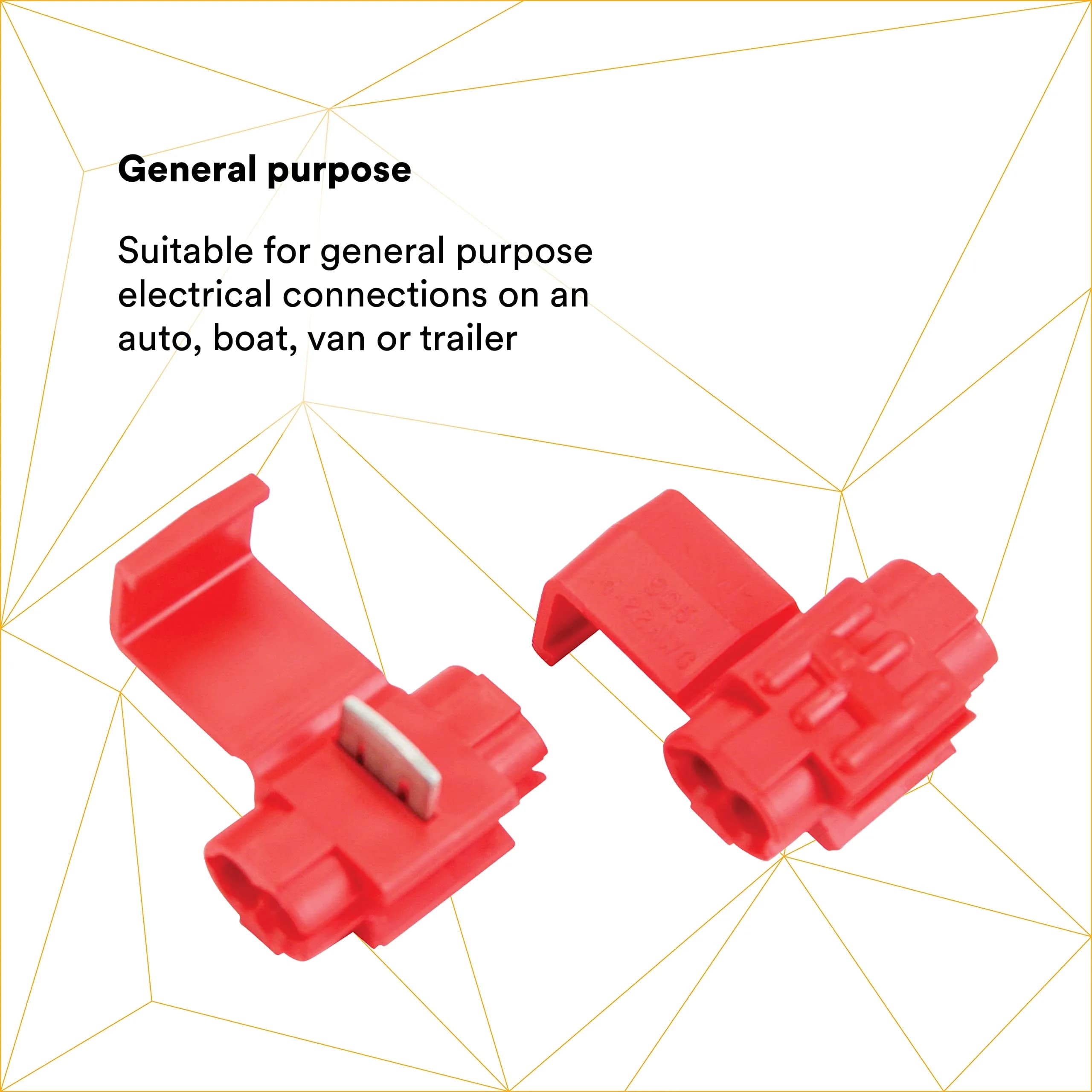

GENERAL PURPOSE: Used for general purpose electrical connections on an auto, boat, van or trailer

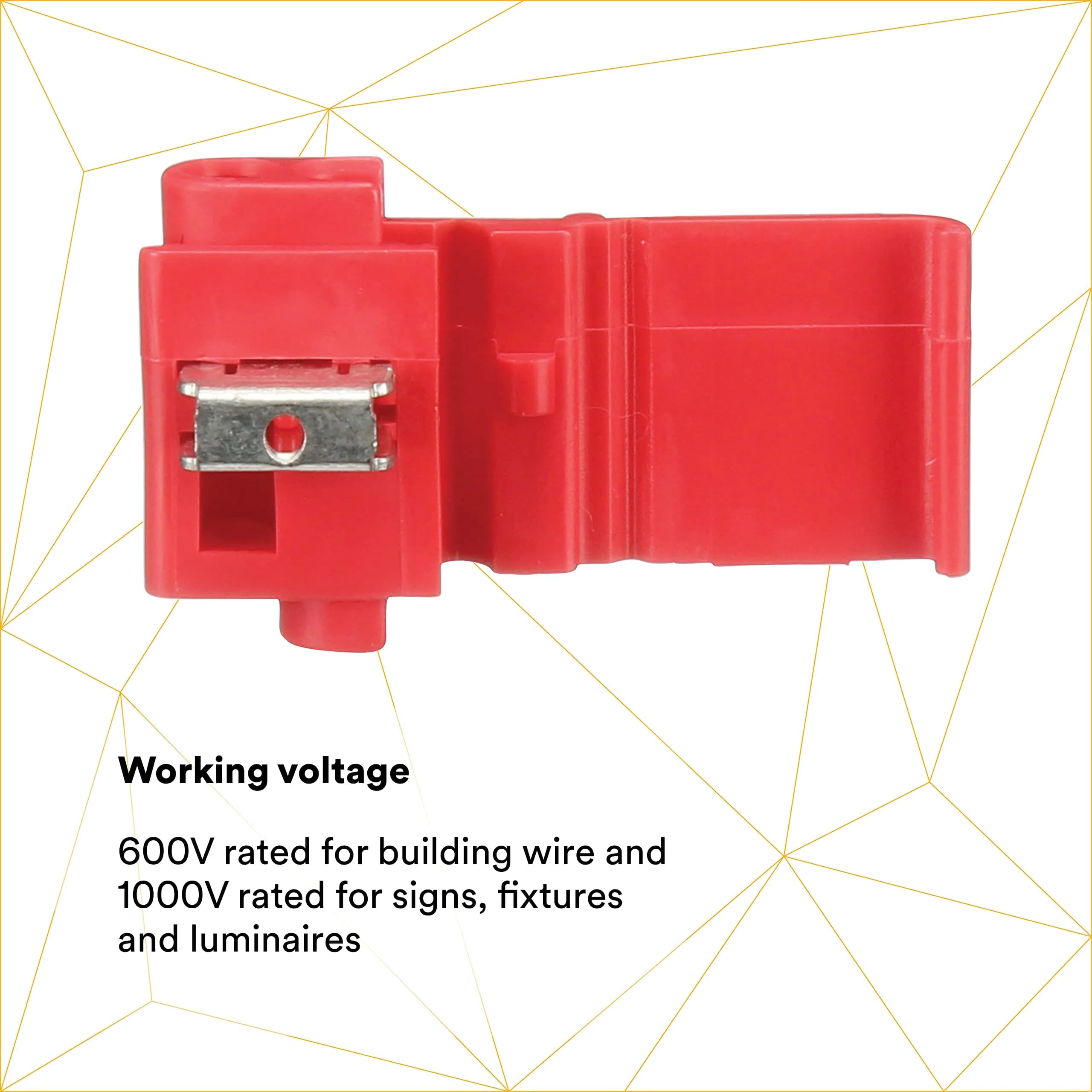

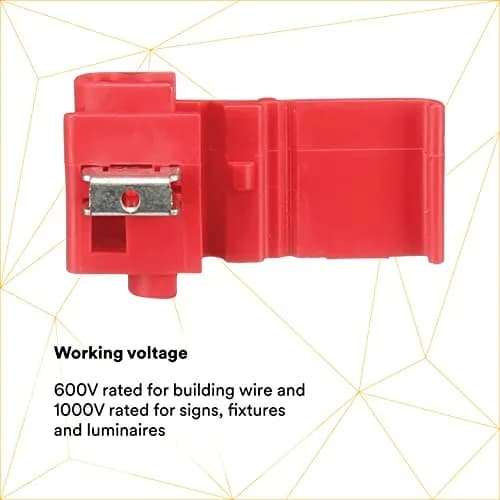

WORKING VOLTAGE: 600V rated for building wire and 1000V rated for signs, fixtures and luminaires
WIRE SIZES: Accommodates 22-16 AWG solid/stranded wires

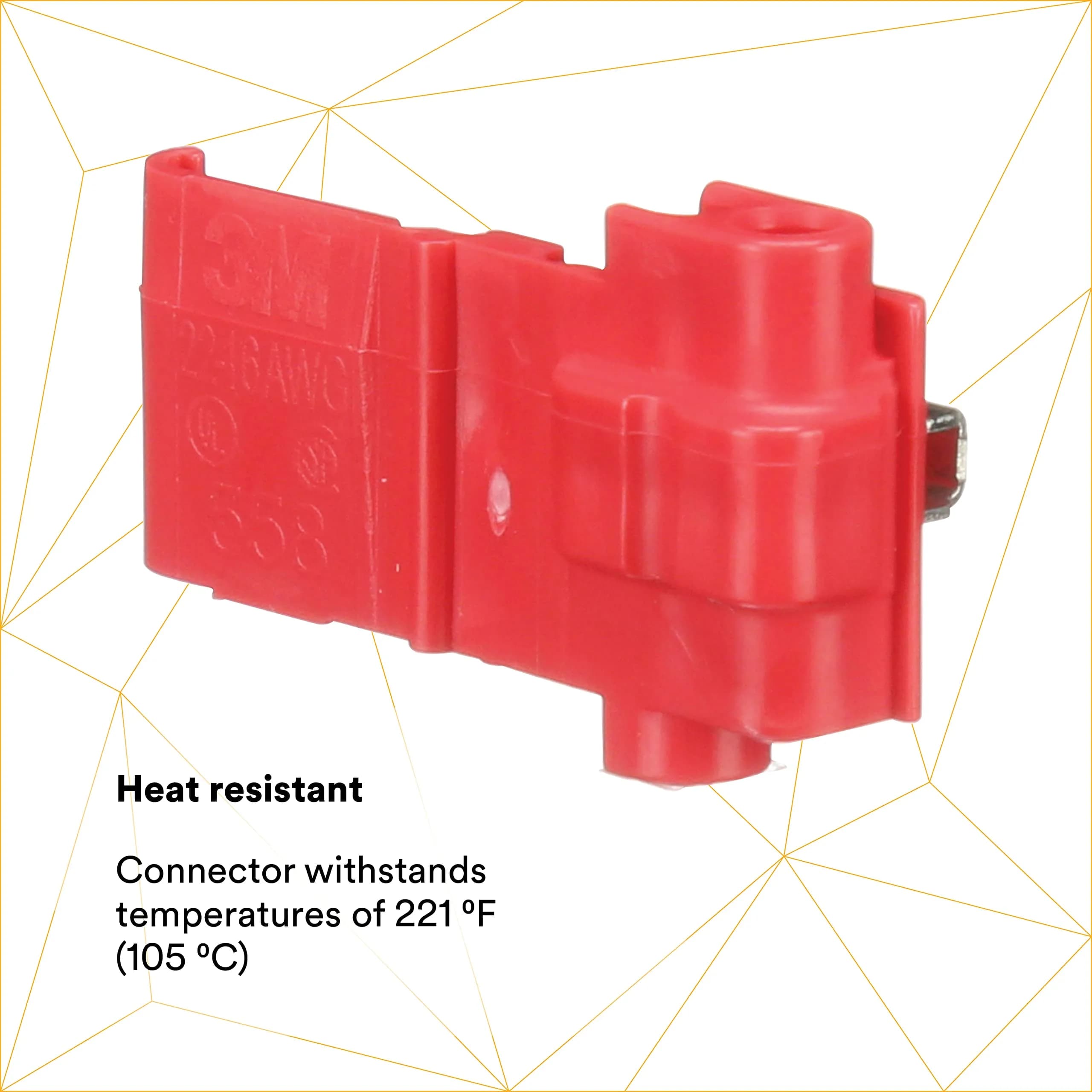

HEAT RESISTANT: Connector withstands temperatures of 221 °F (105 °C)
COMPLIANCE: UL Listed, CSA Certified and RoHS Compliant
STABILITY: 5-year shelf life (from date of manufacture)
For industrial/occupational use only. Not for consumer sale or use

Why choose this product

Authentic 3M Performance for Indian Projects

These 3M Scotchlok IDC 558 connectors are imported directly from authorized US retailers, guaranteeing authentic performance for your critical electrical projects in India. Unlike local alternatives that may vary in quality or compliance, these connectors offer a proven track record for reliability in automotive, marine, and low-voltage building applications. The self-stripping insulation and durable brass barrel simplify installation, while the robust polypropylene insulation ensures longevity. Trust in 3M's engineering for secure, long-lasting connections that meet stringent UL, CSA, and RoHS standards.

Ideal for Automotive & Low-Voltage, Skip for Mains

These connectors are perfect for automotive, boat, RV, and low-voltage building wiring, signal systems, and fixtures. They are designed for wire gauges 22-16 AWG. However, they are rated for a maximum of 1000V and are not suitable for high-voltage mains electrical work or applications requiring specific Indian electrical codes not met by US certifications. For mains power, always consult a qualified Indian electrician and use locally certified components.

How to use

Strip approximately 1/4 inch (6mm) of insulation from the ends of the two wires (22-16 AWG) you intend to connect. Ensure the exposed copper is clean and free from damage. — Prepare Wires
Insert one wire end into one slot of the red 3M Scotchlok IDC connector and the second wire end into the other slot. Ensure the wires are fully seated within their respective channels. — Insert Wires

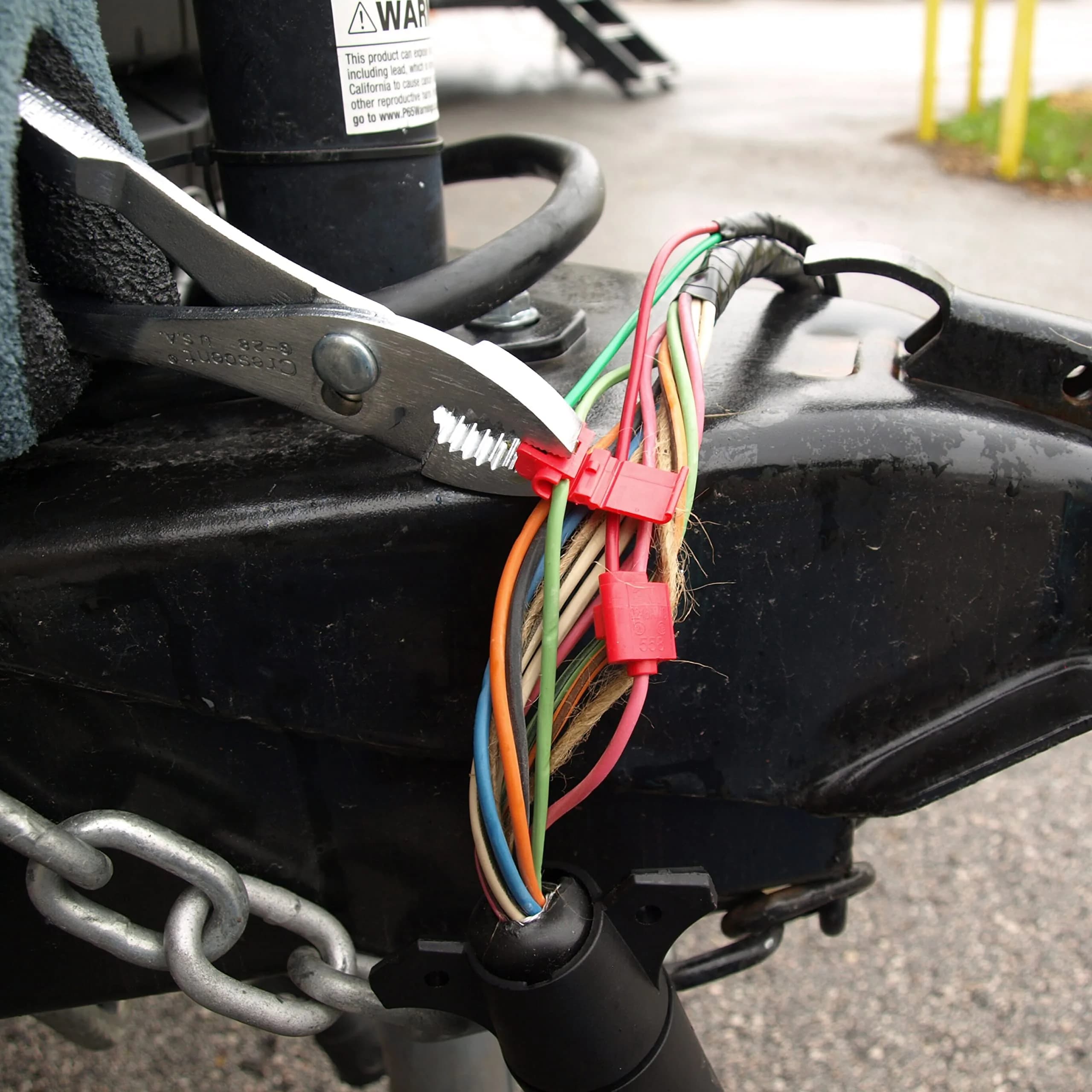

Using a suitable crimping tool (e.g., 3M's recommended crimpers), firmly press down the metal IDC tab within the connector. This action pierces the wire insulation, creating a secure electrical connection and locking the wires in place. — Crimp Connection
Gently tug on the wires to ensure they are securely held within the connector. Check that the IDC tab is fully depressed and the connection is stable for reliable electrical continuity. — Verify Connection

Example scenarios

Typical situations where 3M Scotchlok Electrical IDC 558-BULK Connector 22-16 AWG Red | 500 Pack helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

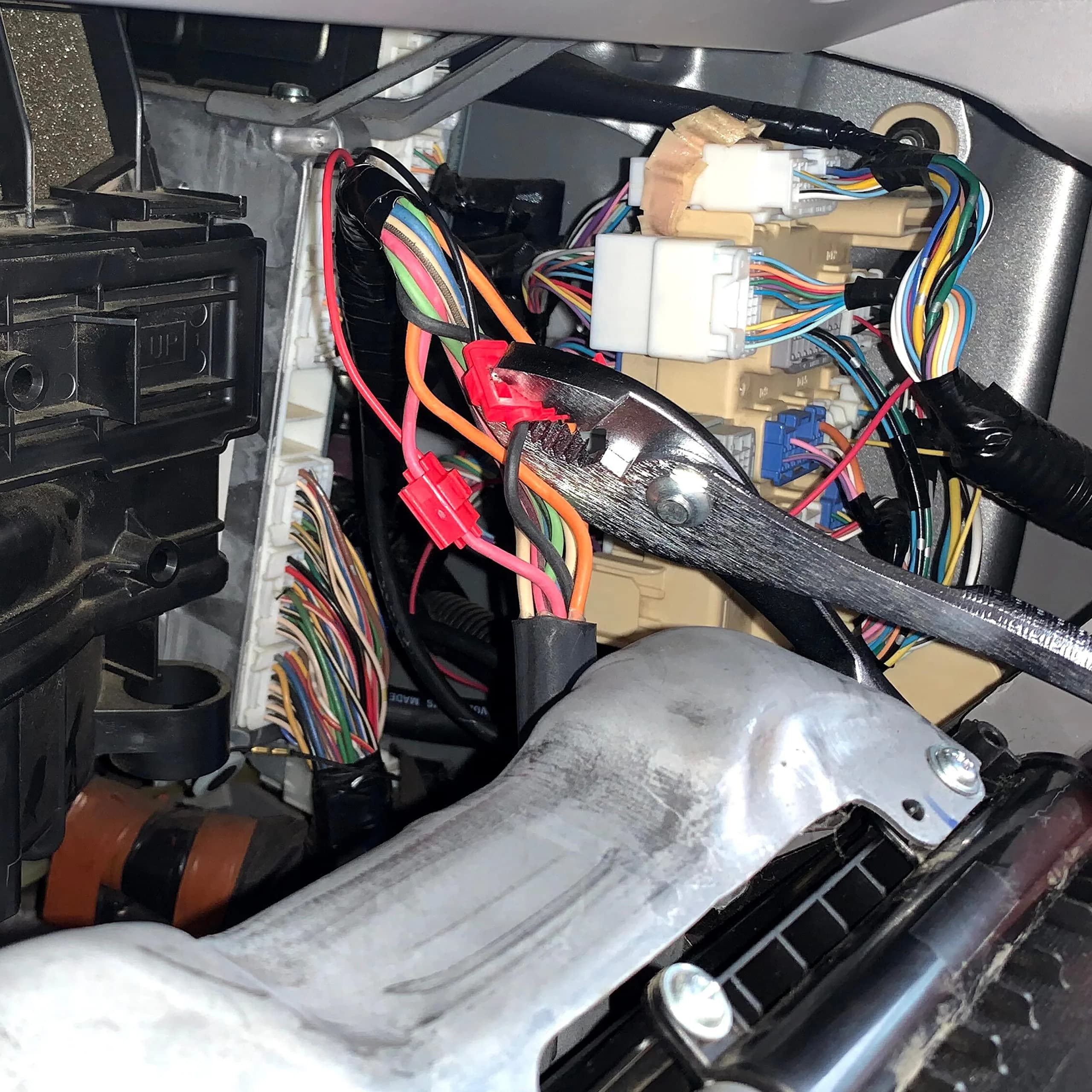

Automotive wiring repair in a humid Indian climate, needing a reliable splice for a 22 AWG signal wire.

How this product helps

The 3M Scotchlok IDC 558 connector's self-stripping insulation and secure crimp provide a quick, reliable splice. Its 105°C rating handles ambient heat, and the brass barrel ensures good conductivity for signal integrity in vehicles.

Scenario 2

Illustrative example

Where it helps

Connecting low-voltage LED lighting for a garden or outdoor fixture in India, requiring weather resistance.

How this product helps

While these connectors are not explicitly waterproof, their robust construction and 1000V rating make them suitable for low-voltage outdoor lighting. For extreme humidity or direct water exposure, consider adding external sealing or using dedicated waterproof connectors.

Specifications

Composition

Barrel Material	Brass
Insulation Material	Polypropylene

Usage

Applications	Automotive, boat, RV, signs, fixtures, luminaires, control circuit, appliance, signal, PA systems
Wire Size Range	22-16 AWG
Shelf Life	5 years from manufacture date (factory-sealed)
Industrial Use	For industrial/occupational use only. Not for consumer sale or use.

How we compare

Feature	3M Scotchlok Electrical	Others
Authenticity & Sourcing	Imported from authorized US retailers, factory-sealed, 3M brand assurance.	Varies by brand; may lack verifiable import chain or specific certifications.
Wire Gauge Compatibility	Accommodates 22-16 AWG solid/stranded wires.	Typically matches 22-16 AWG or equivalent mm²; verify specifications.
Voltage & Temperature Rating	600V (building wire), 1000V (signs/fixtures); 105°C (221°F).	Varies; check for ratings suitable for Indian ambient temperatures and low-voltage applications.
Certifications	UL Listed, CSA Certified, RoHS Compliant.	May have BIS or other Indian certifications; verify against application needs.
Cost per Connector (500-pack)	500 connectors: ₹82.05 per connector	Local alternatives may range from ₹10-₹30 per connector depending on brand and type.

SKU	yyk9460
GTIN	00054007148791
Brand	3M
Model Number	558-BULK
Color	Red
Terminal Type	Insulation Displacement
Connector Type	IDC
Material	Brass barrel, Polypropylene insulation
Wire Gauge Compatibility	22-16 AWG (Solid/Stranded)
Maximum Voltage Rating	1000V (signs/fixtures), 600V (building wire)
Operating Temperature	105°C (221°F)
Quantity	500 connectors
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers
