How do I choose between a 4-pin and 5-pin automotive accessory power relay?

A 4-pin relay is designed for basic on/off switching of a single accessory like fog lights or a horn, while a 5-pin relay includes both normally open and normally closed terminals to alternate power between two different circuits.

Can this power relay be used to upgrade high-wattage horns or lighting on my car?

Yes, installing an accessory power relay directs battery current straight to the new high-draw horns or lamps while drawing minimal signal current through your steering wheel or dashboard switch, preventing switch burnout.

What is the coil power and resistance of this iRhapsody relay?

This iRhapsody relay features a coil power of 1.8W and a coil resistance of 80 ohms. This specification makes it more reliable than relays with 2.4W (60 ohms) or 4.8W (30 ohms) coil power.

What is the maximum current this 12V DC relay can handle?

The iRhapsody 12V DC relay has a maximum switching current capacity of 200A. It is designed for heavy-duty applications, but it's recommended to stay 10-15% below the rated value for optimal longevity and safety.

Is this continuous duty relay suitable for Indian weather conditions?

Yes, this relay operates reliably within a temperature range of -30°C to +80°C, making it suitable for the varying and often extreme temperatures experienced across India, including hot summers and cooler periods.

What are the terminal sizes for this 200A relay?

The round stud terminals for this 200A relay are M6 or 6mm, ensuring a secure connection for high-current automotive applications.

What happens if the load current exceeds the relay's rated value?

Exceeding the rated value of the relay's contacts can cause them to burn out, stick together, or even catch fire. Always ensure the load current does not surpass the relay's 200A limit.

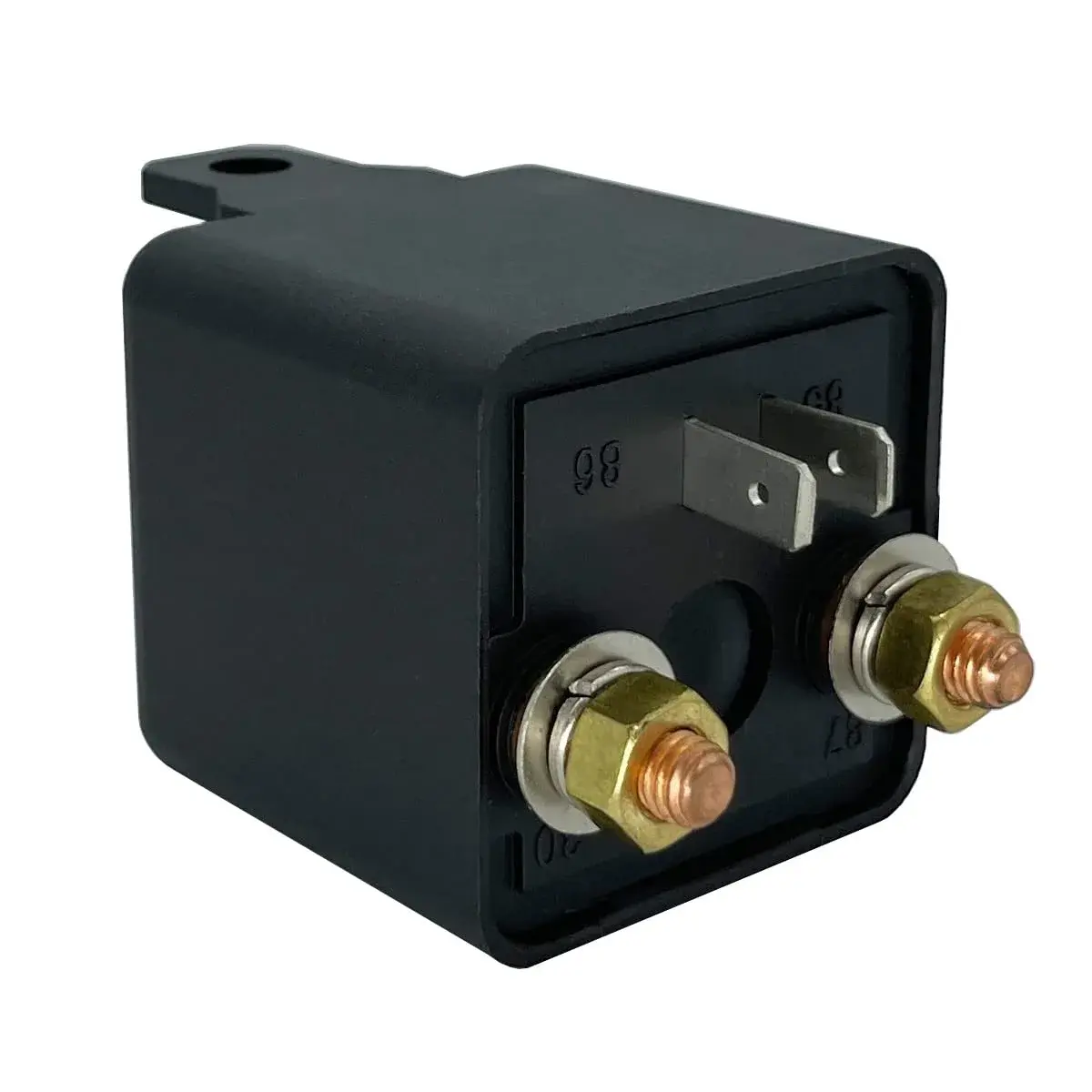

iRhapsody 12V DC 200A Continuous Duty Relay

Name: iRhapsody 12V DC 200A Continuous Duty SPST 4-Pin High Power Relay | Split Charge Relay for Automotive
Brand: iRhapsody
SKU: xdt8407
Price: 2418.00 INR
Availability: InStock

About this item

The iRhapsody 12V DC 200A Continuous Duty Relay is engineered for demanding automotive applications, providing a reliable solution for split charging systems and high-power accessory circuits. Imported directly from authorized US retailers, this heavy-duty 4-pin SPST relay features a robust 200A current carrying capacity and a more reliable 1.8W coil power with 80 ohms resistance, outperforming many market alternatives. It operates within a wide temperature range of -30 to +80 degrees Celsius, ensuring consistent performance in diverse Indian climates.

This relay is designed for continuous duty, meaning it can remain energized for extended periods without overheating, crucial for applications like dual battery setups or powering auxiliary lighting. Its specifications include a nominal coil voltage of 12V DC, pickup voltage of 8V DC, and dropout voltage of 1.2V DC. The M6/6mm stud terminals ensure secure connections for high-current loads. Always match the coil voltage and contact current to your vehicle's circuit to prevent overload and ensure longevity.

For Indian vehicle owners, this imported relay offers a dependable upgrade for auxiliary systems. Ensure your vehicle's electrical system is compatible with a 12V DC supply. All customs duties and GST are included in the final price, with delivery via ExpressBox tracked shipping. This product is sourced from authorized US retailers and authorized brand partners, ensuring authenticity.

Key Features

Our coil power is 1.8W, and coil resistance is 80ohms. It is more reliable than 2.4W (60 ohms) and 4.8W (30 ohms) relays on the market
Large capacity, high current carrying capacity, heavy-duty make/break relay. But never go beyond its capabilities, try to stay 10 to 15% below what the rate is for

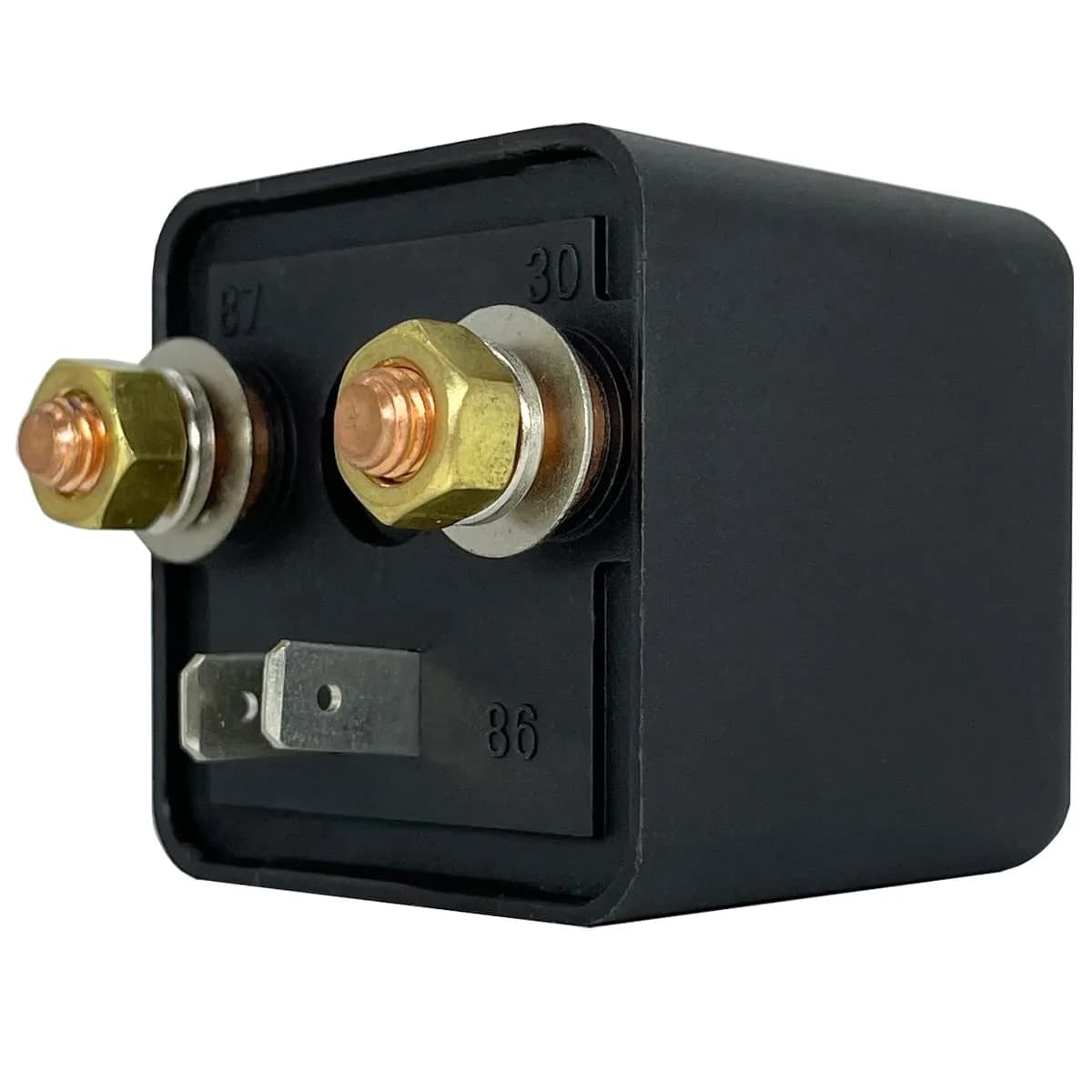

Rated voltage: 12vdc; Pickup voltage: 8v; Dropout voltage: 1.2v; The size of the round stud terminals: M6/6mm
Matching specifications: The coil voltage and contact current must be consistent with the circuit (for example, a 12V relay should be used with a 12V circuit)
Overload protection: The load current of the contacts must not exceed the rated value of the relay; otherwise, it may cause the contacts to burn out, stick together, or even catch fire

Why choose this product

Engineered for Continuous Duty

This iRhapsody relay is built for continuous duty, meaning it can be energized for extended periods without failure. Its robust construction and superior coil specifications (1.8W, 80 ohms) ensure it can handle demanding loads reliably, unlike standard relays that may overheat or fail under prolonged use. This makes it an excellent choice for critical automotive systems where consistent power is essential, offering peace of mind for long journeys or heavy-duty operations.

Ideal for Indian Automotive Upgrades

This relay is perfect for Indian car owners looking to add high-power accessories like auxiliary LED light bars, powerful electric horns, or dual battery systems for camping. Its 200A capacity and 12V DC compatibility make it a versatile component. While it's a high-performance part, it's not recommended for circuits exceeding its 200A rating or for use with 24V systems. For standard horn or lighting circuits without auxiliary power needs, a lower-amperage relay might suffice.

How to use

Verify Circuit Compatibility — Confirm your vehicle's electrical system is 12V DC. Ensure the intended load (e.g., auxiliary lights, winch) does not exceed the relay's 200A maximum switching current. Match the relay's coil voltage (12V DC) to your vehicle's power source.

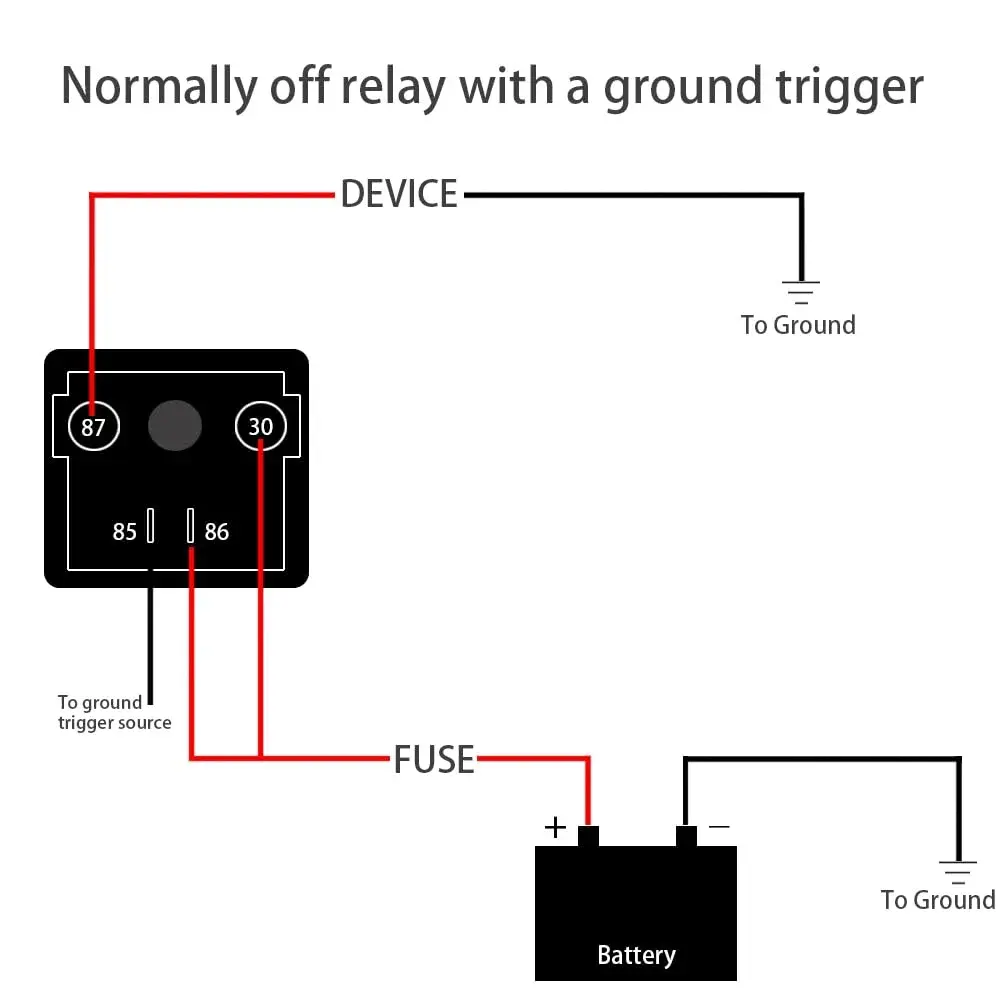

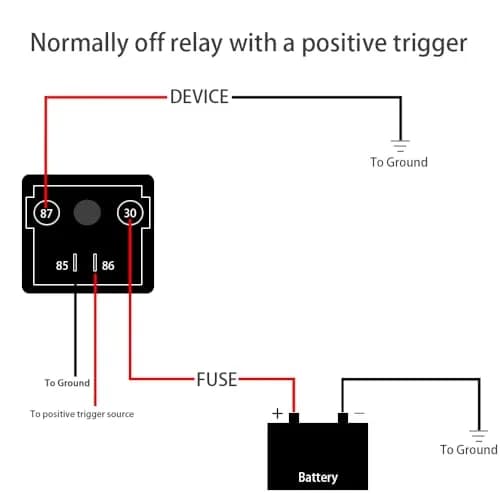

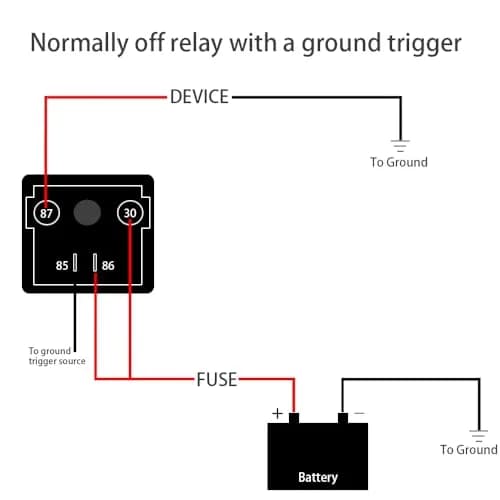

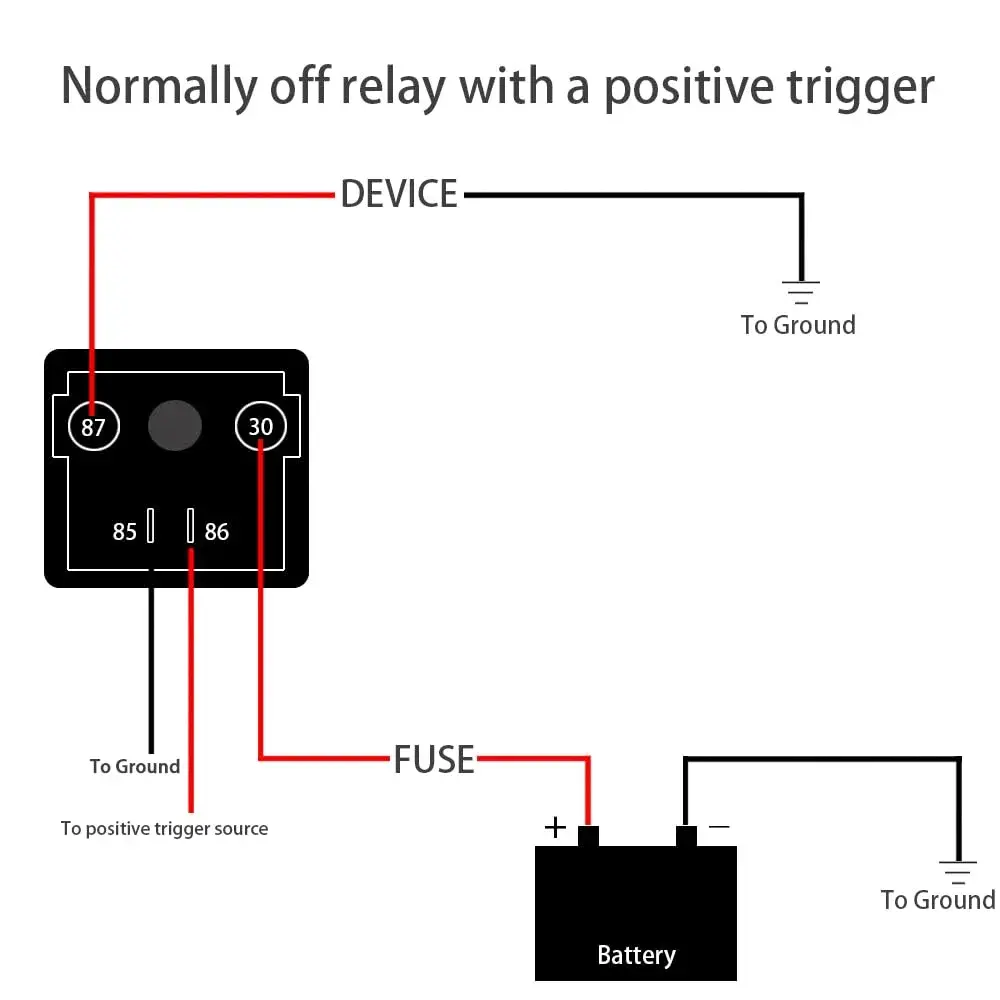

Connect the Relay Terminals — Connect the 8mm stud terminals for the load circuit (usually the two larger terminals) to your accessory and the battery/power source. Connect the control circuit terminals (usually smaller pins) to your switch and the vehicle's 12V DC power source.
Install and Test — Mount the relay securely in an appropriate location, preferably in the engine bay or fuse box, ensuring it's protected from excessive moisture and vibration. Test the connected accessory to ensure the relay activates and deactivates correctly with your switch.

Example scenarios

Typical situations where iRhapsody 12V DC 200A Continuous Duty SPST 4-Pin High Power Relay | Split Charge Relay for Automotive helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

An Indian SUV owner wants to install auxiliary LED driving lights for off-road adventures.

How this product helps

This 200A continuous duty relay can safely handle the high power draw of powerful LED light bars, ensuring they function reliably without straining the vehicle's existing wiring or switches.

Scenario 2

Illustrative example

Where it helps

A camper van owner in India needs to set up a dual battery system for their accessories.

How this product helps

This relay is perfect for split charging, allowing the main battery to charge a secondary battery for powering lights, refrigerators, and electronics, ensuring consistent power for extended trips.

Specifications

Composition

Coil Power	1.8W
Coil Resistance	80 ohms
Contact Material	Copper
Contact Type	Normally Open (SPST)
Max Switching Current	200A
Max Switching Voltage	14V DC
Pickup Voltage	8V DC
Dropout Voltage	1.2V DC
Maximum Applied Voltage	14V DC

Usage

Rated Voltage	12V DC
Temperature Range	-30°C to +80°C (-22°F to 176°F)
Terminal Size	M6/6mm
Continuous Duty Rating	Yes
Cost per use	This is a durable component, not a consumable. Cost-per-use calculation is not applicable.

How we compare

Feature	iRhapsody 12V DC	Others
Continuous Duty Rating	Rated for continuous duty, 200A max current, 1.8W coil power, 80 ohms resistance.	Local relays may offer lower continuous duty ratings, higher coil power consumption (e.g., 2.4W-4.8W), and lower resistance, potentially impacting reliability under sustained load.
Reliability & Durability	Built with superior coil specs for enhanced reliability and longevity in demanding automotive environments.	Local alternatives might use standard components with shorter lifespans, especially under continuous load or in harsh engine bay conditions.
Temperature Range	Operates reliably from -30°C to +80°C, suitable for Indian climates.	Many local relays have a narrower operating temperature range, potentially failing in extreme Indian heat or cold.
Cost per Ampere	200A capacity at ₹2,418 — ₹12.09 per amp	Local 200A relays can range from ₹800-₹1500, with per-ampere costs varying significantly by brand and quality.

SKU	xdt8407
Brand	iRhapsody
Model Number	AutoRelay-12V200A1P
Part Number	AutoRelay-12V200A1P
Item Type Keyword	automotive-accessory-power-relays
Mounting Type	Screw Mount
Connector Type	Quick Connect
Operation Mode	Off
Number of Items	1
Number of Packs	1
Item Package Quantity	1

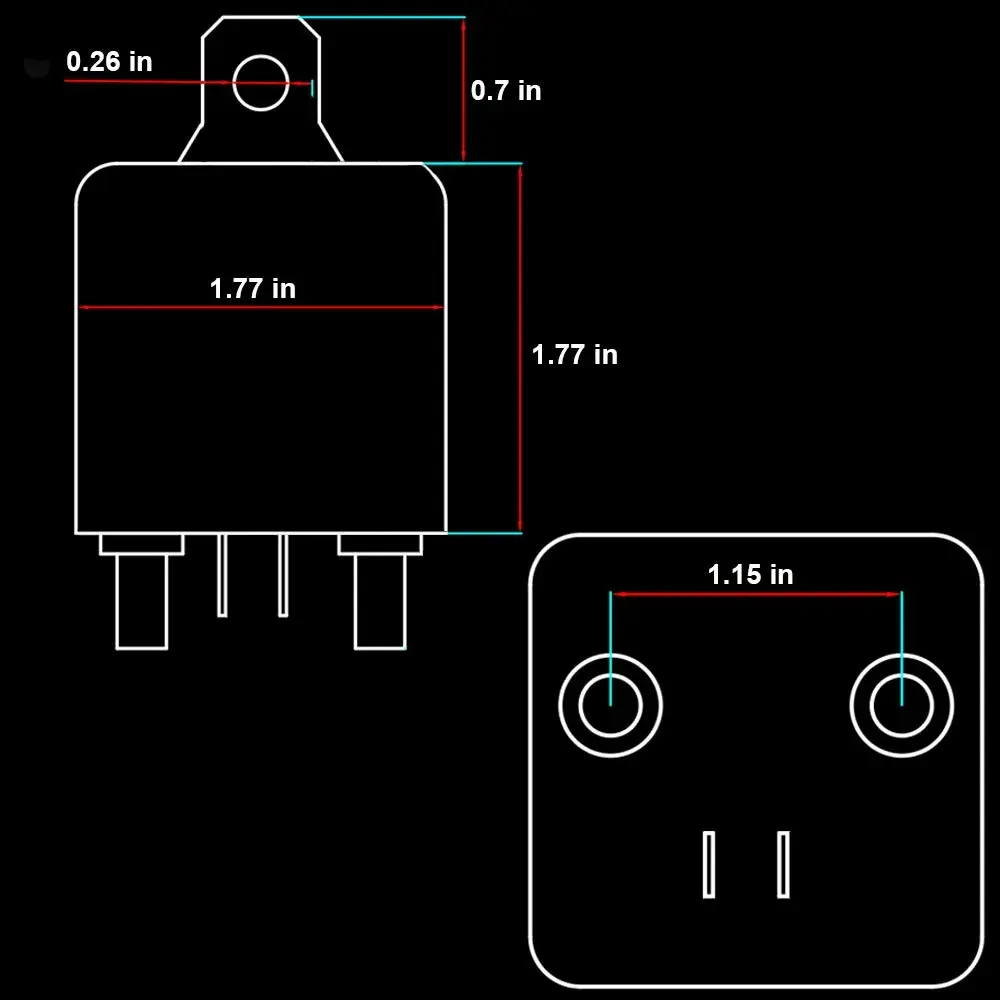

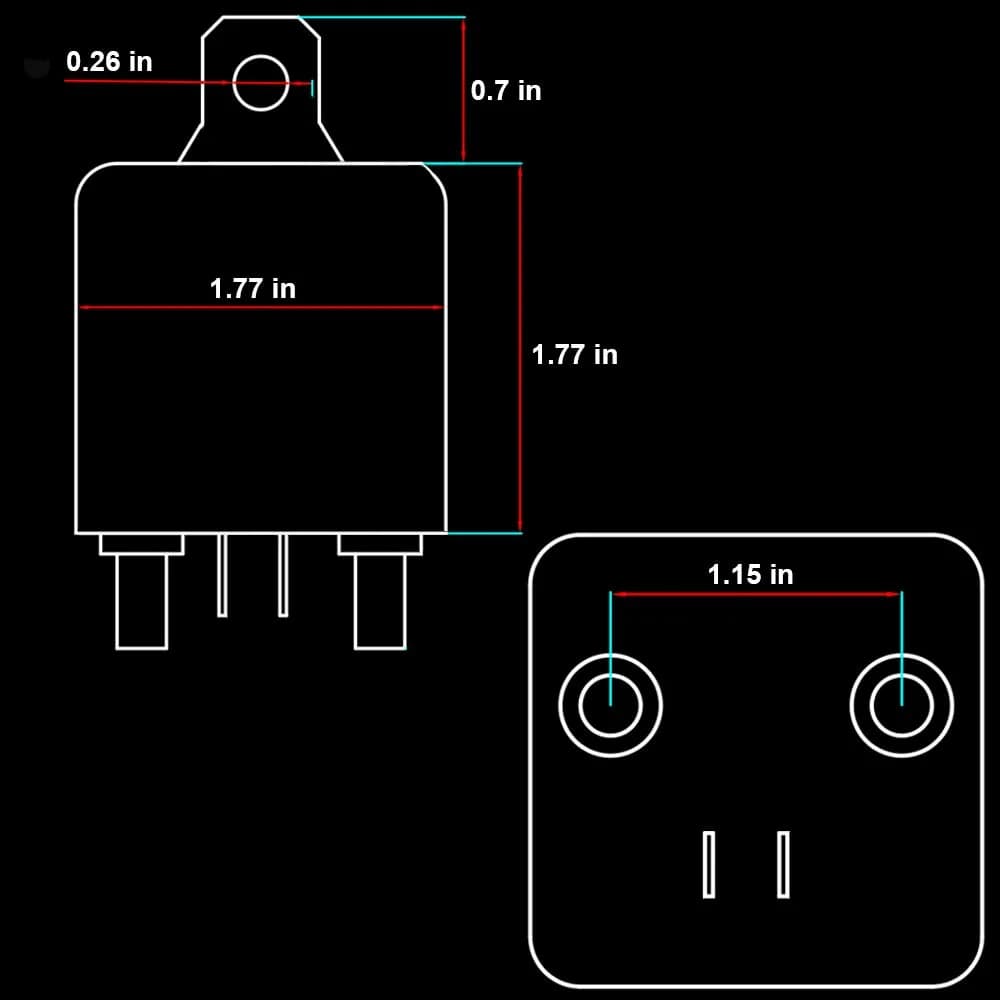

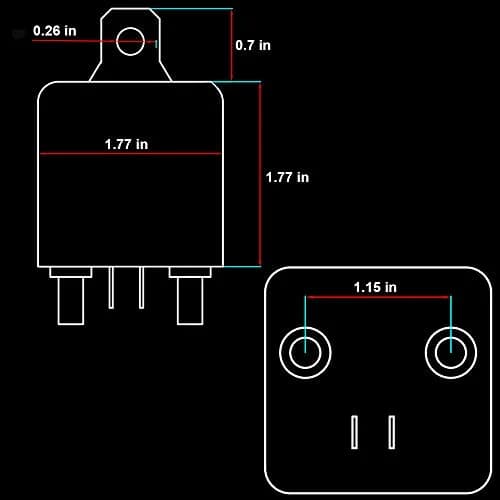

Dimensions (L x W x H)	4.7 cm x 5 cm x 8.6 cm (1.77 in x 1.77 in x 2.95 in)
Item Package Weight	0.1 kg (0.22 lb)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
