What are these alumina ceramic insulating sheets used for?

These sheets are used for thermal insulation and electrical isolation in high-power equipment, IGBT transistors, and other components requiring heat conduction in high-current, high-voltage, and high-temperature environments. They offer superior performance compared to standard materials.

What is the insulation performance of these sheets?

These alumina ceramic sheets provide a high insulation performance of 15kv/mm, ensuring safe electrical isolation for sensitive and high-power electronic applications.

Are these sheets suitable for high-temperature applications?

Yes, ceramic paste materials like these are superior to metal materials in high-temperature oxidizing or corrosive media, making them ideal for demanding thermal environments.

How do these sheets compare to local alternatives in India?

These imported alumina ceramic sheets offer verified specifications for hardness, wear resistance, thermal conductivity (28W/m.k), and insulation (15kv/mm). Local alternatives may vary significantly in material purity and performance metrics, potentially impacting reliability in critical industrial applications.

How to buy original alumina ceramic insulating sheets in India?

All customs duties and Indian import taxes are pre-paid by crowcrowcrow and included in the listed INR price. These sheets are sourced from authorized US retailers and authorized brand partners, ensuring authenticity and quality for your industrial needs.

ViaGasaFamido Alumina Ceramic Insulating Sheet 17x22x1mm (100-Pack)

Name: ViaGasaFamido Alumina Ceramic Insulating Sheet 17x22x1mm (100-Pack) | High Hardness Wear Resistance
Brand: ViaGasaFamido
SKU: tpd8009
Price: 3270.00 INR
Availability: InStock

About this item

ViaGasaFamido Alumina Ceramic Insulating Sheets provide essential thermal management and electrical isolation for demanding electronic applications. Sourced from authorized US retailers, these 17x22x1mm sheets offer superior performance compared to standard materials, ensuring reliable operation in high-power systems. All customs duties and GST are pre-paid, with tracked delivery via ExpressBox.

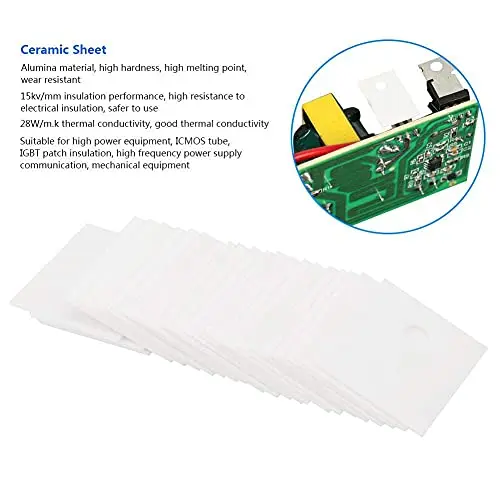

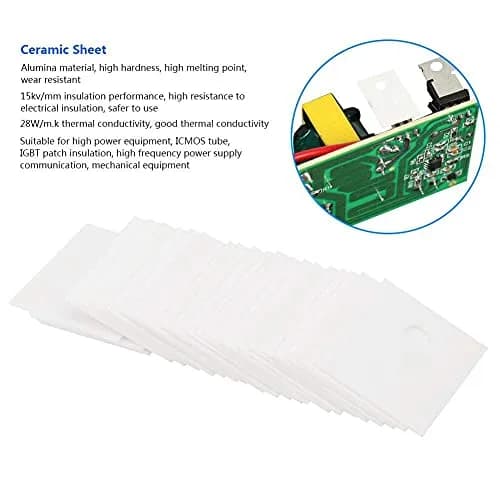

Crafted from high-purity alumina ceramic, these sheets boast a high melting point, exceptional hardness, and excellent wear resistance, second only to diamond. Their thermal conductivity of 28W/m.k aids in efficient heat dissipation, while the 15kv/mm insulation performance guarantees safety in high-voltage environments. The smooth, frictionless surface further enhances their utility.

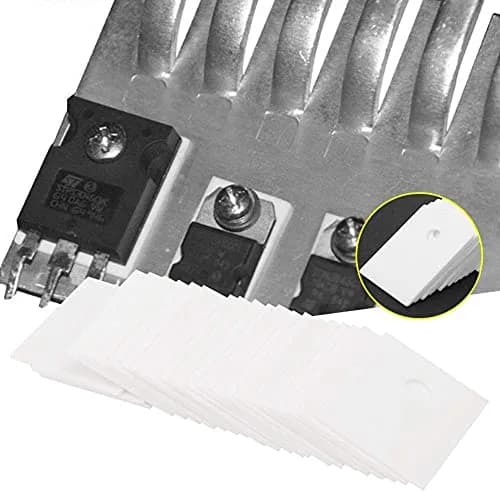

These insulating sheets are crucial for applications requiring heat conduction and electrical isolation, such as high power equipment, ICMOS tubes, and IGBT transistors. They are designed to withstand high currents, high voltages, and high temperatures, offering a durable and safe solution for industrial and electronic projects in India.

Key Features

Material: Alumina ceramic sheet is a special ceramic sheet made of AL, O, ZrO2 as the main material, rare metal oxide as flux and calcined by one thousand degrees.
Multiple Features: This alumina ceramic sheet has the characteristics of high melting point, high hardness and excellent wear resistance. And the hardness of ceramic patch is second only to the hardness of , and the is smooth and frictionless.
High Temperature Resistance: Ceramic paste materials are superior to other metal materials in high temperature oxidizing or corrosive media.
High Insulation: 15kv/mm insulation performance, high to electrical insulation, safer to use.
Scope of Application: Suitable for high power equipment, ICMOS tube, IGBT patch insulation, power supply communication, mechanical equipment, high current, high voltage, high temperature, insulation parts requiring heat conduction.

Why choose this product

Engineered for Extreme Conditions

These alumina ceramic sheets are specifically engineered for environments where standard materials fail. Their high melting point, superior hardness, and exceptional wear resistance make them ideal for high-power equipment, IGBT transistors, and applications involving high currents, voltages, and temperatures. Unlike generic alternatives, they offer reliable thermal conductivity (28W/m.k) and robust electrical insulation (15kv/mm), ensuring component longevity and operational safety. Sourced directly from authorized US retailers, they represent a commitment to quality and performance for critical industrial needs.

Who Should Use These Sheets vs. Who Should Consider Alternatives

Ideal for electronics engineers, industrial maintenance professionals, and DIY enthusiasts working with high-power systems, IGBT transistors, and high-temperature components. If you require reliable heat conduction and electrical isolation, these sheets are an excellent choice. Consider alternatives if your application involves extremely low temperatures or does not require high thermal conductivity or electrical insulation, as simpler materials might suffice.

How to use

Ensure the mounting surface and the component (e.g., IGBT transistor or MOSFET) are clean, dry, and free from dust or debris to ensure optimal thermal contact and electrical insulation. — Prepare the Surface
Carefully place the 17x22x1mm alumina ceramic insulating sheet over the component or mounting area, aligning the 3.7mm holes as needed for screw or thermal paste application. — Position the Insulating Sheet
For enhanced heat transfer, apply a thin, even layer of high-quality thermal paste to one side of the insulating sheet or directly onto the component before securing. — Apply Thermal Paste (If Needed)
Mount the component with the insulating sheet in place, ensuring even pressure. Use appropriate fasteners through the holes if required, avoiding overtightening to prevent damage. — Secure and Mount

Example scenarios

Typical situations where ViaGasaFamido Alumina Ceramic Insulating Sheet 17x22x1mm (100-Pack) | High Hardness Wear Resistance helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

An electronics manufacturer in Bengaluru needs reliable insulation for high-power IGBT modules operating in demanding conditions.

How this product helps

These 17x22x1mm alumina ceramic sheets provide 15kv/mm insulation and excellent heat dissipation, ensuring component safety and longevity in their critical industrial applications.

Scenario 2

Illustrative example

Where it helps

A maintenance engineer in a Chennai factory requires durable insulating pads for high-temperature equipment repairs.

How this product helps

The high hardness and wear resistance of these alumina ceramic sheets, coupled with their superior performance in high-temperature media, offer a long-lasting solution for their industrial repair needs.

Specifications

Composition

Main Material	AL, O, ZrO2
Flux	Rare metal oxide
Thermal Conductivity	28W/m.k
Insulation Performance	15kv/mm

Usage

Application	High power equipment, ICMOS tube, IGBT patch insulation, power supply communication, mechanical equipment, high current, high voltage, high temperature, insulation parts requiring heat conduction.
Cost per use	100 pieces at ₹3,270 — ₹32.70 per piece
Shelf life after opening	12 months (category default for industrial components)
Contraindications	Not suitable for applications requiring extreme flexibility or non-conductive materials.
Allergens / common irritants	None identified

How we compare

Feature	ViaGasaFamido Alumina Ceramic	Others
Material Purity & Performance	High-purity alumina ceramic; 28W/m.k thermal conductivity; 15kv/mm insulation.	Varies by brand; often lower purity alumina or alternative ceramics, performance metrics may differ.
Hardness & Wear Resistance	Second only to diamond; excellent wear resistance for longevity.	Typically standard industrial ceramic hardness; wear resistance can vary.
Cost per piece (100-pack)	100 pieces at ₹3,270 — ₹32.70 per piece	Local alternatives may range from ₹15-₹40 per piece depending on quality and supplier.
Application Suitability	Verified for high-power, high-temp, high-voltage IGBT/MOSFET insulation.	Generally suitable for basic insulation; specific performance for extreme conditions may require verification.

SKU	tpd8009
GTIN	0737983649116
Brand	ViaGasaFamido
Material	Alumina Ceramic
Color	White

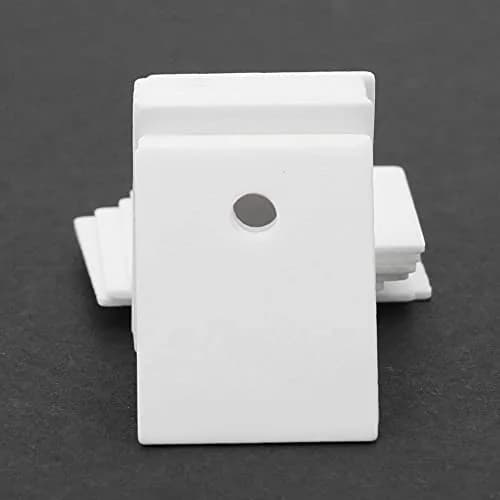

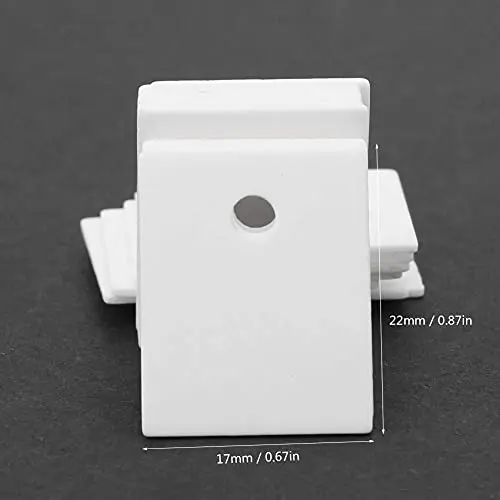

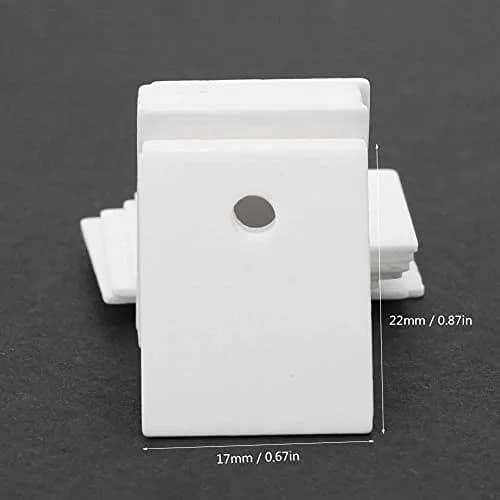

Dimensions	17 x 22 x 1mm (0.67 x 0.87 x 0.04in)
Hole Size	3.7mm (0.1in)

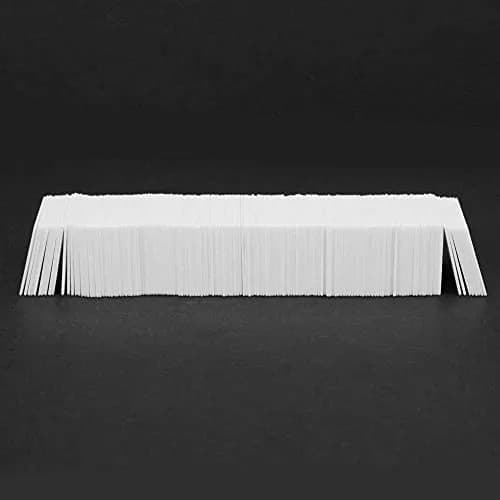

Quantity	100 Pieces
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
