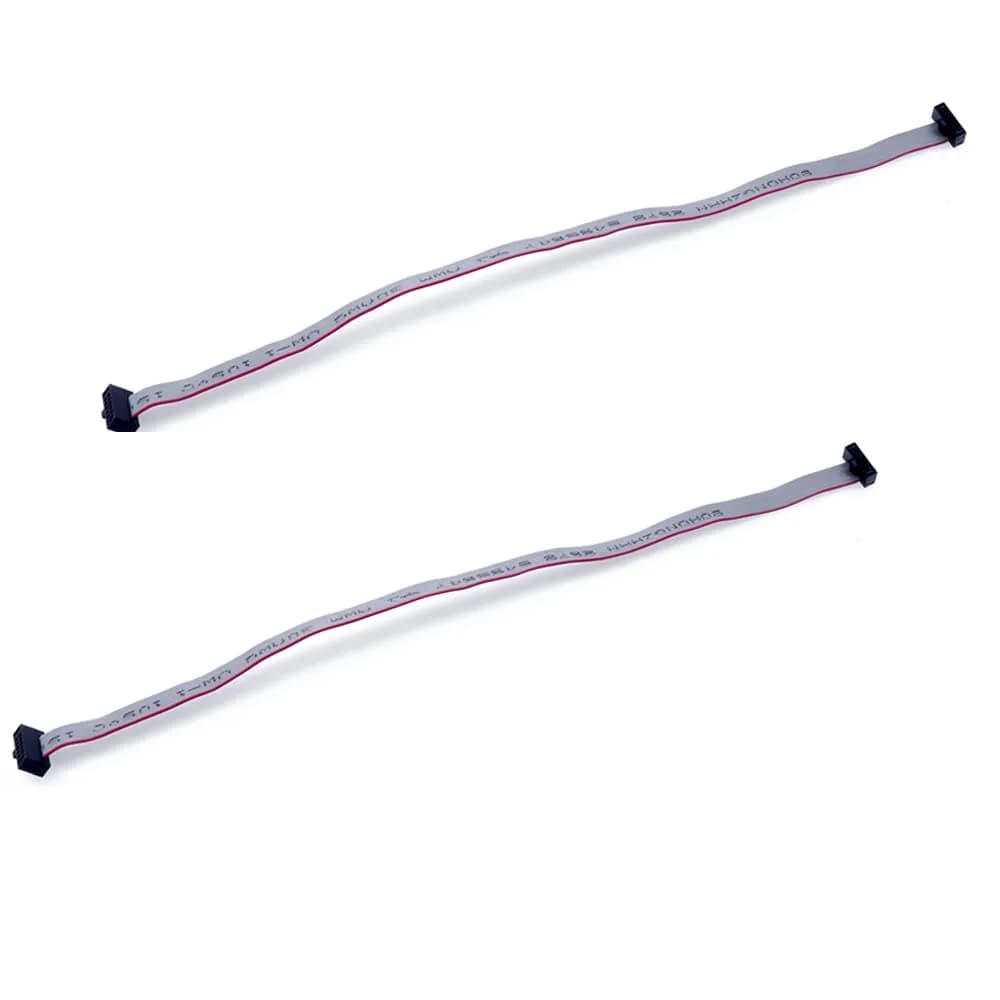

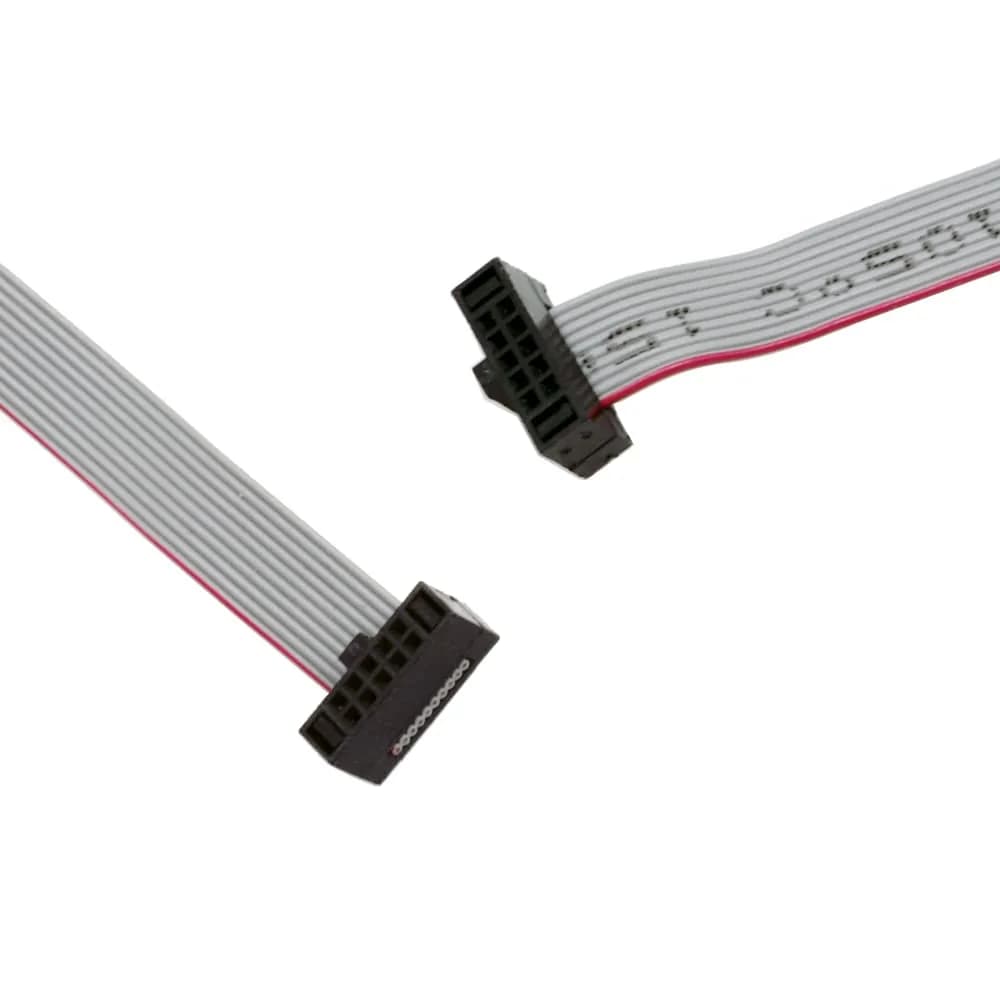

Treedix 2PCS IDC Ribbon Cable 20cm (7.87in) | 10-Pin Female to Female Connector, 2.54mm Pitch

• This is a flat ribbon cable with 10-pin connector, which can be easily inserted directly into the PCB. The ribbon cable saves the space and time of circuit interconnection components.
• Cable length: 20cm（7.87in）
• Pitch: 2.54mm; Connector type: female connector
• The conductor ribbon cable is easy to separate to use standard wire connectors, jacks and pins for clean termination
• Applicable to most Atmel AVR JTAG debuggers, system programmers, Isp downloads, etc., and also suitable for internal wiring of office equipment, audio and video machines

• Identify Connection Points — Locate the 10-pin female IDC headers on your PCB or electronic device that require connection. Ensure the pitch (2.54mm) and pin orientation match the cable's connectors.
• Connect the Cables — Align the 10-pin female connectors of the Treedix ribbon cable with the corresponding headers on your devices. Gently push the connectors onto the headers until they are securely seated.
• Terminate if Necessary — If custom wiring is needed, carefully separate the conductors within the ribbon cable to the desired length. Use standard wire connectors, jacks, or pins to terminate the individual wires as required for your specific application.
