How do I ensure this Kerick Valve MA052 fits my Indian plumbing?

The Kerick Valve MA052 features a 1/2" NPT male threaded inlet. NPT is common in US plumbing, while Indian systems often use BSP/BSPT. Verify your existing pipe thread standard and size. You may need a thread adapter to connect NPT to BSP/BSPT fittings, ensuring a secure and leak-free installation.

What is the flow rate of the Kerick Valve MA052?

The Kerick Valve MA052 has an estimated flow rate of up to 1.5 gallons per minute (gpm) at 60 psi. It also flows at 1.3 gpm at 40 psi. This rate ensures efficient refilling of tanks without excessive waiting times.

Is this Kerick Valve MA052 suitable for potable water in India?

Yes, the Kerick Valve MA052 is constructed from NSF-approved PVC, which is generally considered safe for potable water applications. Its durable materials and reliable performance make it a suitable choice for water tanks and fountains.

Can I use this float valve for gas lines?

No, this float valve is specifically designed for liquid level control in water and compatible fluids. It is not rated or intended for use with gas lines, especially high-pressure gas applications. Always use valves specifically designed for gas service.

How does the adjustable arm work on this float valve?

The adjustable arm allows you to fine-tune the liquid level at which the valve shuts off. By changing the angle of the arm, you can set the desired maximum water level in your tank, ensuring precise control and preventing overflow.

What is the maximum pressure this valve can handle?

The Kerick Valve MA052 has a maximum operating pressure rating of 100 psi. Ensure your system's pressure does not exceed this limit to maintain safe and reliable operation. For pressures above 100 psi, a different valve rated for higher pressures would be necessary.

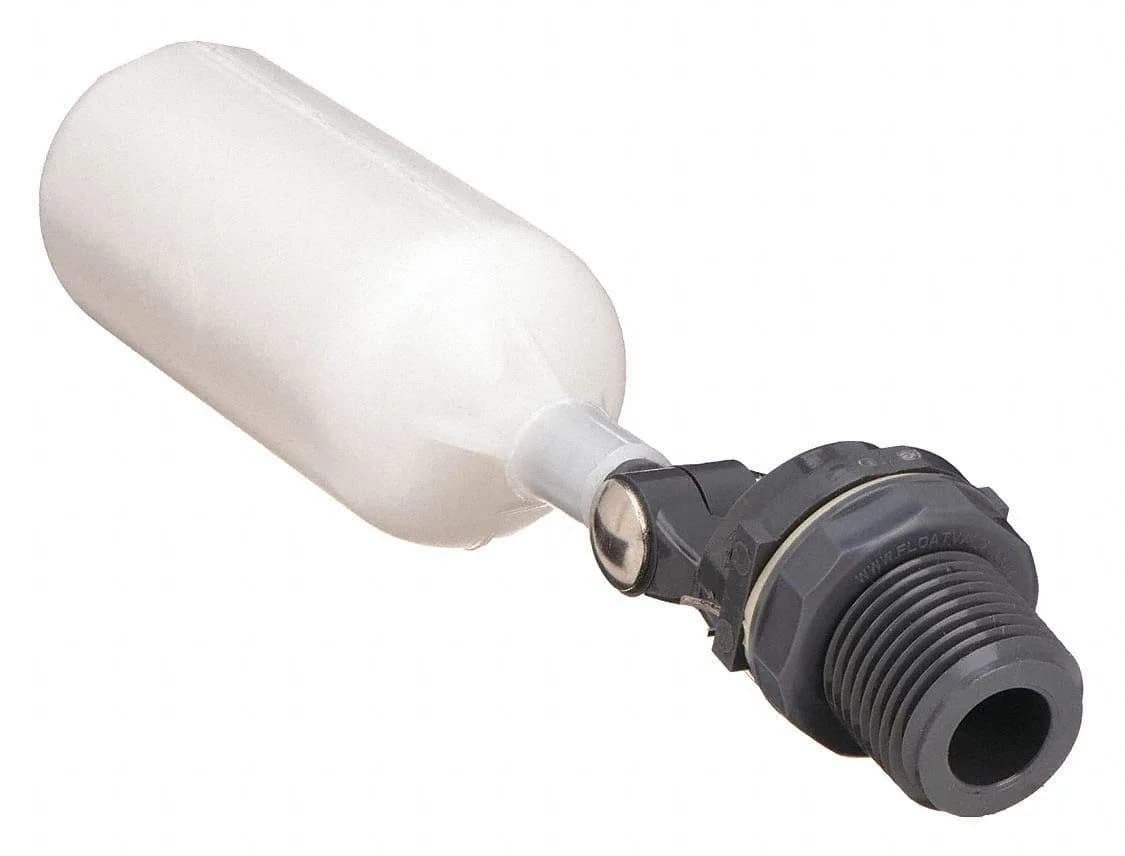

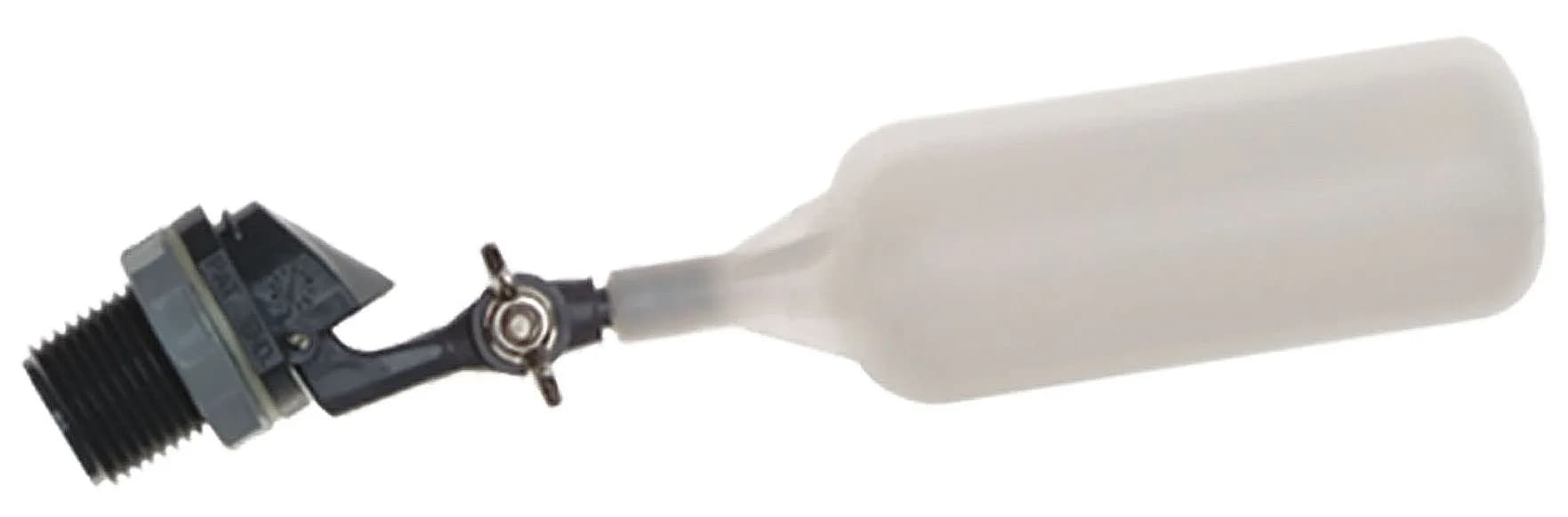

Kerick Valve MA052 PVC Mini Float Valve

Name: Kerick Valve MA052 PVC Mini Float Valve - Pack of 5, 1/2" NPT Male, 1.5 GPM
Brand: Kerick Valve
SKU: fbu0539
Price: 13654.00 INR
Availability: InStock

About this item

The Kerick Valve MA052 PVC Mini Float Valve provides reliable automatic fluid level control for various applications. Constructed from NSF-approved PVC with durable 18-8 stainless steel hardware, this valve ensures corrosion resistance and longevity. Its adjustable arm and 1/2" NPT male threaded inlet allow for easy tank mounting through walls, while the free-flowing outlet and replaceable TPE seals contribute to its efficient operation.

With an estimated flow rate of up to 1.5 gpm at 60 psi, the MA052 is designed for efficient refilling. The float ball rises and falls with the liquid level, opening or closing the valve automatically. This makes it suitable for fountains, livestock water tanks, cooling towers, and chemical manufacturing plants where precise liquid level management is crucial.

Imported directly from authorized US retailers, this Kerick Valve offers superior quality and performance compared to many local alternatives. All customs duties and GST are included in the listed price, with delivery via ExpressBox tracked shipping. Ensure your water systems operate efficiently with this dependable float valve.

Key Features

Estimated rate of flow up to 1.5 gpm at 60 psi
PVC for corrosion resistance
Tank mount with extended threads on inlet side of valve for mounting through tank wall
Note: MA052 has a 1/2 NPT pipe thread. This is extremely common in the plumbing world. The thread measures about 3/4 of an inch in diameter, this is a common mistake to those who are unfamiliar with pipe threads and plumbing
1/2" NPT male threaded inlet and free-flow outlet

Why choose this product

Engineered for Precision Fluid Control

This Kerick Valve MA052 float valve is engineered for precise automatic fluid level control. Its NSF-approved PVC construction and 18-8 stainless steel hardware ensure durability and resistance to corrosion, making it ideal for demanding applications like livestock water tanks and industrial fluid systems. The adjustable arm and reliable flow rate of up to 1.5 gpm at 60 psi guarantee efficient operation, maintaining optimal liquid levels consistently.

Ideal for Water Tanks, Skip for High-Pressure Gas

This valve is perfect for automatic water level control in fountains, livestock water tanks, cooling towers, and chemical manufacturing plants. It is designed for water and compatible fluids. Skip this valve if you require control for high-pressure gas lines or systems exceeding its 100 psi maximum operating pressure. For such applications, specialized industrial gas valves are recommended.

How to use

Drill a hole in your tank wall suitable for the 1/2" NPT male threaded inlet. Ensure the hole size accommodates the valve's extended threads and sealing washer for a watertight seal. — Prepare Tank Mounting
Insert the valve's threaded inlet through the tank wall hole. Secure it from the inside using the provided jam nut and sealing washer. Connect your water supply line to the 1/2" NPT male threads. — Install Valve and Connect Inlet
Attach the float ball to the adjustable shutoff lever arm. Position the float so it rises and falls freely with the water level. Adjust the arm's angle to set your desired shutoff point. Fill the tank and check for leaks and proper valve operation. — Adjust Float Arm and Test

Example scenarios

Typical situations where Kerick Valve MA052 PVC Mini Float Valve 1.5 GPM (60 PSI) | NSF Approved for Water Tanks helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

A farmer in Rajasthan needs to maintain a consistent water level in livestock troughs, even during hot afternoons when evaporation is high.

How this product helps

The Kerick Valve MA052 automatically replenishes water as it's consumed, ensuring animals always have access. Its durable PVC construction withstands outdoor conditions, and the NSF approval means it's safe for animal consumption.

Scenario 2

Illustrative example

Where it helps

A small-scale aquaponics setup in Kerala requires precise water level management in a grow bed to ensure optimal plant root health.

How this product helps

This float valve provides automatic, reliable water level control, preventing overfilling or draining. The adjustable arm allows fine-tuning for specific system needs, and the NSF-approved PVC is safe for aquatic environments.

Specifications & installation

Specifications

Body Material	NSF-Approved PVC
Seals Material	TPE (Thermoplastic Elastomer)
Hardware Material	18-8 Stainless Steel

Installation & usage

Recommended Use	Automatic liquid level control in tanks, fountains, livestock water tanks, cooling towers, chemical manufacturing plants.
Operating Pressure Range	Up to 100 psi
Temperature Range	Not specified, but PVC is generally suitable for moderate temperatures.
Thread Standard	1/2" NPT Male
Cost per use	1 unit at ₹13,654 — ₹13,654 per unit
Shelf life after opening	N/A (Durable product)
Contraindications	Not for high-pressure gas lines; not for use beyond 100 psi operating pressure.
Allergens / common irritants	None specified for PVC or TPE in this application.

How we compare

Feature	Kerick Valve MA052	Others
Body Material	NSF-Approved PVC with 18-8 Stainless Steel Hardware	Varies; often PVC or brass. NSF certification less common on basic local models.
Thread Standard	1/2" NPT Male	Often BSP/BSPT; may require adapters for NPT.
Flow Rate	Up to 1.5 GPM at 60 PSI	Varies by model; typically 1-2 GPM for similar sizes.
Durability & Certifications	NSF Approved for potable water, corrosion-resistant materials.	Durability varies; NSF certification less common on budget options.
Cost per unit	1 unit at ₹13,654 — ₹13,654 per unit	Local PVC float valves typically range from ₹300-₹700.

SKU	fbu0539
GTIN	0789164274709
Brand	Kerick Valve
Model Name	MA052
Valve Type	Float Valve
Material	Polyvinyl Chloride (PVC)
Hardware Material	18-8 Stainless Steel
Inlet Connection Type	1/2" NPT Male Threaded
Outlet Connection Type	Free Flow
Mounting Style	Tank Mount
Adjustable Arm	Yes
Flow Rate	Up to 1.5 gpm at 60 psi
Orifice Size	0.093 inches
Maximum Operating Pressure	100 psi
Float Material	Polyethylene
Float Diameter	1.5 inches
Float Length	4 inches

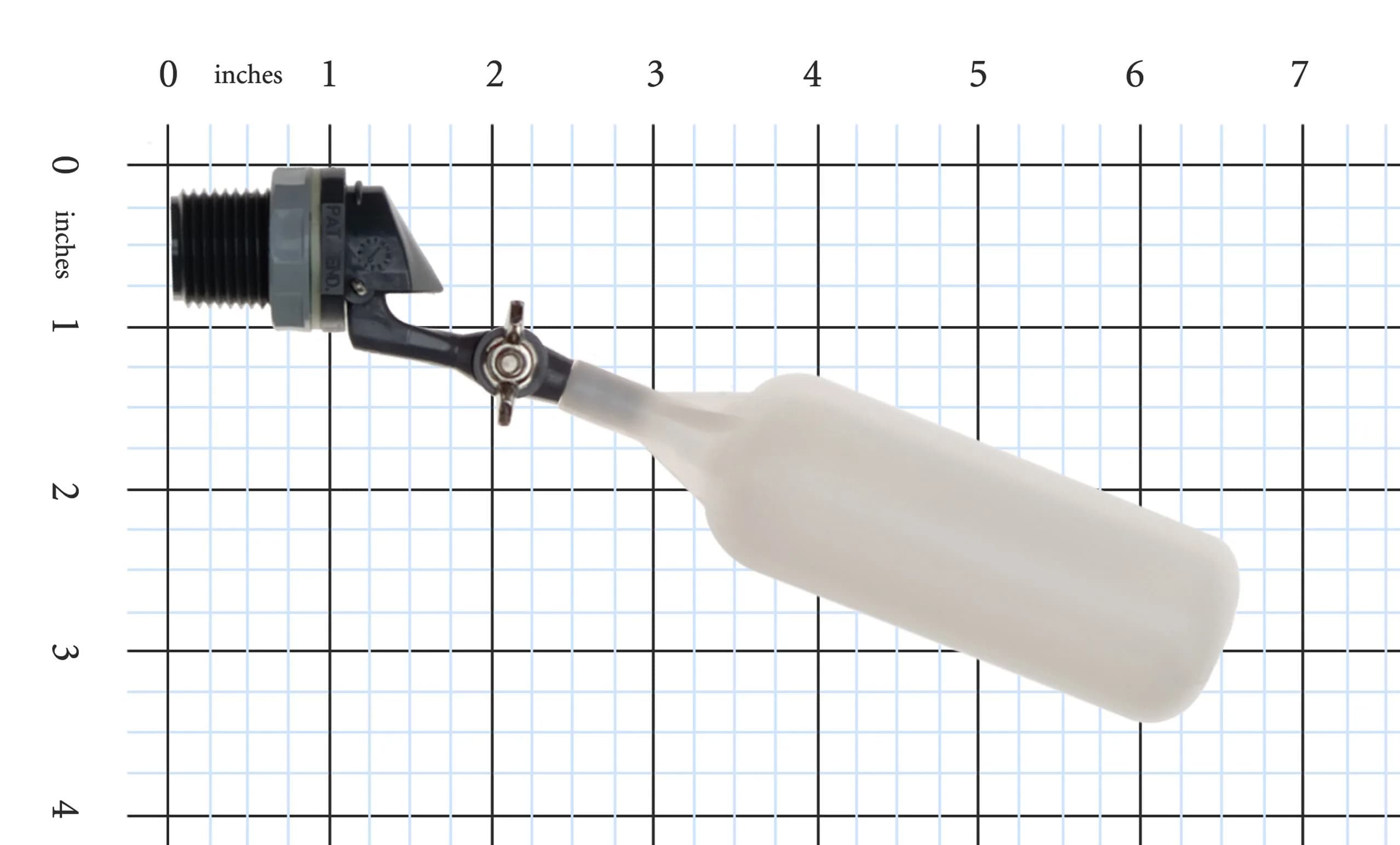

Dimensions (L x W x H)	7.5 x 2 x 3.3 inches (19.05 x 5.08 x 8.38 cm)
Item Weight	0.13 lbs (0.06 kg)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers
