| SKU | bbw5024 |
| Brand | HiLetgo |
| Model Number | 3-01-1433 |
| Display Size | 2.8 inches |
| Resolution | 240RGB*320Dots |
| Interface | SPI Serial |
| Driver IC | ILI9341 |
| Touch Technology | Resistive Touch Panel |
| Logic Voltage | 5V/3.3V compatible |
| Backlight | White LED |
| Viewing Direction | 6 o'clock |
| Color Depth | 262K/65K |
| Display Area | 36.72(W) x 48.96(H) mm |

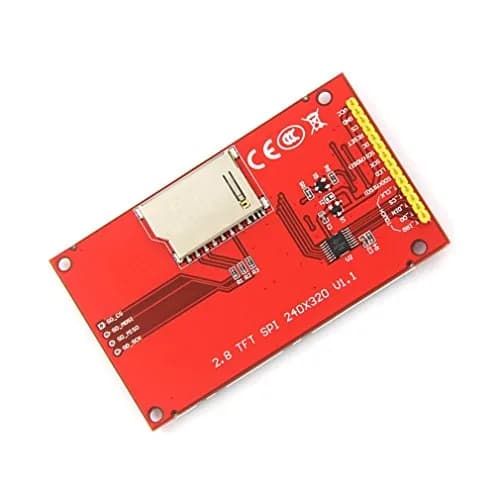

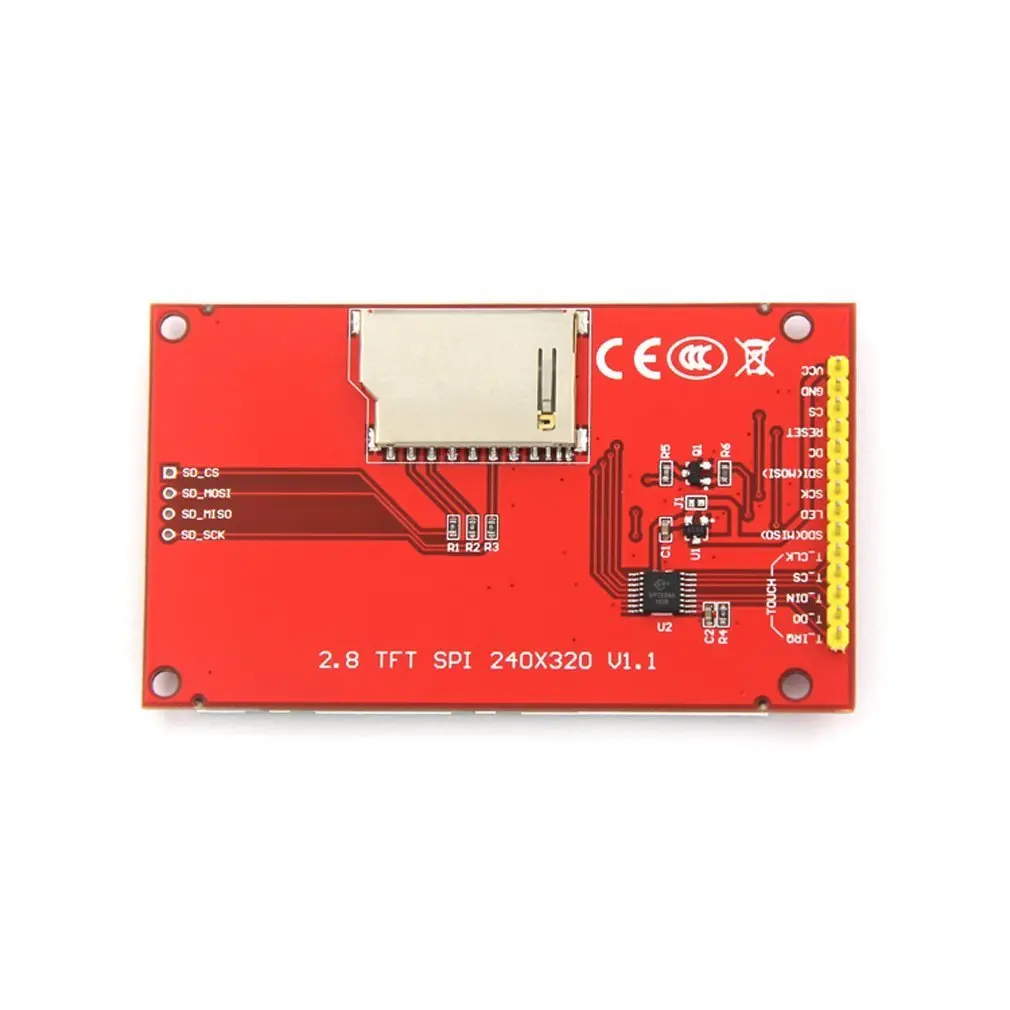

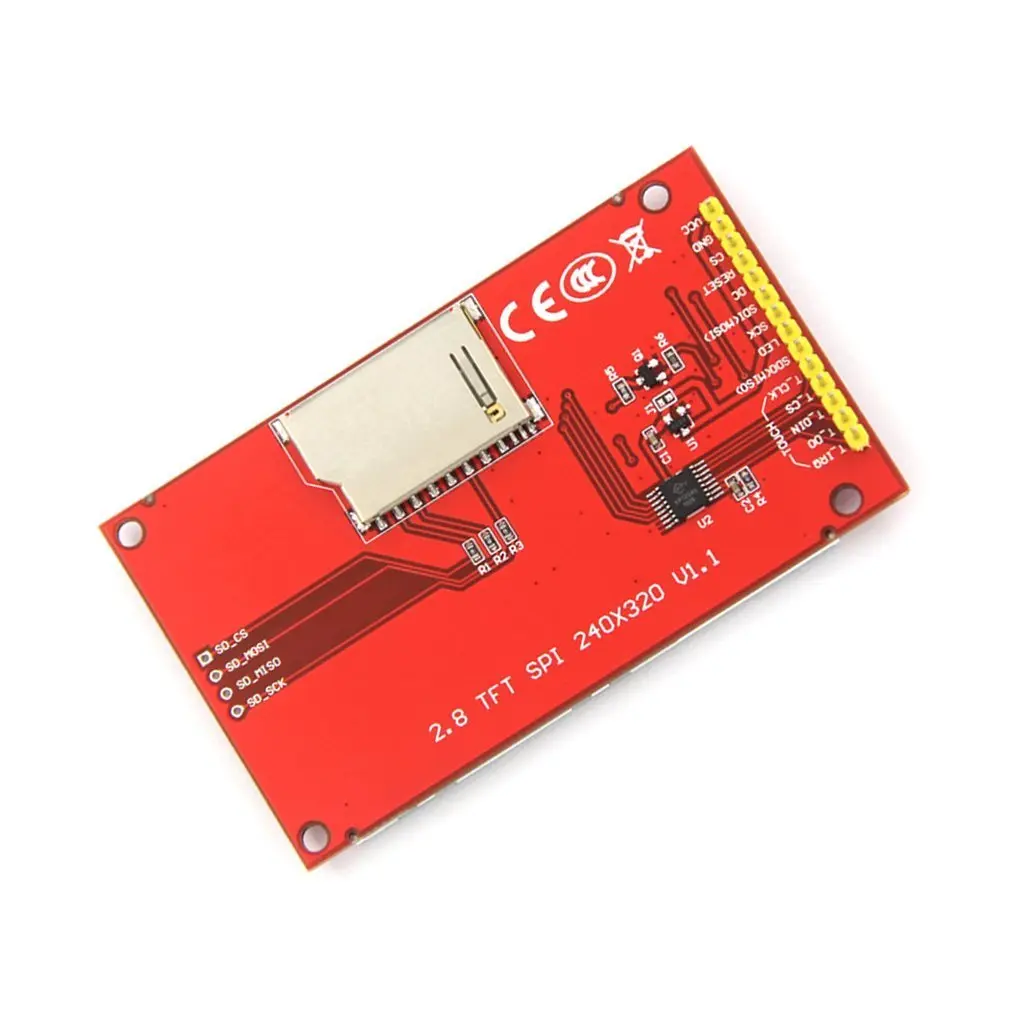

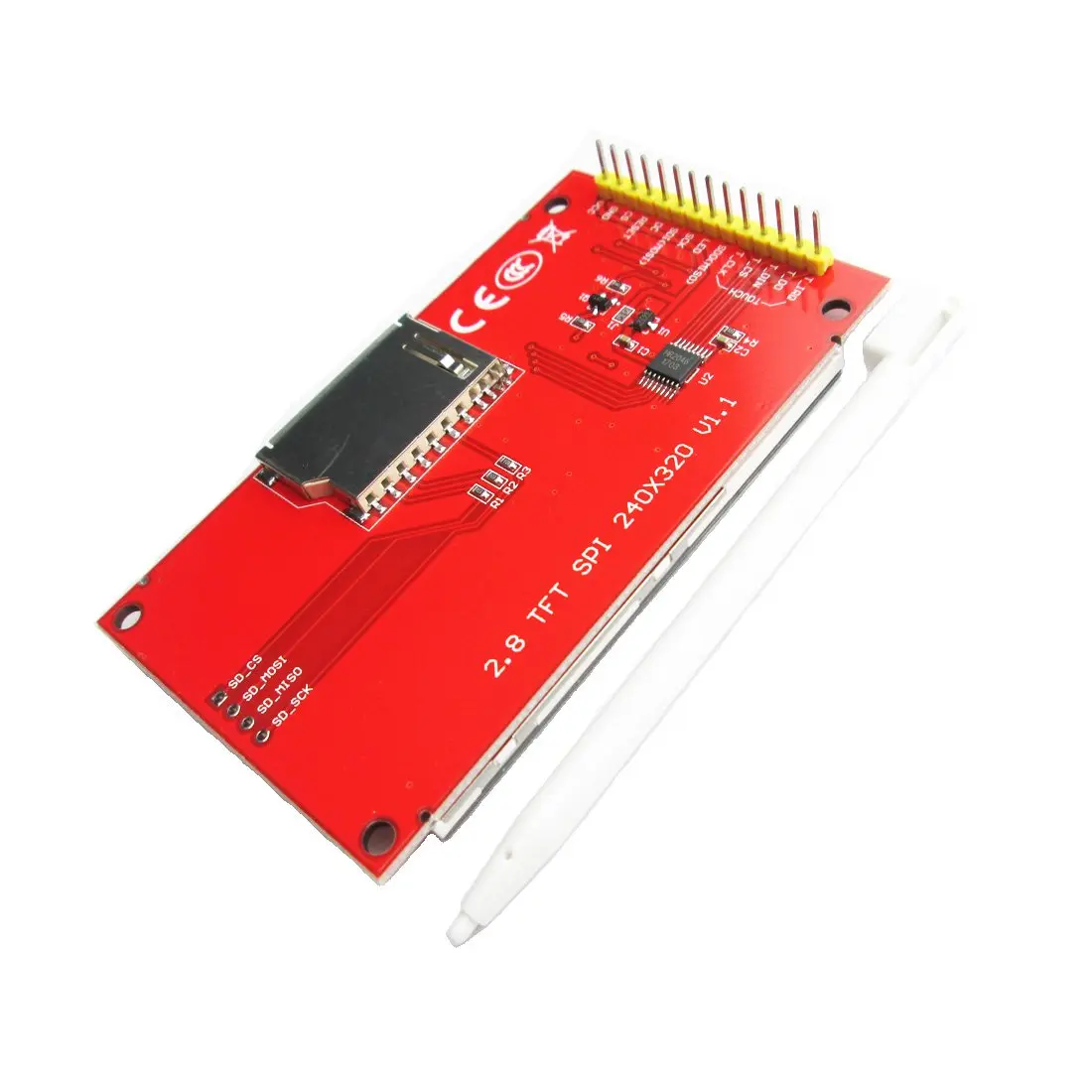

| PCB Included | Yes, with power supply IC, SD interface |
| MCU IOs Required | Minimum 4 |
| Material | FR4 |
| Package Weight | 0.055 kg |
| Package Dimensions | 2.2 x 10 x 10.2 cm |
This item:

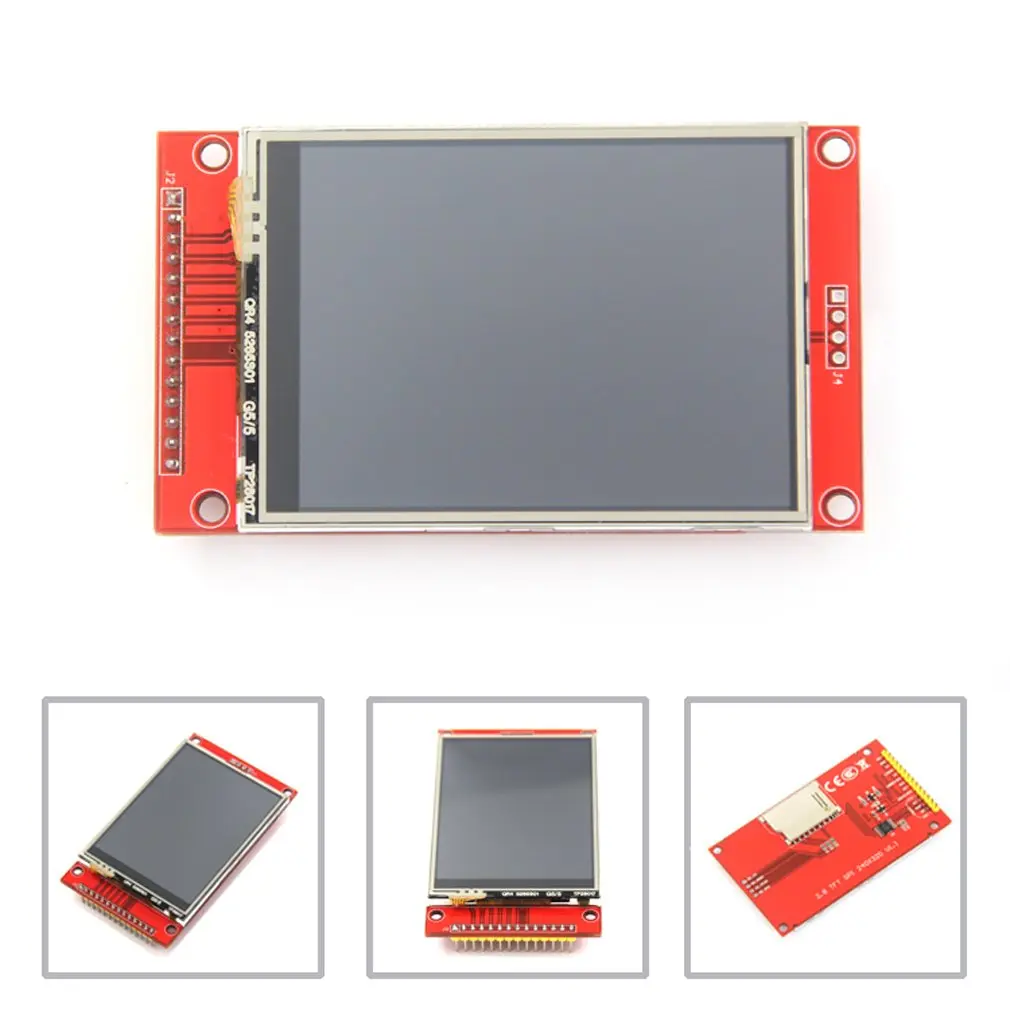

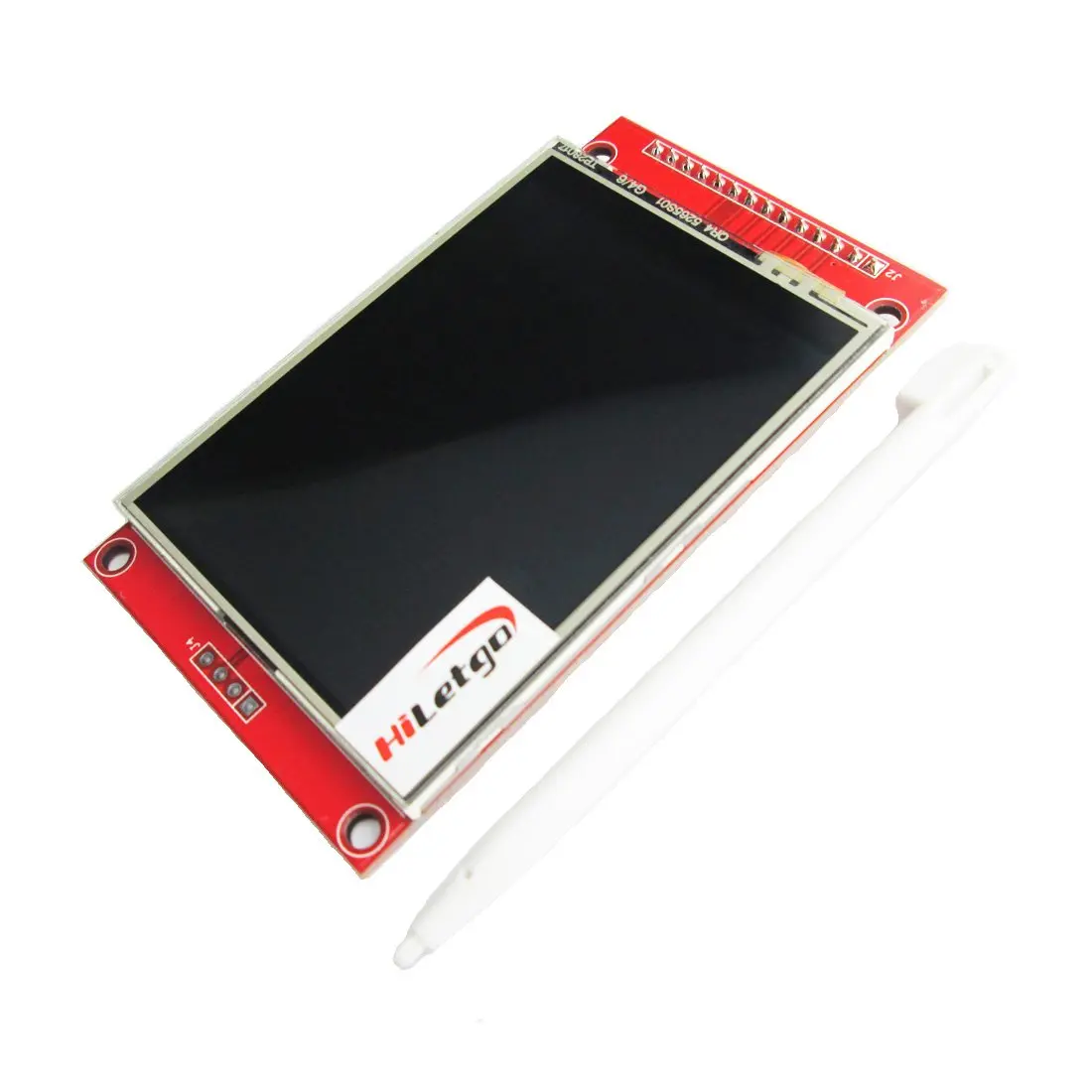

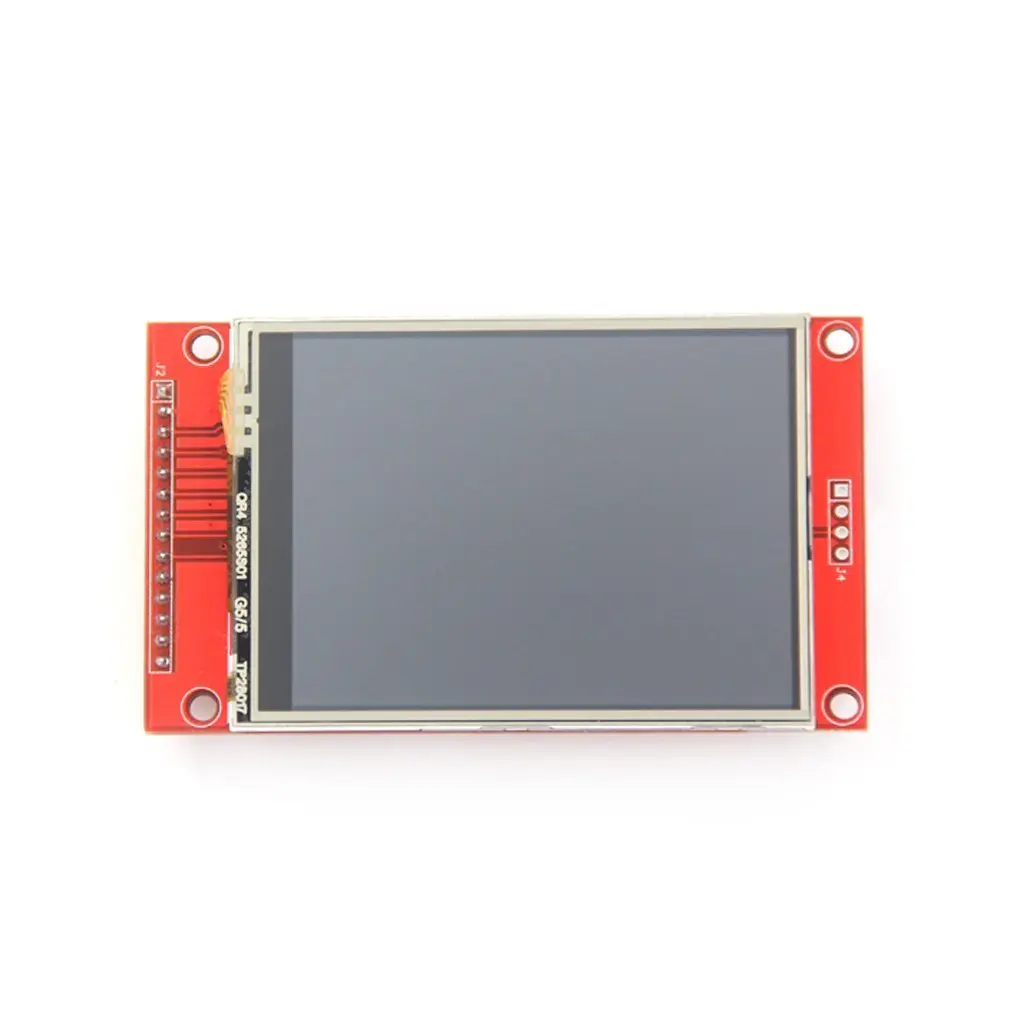

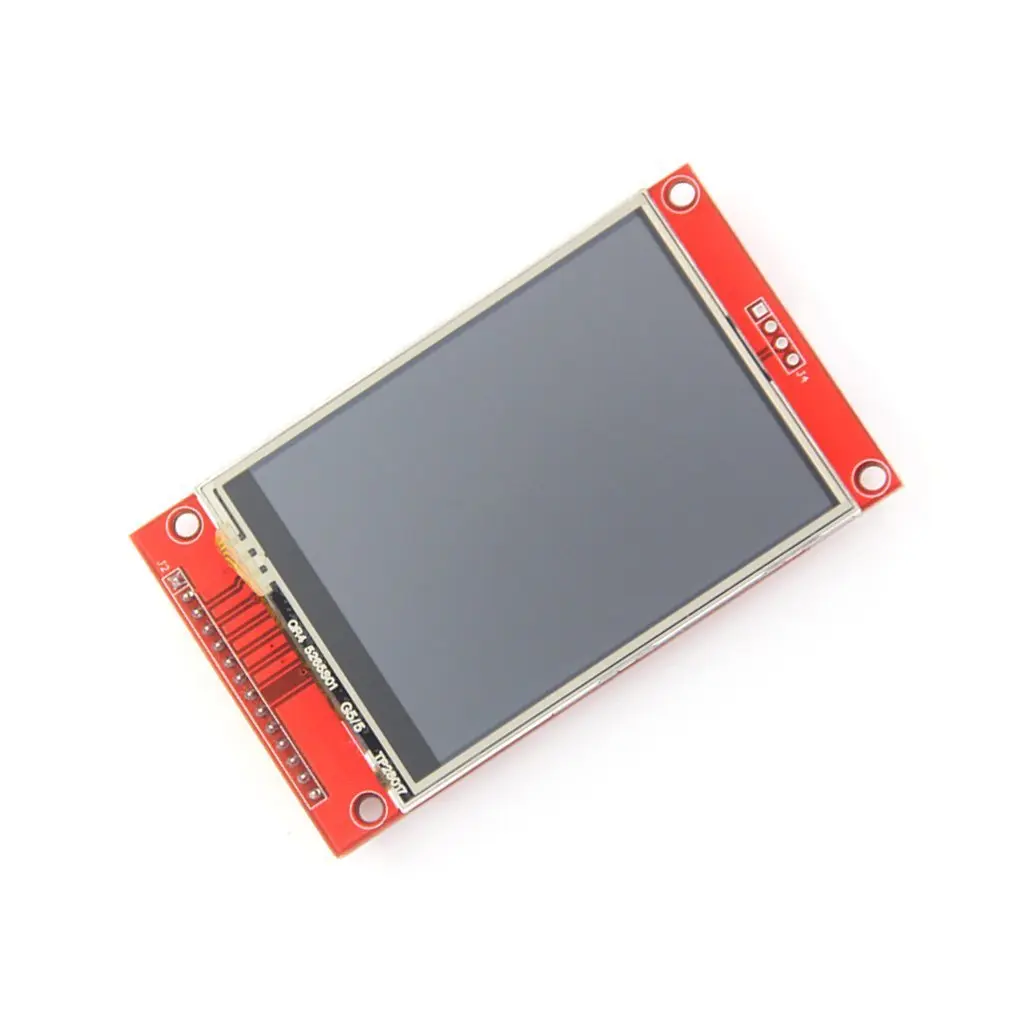

HiLetgo 2.8" SPI TFT LCD Touch Panel 240x320 with PCB | 5V/3.3V Logic Compatible
2,722
This item
HiLetgo 2.8" SPI TFT LCD Touch Panel 240x320 with PCB | 5V/3.3V Logic Compatible
2,722
Total price:
9,363
You save 3,998 (30%) Extra3 items selected
3 items
9,363You save 3,998 (30%) Extra
Why shop with us
One price. One payment. No surprises.
High risk
Buying Direct
Crowcrowcrow
Safe Lane
Build Your Next Project with Clarity
The HiLetgo 2.8" SPI TFT LCD Touch Panel is designed for embedded systems and DIY electronics, providing a clear 240x320 resolution display with a responsive touch interface. It supports both 5V and 3.3V logic, making it versatile for various microcontrollers like Arduino and STM32. This panel is imported from authorized US retailers and authorized brand partners, ensuring authenticity for your projects.
This display utilizes an a-Si TFT active matrix driver (ILI9341) with an RGB vertical stripe pixel arrangement and a white LED backlight. Reviewers note its value and suitability for prototyping, with some suggesting the use of buffer gates as level shifters for longer connection distances when using 5V logic. The panel requires at least 4 IOs from your MCU for operation.
For Indian makers, this panel offers a cost-effective solution compared to local alternatives, with all customs duties and GST included in the price. It is shipped via ExpressBox with tracking, ensuring a clear delivery timeline of 12-14 days.
Prototyping Versatility
This HiLetgo 2.8" SPI TFT LCD Touch Panel is a go-to for prototyping, offering a balance of features and affordability. Its 240x320 resolution and touch capability make it suitable for a wide range of embedded projects, from custom control interfaces to educational tools. While it requires careful wiring and potential level shifting for 5V systems, its value proposition is strong for makers seeking a functional display without overspending. Imported from authorized US retailers, it ensures you receive a genuine component for your builds.
Who It's For vs. Who Should Skip
Ideal for hobbyists, students, and engineers working on Arduino, STM32, or similar microcontroller projects requiring a clear, interactive display. It's perfect for custom dashboards, control panels, and educational kits. Skip if you need a high-refresh-rate display for video or complex graphics, as this panel's speed is best suited for static or slowly changing information. Also, ensure you have the necessary 4+ MCU IOs and are prepared to implement level shifting if using a 5V system.
Typical situations where HiLetgo 2.8" SPI TFT LCD Touch Panel 240x320 with PCB | 5V/3.3V Logic Compatible helps — illustrative scenarios, not customer reviews.
A maker in Bangalore needs a display for a custom home automation controller using an Arduino Uno.
This HiLetgo 2.8" SPI TFT LCD Touch Panel provides the necessary 240x320 resolution and touch input for user control. With 5V compatibility and level shifting, it integrates well with the Arduino Uno's logic, offering a clear interface for managing home devices.
A student in Delhi is building a portable weather station project with an STM32 microcontroller.
The 2.8" SPI TFT display offers sufficient screen real estate for displaying weather data. Its 3.3V logic compatibility is ideal for many STM32 boards, and the included PCB simplifies wiring for a compact, portable project.
| Recommended Use | DIY electronics, Arduino/STM32 projects, HMI interfaces, prototyping |
| Voltage Requirement | 5V or 3.3V logic (level shifting recommended for 5V) |
| Cost per unit | 1 unit at ₹2,722 — ₹2,722 per unit |
| Feature | HiLetgo 2.8" SPI | Others |
|---|---|---|
| Touch Technology | Resistive Touch Panel, supports stylus/gloved input. | Varies by brand; some local options may be capacitive, others resistive. Check specifications carefully. |
| Logic Voltage Compatibility | 5V/3.3V compatible, requires level shifting for 5V systems. | Local alternatives may offer fixed 5V or 3.3V operation; verify compatibility with your MCU. |
| Resolution & Size | 240x320 dots on 2.8" diagonal, ideal for detailed interfaces. | Local options vary widely in size and resolution; ensure it matches your project enclosure. |
| Integrated PCB & Features | Includes PCB with power IC and SD card interface for simplified integration. | Some local modules may require separate PCBs or lack integrated features like SD card slots. |
| Cost per Unit | 1 unit at ₹2,722 — ₹2,722 per unit |
About HiLetgo
HiLetgo specializes in electronic components and modules for hobbyists and professionals, offering reliable parts for DIY projects and prototyping.
