Helunsi IP68 Waterproof External Junction Box 2 Pack | 450V 24A Outdoor Wiring Connector

• IP68 Waterproof >>> The Helunsi outdoor junction box boasts an IP68 high-level waterproof rating, delivering superior weatherproof, moisture-proof, dust-proof, and anti-UV performance. As a reliable outdoor junction box, it is safe for use in direct sunlight, wet environments, rain, or snow, providing full protection for your connected cables.
• High-Quality Materials >>> This waterproof electrical junction box features excellent sealing performance with a high-quality PC plastic housing and a waterproof silicone gasket. It will not crack or fade in harsh environments. Highly corrosion- and high-temperature-resistant, this durable electrical junction box is built for years of reliable use.

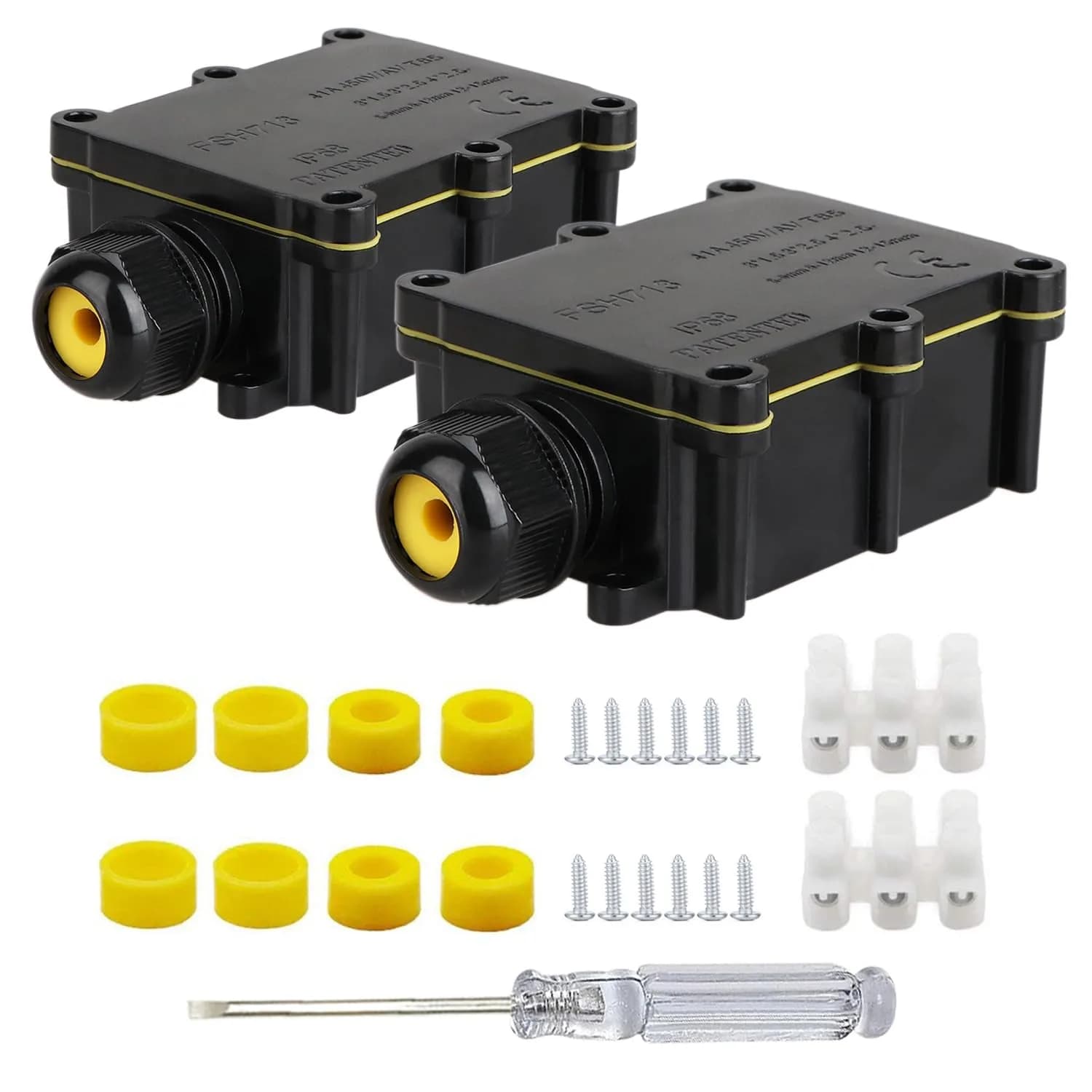

• Specification >>> Pack of 1. Internal dimensions: L 2.83 x W 1.89 x H 1.26 in. External dimensions: L 5.31 x W 2.72 x H 1.38 in. This 2-way junction box features one input and one output. The conduit cable gland includes 3 sets of silicone seals of different thicknesses, with an applicable cable size range of: 3/16" to 11/32", 11/32" to 15/32", 15/32" to 19/32" (5-9mm / 9-12mm / 12-15mm). Comes with 3 screw terminal connectors and a mounting kit. Maximum voltage: AC 450V. Maximum current: 24A.
• Easy to Install >>> This underground electrical junction box can be installed underground or on the wall, horizontally or vertically, serving as both an indoor and outdoor junction box. Tighten the exterior screws with a screwdriver to achieve a complete seal. It comes with a detachable cover, and the waterproof silicone gasket ensures a precise fit. By rotating and tightening the cable gland nuts at both ends, you can securely lock and seal the cables in this waterproof cable box.
• Wide Applications >>> Our Helunsi IP68 waterproof external junction box will protect connections for outdoor electrical appliances and wiring. It is suitable for external lighting facilities requiring weatherproof protection, such as street lights, irrigation systems, solar equipment, outdoor LED displays, garden lights, flood lights, landscape lights, pool light wiring assemblies, underground junction box wiring, and more.

• Prepare Cables — Strip the ends of the wires you need to connect, ensuring they are clean and ready for insertion into the junction box terminals.
• Insert Cables & Seal — Insert the cables through the appropriate sized cable glands on the junction box. Select the correct silicone seal for your cable diameter and tighten the gland nuts securely.
• Make Connections — Open the junction box, connect the wires to the internal screw terminals as required (e.g., live to live, neutral to neutral), and close the box.
• Secure & Mount — Tighten the exterior screws to achieve a complete seal. Mount the junction box horizontally or vertically in your desired outdoor location, ensuring it is stable and protected.
