What is the measuring range and accuracy of this digital laser tachometer?

This Thsinde digital laser tachometer measures rotational speeds from 2.5 to 99,999 RPM with an accuracy of +/- 0.02%. It provides precise readings for various industrial applications, ensuring reliable data for motors, machinery, and rotating devices.

How do I use the non-contact laser function?

To use the non-contact laser function, you need to attach a reflective strip (sold separately) to the rotating object. Then, aim the tachometer's laser from a distance of 50-500mm, and it will measure the RPMs based on the reflected light pulses over a 0.5-second sampling time.

Does this tachometer come with batteries or a reflective strip?

No, the battery is not included in the package, and neither is the reflective strip required for non-contact measurement. These must be purchased separately to operate the device.

Can this tachometer measure surface speed in addition to RPM?

This specific model is designed primarily for measuring rotational speed (RPM). While some tachometers offer surface speed measurement, this unit's specifications focus on RPM readings for motors and rotating machinery.

What is the difference between contact and non-contact tachometers?

A contact tachometer physically touches the rotating surface, often with an adapter, to measure speed. A non-contact tachometer, like this laser model, uses a beam of light and a reflective marker to measure RPM from a distance, offering greater safety and versatility for inaccessible or fast-moving parts.

How to choose a tachometer for industrial use in India?

When choosing a tachometer for industrial use in India, consider the required RPM range and accuracy, whether non-contact or contact measurement is needed, display readability, and power source availability. This Thsinde model offers a wide RPM range, high accuracy, and non-contact capability suitable for many Indian workshop needs.

Are there any side effects of using a laser tachometer?

Laser tachometers are generally safe when used as directed. The laser is typically low-power (Class II) and should not be pointed directly at eyes. Ensure you use the reflective tape correctly and maintain a safe distance from moving machinery during measurement.

What are the benefits of using a digital laser tachometer?

Digital laser tachometers offer precise, non-contact RPM measurement, improving safety and accuracy for a wide range of rotating equipment. They provide clear digital readouts, store important data like min/max values, and are versatile tools for industrial maintenance and diagnostics.

Thsinde Digital Laser Tachometer Non-Contact RPM Meter | Accurate Speed Measurement for Motors & Machinery

Name: Thsinde Handheld Digital Laser Tachometer Non-Contact RPM Meter 156 g (4.94 oz) | Measures Speed from 2.5-99999 RPM
Brand: Thsinde
SKU: fnq6186
Price: 3303.00 INR
Availability: InStock

About this item

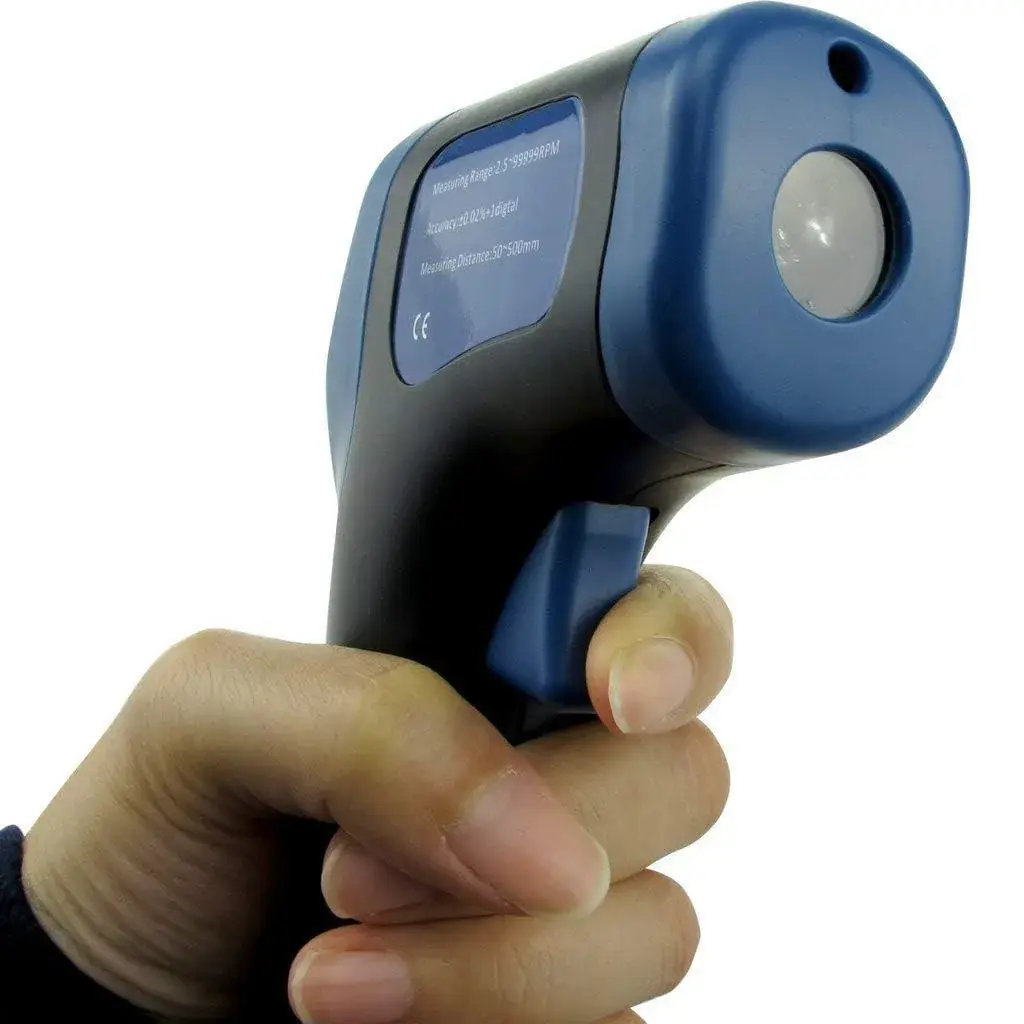

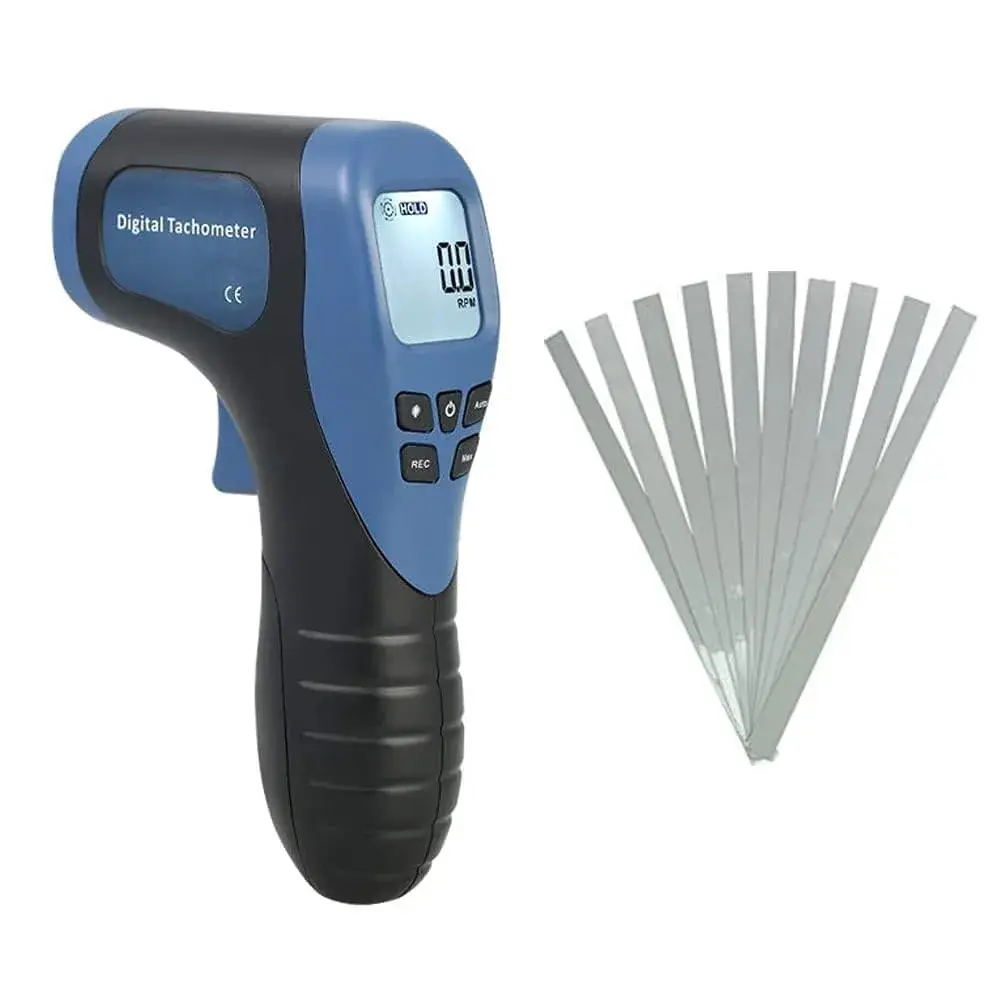

The Thsinde Handheld Digital Laser Tachometer provides precise, non-contact measurement of rotational speeds for various industrial applications. With a wide measuring range of 2.5 to 99,999 RPM and an impressive accuracy of +/- 0.02%, this device is suitable for motors, circular saws, lathes, and other rotating equipment. It operates effectively from a distance of 50-500mm (2-20 inches), ensuring user safety and convenience. The clear LCD screen displays readings, and the unit stores the last, minimum, and maximum values, alongside an auto-zero adjustment feature for ease of use.

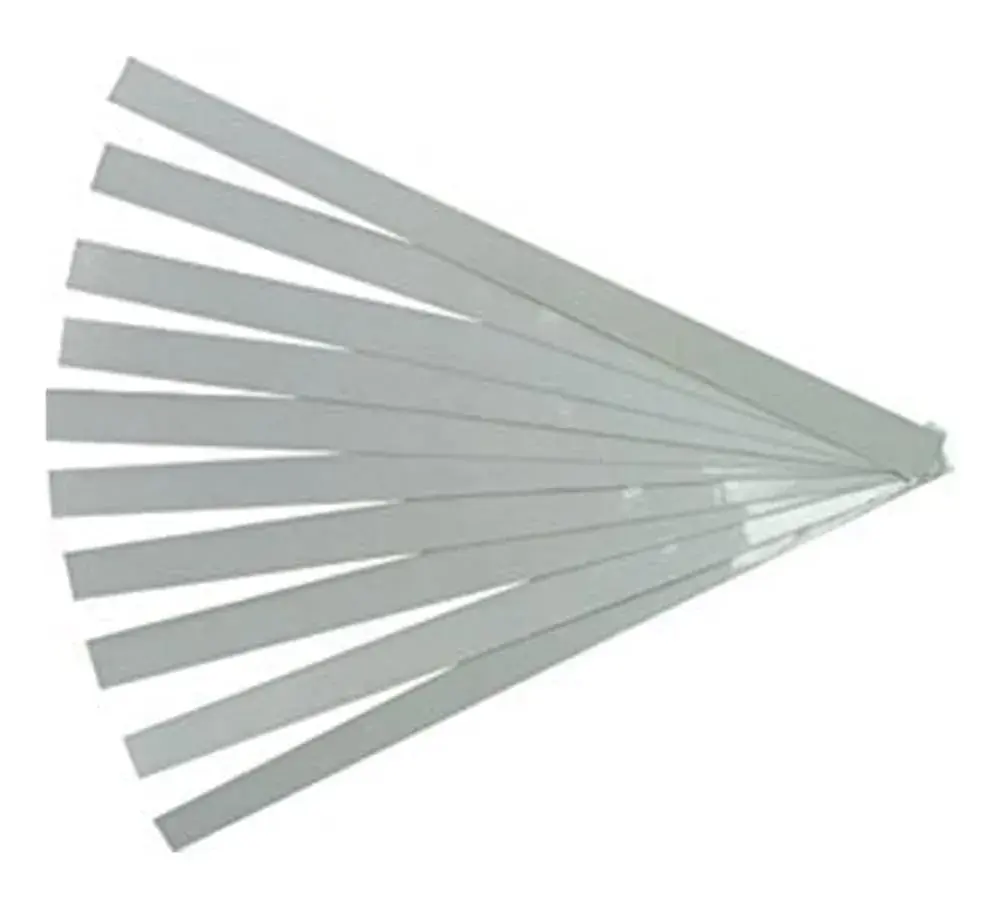

This tachometer requires a reflective strip (not included) to function in non-contact mode. The measurement process takes approximately 0.5 seconds, delivering quick and reliable data. Its compact and ergonomic design makes it easy to handle for extended use in workshops or on-site. The ABS plastic construction ensures durability for industrial environments.

For Indian users, this imported digital laser tachometer offers a reliable alternative for precise speed measurement in workshops and manufacturing settings. All customs duties and GST are included in the listed price, with delivery facilitated via ExpressBox for secure transit. Please note that batteries are not included and must be purchased separately.

Key Features

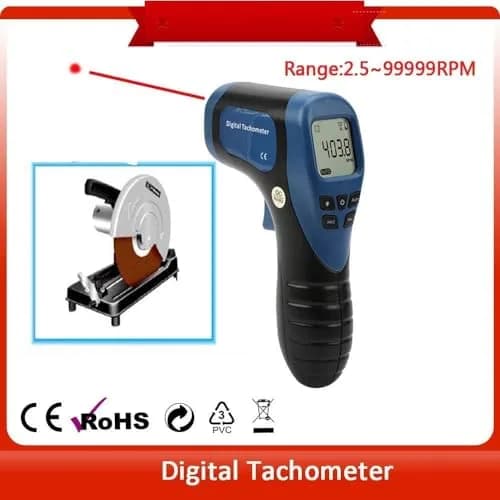

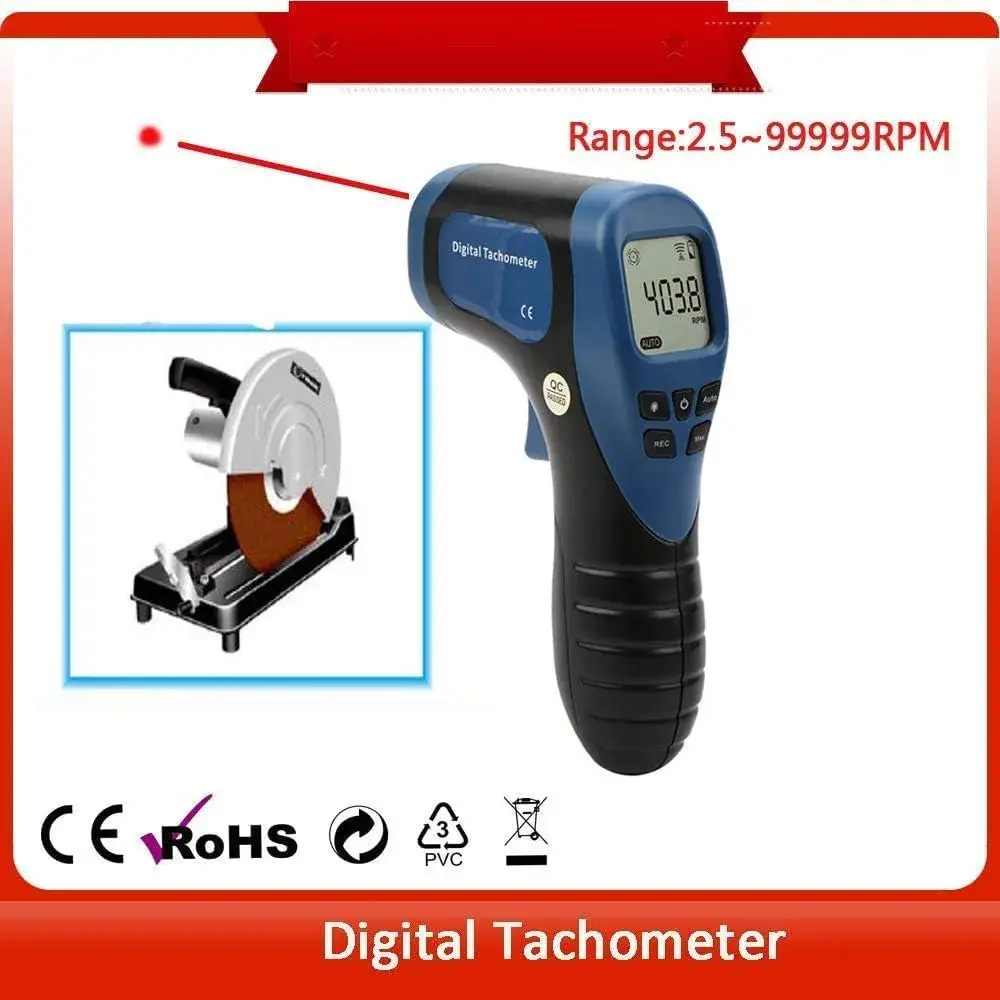

Measuring Range:2.5-99999RPM (Need to cooperate with reflective strip measurement)
Resolution:0.1RPM,at 2.5~999.9RPM;1RPM,at 1000~99,999 RPM

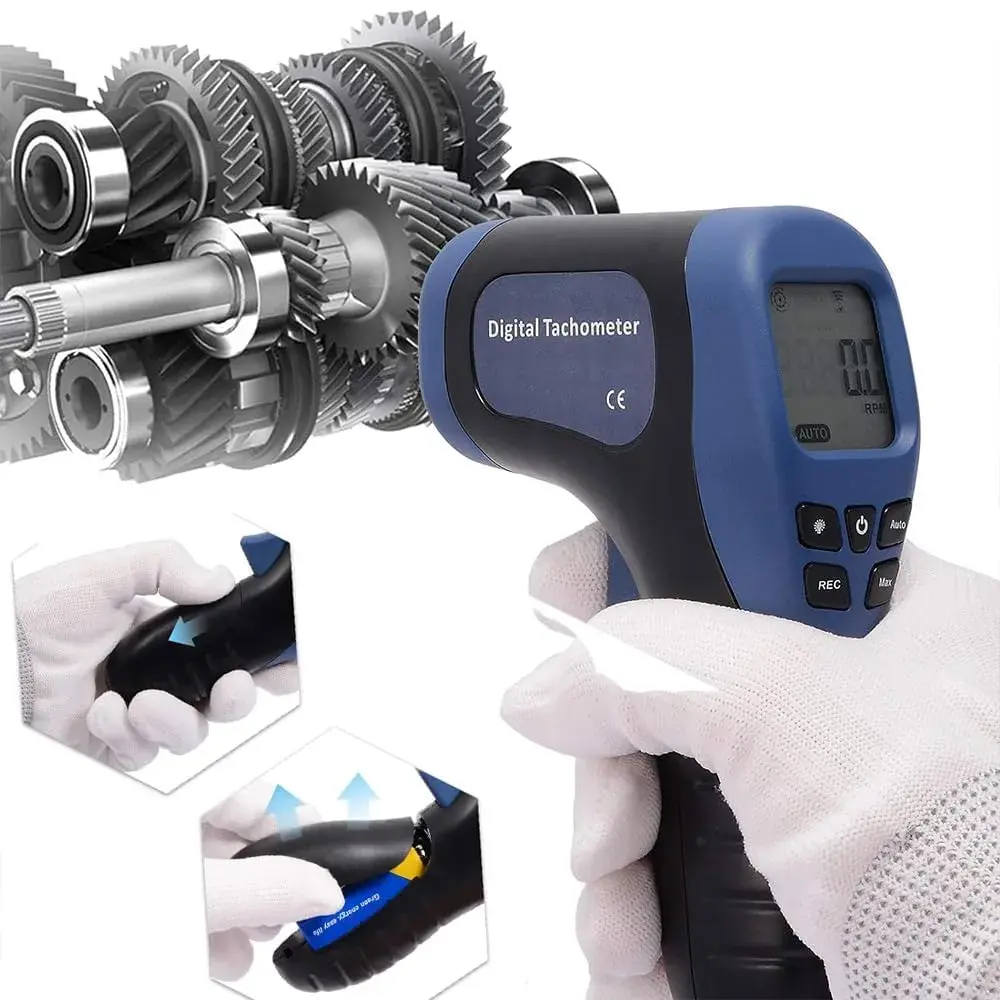

Measure RPMs of motors, machinery such as circular saws, speed of a lathes and other rotating devices
Accurate to +/- 0.02 percent and capable of measuring at a distance from 2-20 inches(50-500mm); RPMs measured over 0.5 second sampling time

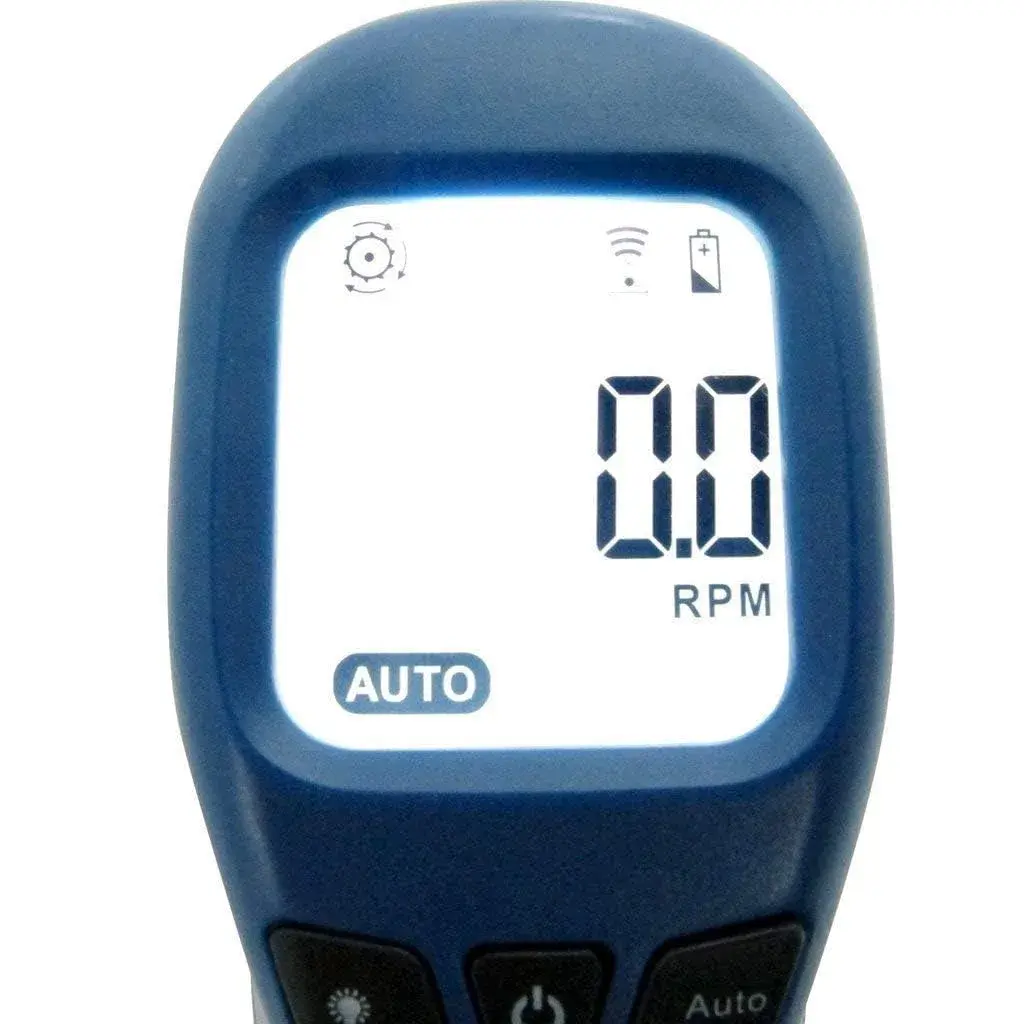

Readings are displayed on a large, easy-to-read LCD screen; stores last, minimum, and maximum reading; features auto-zero adjustment

Why choose this product

Precision Speed Measurement for Indian Industries

This digital laser tachometer offers the precision needed for accurate speed measurements in Indian workshops and manufacturing. Its non-contact laser technology ensures safety and versatility, measuring RPMs from 2.5 to 99,999 with +/- 0.02% accuracy at distances up to 500mm. The clear LCD display and memory functions for last, min, and max readings provide valuable data for performance monitoring and maintenance. Imported directly from authorized US retailers and authorized brand partners, it bypasses grey-market doubts, ensuring you receive a reliable tool for your industrial needs.

Who It's For vs. Who Should Skip It

This tachometer is ideal for engineers, mechanics, and technicians in India who need to measure the rotational speed of motors, machinery, circular saws, and lathes. It's perfect for maintenance, diagnostics, and quality control where precise RPM data is crucial. However, users requiring continuous or integrated logging capabilities, or those needing a device with built-in batteries, should consider alternative models. This unit requires separate purchase of batteries and reflective tape for operation.

How to use

Ensure the battery is installed and a reflective strip is securely attached to the rotating surface of the object you intend to measure. Clean the surface where the strip will be applied for optimal adhesion. — Prepare for Measurement

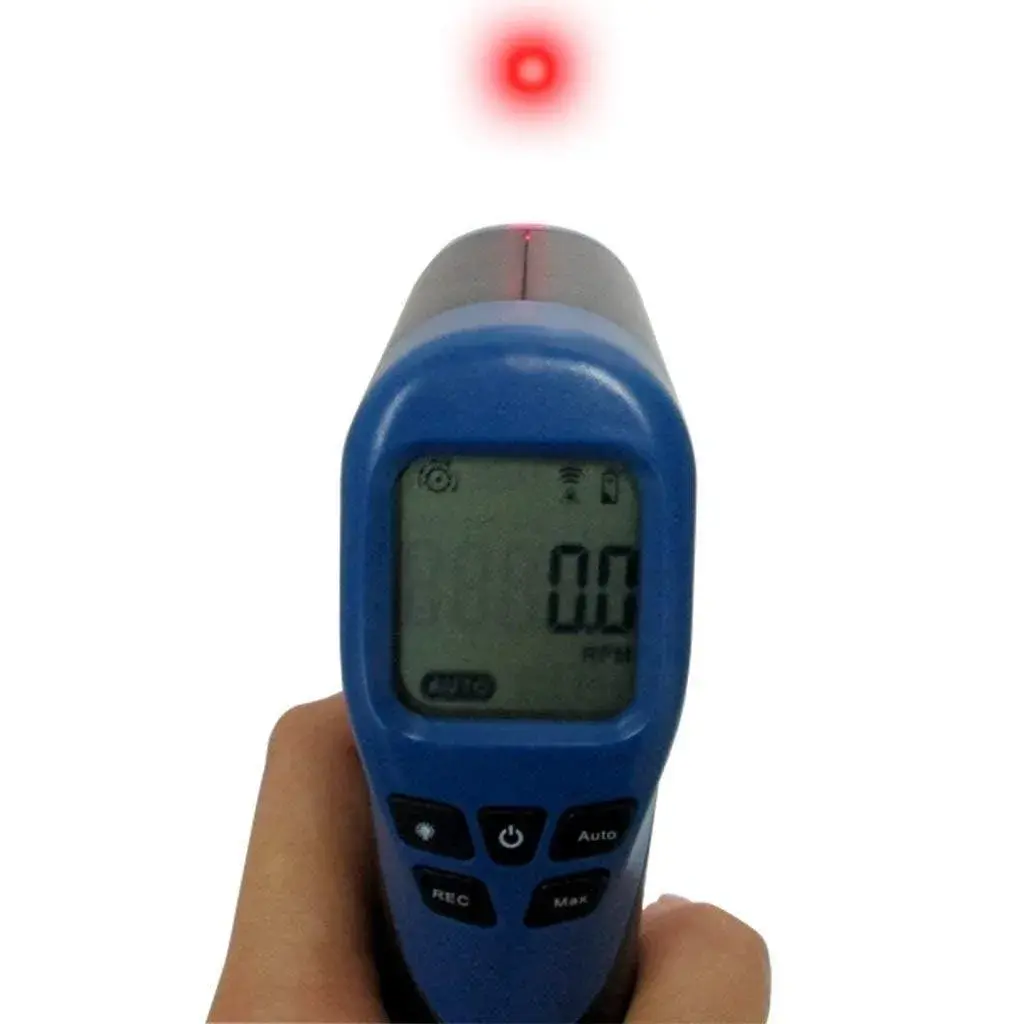

Turn on the tachometer and aim the laser beam at the reflective strip from a distance of 50-500mm. The device will automatically sample the rotation over 0.5 seconds and display the RPM reading on the LCD screen. — Aim and Measure
The tachometer stores the last, minimum, and maximum readings. Use the buttons to cycle through these values to analyze performance trends or identify speed variations. Note the auto-zero adjustment feature for convenience. — Record and Analyze Data

Example scenarios

Typical situations where Thsinde Handheld Digital Laser Tachometer Non-Contact RPM Meter 156 g (4.94 oz) | Measures Speed from 2.5-99999 RPM helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

A workshop in Chennai needs to measure the speed of various motors and circular saws for quality control.

How this product helps

This Thsinde digital laser tachometer provides accurate RPM readings up to 99,999 RPM from a safe distance, ensuring precise measurements for diverse machinery without direct contact, crucial for maintaining workshop standards.

Scenario 2

Illustrative example

Where it helps

A maintenance technician in Delhi needs to check the RPM of a lathe machine that is difficult to access directly.

How this product helps

The non-contact laser function allows measurement from up to 500mm away, making it easy and safe to check the lathe's speed without needing to reach close to moving parts, with clear readings on the LCD.

Specifications

Composition

Measurement Type	Non-Contact Laser / Contact (with adapter)
Display	Large LCD Screen
Data Storage	Last, Minimum, Maximum Readings
Auto-Zero Adjustment	Yes

Usage

Measuring Range	2.5 - 99,999 RPM
Accuracy	+/- 0.02%
Sampling Time	0.5 seconds
Measurement Distance	50 - 500 mm (2 - 20 inches)
Resolution	0.1 RPM (2.5-999.9 RPM); 1 RPM (1000-99,999 RPM)
Power Source	Requires separate battery purchase (not included)
Included Components	Tachometer unit only (reflective strip and batteries not included)
Cost per use	N/A (Durable item)

How we compare

Feature	Thsinde Handheld Digital	Others
Measurement Type	Non-Contact Laser & Contact Capable	Varies; some local models are contact-only, others offer basic non-contact
RPM Range	2.5 - 99,999 RPM	Typically 10-50,000 RPM for basic models
Accuracy	+/- 0.02%	Often +/- 0.05% or less precise
Measurement Distance	50 - 500 mm (2-20 inches)	Shorter effective range, often 5-100mm
Data Storage	Last, Min, Max Readings	Basic models may lack memory functions

SKU	fnq6186
GTIN	8414837655890
Brand	Thsinde
Model Number	TH458
Color	Blue
Material	ABS plastic
Item Weight	156 g (4.94 oz)
Item Package Weight	0.14 kg
Dimensions (L x W x H)	14.8 cm x 4.3 cm x 20.5 cm
Number of Items	1
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
